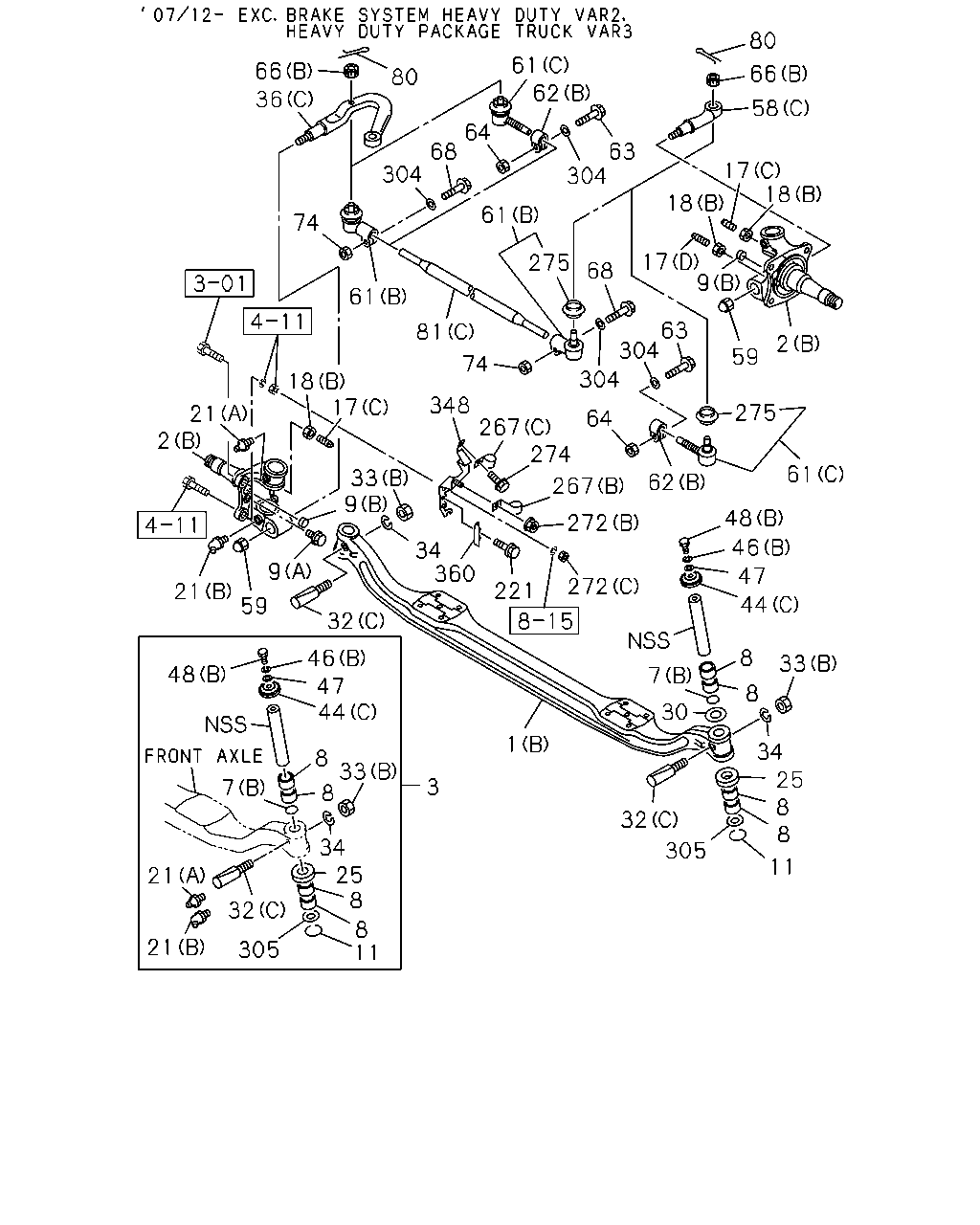

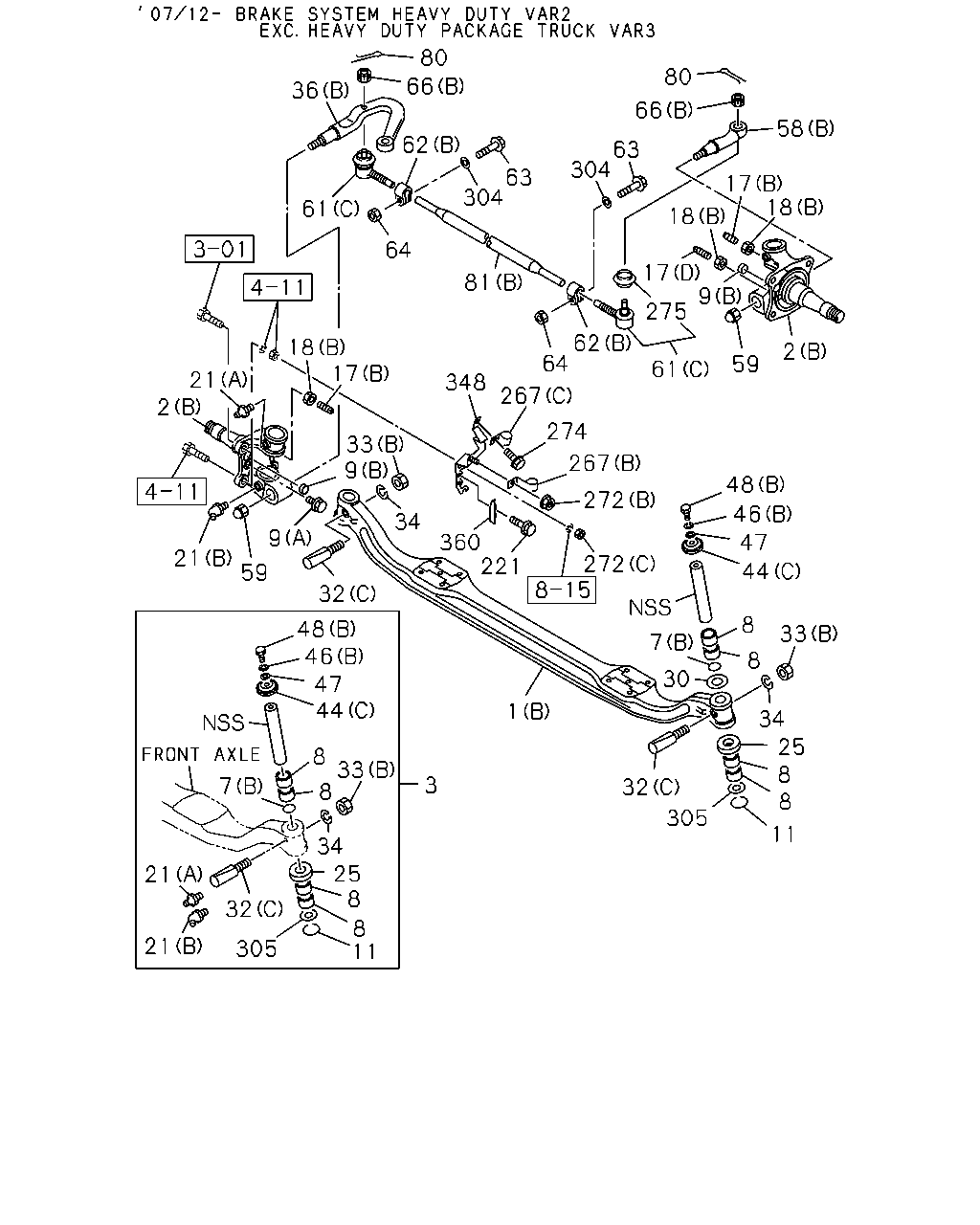

4-10 — FRONT AXLE (#33445) — 554 parça

80 80 66 36 66 58 62 63 304 63 304 17 18 61 18 64 17 9 81 275 62 64 18 17 2 59 61 21 2 348 267 274 33 9 267 48 272 46 34 9 360 221 47 21 59 272 44 32 8 48 46 47 44 33 7 8 30 1 34 25 8 8 8 33 8 3 7 32 305 11 34 25 8 21 32 8 11 21 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98057-479-2	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0712-		●
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43111-173-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43131-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-121-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43132-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-121-0	01	1	0712-	●
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-3	01	1	0712-	●
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-3	01	1	0712-	●
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-005-1	02	1	0712-	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0710-0711	●	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0712-		●
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-648-0	06	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	0712-	●
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	0712-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B) OD=22	1-09600-011-2	02	1	0712-1509	●
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1510-	●
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-058-0	01	1	0712-0805	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	0806-	●
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	0712-1509	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43116-013-1	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=102	1-43116-011-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=96	1-43116-012-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0712-		●
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-093-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-070-3	01	1	0712-	●
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-304-1	01	1	0712-1509	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0710-0711	●	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0712-		●
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-086-0	01	1	0712-	●
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0710-0711	●	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	0712-1311	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0710-0711	●	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	0712-1311	●
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2	0-91510-812-0	02	1	0712-	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0710-0711	●	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0712-1311		●
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43171-347-0	16	1	0712-1311	●
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	0712-	●
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X25	1-09009-081-0	02	1	0712-	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0710-0711	●	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0712-1311		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09000-781-0	16	1	0712-1311	●
48	BOLT; COVER (A)	8-98308-436-0	16	1	1312-		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98308-436-0	16	1	1312-	●
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-034-5	01	1	0712-	●
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-296-2	01	1	0712-1509	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-064-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43135-061-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-761-1	01	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-762-1	01	1	0712-	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-748-1	01	1	0712-1509	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-749-1	01	1	0712-1509	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH THREAD	1-43150-875-0	01	1	0712-	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH THREAD	1-43150-876-0	01	1	0712-	●
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-002-3	02	1	0712-	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0710-0711	●	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0712-		●
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-125-0	02	1	0712-	●
63	BOLT; CLAMP TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	0712-	●
64	NUT; CLAMP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-021-1	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-031-0	02	1	0806-	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0712-		●
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09442-030-0	02	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-133-0	01	1	0712-	●
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	0712-1509	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0710-0711	●	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0712-		●
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-156-0	01	1	0712-	●
221	BOLT; BRKT,SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	0712-1509	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=11 L=16	0-95235-025-0	02	1	0712-1509	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-1509	●
267	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	02	1	0710-0711	●	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=11 L=20	0-95235-035-0	02	1	0712-		●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=11 L=20	0-95235-035-0	02	1	0712-	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14	0-91110-514-0	02	1	0712-1509	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	0712-1509	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	0712-		●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	0712-1509	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	1510-		●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	1510-	●
275	BOOT; ROD END,TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	0712-	●
304	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	0712-	●
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	0712-	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98055-137-1	01	1	0712-1509	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98055-138-1	01	1	0712-1509	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-400-0	01	1	0712-1509	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-401-0	01	1	0712-1509	●

80 61 62 66 66 80 36 58 64 68 304 63 304 17 18 61 18 74 17 9 275 68 61 63 304 81 2 59 74 304 18 17 348 267 274 275 21 2 64 33 9 61 62 267 48 272 46 34 360 9 47 272 221 21 59 44 32 8 46 47 44 33 48 7 8 30 1 34 25 8 8 8 33 8 3 7 32 34 25 8 305 11 21 32 8 11 21 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98057-479-2	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0712-		●
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43111-173-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43131-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-121-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43132-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-121-0	01	1	0712-	●
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-295-3	01	1	0712-	●
3	KING PIN SET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-87831-296-3	01	1	0712-	●
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-005-1	02	1	0712-	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0710-0711	●	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0712-		●
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-648-0	06	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09811-339-0	08	1	0712-	●
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X14	8-97329-621-0	01	1	0712-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B) OD=22	1-09600-011-2	02	1	0712-1509	●
9	PLUG; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=22	1-09600-011-2	02	1	1510-	●
11	RING; SNAP,KNUCKLE PLUG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09589-017-1	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-058-0	01	1	0712-0805	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	0806-	●
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	0712-1509	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-031-0	01	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09829-033-1	01	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.900	1-43171-261-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.912	1-43171-262-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.925	1-43171-263-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.937	1-43171-264-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.950	1-43171-265-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.962	1-43171-266-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.975	1-43171-267-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=3.987	1-43171-268-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.000	1-43171-269-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.012	1-43171-270-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.025	1-43171-271-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.037	1-43171-272-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.050	1-43171-273-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.062	1-43171-274-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.075	1-43171-275-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.087	1-43171-276-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.100	1-43171-277-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.112	1-43171-278-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.125	1-43171-279-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.137	1-43171-280-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.150	1-43171-281-1	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.162	1-43171-311-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.175	1-43171-312-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.187	1-43171-313-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.200	1-43171-314-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.212	1-43171-315-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.225	1-43171-316-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.237	1-43171-317-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.250	1-43171-318-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.262	1-43171-319-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.275	1-43171-320-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.287	1-43171-321-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.300	1-43171-322-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.312	1-43171-323-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.325	1-43171-324-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.337	1-43171-325-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=4.350	1-43171-326-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43116-013-1	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=102	1-43116-011-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=96	1-43116-012-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0712-		●
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-093-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.2	0-91510-510-0	02	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-070-3	01	1	0712-	●
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-304-1	01	1	0712-1509	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0710-0711	●	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0712-		●
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-086-0	01	1	0712-	●
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0710-0711	●	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	0712-1311	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0710-0711	●	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	0712-1311	●
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2	0-91510-812-0	02	1	0712-	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0710-0711	●	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0712-1311		●
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43171-347-0	16	1	0712-1311	●
47	WASHER; PL,COVER,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	02	1	0712-	●
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X25	1-09009-081-0	02	1	0712-	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0710-0711	●	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0712-1311		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09000-781-0	16	1	0712-1311	●
48	BOLT; COVER (A)	8-98308-436-0	16	1	1312-		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98308-436-0	16	1	1312-	●
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-034-5	01	1	0712-	●
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-296-2	01	1	0712-1509	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-064-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43135-061-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M27 FLANGE	1-09449-082-0	02	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-761-1	01	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-762-1	01	1	0712-	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-748-1	01	1	0712-1509	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-749-1	01	1	0712-1509	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH THREAD	1-43150-875-0	01	1	0712-	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH THREAD	1-43150-876-0	01	1	0712-	●
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-002-3	02	1	0712-	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0710-0711	●	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0712-		●
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-125-0	02	1	0712-	●
63	BOLT; CLAMP TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	0712-	●
64	NUT; CLAMP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-021-1	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-031-0	02	1	0806-	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0712-		●
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09442-030-0	02	1	0712-	●
68	BOLT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X45 FLANGE	0-28061-245-0	02	1	0712-1509	●
74	NUT; TIE ROD END EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	0-91110-512-0	02	1	0712-1509	●
80	PIN; SPLIT,ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=22	0-81124-022-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-133-0	01	1	0712-	●
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	0712-1509	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0710-0711	●	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0712-		●
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-156-0	01	1	0712-	●
221	BOLT; BRKT,SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	0712-1509	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=11 L=16	0-95235-025-0	02	1	0712-1509	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-1509	●
267	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	02	1	0710-0711	●	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=11 L=20	0-95235-035-0	02	1	0712-		●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=11 L=20	0-95235-035-0	02	1	0712-	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14	0-91110-514-0	02	1	0712-1509	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	0712-1509	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	0712-		●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	0712-1509	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	1510-		●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	1510-	●
275	BOOT; ROD END,TIE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85574-046-0	02	1	0712-	●
304	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5	0-91614-512-0	02	1	0712-	●
305	COVER; KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43175-030-0	02	1	0712-	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98055-137-1	01	1	0712-1509	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98055-138-1	01	1	0712-1509	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-400-0	01	1	0712-1509	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-401-0	01	1	0712-1509	●

272 48 46 267 274 353 364 225 44 225 36 45 14 7 7 2 14 7 45 22 69 18 66 58 355 60 17 321 44 46 225 48 225 364 28 33 32 33 61 37 62 81 62 32 29 1 60 355 2 58 66 69 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98057-479-2	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-173-0	01	1	0712-		●
1	AXLE; FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43111-173-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43131-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43132-127-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43131-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	1-43132-128-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43131-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43131-121-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-121-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) (A)	1-43132-121-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43132-121-0	01	1	0712-	●
7	SEAL; OIL,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09625-005-1	02	1	0712-	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0710-0711	●	●
7	SEAL; OIL,KING PIN (A)	1-09625-648-0	06	1	0712-		●
7	SEAL; OIL,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-648-0	06	1	0712-	●
14	BUSHING; KING PIN	1-43141-014-0	04	1	0710-0711	●	●
14	BUSHING; KING PIN	1-43141-014-0	04	1	0712-		●
14	BUSHING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43141-014-0	04	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X60	8-98075-155-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-058-0	01	1	0712-0805	●
17	BOLT; STOPPER KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X47	1-09009-191-0	01	1	0806-	●
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14X53	8-98065-261-0	02	1	0712-1509	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-09009-184-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09009-184-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14	0-91112-814-0	03	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-09440-096-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-096-0	02	1	0712-	●
22	PIN; KING,FRT AXLE	1-43161-018-0	02	1	0710-0711	●	●
22	PIN; KING,FRT AXLE	1-43161-018-0	02	1	0712-		●
22	PIN; KING,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43161-018-0	02	1	0712-	●
28	WASHER; KING PIN T=0.80	1-43171-341-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=0.80	1-43171-341-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.80	1-43171-341-0	AR	1	0712-	●
28	WASHER; KING PIN T=1.00	1-43171-342-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=1.00	1-43171-342-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=1.00	1-43171-342-0	AR	1	0712-	●
28	WASHER; KING PIN T=0.12	1-43171-343-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=0.12	1-43171-343-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.12	1-43171-343-0	AR	1	0712-	●
28	WASHER; KING PIN T=0.25	1-43171-344-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=0.25	1-43171-344-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.25	1-43171-344-0	AR	1	0712-	●
28	WASHER; KING PIN T=0.40	1-43171-345-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=0.40	1-43171-345-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.40	1-43171-345-0	AR	1	0712-	●
28	WASHER; KING PIN T=0.60	1-43171-346-0	AR	1	0710-0711	●	●
28	WASHER; KING PIN T=0.60	1-43171-346-0	AR	1	0712-		●
28	WASHER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> T=0.60	1-43171-346-0	AR	1	0712-	●
29	BEARING; KING PIN	1-09829-047-0	02	1	0710-0711	●	●
29	BEARING; KING PIN	1-09829-047-0	02	1	0712-		●
29	BEARING; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09829-047-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43116-013-1	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=70	1-43116-009-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=70	1-43116-009-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (B) L=64	1-43116-010-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=64	1-43116-010-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=102	1-43116-011-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=102	1-43116-011-0	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=96	1-43116-012-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=96	1-43116-012-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-09440-093-0	04	1	0712-		●
33	NUT; KEY BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09440-093-0	04	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43133-070-3	01	1	0712-	●
36	ARM; KNUCKLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-304-1	01	1	0712-1509	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0710-0711	●	●
36	ARM; KNUCKLE (A)	1-43133-086-0	01	1	0712-		●
36	ARM; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43133-086-0	01	1	0712-	●
37	BOLT; KNUCKLE ARM	1-09000-780-0	02	1	0710-0711	●	●
37	BOLT; KNUCKLE ARM	1-09000-780-0	02	1	0712-		●
37	BOLT; KNUCKLE ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-780-0	02	1	0712-	●
44	COVER; KING PIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-031-0	02	1	0712-	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0710-0711	●	●
44	COVER; KING PIN (A)	1-43175-028-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-028-0	02	1	0712-1311	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0710-0711	●	●
44	COVER; KING PIN (B)	1-43175-029-0	02	1	0712-1311		●
44	COVER; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-029-0	02	1	0712-1311	●
45	GASKET; KING PIN COVER	1-42319-207-0	04	1	0710-0711	●	●
45	GASKET; KING PIN COVER	1-42319-207-0	04	1	0712-		●
45	GASKET; KING PIN COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-207-0	04	1	0712-	●
46	WASHER; LK,COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=12.2	0-91510-812-0	02	1	0712-	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0710-0711	●	●
46	WASHER; LK,COVER (A)	1-43171-347-0	16	1	0712-1311		●
46	WASHER; LK,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43171-347-0	16	1	0712-1311	●
48	BOLT; COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X25	1-09009-081-0	02	1	0712-	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0710-0711	●	●
48	BOLT; COVER (A)	1-09000-781-0	16	1	0712-1311		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09000-781-0	16	1	0712-1311	●
48	BOLT; COVER (A)	8-98308-436-0	16	1	1312-		●
48	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98308-436-0	16	1	1312-	●
58	ARM; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43135-034-5	01	1	0712-	●
58	ARM; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98037-296-2	01	1	0712-1509	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-064-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43134-064-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-061-0	01	1	0712-		●
58	ARM; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43135-061-0	01	1	0712-	●
60	BOLT; TIE ROD ARM	1-09000-779-0	04	1	0710-0711	●	●
60	BOLT; TIE ROD ARM	1-09000-779-0	04	1	0712-		●
60	BOLT; TIE ROD ARM HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09000-779-0	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-761-1	01	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43150-762-1	01	1	0712-	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-748-1	01	1	0712-1509	●
61	ROD END; TIE ROD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43150-749-1	01	1	0712-1509	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) LH THREAD	1-43150-875-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH THREAD	1-43150-875-0	01	1	0712-	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A) RH THREAD	1-43150-876-0	01	1	0712-		●
61	ROD END; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH THREAD	1-43150-876-0	01	1	0712-	●
62	CLAMP; TIE ROD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43159-002-3	02	1	0712-	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0710-0711	●	●
62	CLAMP; TIE ROD (A)	1-43159-125-0	02	1	0712-		●
62	CLAMP; TIE ROD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43159-125-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-021-1	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 SLOTTED	1-09442-031-0	02	1	0806-	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-09442-030-0	02	1	0712-		●
66	NUT; TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09442-030-0	02	1	0712-	●
69	PIN; SPLIT,TIE ROD END	1-09987-283-0	02	1	0710-0711	●	●
69	PIN; SPLIT,TIE ROD END	1-09987-283-0	02	1	0712-		●
69	PIN; SPLIT,TIE ROD END HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09987-283-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43151-133-0	01	1	0712-	●
81	ROD; TIE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98038-703-1	01	1	0712-1509	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0710-0711	●	●
81	ROD; TIE (A)	1-43151-156-0	01	1	0712-		●
81	ROD; TIE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43151-156-0	01	1	0712-	●
225	NIPPLE; GREASE,COVER (B)	1-43175-036-0	02	1	1312-		●
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-036-0	02	1	1312-	●
225	NIPPLE; GREASE,COVER (A)	1-43004-702-0	04	1	0710-0711	●	●
225	NIPPLE; GREASE,COVER (A)	1-43004-702-0	04	1	0712-1311		●
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43004-702-0	04	1	0712-1311	●
225	NIPPLE; GREASE,COVER (C)	1-43175-035-0	02	1	1312-		●
225	NIPPLE; GREASE,COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-43175-035-0	02	1	1312-	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=11 L=16	0-95235-025-0	02	1	0712-1509	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-1509	●
267	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	02	1	0710-0711	●	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=11 L=20	0-95235-035-0	02	1	0712-		●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=11 L=20	0-95235-035-0	02	1	0712-	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M14	0-91110-514-0	02	1	0712-1509	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	0712-1509	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	0712-		●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	0712-1509	●	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	1510-		●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	1510-	●
321	BUSHING; KNUCKLE	1-83129-474-0	02	1	0710-0711	●	●
321	BUSHING; KNUCKLE	1-83129-474-0	02	1	0712-		●
321	BUSHING; KNUCKLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-83129-474-0	02	1	0712-	●
353	STUD; BRACKET M8X11,M8X25 L=45	8-97220-552-2	04	1	0710-0711	●	●
353	STUD; BRACKET ANTI LOCK BRAKE(JE5) M8X11,M8X25 L=45	8-97220-552-2	04	1	0712-		●
353	STUD; BRACKET ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X11,M8X25 L=45	8-97220-552-2	04	1	0712-	●
355	WIRE; LOCK EXC. ANTI LOCK BRAKE(JE5)	1-43004-703-0	06	1	0712-		●
355	WIRE; LOCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	1-43004-703-0	06	1	0712-	●
355	WIRE; LOCK	1-43004-703-0	03	1	0710-0711	●	●
355	WIRE; LOCK ANTI LOCK BRAKE(JE5)	1-43004-703-0	03	1	0712-		●
355	WIRE; LOCK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-43004-703-0	03	1	0712-	●
364	COVER ASM; KING PIN (A)	1-43175-038-0	02	1	1312-		●
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-43175-038-0	02	1	1312-	●
364	COVER ASM; KING PIN (B)	1-43175-039-0	02	1	1312-		●
364	COVER ASM; KING PIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-43175-039-0	02	1	1312-	●

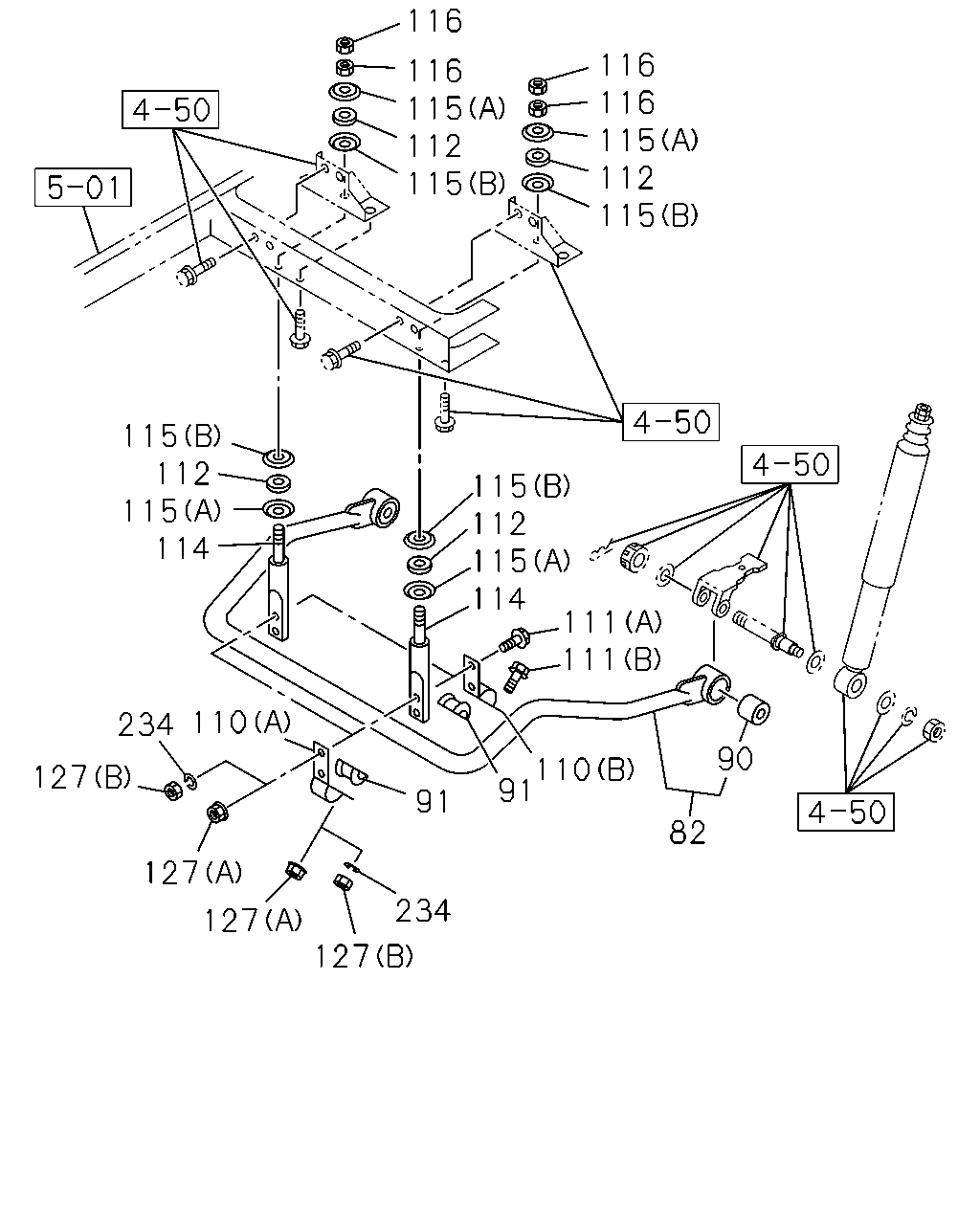

116 116 116 115 112 115 116 115 112 115 115 112 115 114 112 115 114 111 111 110 234 90 110 91 127 91 82 127 234 127 127 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	0710-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	0710-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0710	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	0711-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE	0-91180-212-0	06	1	0710-0710	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (B) M12	0-91110-512-0	06	1	0711-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0711-	●	●

105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0710-0711	●	●
105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0712-		●
105	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) M8X12 FLANGE	0-28050-812-0	04	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
