Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#33443) — 196 parça

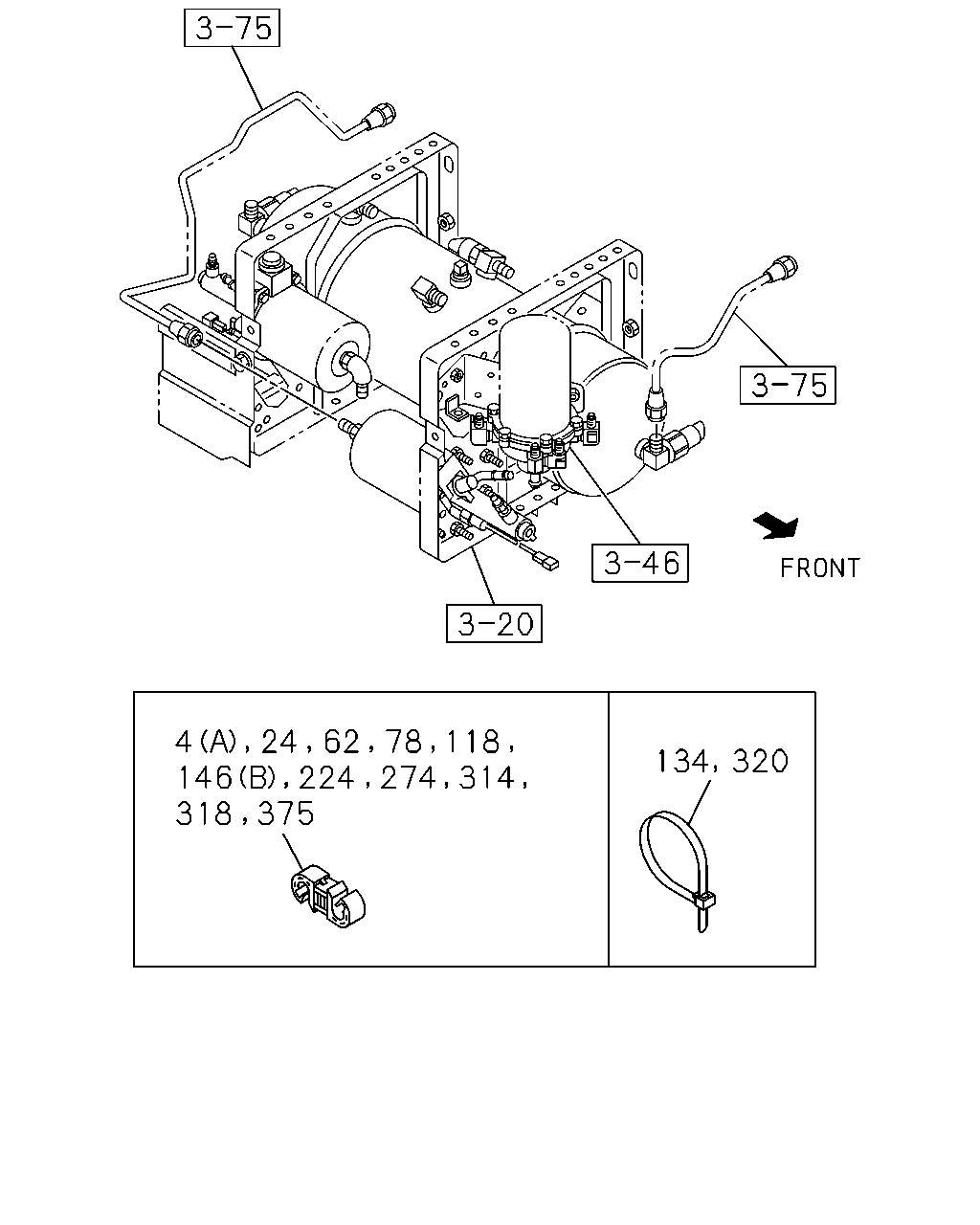

4 24 62 78 118 314 274 224 146 318 375 134 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0808-0912	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1001-	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	0808-0912	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	1001-	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0807		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0807	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0912	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0912	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0710-	●	●
24	CLIP; PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	0812-1107	●
24	CLIP; PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901	●	●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0809	●	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901	●	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0710-0901	●	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=6.35 & 12	1-09709-275-1	01	1	0812-0906		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	0812-0906	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=6.35 & 12	1-09709-275-1	01	1	0907-0912		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	0907-0912	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1001-1107		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1001-1107	●
118	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1108-		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1108-	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=4.76 & 6.35	1-09709-304-0	01	1	0812-0906		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	0812-0906	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=4.76 & 6.35	1-09709-304-0	01	1	0907-0912		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	0907-0912	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1001-1107		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1001-1107	●
118	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1108-		●
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1108-	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0804-	●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	02	1	0710-0710	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0711-0910	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0911-	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0911-	●	●
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0712-0808	●
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0809-0809	●	●
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0809-	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0710-0711	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0808		●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0712-0808	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0809	●	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0901	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0809-0901	●	●
224	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0809-0901	●	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-0912	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-0912		●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10 & 10	1-09709-277-1	01	1	0902-0912	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	1001-	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10 & 10	1-09709-277-1	01	1	1001-	●	●
224	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	03	1	0710-0901	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0710-0711	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0712-0808		●
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0712-0808	●
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0809-	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0803	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0804-0808	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0710-0901	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-	●	●
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	0809-1011	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1012-1107		●
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1012-1107	●
318	CLIP; AIR PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-		●
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 15	1-09709-276-1	01	1	0809-0811	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	01	1	0812-1011	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	01	1	1012-		●
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	01	1	1012-	●
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250	5-09707-030-1	01	1	0809-0811	●	●
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0812-1011	●	●
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	1012-		●
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	1012-	●
375	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●

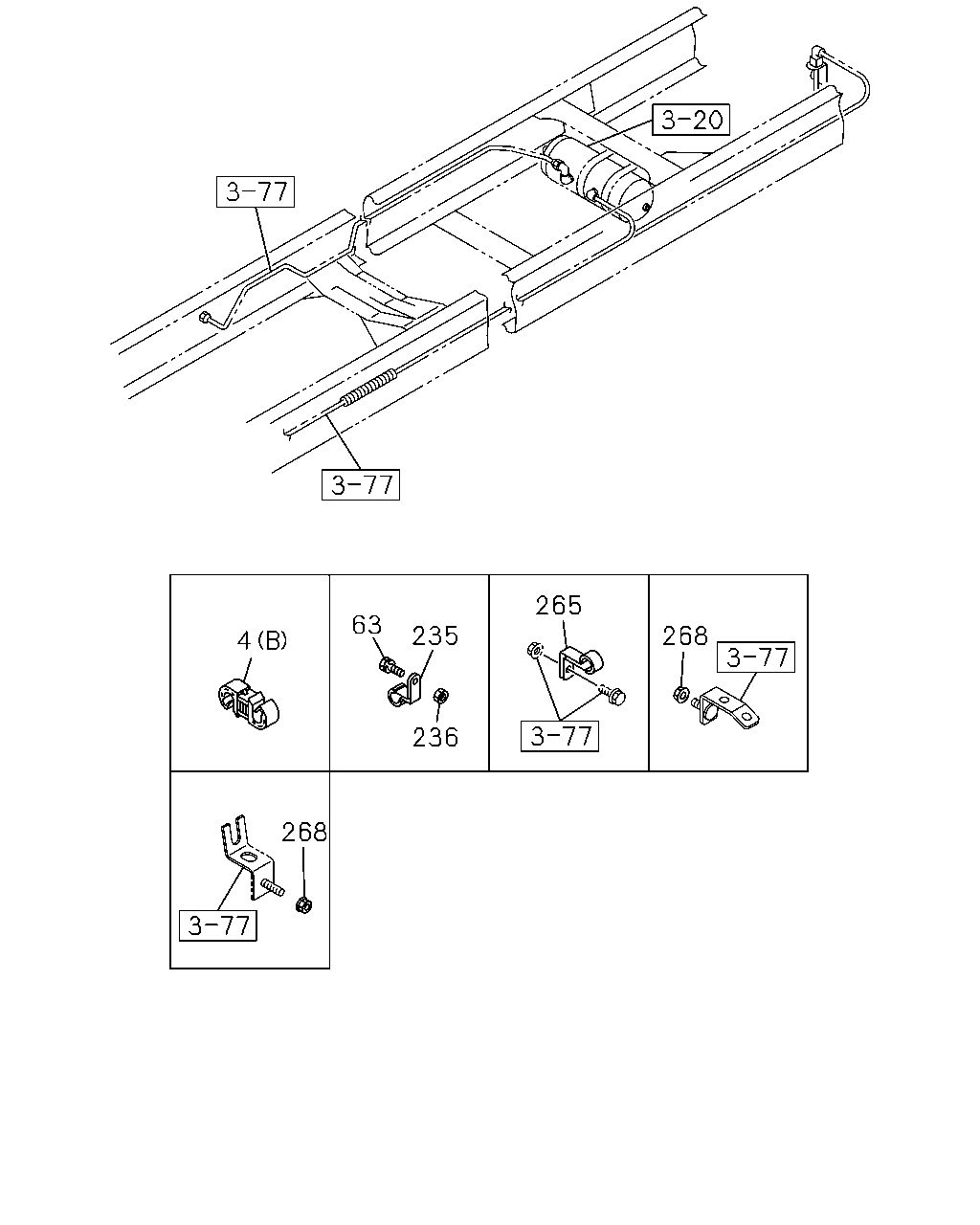

265 63 235 268 4 236 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0808-0912	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1001-	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	0808-0912	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	1001-	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0807		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0807	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0808-0808	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0912	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0912	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-	●	●
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0710-	●	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) M8X25 FLANGE	0-28650-825-0	03	1	1012-	●
63	BOLT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0809-	●
63	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0710-0711		●
63	BOLT; CLIP WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
63	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0712-0808		●
63	BOLT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0808	●
63	BOLT; CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0809-		●
63	BOLT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0809-	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	03	1	0710-0710	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0712-1011	●
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) ID=11 H=20 L=20	8-98033-780-0	03	1	1012-	●
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	04	1	0809-	●
235	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	0710-0711	●	●
235	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	06	1	0712-0808		●
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	0712-0808	●
235	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	0809-		●
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	0809-	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	03	1	0710-0710	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) ID=11 H=20 L=20	8-98033-780-0	02	1	0710-0711	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-1011	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) ID=11 H=20 L=20	8-98033-780-0	02	1	1012-	●
236	NUT; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) M8 FLANGE	0-91180-108-0	03	1	1012-	●
236	NUT; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) M8 FLANGE	0-91180-108-0	01	1	1012-	●
236	NUT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0809-	●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0710-0711		●
236	NUT; CLIP WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0710-0711	●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0712-0808		●
236	NUT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0712-0808	●
236	NUT; CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0809-		●
236	NUT; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0809-	●
236	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	0710-0710	●
236	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
236	NUT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0712-1010	●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1011-	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-0711	●	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-0808		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-0808	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0809-	●	●
268	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0710	●	●
268	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0712-0808	●
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0809-	●

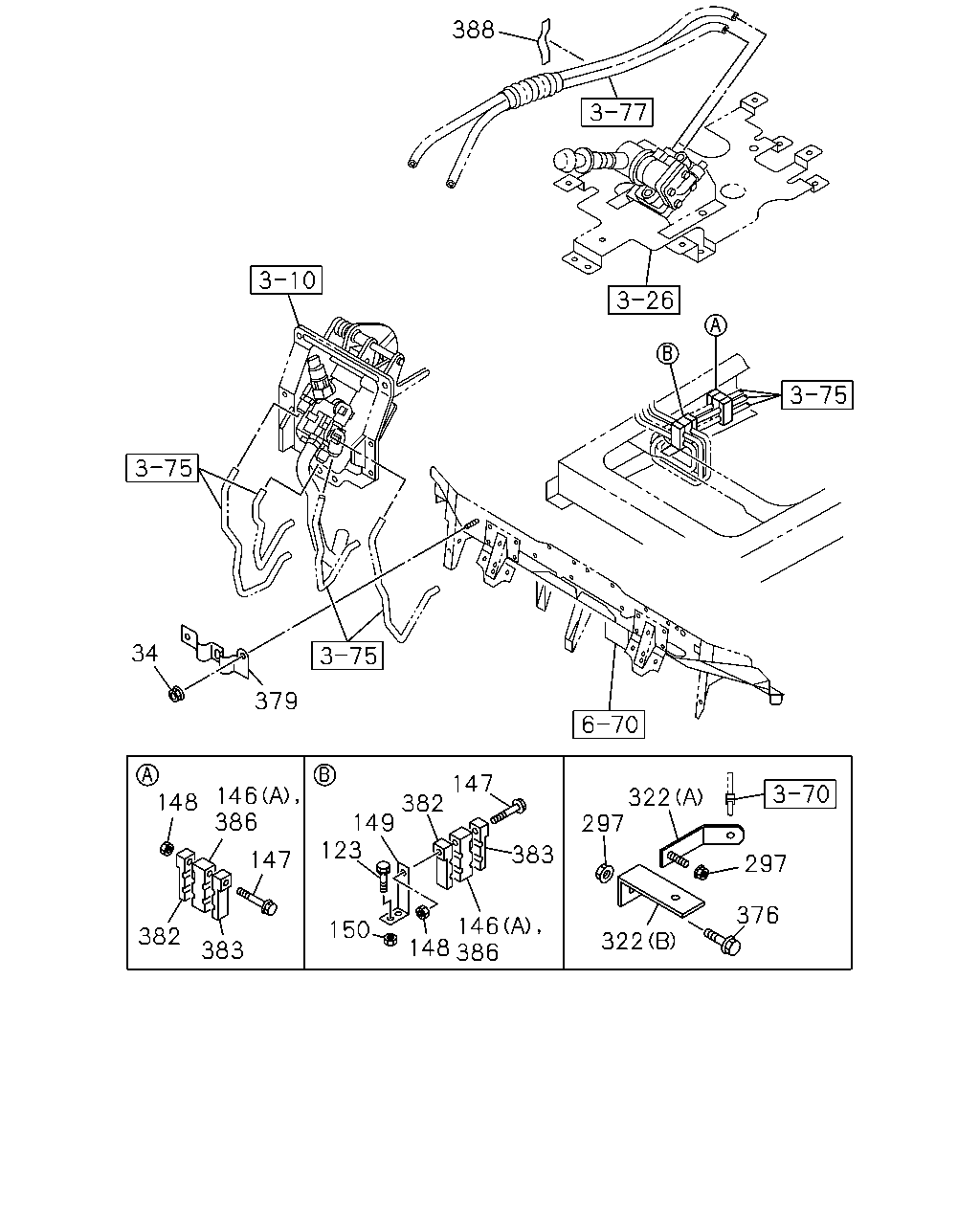

388 34 379 148 147 382 149 123 146 386 322 297 383 147 297 376 146 148 386 150 382 322 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	02	1	0710-0710	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0711-0910	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0911-	●	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0911-	●	●
147	BOLT; PIPE CLIP 4HK1-TCS ENG(RJS) M8X70 FLANGE	0-28050-870-0	03	1	1012-	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0710-1011	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1012-		●
147	BOLT; PIPE CLIP 6HK1-TCN ENG(82L) M8X70 FLANGE	0-28050-870-0	04	1	1012-	●
148	NUT; PIPE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1012-	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-1011	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1012-		●
148	NUT; PIPE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	1012-	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0710-1409	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
297	NUT; BRKT WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	02	1	0712-0808	●
297	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	02	1	0809-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
297	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	0809-0906		●
297	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	0809-0906	●
297	NUT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	0907-		●
297	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	0907-	●
322	BRACKET; CLIP WHEEL BASE 5500MM(55W) (B) L=55 B=25	1-47478-439-0	01	1	0710-0710	●	●
322	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	1-47479-936-1	01	1	0710-0808	●	●
322	BRACKET; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	01	1	0809-0906		●
322	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	01	1	0809-0906	●
322	BRACKET; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	01	1	0907-		●
322	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	01	1	0907-	●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W) (A)	1-47479-936-1	02	1	0710-0711	●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A)	1-47479-936-1	02	1	0712-0808	●
322	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	02	1	0809-	●
376	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0710	●	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0710-	●	●
382	CLIP; UPR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	1012-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0710-1011	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1012-		●
382	CLIP; UPR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1012-	●
383	CLIP; LWR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	1012-	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0710-1011	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	1012-		●
383	CLIP; LWR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1012-	●
386	CLIP; CENTER 4HK1-TCS ENG(RJS) ID=10	1-09709-242-0	03	1	1012-	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0710-1011	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1012-		●
386	CLIP; CENTER 6HK1-TCN ENG(82L) ID=10	1-09709-242-0	04	1	1012-	●
388	SEAL 100X40	1-72498-022-1	03	1	0710-0711	●	●
388	SEAL 100X40	1-72498-022-1	03	1	0712-0808		●
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0712-0808	●
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0809-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
