◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#33442) — 221 parça
çizim 178664
318 97 144 98 37 223 192
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 0710-0711 ● ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 0712-0808 ●
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 0712-0808 ●
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 0809- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712-0808 ●
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0712-0808 ●
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809- ● ●
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=990 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=967 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0711 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 5500MM(55W) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0711 ●
144 PIPE; AIR,UNION TO UNION
L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0808 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0808 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-1011 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-1011 ●
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0710-0711 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0712-0808 ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0809-1005 ●
144 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1006-1011 ●
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1737 SERVICED BY L=1783 		1-47428-881-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1376 SERVICED BY L=1400 		1-47428-878-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 0712-0808 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0712-0808 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1776 SERVICED BY L=1783 		1-47428-881-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
L=1747 SERVICED BY L=1783 		1-47428-881-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
L=1810 SERVICED BY L=1783 		1-47428-881-0 01 1 0710-0808 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1810 SERVICED BY L=1783 		1-47428-881-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) L=1784 SERVICED BY L=1783 		1-47428-881-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) L=1856 SERVICED BY L=1783 		1-47428-881-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1856 SERVICED BY L=1783 		1-47428-881-0 01 1 0712- ●

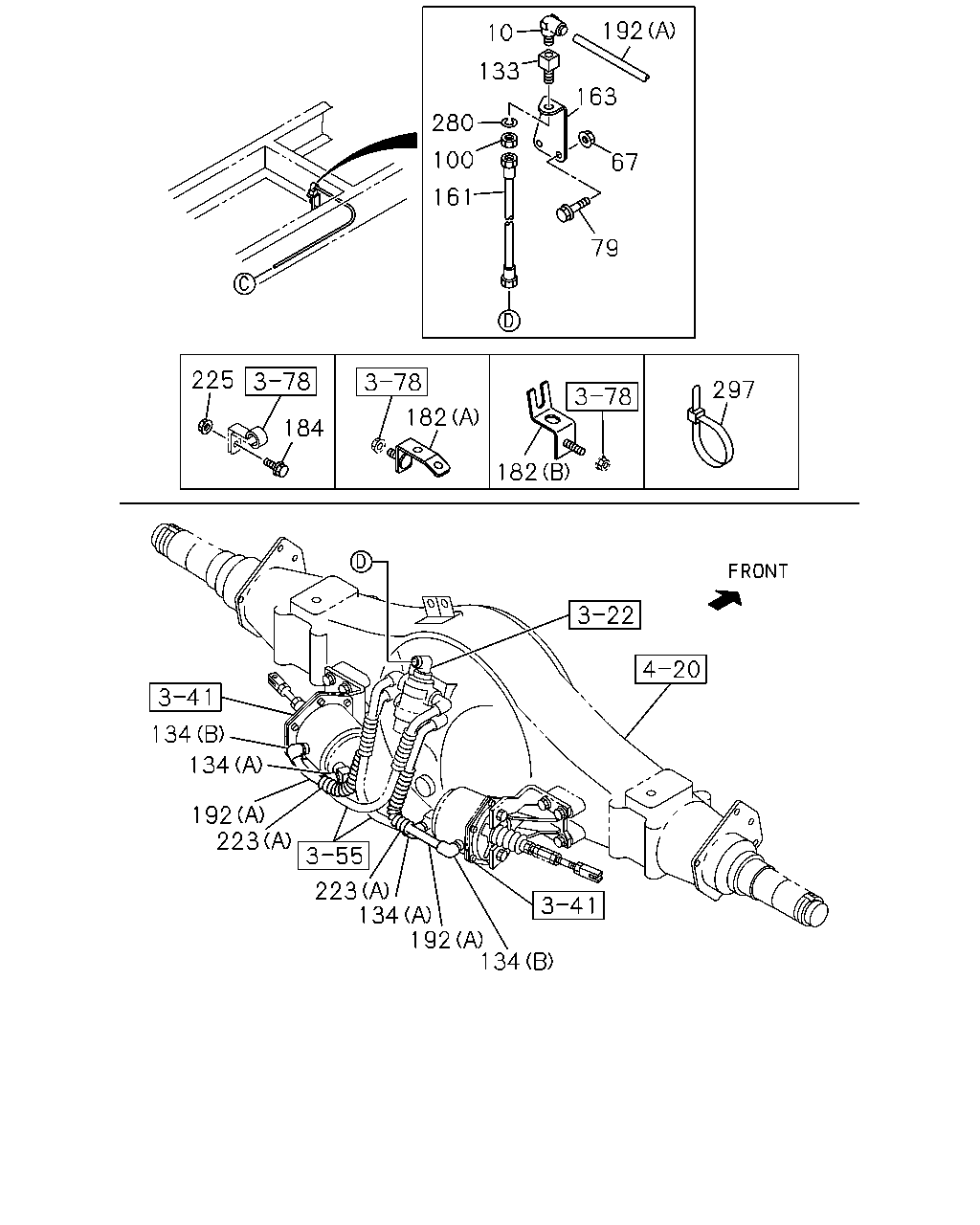

çizim 178668
10 280 133 100 163 192 161 67 79 225 182 184 182 297 134 134 192 223 223 134 192 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ● ●
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712-0808 ●
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712-0808 ●
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0808 ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0808 ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0711 ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0712-0808 ●
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0712-0808 ●
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809- ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0710-0711 ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0712-0808 ●
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0712-0808 ●
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0809-1111 ● ●
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712-0808 ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712-0808 ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0710-0711 ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0712-0808 ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0712-0808 ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0809- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0710-0808 ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=420 		1-09363-805-0 01 1 0809- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 0710-0711 ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0712- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0710-0711 ● ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0712-0808 ●
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0712-0808 ●
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0809- ● ●
182 BRACKET; TUBE CLIP
(A) 		8-98021-994-1 01 1 0710-0710 ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W) (B) 		8-98096-272-0 01 1 0710-0711 ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98096-272-0 01 1 0712-0808 ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98096-272-0 01 1 0809- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0710-0711 ● ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0712-0808 ●
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0712-0808 ●
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0809-0809 ● ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 14 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 02 1 0911-1109 ●
297 CLIP; BAND
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 13 1 1110- ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 13 1 1012-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 0809-1005 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 1006-1011 ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1012-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 1012-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0712-0808 ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0809-1005 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1006-1011 ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1012-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1012-1109 ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 01 1 1110- ●
297 CLIP; BAND
L=250 		1-09707-126-0 15 1 0710-0710 ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) L=250 		1-09707-126-0 15 1 0710-0710 ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 12 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 0712-1005 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 1006-1011 ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1012-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 1012-1109 ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=250 		1-09707-126-0 06 1 0710-0710 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0712-1005 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 1006-1109 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 05 1 1110- ●

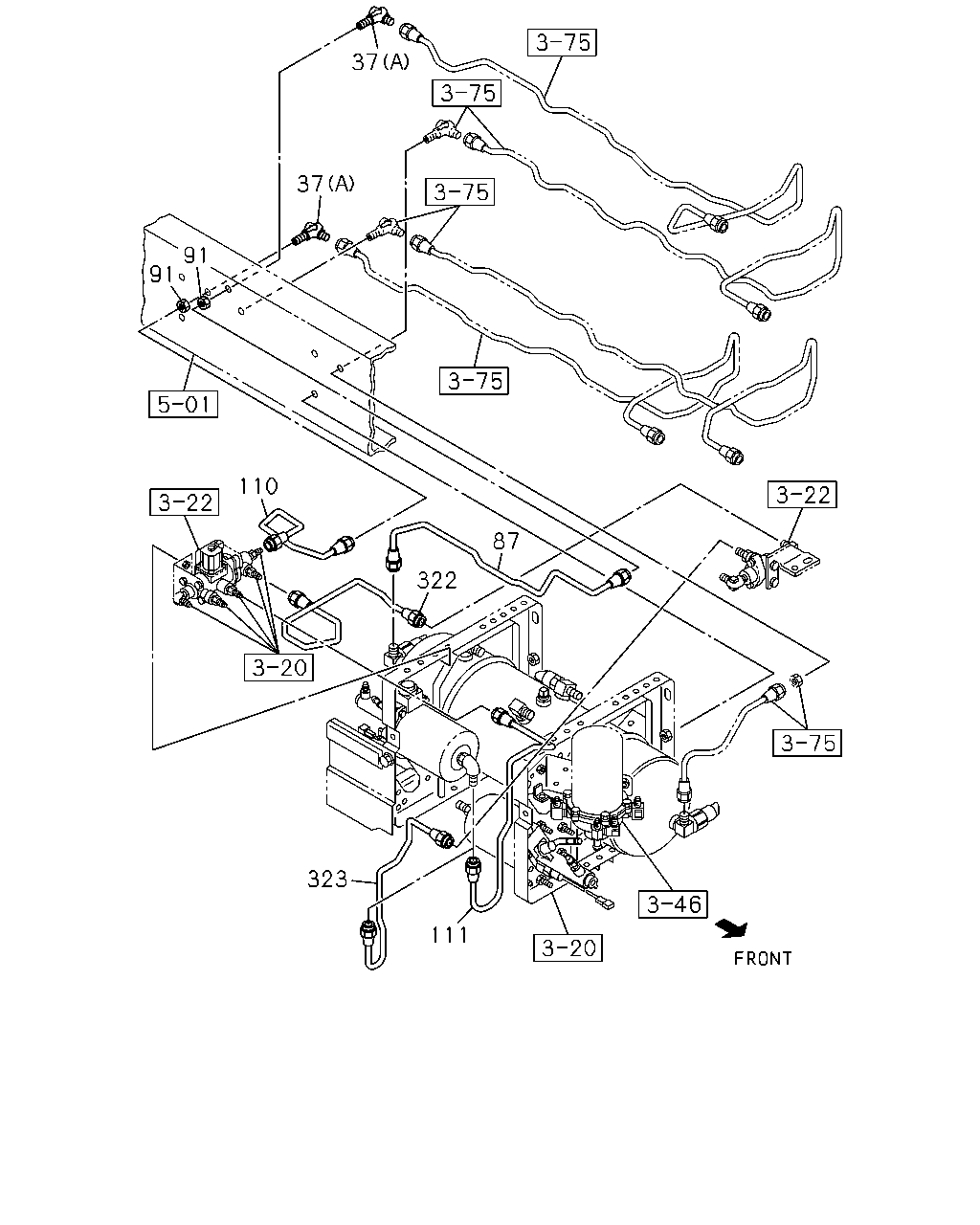

çizim 178672
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1167 SERVICED BY L=1250 		1-47428-876-0 01 1 0804- ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0803 ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0804-0912 ●
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0804-0912 ●
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 1001- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=550 SERVICED BY L=550 		1-47428-867-0 01 1 0804- ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0710-0803 ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0804-0912 ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=473 		8-98067-756-0 01 1 0804-0912 ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=473 		8-98067-756-0 01 1 1001- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=589 SERVICED BY L=600 		1-47428-868-0 01 1 0804- ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0710-0803 ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0804- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ● ●

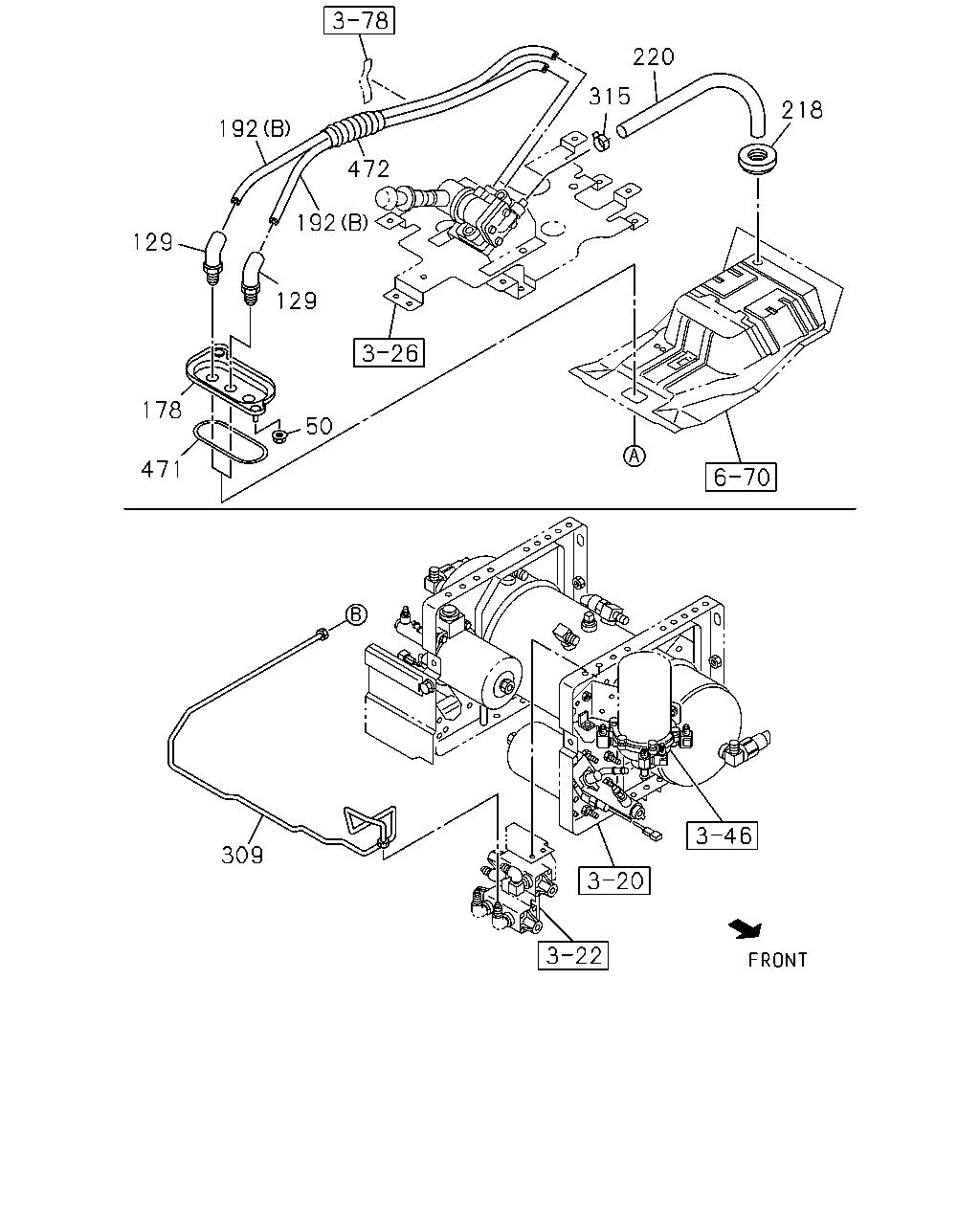

çizim 178681
50 218 220 315 192 192 472 129 129 178 471 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0710-0711 ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0712-0808 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0712-0808 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0809- ● ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-0 01 1 0712-0808 ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0809- ● ●
178 BRACKET; UNION 8-98017-054-0 01 1 0710-0711 ● ●
178 BRACKET; UNION 8-98017-054-0 01 1 0712-0808 ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-0 01 1 0712-0808 ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0809- ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0710-0711 ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0712-0808 ●
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0712-0808 ●
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0809- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710-0711 ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0712-0808 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0712-0808 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0809- ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0711 ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0808 ●
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0808 ●
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0809- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0710-0711 ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0712-0808 ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0712-0808 ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0809- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710-0711 ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0712-0808 ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0712-0808 ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0809- ● ●

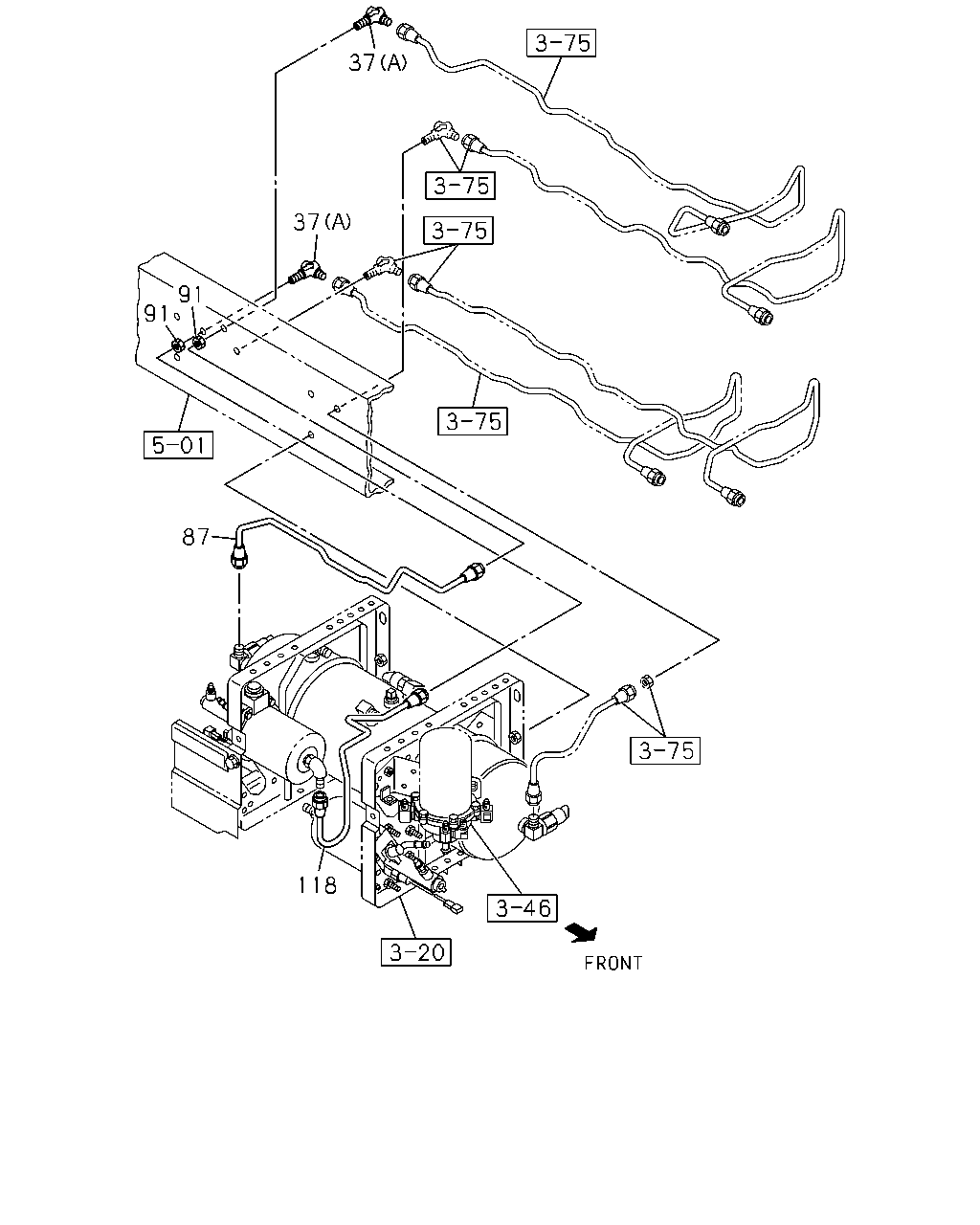

çizim 178690
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0808 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1167 SERVICED BY L=1250 		1-47428-876-0 01 1 0804- ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0803 ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0804-0912 ●
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0804-0912 ●
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 1001- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=915 SERVICED BY L=1000 		1-47428-874-0 01 1 0804- ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=679 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0710 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0803 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0804-0811 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=830 SERVICED BY L=900 		1-47428-873-0 01 1 0812- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
