◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#33441) — 167 parça

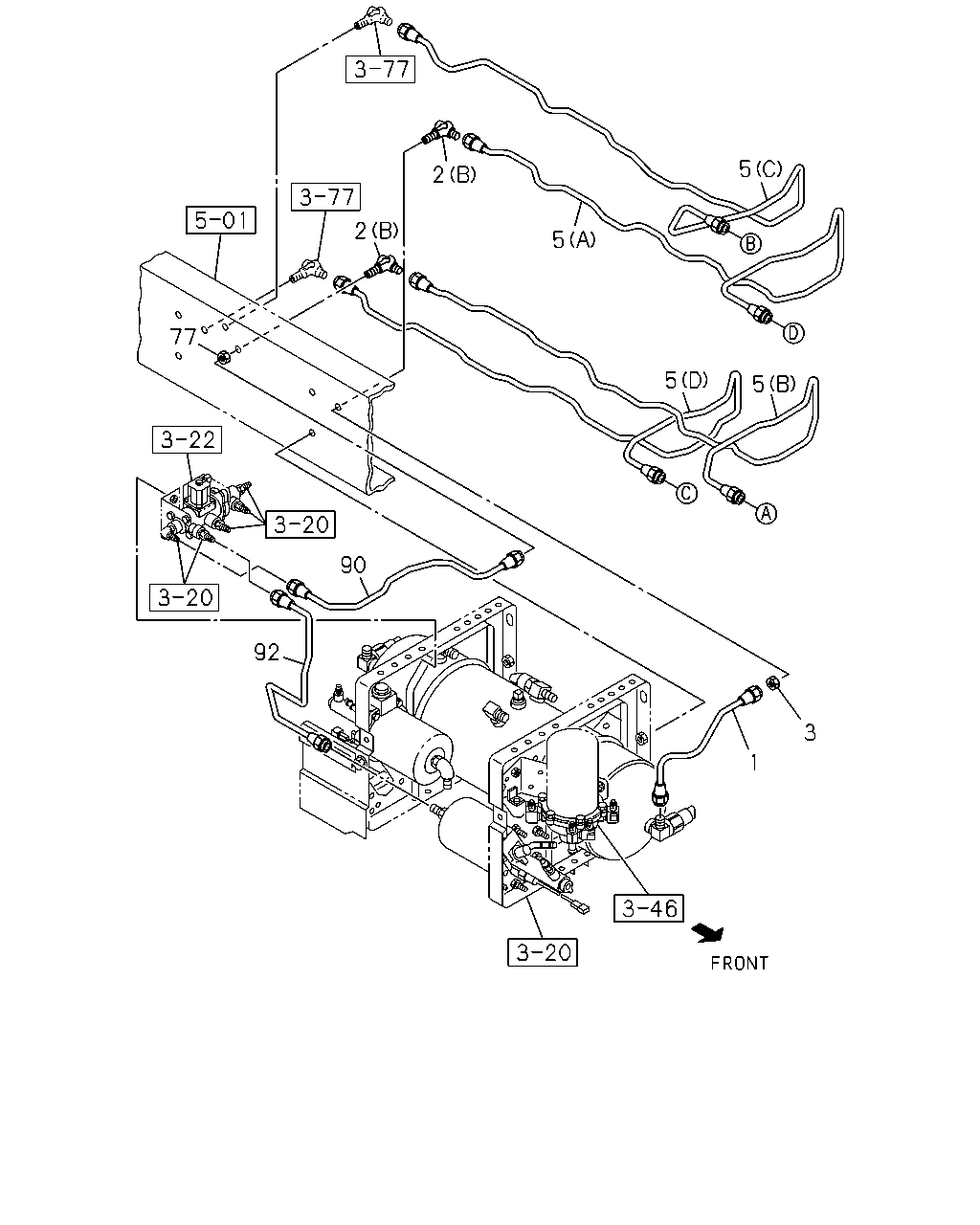

çizim 178662
5 2 2 5 77 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 0804- ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0710-0803 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0804-0912 ●
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 0804-0912 ●
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 1001- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-1007 ● ●
2 UNION; AIR PIPE
EXC. H.S.A SYSTEM<6EP> (A) 		8-98057-394-1 01 1 1008- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98057-394-1 01 1 1008- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2894 SERVICED BY L=2900 		1-47428-885-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2807 SERVICED BY L=2900 		1-47428-885-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2504 SERVICED BY L=2600 		1-47428-884-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2506 SERVICED BY L=2600 		1-47428-884-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2965 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2969 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2786 		8-98169-180-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2915 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 0804-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2898 SERVICED BY L=2900 		1-47428-885-0 01 1 0804-0810 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 0811-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2726 SERVICED BY L=2900 		1-47428-885-0 01 1 0804-0805 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 0806-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2923 SERVICED BY L=3300 		1-47428-886-0 01 1 0804-0805 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2951 SERVICED BY L=3300 		1-47428-886-0 01 1 0806-0810 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 0811-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 0804- ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0710-0803 ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0804-0912 ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493 		8-98077-878-0 01 1 0804-0912 ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493 		8-98077-878-0 01 1 1001- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0804- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0803 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0804-0808 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0809-0912 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 0809-0912 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) L=532 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0710-0711 ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0808 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0808 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0809- ● ●

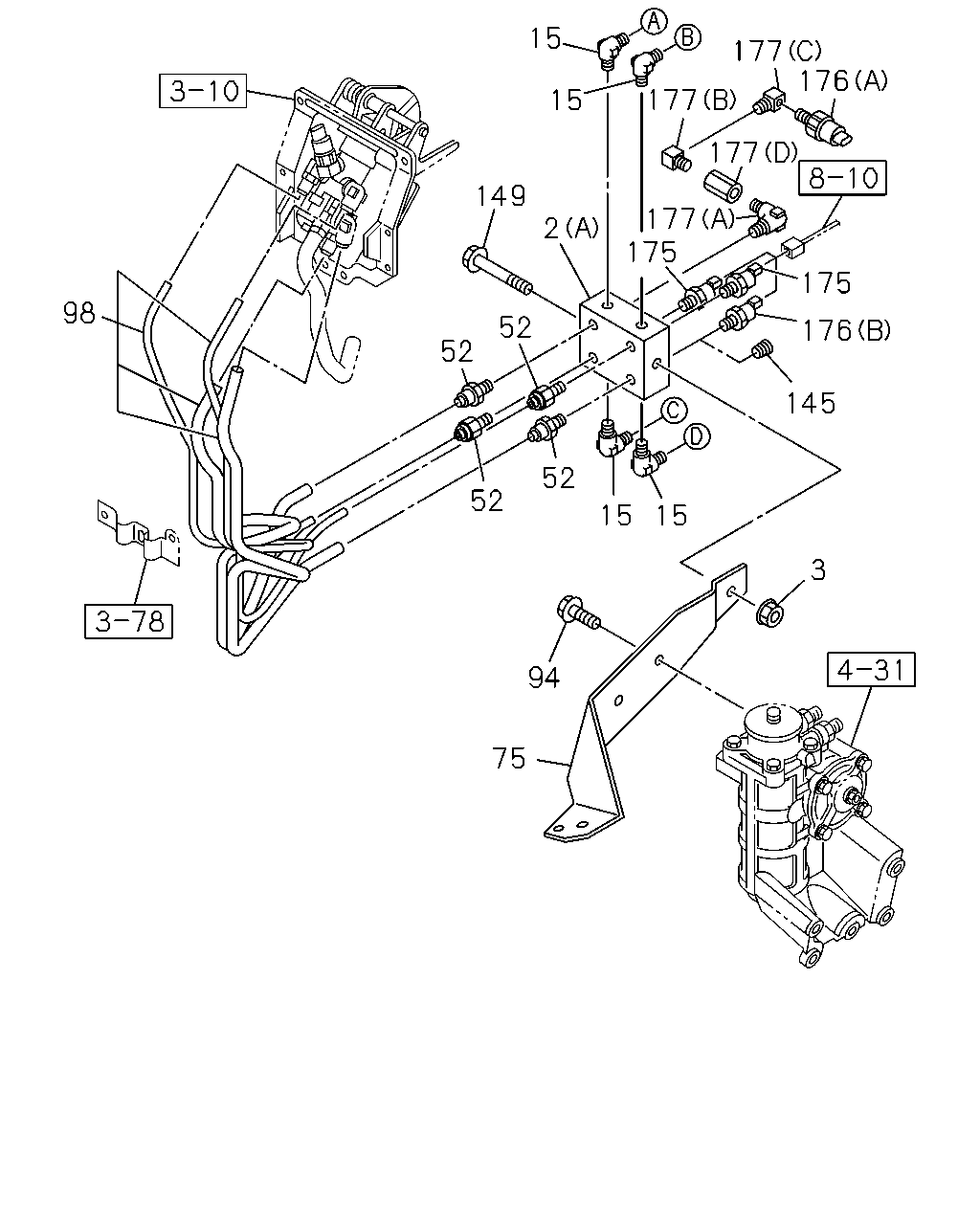

çizim 178669
15 177 176 177 15 177 149 177 175 2 175 98 52 176 52 145 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-1007 ● ●
2 UNION; AIR PIPE
EXC. H.S.A SYSTEM<6EP> (A) 		8-98057-394-1 01 1 1008- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98057-394-1 01 1 1008- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0710-1007 ● ●
15 CONNECTOR; AIR PIPE
EXC. H.S.A SYSTEM<6EP> M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1008- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1008- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0710-1007 ● ●
52 CONNECTOR; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1008- ● ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1008- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 0710- ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0710-0901 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0902-0902 ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0902-0911 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912- ● ●
98 TUBE; NYLON
4HK1-TCS ENG(RJS) 		8-98079-175-0 01 1 1012- ●
98 TUBE; NYLON 8-98079-179-0 01 1 0710-1011 ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 1012- ●
98 TUBE; NYLON
6HK1-TCN ENG(82L) 		8-98079-179-0 01 1 1012- ●
145 PLUG
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/2 		9-09204-521-0 01 1 1008- ● ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0710-1007 ● ●
145 PLUG
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 1008- ● ●
145 PLUG
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 1008- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0710- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710-1007 ● ●
175 SENSOR; AIR PRESS
EXC. H.S.A SYSTEM<6EP> THREAD R1/4 		1-80220-023-1 02 1 1008- ● ●
175 SENSOR; AIR PRESS
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THREAD R1/4 		1-80220-023-1 02 1 1008- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (A) STAMP 0.3 		8-98010-857-0 01 1 0710- ● ●
176 SWITCH; AIR PRESS
(A) STAMP 0.7 		8-97622-710-0 01 1 0710-0710 ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0710-1007 ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) STAMP 0.7 		8-97622-710-0 01 1 1008- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0710-1007 ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> (B) STAMP 2.2 		8-98010-858-0 01 1 1008- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 1008- ● ●
177 CONNECTOR
(A) 		1-09650-433-0 01 1 0710-0710 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		1-09650-433-0 01 1 0710-1007 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98134-010-0 01 1 1008- ● ●
177 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0710 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-1007 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1008- ● ●
177 CONNECTOR
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-1007 ● ●
177 CONNECTOR
(D) 		1-09660-881-0 01 1 0710-0710 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (D) 		1-09660-881-0 01 1 0710-1007 ● ●

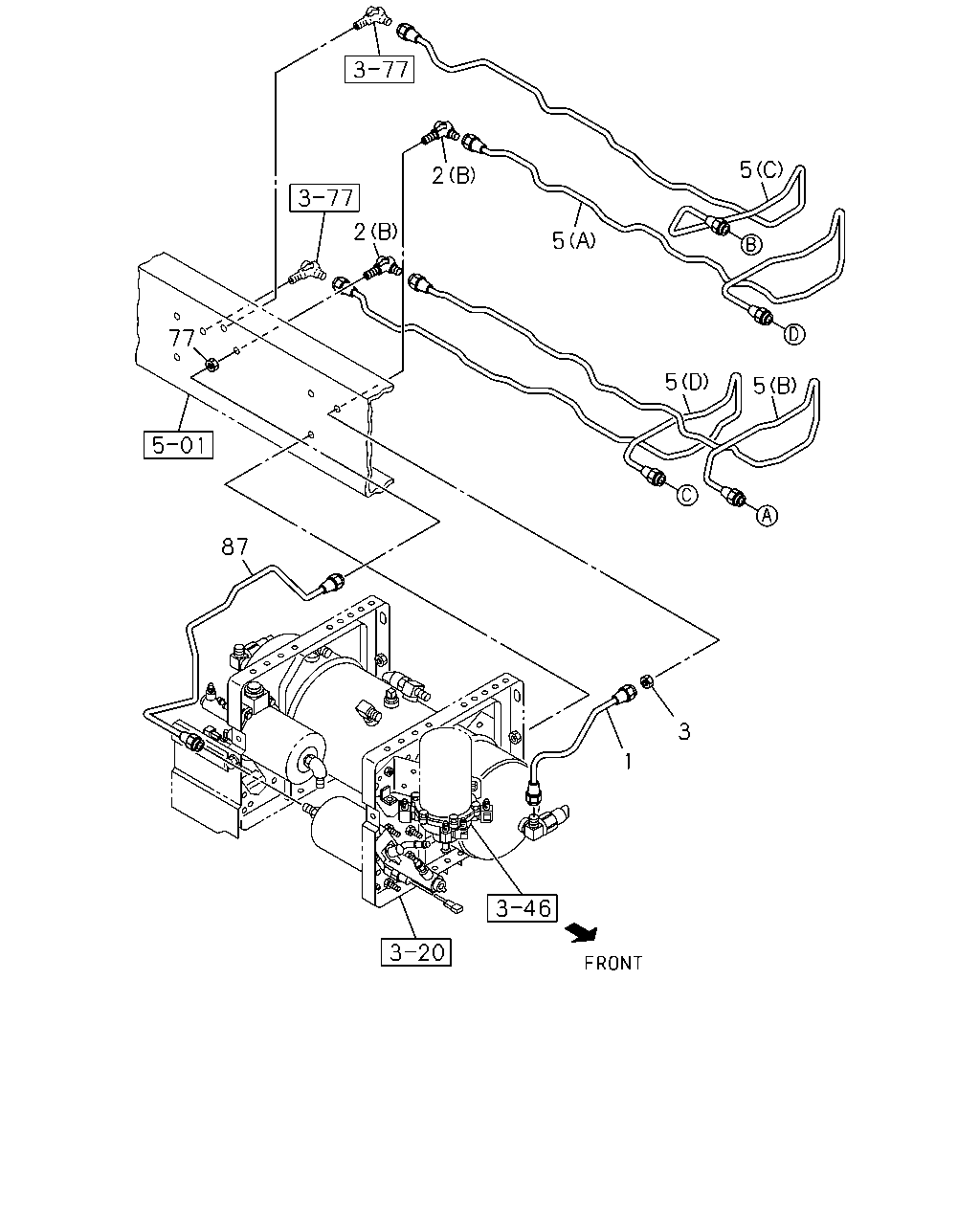

çizim 178670
5 2 2 5 77 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100 		1-47428-875-0 01 1 0804- ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0710-0803 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0804-0912 ●
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 0804-0912 ●
1 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290 		8-98044-172-0 01 1 1001- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710-1007 ● ●
2 UNION; AIR PIPE
EXC. H.S.A SYSTEM<6EP> (A) 		8-98057-394-1 01 1 1008- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98057-394-1 01 1 1008- ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2894 SERVICED BY L=2900 		1-47428-885-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2807 SERVICED BY L=2900 		1-47428-885-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2504 SERVICED BY L=2600 		1-47428-884-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2506 SERVICED BY L=2600 		1-47428-884-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2965 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2969 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2786 		8-98169-180-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2915 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 0804-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600 		1-47428-884-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2898 SERVICED BY L=2900 		1-47428-885-0 01 1 0804-0810 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 0811-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2726 SERVICED BY L=2900 		1-47428-885-0 01 1 0804-0805 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 0806-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2923 SERVICED BY L=3300 		1-47428-886-0 01 1 0804-0805 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2951 SERVICED BY L=3300 		1-47428-886-0 01 1 0806-0810 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 0811-0912 ●
5 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0710-0803 ● ●
5 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 0804- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=668 SERVICED BY L=700 		1-47428-870-0 01 1 0804- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0712-0803 ●
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0804-0808 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0809-0912 ●
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 0809-0912 ●
87 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 1001- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0710-0711 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0712-0808 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0712-0808 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
