◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#33440) — 1379 parça

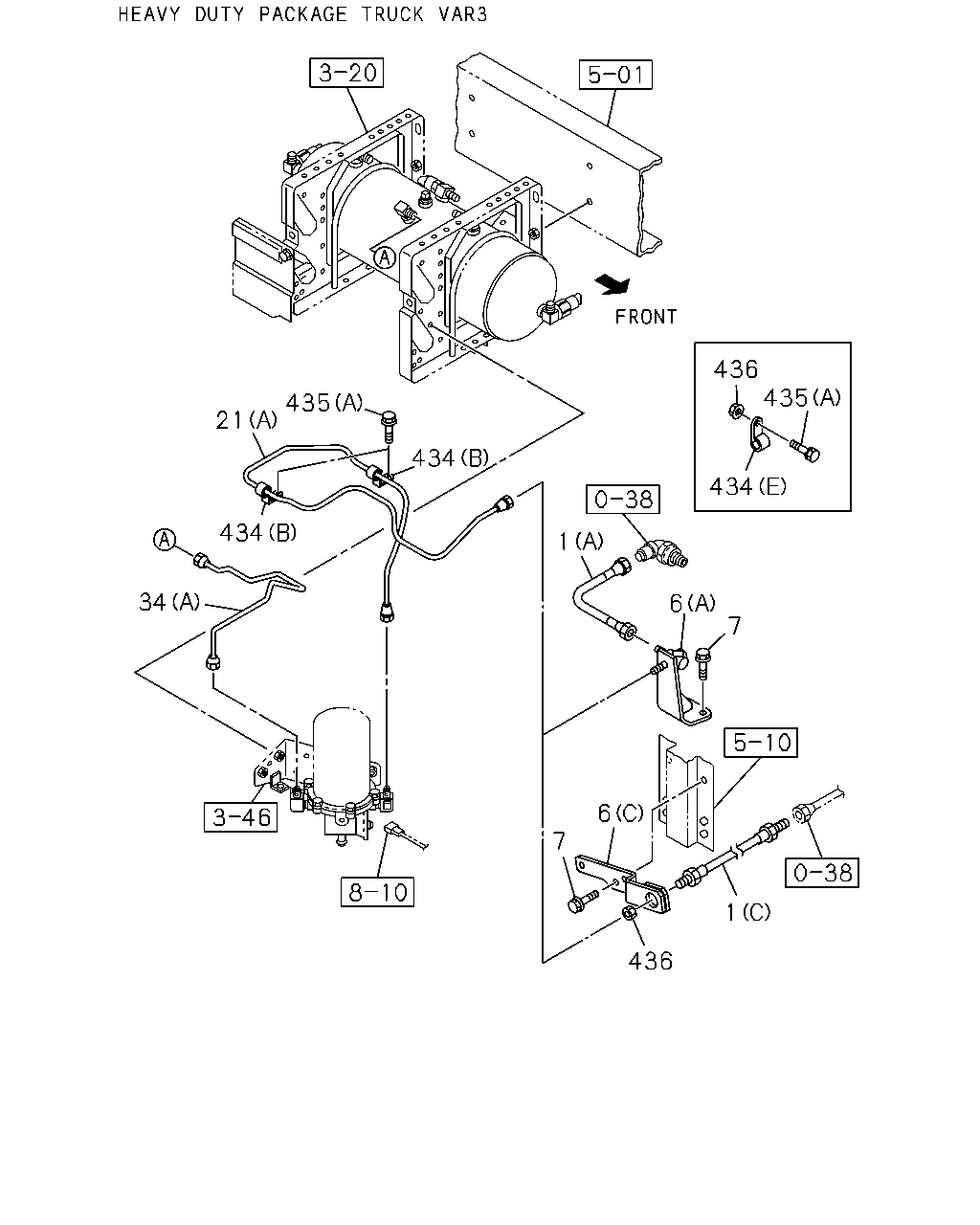

çizim 178661
436 435 435 21 434 434 434 1 34 6 7 6 7 1 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=310 		8-97607-730-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 0812-1011 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0710-0803 ● ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-973-0 01 1 0812-0904 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 0905-1011 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-392-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 0904-1011 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 1012-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0710-0803 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 1001-1107 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1108- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0710-0711 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0804-0808 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0809-0811 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 1108- ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0809-1005 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1006-1011 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TURBO - CONVENTIONAL<Q5T> (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
(A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0711 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 03 1 0804-1008 ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0809-0906 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-1008 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
WHEEL BASE 4800MM(48W) (A) L=350 		1-09707-183-0 06 1 0712-0808 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 06 1 0809- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809- ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 04 1 0710-0808 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0811 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0812-1011 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 07 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 0710-0808 ●
434 CLIP
WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 0809-1109 ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 05 1 1110- ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0811 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-1011 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 		0-91111-522-0 01 1 1012- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0711-0711 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●

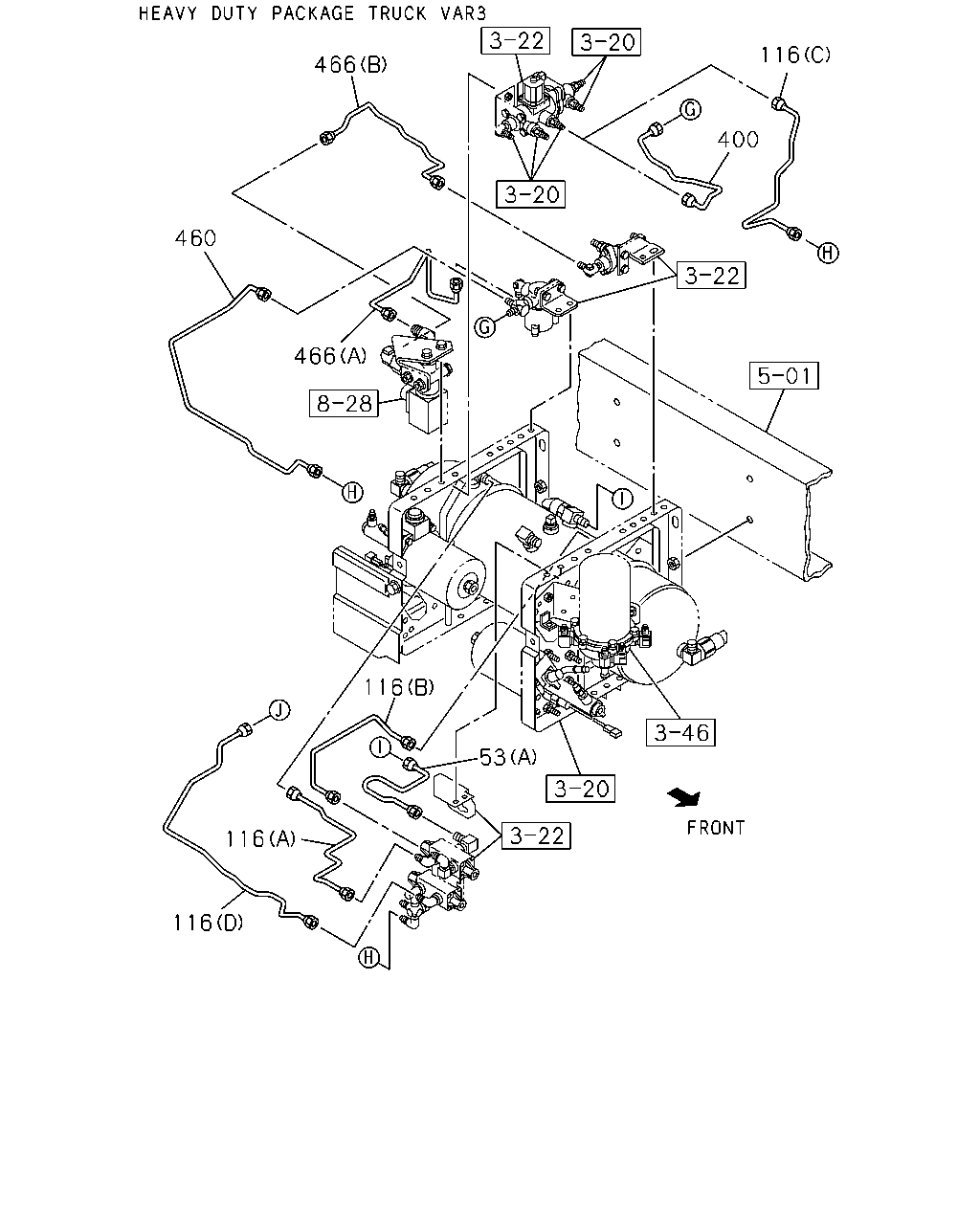

çizim 178663
116 466 400 460 466 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-148-0 01 1 0804-0807 ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-454-0 01 1 0808-0810 ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-846-0 01 1 0811- ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0710-0803 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0804-0912 ●
53 PIPE; AIR,AIR TANK TO VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98061-086-0 01 1 0804-0912 ●
53 PIPE; AIR,AIR TANK TO VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98061-086-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98120-159-0 01 1 0804-0810 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000 		1-47428-814-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-98120-149-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402 		8-98120-150-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=835 SERVICED BY L=900 		1-47428-813-0 01 1 0804-0807 ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900 		1-47428-813-0 01 1 0808-0810 ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900 		1-47428-813-0 01 1 0811- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0803 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0804-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0803 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0804-0808 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710-0711 ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0809- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710-0711 ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0809- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710-0803 ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710-0803 ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 1001- ● ●
400 PIPE; AIR,HSA VLV
THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0710- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 0712-0808 ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 0809- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0710-0711 ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0712-0808 ●
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0712-0808 ●
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0809- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0710- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0710- ● ●

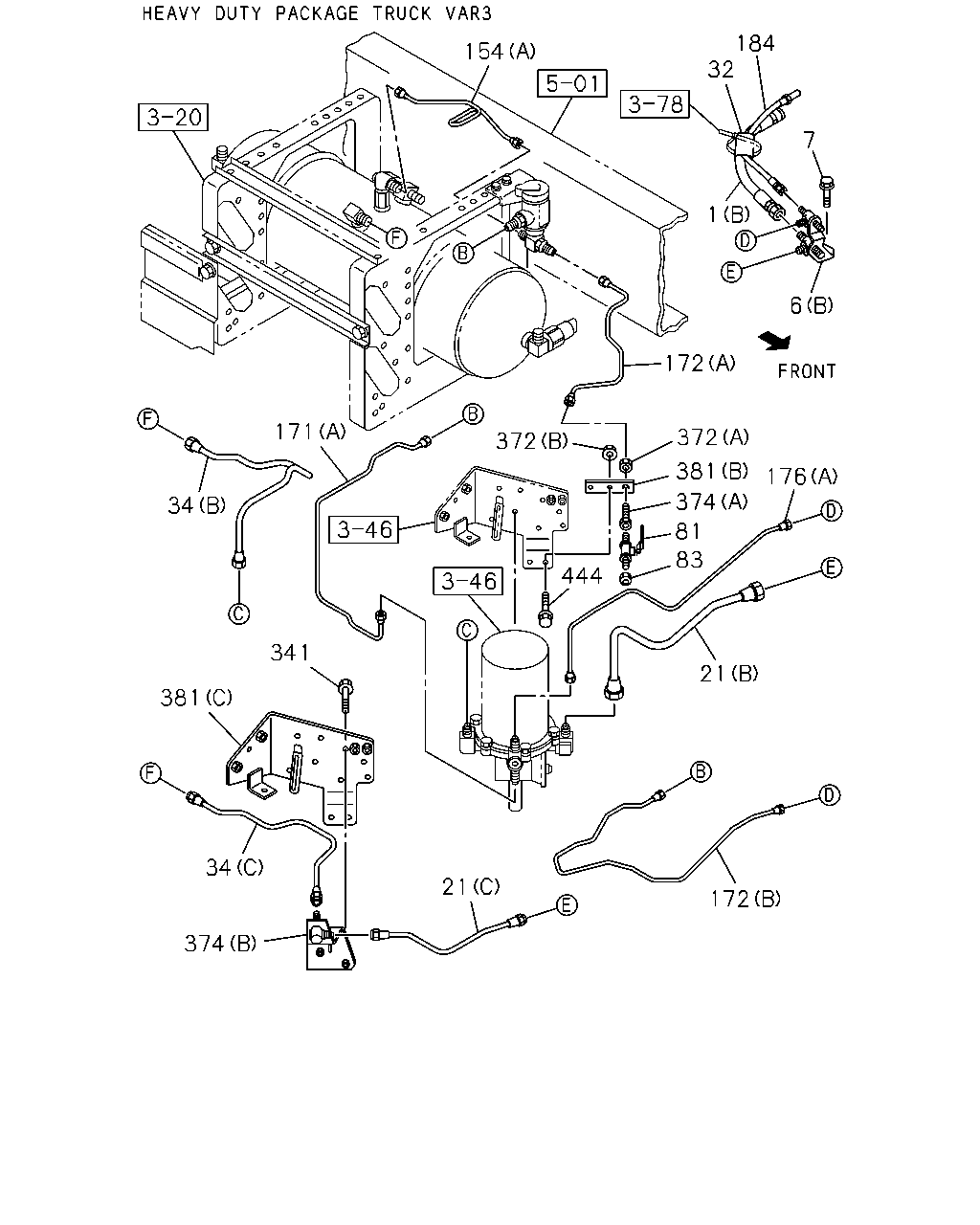

çizim 178666
184 32 154 7 1 6 172 171 372 372 381 176 374 34 81 83 444 341 21 381 34 21 172 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=310 		8-97607-730-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 0812-1011 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0710-0803 ● ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-973-0 01 1 0812-0904 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 0905-1011 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-392-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 0904-1011 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 1012-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0710-0803 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 1001-1107 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1108- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●

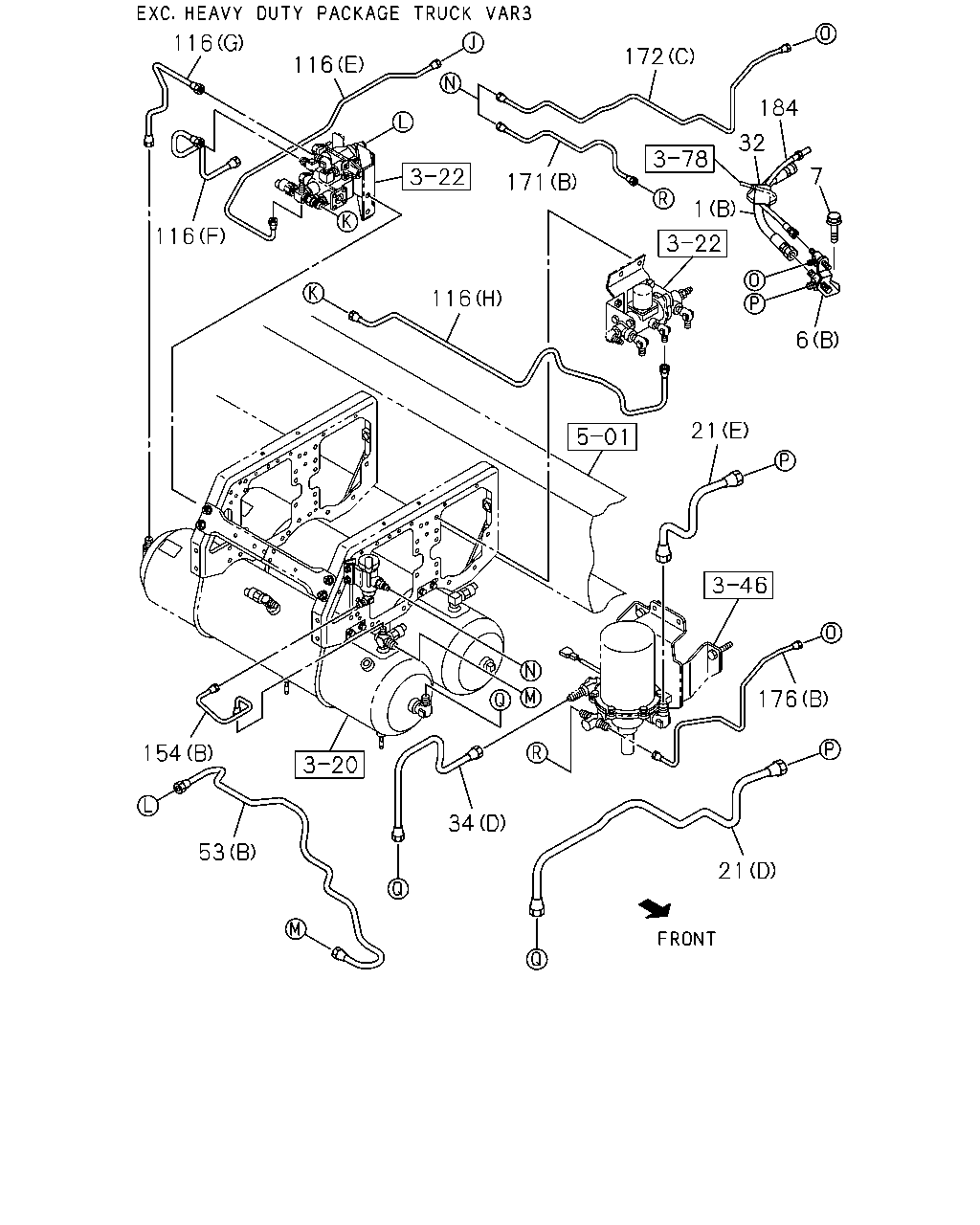

21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0710-0711 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-0811 ● ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0812-1011 ● ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1012- ●
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1012- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0804-0808 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0809-0811 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 1108- ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0809-1005 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1006-1011 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TURBO - CONVENTIONAL<Q5T> (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
(A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0711 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
81 COCK; AIR
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 0812-1107 ●
81 COCK; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 1108- ●
83 CAP; AIR COCK
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 0812-1107 ●
83 CAP; AIR COCK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) 		8-98133-361-0 01 1 0812-0906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 0812-0906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) 		8-98133-361-0 01 1 0907-0912 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 0907-0912 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 1001-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 1001-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1009-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1009-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 0809-1011 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1012-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1012-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 0809-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0812-0906 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0812-0906 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0907-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0907-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=426 		8-98133-384-0 01 1 0812-1008 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425 		8-98167-526-0 01 1 1009-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425 		8-98167-526-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 0809-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 0809-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=340 		1-09363-622-0 01 1 0809-0811 ● ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 0812-1011 ● ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 1012- ●
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 1012- ●
341 BOLT; BRKT
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 0812-1005 ●
341 BOLT; BRKT
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1006-1107 ●
341 BOLT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
372 NUT
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE 		0-91180-108-0 02 1 0812-1107 ●
372 NUT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE 		0-91180-108-0 02 1 1108- ●
372 NUT
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 		9-09840-280-0 01 1 0812-1107 ●
372 NUT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 		9-09840-280-0 01 1 1108- ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09654-280-1 01 1 0812-1107 ●
374 CONNECTOR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09654-280-1 01 1 1108- ●
374 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98135-407-0 01 1 0812-1005 ●
374 CONNECTOR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98135-407-0 01 1 1006-1107 ●
374 CONNECTOR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98135-407-0 01 1 1108- ●
381 BRACKET
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 0812-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 1108- ●
381 BRACKET
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 0812-1005 ●
381 BRACKET
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1006-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1108- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98119-700-0 01 1 0809- ● ●
444 BOLT; UNION
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 0812-1107 ●
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0809- ● ●
çizim 178875
116 172 116 184 32 7 171 1 116 116 6 21 176 154 34 53 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=310 		8-97607-730-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 0812-1011 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) L=310 		8-97607-730-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0710-0803 ● ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-973-0 01 1 0804-0811 ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-973-0 01 1 0812-0904 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 0905-1011 ● ●
1 HOSE; FLEX,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) 		1-09363-958-0 01 1 1012-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-09363-958-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-392-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 0904-1011 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) 		8-98133-392-0 01 1 1012-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-436-0 01 1 0812-0903 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0710-0803 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0804-0811 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 0812-0912 ●
6 BRACKET; FLEX HOSE,AIR TANK
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98079-987-1 01 1 1001-1107 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1108- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=516 		8-98133-370-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1025 		8-98111-640-1 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0804-0808 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0809-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=397 		8-98111-639-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798 		8-98083-099-0 01 1 0812-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0710-0711 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1816 		8-98083-100-0 01 1 0712-0803 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0804-0811 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0812-0906 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816 		8-98083-100-0 01 1 0907-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1108- ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-0811 ● ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0812-1011 ● ●
32 SLEEVE; RUBBER,AIR PIPE
EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1012- ●
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1012- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0804-0808 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0809-0811 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 0812-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=563 SERVICED BY L=600 		1-49115-479-0 01 1 1108- ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1005 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1006-1011 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0712-0808 ●
34 PIPE; AIR
EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0809-1005 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1006-1011 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TURBO - CONVENTIONAL<Q5T> (A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1108- ●
34 PIPE; AIR
(A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0711 ● ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0712-0808 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0809-1107 ●
34 PIPE; AIR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98120-148-0 01 1 0804-0807 ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-454-0 01 1 0808-0810 ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98133-846-0 01 1 0811- ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0710-0803 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0804-0912 ●
53 PIPE; AIR,AIR TANK TO VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98061-086-0 01 1 0804-0912 ●
53 PIPE; AIR,AIR TANK TO VALVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98061-086-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-98120-159-0 01 1 0804-0810 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000 		1-47428-814-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-98120-149-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402 		8-98120-150-0 01 1 0804- ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=835 SERVICED BY L=900 		1-47428-813-0 01 1 0804-0807 ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900 		1-47428-813-0 01 1 0808-0810 ●
116 PIPE; AIR,PROTECTION VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900 		1-47428-813-0 01 1 0811- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0803 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0804-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0803 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0804-0808 ●
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710-0711 ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0809- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710-0711 ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0712-0808 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0809- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710-0803 ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710-0803 ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 0804-0912 ●
116 PIPE; AIR,PROTECTION VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 1001- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) 		8-98133-361-0 01 1 0812-0906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 0812-0906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) 		8-98133-361-0 01 1 0907-0912 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 0907-0912 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 1001-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98133-361-0 01 1 1001-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1009-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1009-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 0809-1011 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1012-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1012-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1108- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98131-453-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 0809-0912 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1001-1011 ●
171 PIPE; AIR,GOV TO AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1012-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0812-0906 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0812-0906 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0907-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 0907-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98133-363-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=426 		8-98133-384-0 01 1 0812-1008 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425 		8-98167-526-0 01 1 1009-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425 		8-98167-526-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 0809-0912 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98130-857-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0812-0906 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 0907-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 0809-0912 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1001-1011 ●
176 PIPE; AIR,AIR DRYER TO UNION
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1012-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=340 		1-09363-622-0 01 1 0809-0811 ● ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 0812-1011 ● ●
184 HOSE; FLEX,AIR GOV
EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 1012- ●
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> L=340 		1-09363-622-0 01 1 1012- ●
çizim 178946
97 316 202 367 297 51 51 51 124 264 244 251 217 428 434 428 434 434 434 296 367 434 377 450 428 450 450 189 243 243 243 377 377 436 434 435 450 450 12 118 381 148 202 444 450 377 450 428 377 434
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 		0-91111-512-0 01 1 0809- ● ●
51 UNION
WHEEL BASE 5500MM(55W) (C) M12 ELBOW 		0-92125-006-0 01 1 0710-0808 ● ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0809-0906 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0809-0906 ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0907- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0907- ●
51 UNION
WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0808 ● ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-0906 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-0906 ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0907- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0907- ●
51 UNION
WHEEL BASE 3700MM(37W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
51 UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0808 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011 ●
51 UNION
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
97 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ● ●
97 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
97 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0907- ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0907- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
124 BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0808 ● ●
124 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0809-0906 ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0809-0906 ●
124 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0808 ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0809- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 2WAY 		1-09654-059-2 01 1 0809- ● ●
189 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W) 		1-47479-914-0 01 1 0710-0808 ● ●
189 BRACKET; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0809-0906 ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0809-0906 ●
189 BRACKET; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0907- ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0907- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0710-0710 ● ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W) 		8-98054-640-0 01 1 0710-0711 ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) 		8-98054-640-0 01 1 0712-0808 ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 0809-1011 ●
189 BRACKET; FLEX HOSE
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 1012- ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 1012- ●
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0808 ● ●
202 ADAPTER
CATALYSIS CONTROL WITH DPD<8JM> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
217 PIPE; VAC,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=415 		8-98067-435-0 01 1 1012- ●
217 PIPE; VAC,UNION TO MAG VLV
4HK1-TCS ENG(RJS) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=415 		8-98067-435-0 01 1 1012- ●
217 PIPE; VAC,UNION TO MAG VLV
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> L=452 		8-98181-620-0 01 1 1012- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> L=480 		8-98120-257-0 01 1 0809- ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=340 		8-98119-688-0 01 1 0804-0805 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=430 		8-98125-937-0 01 1 0806-0807 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=600 		1-47428-809-0 01 1 0808-1011 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=600 		1-47428-809-0 01 1 1012- ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0712-0803 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0804-0808 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0809-0906 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 0907-0912 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=456 		8-98067-434-0 01 1 1001- ●
217 PIPE; VAC,UNION TO MAG VLV
L=456 		8-98067-434-0 01 1 0710-0710 ● ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 1001- ● ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=69 		0-92138-506-0 01 1 0804-0805 ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=69 		0-92138-506-0 01 1 0804-0805 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY 		0-92138-606-0 01 1 0806- ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY 		0-92138-606-0 01 1 0806- ●
243 UNION; AIR PIPE
EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0710-0711 ● ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (A) M12 ELBOW 		0-92125-206-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1001- ● ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1001- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1012- ●
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1012- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0907-0912 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0907-0912 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0907-0912 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 0907-0912 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1001- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1001- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1001- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1001- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,CATALYSIS CONTROL WITH DPD<8JM> L=989 SERVICED BY L=1000 		1-47428-814-0 01 1 0809- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,CATALYSIS CONTROL WITH DPD<8JM> L=989 SERVICED BY L=1000 		1-47428-814-0 01 1 0809- ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. BRAKE REGULATION ADR(TDU) L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0808 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-0906 ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0907- ●
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0907- ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W) L=240 		1-09363-671-0 01 1 0710-0808 ● ●
264 HOSE; FLEX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0809-0906 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0809-0906 ●
264 HOSE; FLEX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0907- ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0907- ●
264 HOSE; FLEX
WHEEL BASE 4800MM(48W) L=370 		1-09363-621-0 01 1 0712-0808 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> L=370 		1-09363-621-0 01 1 0809- ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 0710-0710 ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=340 		1-09363-622-0 01 1 0710-0808 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> L=340 		1-09363-622-0 01 1 0809- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0710-0808 ● ●
316 NUT; FLEX HOSE
CATALYSIS CONTROL WITH DPD<8JM> M12 		9-09840-280-0 01 1 0809- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0809-1011 ● ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 0809-1011 ● ●
377 BOLT; BRKT FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ● ●
377 BOLT; BRKT FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1012- ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 0804-1008 ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0712-0803 ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0803 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0804-0808 ●
377 BOLT; BRKT FIX
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0808 ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0809-1008 ● ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
381 BRACKET
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 0812-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 1108- ●
381 BRACKET
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 0812-1005 ●
381 BRACKET
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1006-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1108- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98119-700-0 01 1 0809- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-110-0 03 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0711-0711 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0803 ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0712-0803 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0804-0808 ●
428 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0804-0808 ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0809-1008 ● ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1009-1011 ● ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1012- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1012- ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0710-0711 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 03 1 0804-1008 ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0809-0906 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-1008 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
WHEEL BASE 4800MM(48W) (A) L=350 		1-09707-183-0 06 1 0712-0808 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 06 1 0809- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809- ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 04 1 0710-0808 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0811 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0812-1011 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 07 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 0710-0808 ●
434 CLIP
WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 0809-1109 ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 05 1 1110- ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0811 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-1011 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 		0-91111-522-0 01 1 1012- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0711-0711 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
444 BOLT; UNION
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 0812-1107 ●
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0809- ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (I) 		8-98254-305-0 01 1 1501- ● ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 04 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 04 1 1012- ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (G) 		8-98116-680-0 01 1 0804- ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0712-0803 ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-0 01 1 0712-0803 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0804-0808 ●
450 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-1 01 1 0804-0808 ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-1 01 1 0809-1008 ● ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1009-1011 ● ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1012- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1012- ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (A) 		8-98097-725-0 03 1 0710-0710 ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0710-0711 ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
(G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 0809-1011 ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 0809-1011 ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 1012- ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 1012- ● ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
(H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) 		1-47477-694-0 01 1 0809- ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (H) 		1-47477-694-0 01 1 0809- ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0809-1412 ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0809-1412 ● ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1501- ● ●
çizim 178962
316 202 97 367 189 296 367 367 296 258 244 287 124 297 51 264 51 51 434 428 434 428 434 434 434 296 434 377 450 428 450 450 243 377 377 297 467 434 436 434 435 450 450 118 12 148 202 381 444 450 450 450 377 450 428 377
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 		0-91111-512-0 01 1 0809- ● ●
51 UNION
WHEEL BASE 5500MM(55W) (C) M12 ELBOW 		0-92125-006-0 01 1 0710-0808 ● ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0809-0906 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0809-0906 ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0907- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 ELBOW 		0-92125-006-0 01 1 0907- ●
51 UNION
WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0808 ● ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-0906 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-0906 ●
51 UNION
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0907- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0907- ●
51 UNION
WHEEL BASE 3700MM(37W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
51 UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0808 ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011 ●
51 UNION
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ●
97 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ● ●
97 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
97 NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0907- ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 0907- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 02 1 0712-0808 ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
124 BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0808 ● ●
124 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0809-0906 ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0809-0906 ●
124 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0808 ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0809- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M12 2WAY 		1-09654-059-2 01 1 0809- ● ●
189 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W) 		1-47479-914-0 01 1 0710-0808 ● ●
189 BRACKET; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0809-0906 ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0809-0906 ●
189 BRACKET; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0907- ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> 		1-47479-914-0 01 1 0907- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0710-0710 ● ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W) 		8-98054-640-0 01 1 0710-0711 ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) 		8-98054-640-0 01 1 0712-0808 ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 0809-1011 ●
189 BRACKET; FLEX HOSE
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 1012- ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> 		8-98054-640-0 01 1 1012- ●
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0808 ● ●
202 ADAPTER
CATALYSIS CONTROL WITH DPD<8JM> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), CATALYSIS CONTROL WITH DPD<8JM> (D) M12 L=66.5 		0-92113-306-0 01 1 1001- ● ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=69 		0-92138-506-0 01 1 0804-0805 ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=69 		0-92138-506-0 01 1 0804-0805 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY 		0-92138-606-0 01 1 0806- ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY 		0-92138-606-0 01 1 0806- ●
243 UNION; AIR PIPE
EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY 		0-92138-906-0 01 1 1001- ● ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0710-0711 ● ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (A) M12 ELBOW 		0-92125-206-0 01 1 0712-0803 ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0808 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0912 ●
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1001- ● ●
243 UNION; AIR PIPE
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1001- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0808 ●
258 CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR(TDU) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0808 ●
258 CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR(TDU) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W) L=240 		1-09363-671-0 01 1 0710-0808 ● ●
264 HOSE; FLEX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0809-0906 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0809-0906 ●
264 HOSE; FLEX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0907- ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> L=240 		1-09363-671-0 01 1 0907- ●
264 HOSE; FLEX
WHEEL BASE 4800MM(48W) L=370 		1-09363-621-0 01 1 0712-0808 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> L=370 		1-09363-621-0 01 1 0809- ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 0710-0710 ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=340 		1-09363-622-0 01 1 0710-0808 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> L=340 		1-09363-622-0 01 1 0809- ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0710-0711 ● ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0712-0808 ●
287 PIPE; AIR,MAG VLV
BRAKE REGULATION ADR(TDU) L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0712-0808 ●
287 PIPE; AIR,MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0809-0906 ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0809-0906 ●
287 PIPE; AIR,MAG VLV
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0907-1011 ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0907-1011 ●
287 PIPE; AIR,MAG VLV
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0710-0808 ● ●
316 NUT; FLEX HOSE
CATALYSIS CONTROL WITH DPD<8JM> M12 		9-09840-280-0 01 1 0809- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 0806-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0809-1011 ● ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 0809-1011 ● ●
377 BOLT; BRKT FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ● ●
377 BOLT; BRKT FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1012- ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 0804-1008 ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0712-0803 ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0712-0803 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0804-0808 ●
377 BOLT; BRKT FIX
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0804-0808 ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 01 1 0809-1008 ● ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ●
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
381 BRACKET
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 0812-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 1108- ●
381 BRACKET
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 0812-1005 ●
381 BRACKET
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1006-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1108- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98119-700-0 01 1 0809- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-110-0 03 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0711-0711 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0803 ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0712-0803 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0804-0808 ●
428 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0804-0808 ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 01 1 0809-1008 ● ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1009-1011 ● ●
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1012- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 01 1 1012- ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0710-0711 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 0907-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1012- ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 03 1 0804-1008 ●
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0712-0803 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0804-0808 ●
434 CLIP
BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0809-0906 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (A) L=350 		1-09707-183-0 02 1 0907-1008 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1009-1011 ●
434 CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 02 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-1008 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1009-1011 ● ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1012-1109 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
WHEEL BASE 4800MM(48W) (A) L=350 		1-09707-183-0 06 1 0712-0808 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 06 1 0809- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0712-0808 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0907-1109 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0712-0808 ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809- ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 04 1 0710-0808 ● ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0809-0906 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 04 1 0907- ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0811 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0812-1011 ● ●
434 CLIP
EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1012-1107 ●
434 CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 07 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 0710-0808 ●
434 CLIP
WHEEL BASE 3700MM(37W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 07 1 0809-1109 ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=350 		1-09707-183-0 05 1 1110- ●
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0811 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-1011 ● ●
435 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0808 ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 		0-91111-522-0 01 1 1012- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0711-0711 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0712-0808 ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
444 BOLT; UNION
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 0812-1107 ●
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 02 1 0809- ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (I) 		8-98254-305-0 01 1 1501- ● ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 04 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 04 1 1012- ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (G) 		8-98116-680-0 01 1 0804- ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0712-0803 ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-0 01 1 0712-0803 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0804-0808 ●
450 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-1 01 1 0804-0808 ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) (F) 		8-98100-216-1 01 1 0809-1008 ● ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1009-1011 ● ●
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1012- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98100-216-1 01 1 1012- ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (A) 		8-98097-725-0 03 1 0710-0710 ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0710-0711 ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
(G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 0806-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 0809-1011 ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 0809-1011 ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 1012- ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 1012- ● ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (G) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ●
450 BRACKET; CLIP
(H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (H) 		1-47477-694-0 01 1 0807-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) 		1-47477-694-0 01 1 0809- ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (H) 		1-47477-694-0 01 1 0809- ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710-0711 ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0712-0808 ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0809-1412 ● ●
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0809-1412 ● ●
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1501- ● ●
467 CLIP; NYLON TUBE
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) BRAKE REGULATION ADR(TDU) L=250 		1-09707-126-0 04 1 0809-0906 ●
467 CLIP; NYLON TUBE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) BRAKE REGULATION ADR(TDU) L=250 		1-09707-126-0 05 1 0809-0906 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
