3-58 — FIXING PARTS; OIL PIPING (#33439) — 109 parça

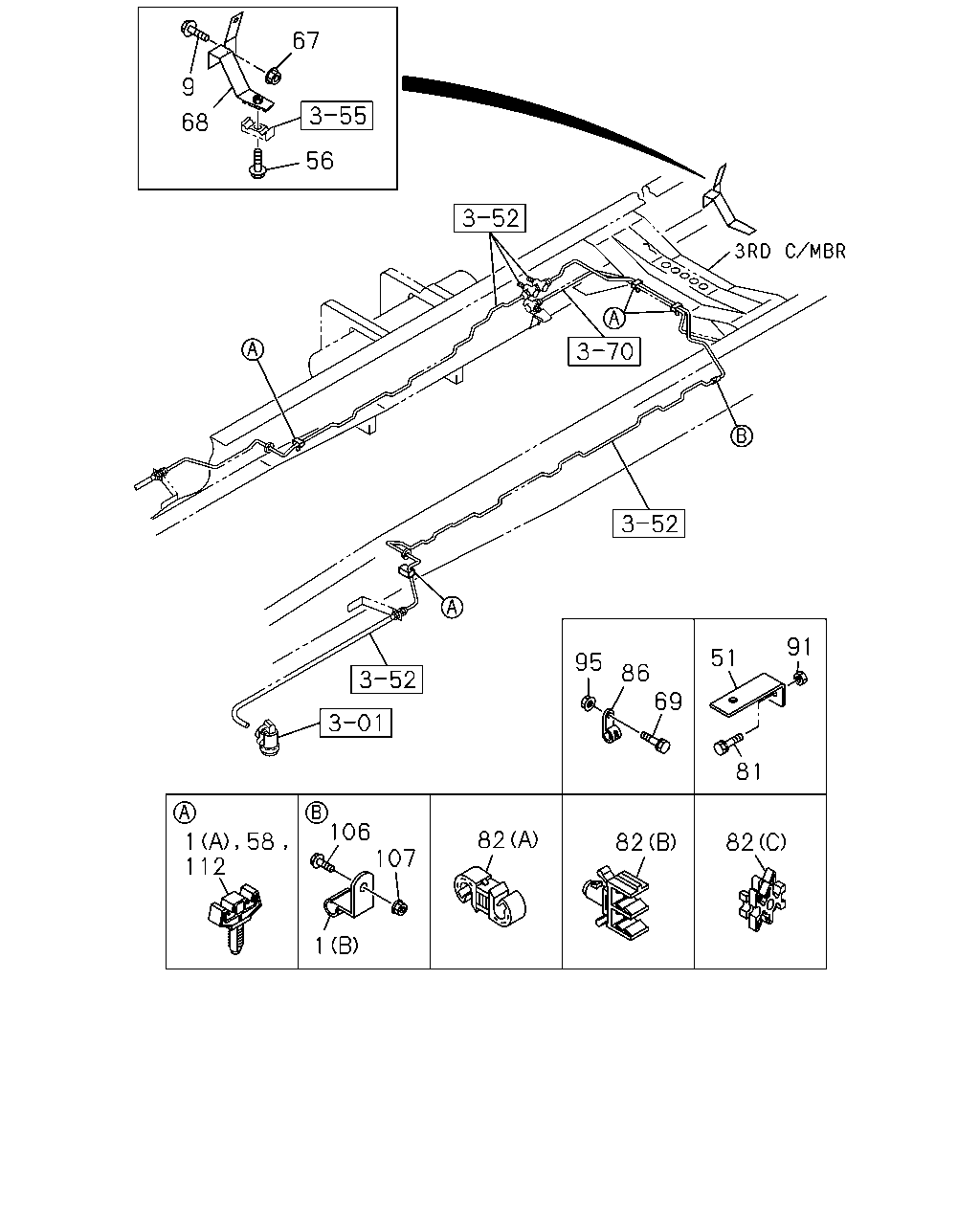

çizim 178656
67 9 68 56 91 51 95 86 69 81 106 107 82 112 82 82 1 1 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; OIL PIPE TO BODY
4HK1-TCS ENG(RJS) (B) ID=6 H=20 L=20 		8-98040-714-0 04 1 1110- ●
1 CLIP; OIL PIPE TO BODY
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 11 1 0804-0901 ●
1 CLIP; OIL PIPE TO BODY
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 12 1 0902-1011 ●
1 CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 12 1 1012- ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 07 1 0710-0803 ● ●
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 07 1 0804-1011 ● ●
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 07 1 1012-1109 ●
1 CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 07 1 1012-1109 ●
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98012-254-1 07 1 1110- ● ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		8-98040-714-0 05 1 0710-0901 ● ●
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20 		8-98040-714-0 05 1 0902-1011 ● ●
1 CLIP; OIL PIPE TO BODY
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20 		8-98040-714-0 05 1 1012- ●
1 CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20 		8-98040-714-0 05 1 1012- ●
9 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
51 BRACKET; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) L=105 B=25 		1-47476-161-0 01 1 0712-0802 ●
56 BOLT; CLIP
M8X40 FLANGE 		0-28050-840-0 01 1 0710- ●
58 CLIP; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 06 1 0804- ●
58 CLIP; OIL PIPE 8-98012-254-1 02 1 0710-0808 ●
58 CLIP; OIL PIPE 8-98012-254-1 03 1 0809- ●
58 CLIP; OIL PIPE 8-98012-254-1 05 1 0710-0803 ●
58 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 05 1 0804- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
68 BRACKET; CLIP 8-98012-145-2 01 1 0710- ●
69 BOLT; CLIP
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE 		0-28050-816-0 02 1 0712-0803 ●
81 BOLT; BRKT,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) ID=4.7X4 		1-09701-304-0 02 1 0803-0803 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (C) ID=4.7X4 		1-09701-304-0 02 1 0804-0805 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 0806-0808 ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 0809-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 0809-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 1001- ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 4.76 		1-09709-303-0 02 1 1001- ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 02 1 0712-0802 ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 0803-0803 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 0804-0808 ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 0809-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 0809-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 1001- ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (A) ID=4.76 & 6.35 		1-09709-304-0 04 1 1001- ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0710-0803 ● ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0804-0910 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0804-0910 ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-0912 ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0 		1-09709-305-0 01 1 0911-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0 		1-09709-305-0 01 1 1001- ● ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0 		1-09709-305-0 01 1 1001- ● ●
82 CLIP; OIL PIPE
(C) ID=4.7X4 		1-09701-304-0 03 1 0710-0802 ● ●
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0803-0803 ● ●
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0804-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=4.8X2 		8-94316-410-0 01 1 0804-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=4.8X2 		8-94316-410-0 01 1 1001- ● ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0710-0802 ● ●
82 CLIP; OIL PIPE
(A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0809-0901 ● ●
82 CLIP; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0809-0901 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 1001- ● ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35 		1-09709-304-0 03 1 1001- ●
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0710-0711 ● ●
82 CLIP; OIL PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0712-0802 ● ●
82 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.8X2 		8-94316-410-0 01 1 0712-0802 ●
82 CLIP; OIL PIPE
(B) ID=4.7X4 		1-09701-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0803-0808 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0809-0901 ● ●
82 CLIP; OIL PIPE
SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0809-0901 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=4.7X4 		1-09701-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 0902-0912 ●
82 CLIP; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=4.7X4 		1-09701-304-0 03 1 1001- ● ●
82 CLIP; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) ID=4.7X4 		1-09701-304-0 03 1 1001- ●
86 CLIP; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98085-372-0 02 1 0712-0803 ●
91 NUT; BRKT,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
95 NUT; CLIP
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
106 BOLT; CLIP,OIL PIPE
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 04 1 1110- ●
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0710-0901 ● ●
106 BOLT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 05 1 0902-1011 ● ●
106 BOLT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 05 1 1012- ●
106 BOLT; CLIP,OIL PIPE
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 05 1 1012- ●
107 NUT; CLIP,OIL PIPE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 04 1 1110- ●
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 05 1 0710-0901 ● ●
107 NUT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 05 1 0902-1011 ● ●
107 NUT; CLIP,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 05 1 1012- ●
107 NUT; CLIP,OIL PIPE
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 05 1 1012- ●
112 CLIP; OIL PIPE
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 03 1 0809- ●
112 CLIP; OIL PIPE
WHEEL BASE 5100MM(51W) 		8-98012-254-1 06 1 0809- ●
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 04 1 0804-0808 ●
112 CLIP; OIL PIPE
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 04 1 0809- ●
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 04 1 0809- ●
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) 		8-98012-254-1 05 1 0712-0803 ●
112 CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98012-254-1 05 1 0804- ●
112 CLIP; OIL PIPE
WHEEL BASE 5500MM(55W) 		8-98012-254-1 07 1 0710- ● ●
112 CLIP; OIL PIPE
WHEEL BASE 3700MM(37W) 		8-98012-254-1 02 1 0710- ●

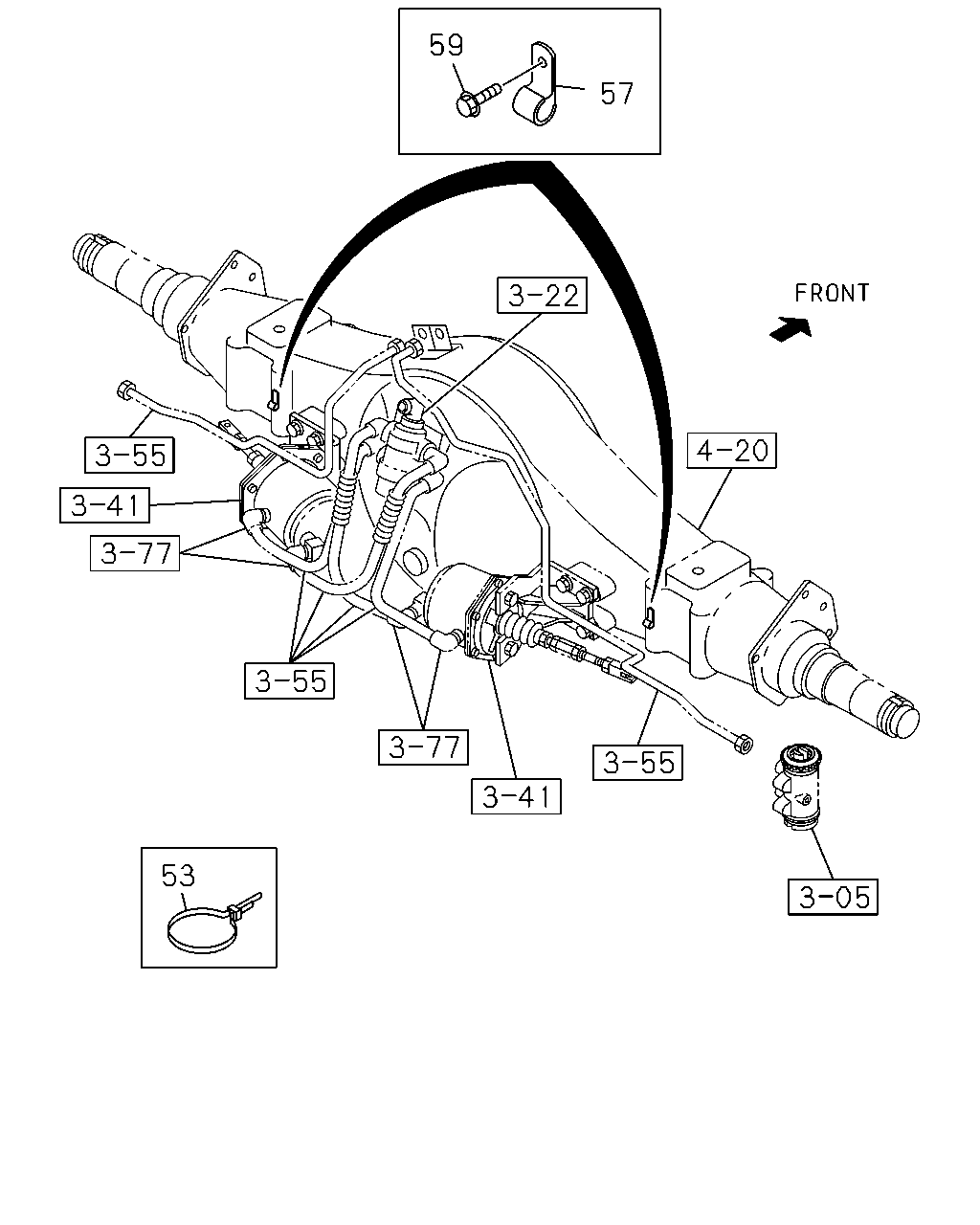

çizim 178658
59 57 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 CLIP; UNION
L=250 		1-09707-126-0 05 1 0710-0711 ● ●
53 CLIP; UNION
L=250 		1-09707-126-0 05 1 0712-0808 ●
53 CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0712-0808 ●
53 CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0809- ● ●
57 CLIP; BRK PIPE,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20 		0-95234-635-0 05 1 0712- ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 02 1 0710-0711 ● ●
57 CLIP; BRK PIPE,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20 		0-95234-635-0 02 1 0712- ● ●
59 BOLT; BRK PIPE,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE 		0-28050-810-0 05 1 0712- ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 02 1 0710-0711 ● ●
59 BOLT; BRK PIPE,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE 		0-28050-810-0 02 1 0712- ● ●
