◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#33438) — 692 parça

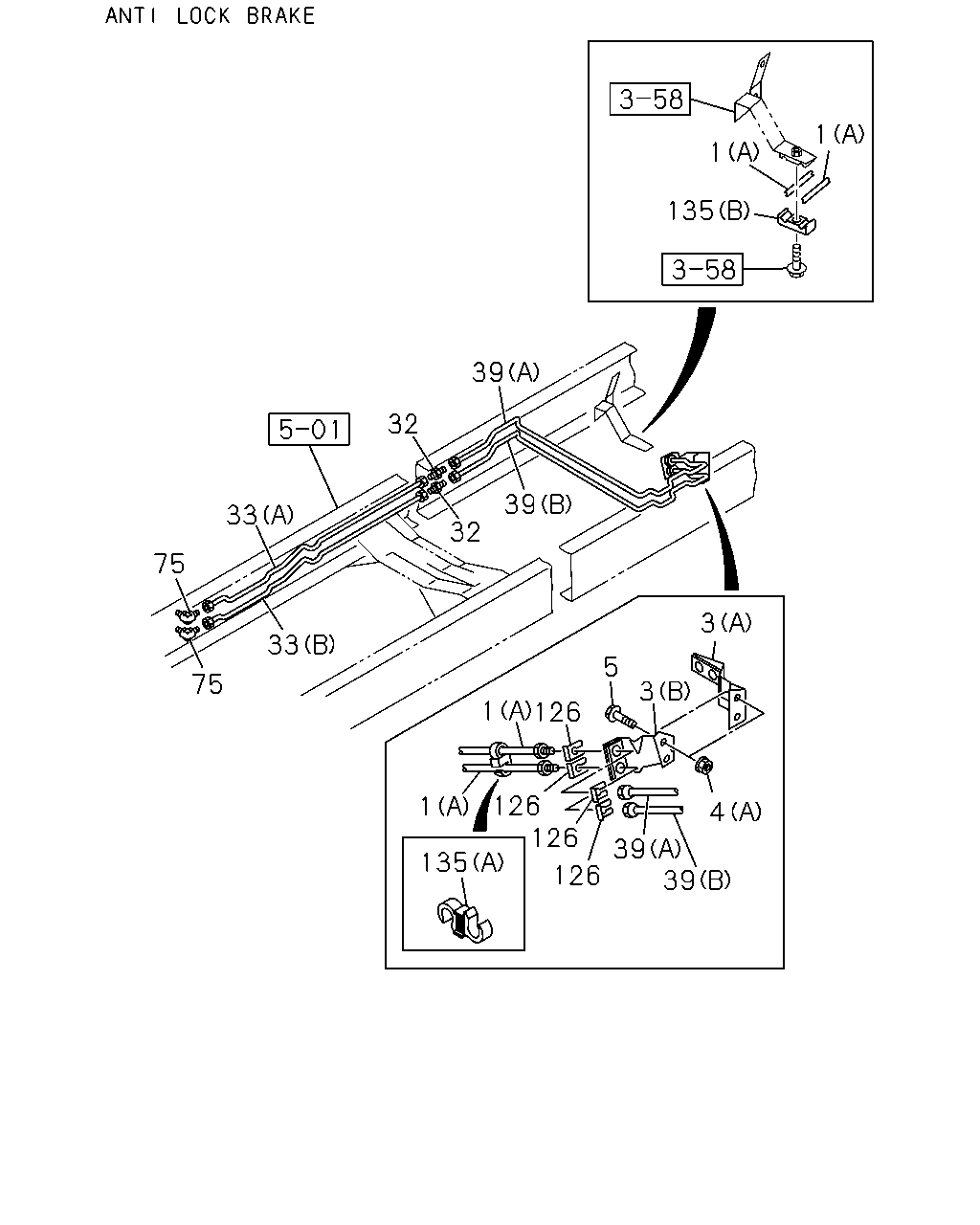

çizim 178647
1 1 135 39 32 39 33 32 75 3 33 5 3 75 1 126 126 1 4 39 39 135 126 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=730 		0-05213-730-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-0803 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0804-0808 ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1001- ● ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710-0808 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=480 		8-98067-398-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0907- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-699-1 01 1 0804- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-0803 ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0804-0906 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 		9-09840-280-0 01 1 0804- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 1001- ● ●
32 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40 		0-92113-006-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0803 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1557 		8-98173-021-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2057 		8-98173-022-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1920 SERVICED BY L=2000 		1-47428-739-0 01 1 0804-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0805-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2124 		8-98076-347-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078 		8-98076-348-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710-0803 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1100 		8-98091-665-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1100 		8-98091-665-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1024 		8-98091-666-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1024 		8-98091-666-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0809- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2266 SERVICED BY L=2350 		1-47428-741-0 01 1 0804-0805 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 0806-0912 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 1001- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710-0906 ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 0804- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802-0803 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0804-0808 ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0801 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712-0803 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0804-0808 ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 1001- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0809- ● ●
135 CLIP; FLEX HOSE
(B) 		1-09701-278-2 01 1 0710- ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ● ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 0712-0808 ●
135 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) (A) ID=10 & 10 		1-09709-277-1 01 1 0712-0808 ●
135 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) (A) ID=10 & 10 		1-09709-277-1 01 1 0809- ● ●

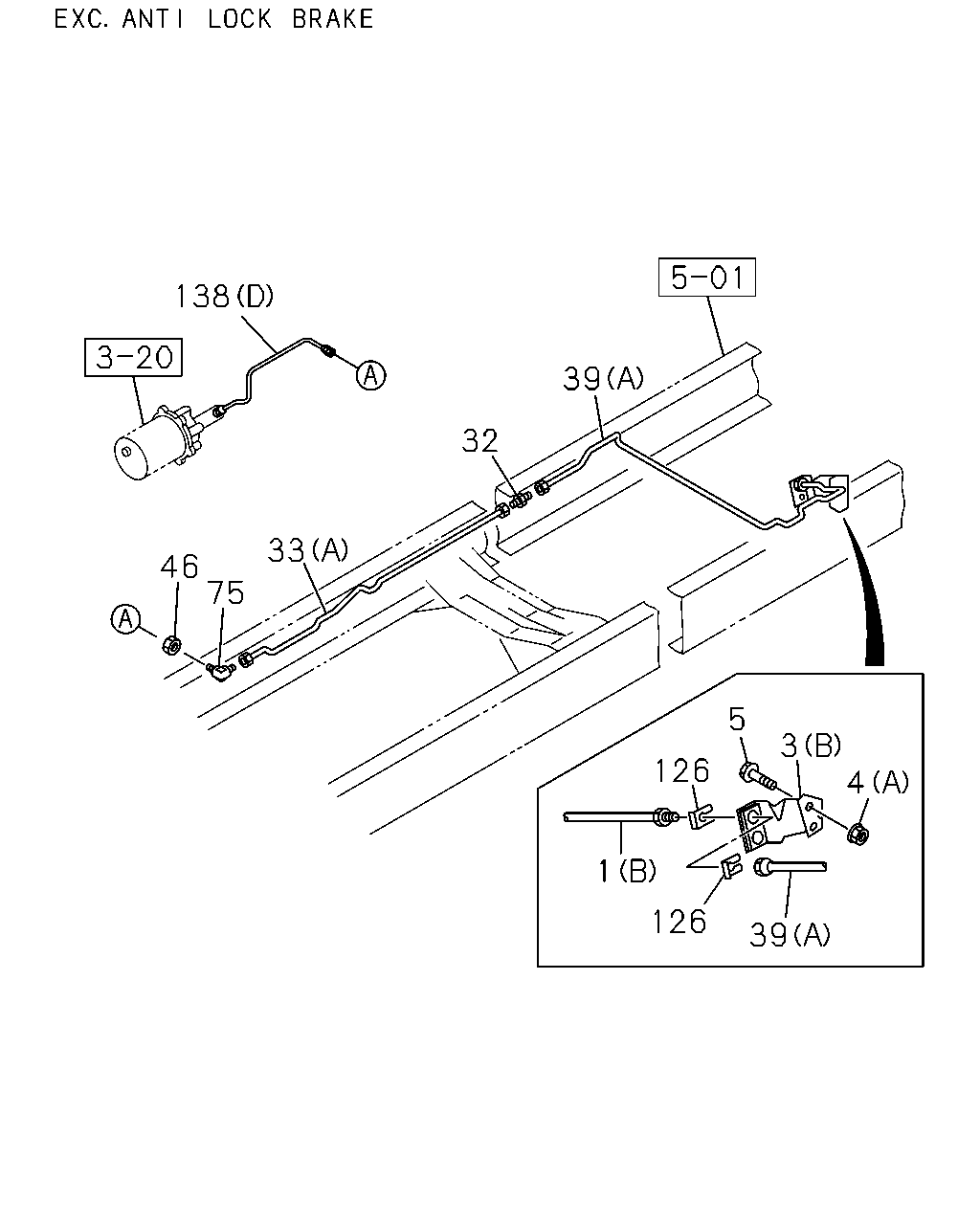

çizim 178650
138 39 32 33 46 75 5 3 4 126 1 126 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=730 		0-05213-730-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-0803 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0804-0808 ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1001- ● ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710-0808 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=480 		8-98067-398-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0907- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-699-1 01 1 0804- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-0803 ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0804-0906 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 		9-09840-280-0 01 1 0804- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 1001- ● ●
32 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40 		0-92113-006-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0803 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1557 		8-98173-021-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2057 		8-98173-022-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1920 SERVICED BY L=2000 		1-47428-739-0 01 1 0804-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0805-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2124 		8-98076-347-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078 		8-98076-348-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710-0803 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1100 		8-98091-665-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1100 		8-98091-665-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1024 		8-98091-666-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1024 		8-98091-666-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0809- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2266 SERVICED BY L=2350 		1-47428-741-0 01 1 0804-0805 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 0806-0912 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 1001- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710-0906 ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 		9-09840-280-0 01 1 0804- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1001- ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0801 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 1001- ● ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 0804- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802-0803 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0804-0808 ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0801 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712-0803 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0804-0808 ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 1001- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0809- ● ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH LINE L=733 		8-98169-366-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=781 		8-98169-367-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=572 		8-98173-026-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (D) L=420 		8-98120-163-0 01 1 0804- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712-0803 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0804-0808 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1001-1005 ● ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0809- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●

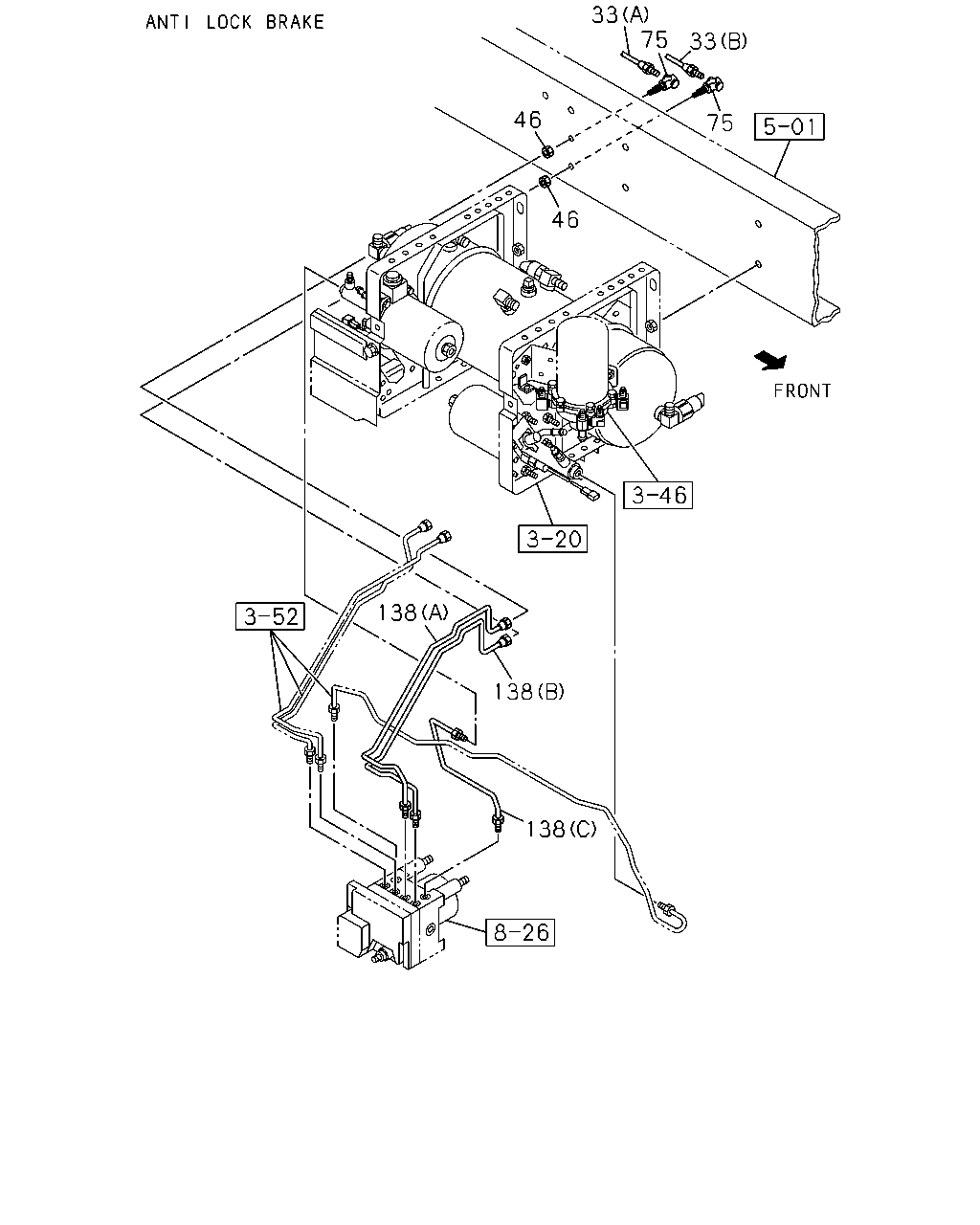

çizim 178655
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1557 		8-98173-021-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2057 		8-98173-022-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1920 SERVICED BY L=2000 		1-47428-739-0 01 1 0804-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0805-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2124 		8-98076-347-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078 		8-98076-348-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710-0803 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1100 		8-98091-665-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1100 		8-98091-665-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1024 		8-98091-666-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1024 		8-98091-666-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0809- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 		9-09840-280-0 01 1 0804- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1001- ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0801 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 1001- ● ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 0804- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802-0803 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0804-0808 ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0801 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH LINE L=733 		8-98169-366-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=781 		8-98169-367-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=572 		8-98173-026-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (D) L=420 		8-98120-163-0 01 1 0804- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712-0803 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0804-0808 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1001-1005 ● ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0809- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●

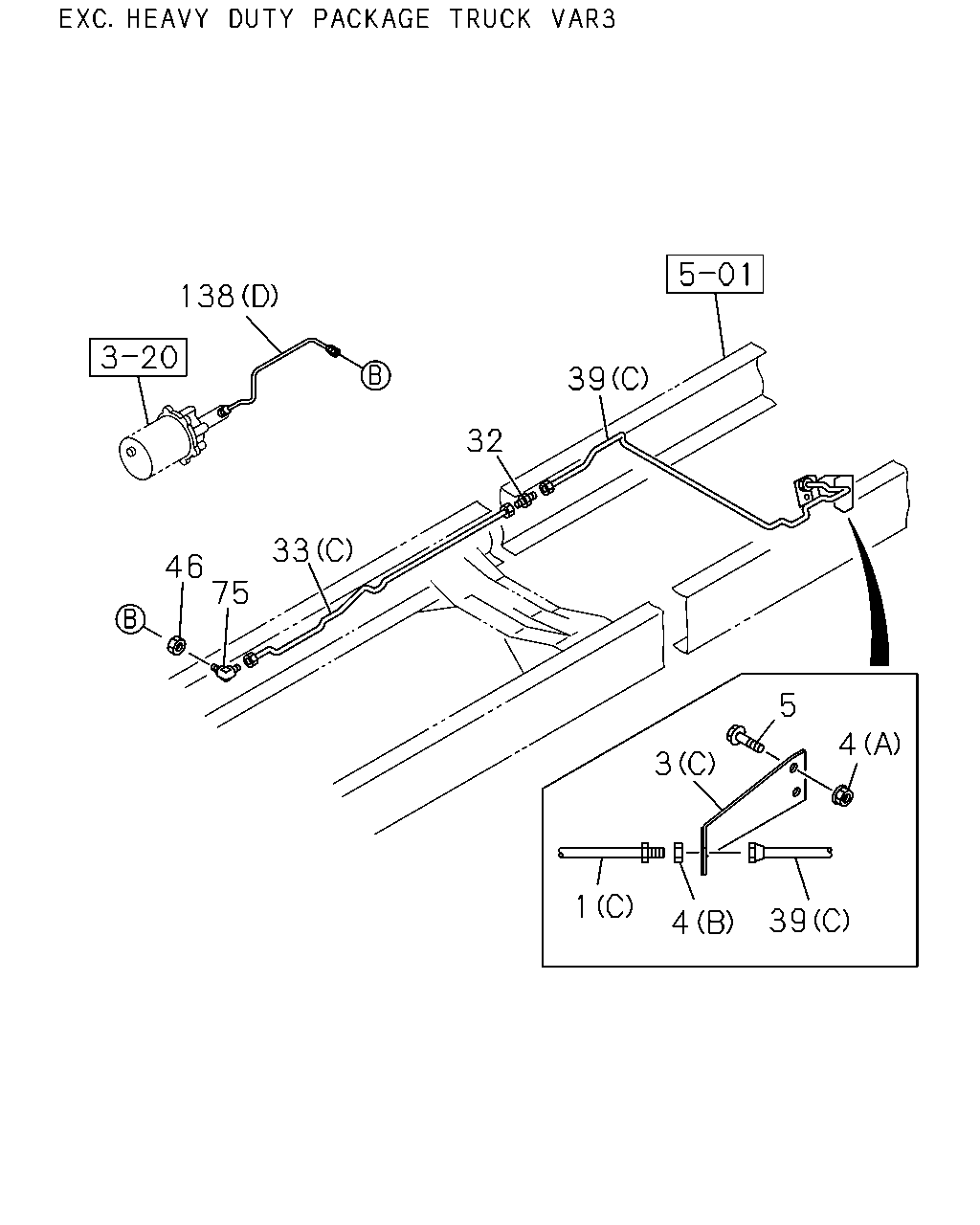

çizim 178856
138 39 32 33 46 75 5 4 3 1 39 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=730 		0-05213-730-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-0803 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0804-0808 ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1001- ● ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710-0808 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=480 		8-98067-398-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0809- ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0907- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-699-1 01 1 0804- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-0803 ●
3 BRACKET; FLEX HOSE,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98065-999-2 01 1 0804-0906 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 		9-09840-280-0 01 1 0804- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0804-0808 ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0809-0912 ●
32 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 1001- ● ●
32 UNION; OIL PIPE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40 		0-92113-006-0 01 1 0804- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0803 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0804-0808 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 0809-0912 ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT 		0-92107-005-0 02 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1557 		8-98173-021-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2057 		8-98173-022-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1073 		8-98123-537-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1099 		8-98123-538-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1578 		8-98069-808-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1622 		8-98069-807-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0809-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1423 SERVICED BY L=1500 		1-47428-735-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2392 		8-98123-541-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2377 		8-98069-814-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 0809-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2410 		8-98123-542-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2422 		8-98069-813-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1920 SERVICED BY L=2000 		1-47428-739-0 01 1 0804-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1923 SERVICED BY L=2000 		1-47428-739-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0805-0805 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0806-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=853 SERVICED BY L=900 		1-47428-729-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1023 		8-98072-731-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1083 		8-98072-730-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2124 		8-98076-347-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2124 		8-98076-347-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078 		8-98076-348-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 0804-1005 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2078 		8-98076-348-0 01 1 1006- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710-0803 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 0804-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=2822 		8-98069-815-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 0809-0912 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=2778 		8-98069-816-0 01 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1100 		8-98091-665-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1100 		8-98091-665-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (A) LH LINE L=1126 		8-98116-677-0 01 1 0809- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1024 		8-98091-666-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1024 		8-98091-666-0 01 1 0712-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0804-0808 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) (B) RH LINE L=1055 		8-98116-678-0 01 1 0809- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0907- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2266 SERVICED BY L=2350 		1-47428-741-0 01 1 0804-0805 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 0806-0912 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2268 SERVICED BY L=2350 		1-47428-741-0 01 1 1001- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE L=1710 		8-98106-485-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE L=1772 		8-98106-486-0 01 1 0804-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710-0906 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710-0906 ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 		9-09840-280-0 01 1 0804- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1001- ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0801 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0802-0803 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0804-0808 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 0809-0912 ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8 		1-09400-029-0 02 1 1001- ● ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M12 ELBOW 		0-92125-206-0 01 1 0804- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0802-0803 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0804-0808 ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 0809-0912 ●
75 UNION; OIL PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 01 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0710-0801 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0802-0803 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0804-0808 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 0809-0912 ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (A) LH LINE L=733 		8-98169-366-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=781 		8-98169-367-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=572 		8-98173-026-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (D) L=420 		8-98120-163-0 01 1 0804- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712-0803 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0804-0808 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0809-0912 ●
138 PIPE; HYDRAULIC UNIT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1001-1005 ● ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 1006- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0809- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712-0808 ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0809-1011 ● ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 1012- ●
çizim 178876
13 1 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=730 		0-05213-730-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-0803 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0804-0808 ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1001- ● ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710-0808 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=480 		8-98067-398-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0809- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0803 ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> M8X35 FLANGE 		0-28650-835-0 01 1 0804-0901 ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0902-0912 ●
12 BOLT; FLEX HOSE TO RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0902-0912 ●
12 BOLT; FLEX HOSE TO RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 1001- ● ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98029-683-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98029-684-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-655-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98207-111-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-656-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98207-112-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) RH LINE L=1190 		8-98012-467-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) LH LINE L=600 		8-98012-468-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-685-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-686-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98059-745-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98207-109-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98059-747-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98207-110-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98066-082-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98066-082-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98207-113-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98066-083-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98066-083-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98207-114-0 01 1 1303- ●
çizim 178878
126 1 13 106 106 13 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=730 		0-05213-730-0 01 1 0804- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-0803 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0804-0808 ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0809-0912 ●
1 HOSE; FLEX,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1001- ● ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710-0808 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) (A) L=480 		8-98067-398-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		8-97138-885-0 02 1 0809- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98029-683-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98029-684-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-655-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98207-111-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-656-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98207-112-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) RH LINE L=1190 		8-98012-467-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) LH LINE L=600 		8-98012-468-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-685-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-686-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98059-745-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98207-109-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98059-747-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98207-110-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98066-082-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98066-082-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98207-113-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98066-083-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98066-083-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98207-114-0 01 1 1303- ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 0907- ● ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712-0803 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0804-0808 ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0809-0912 ●
126 CLIP; FLEX HOSE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 1001- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-0808 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0809- ● ●
çizim 178930
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98029-683-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98029-684-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-655-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98207-111-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-656-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98207-112-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) RH LINE L=1190 		8-98012-467-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) LH LINE L=600 		8-98012-468-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-685-1 01 1 0712- ●
13 PIPE; BRK,RR AXLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-686-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98059-745-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98207-109-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98059-747-0 01 1 0710-1302 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98207-110-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98066-082-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98066-082-1 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) RH LINE 		8-98207-113-0 01 1 1303- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98066-083-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98066-083-0 01 1 0712-1302 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) LH LINE 		8-98207-114-0 01 1 1303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
