Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#33437) — 538 parça

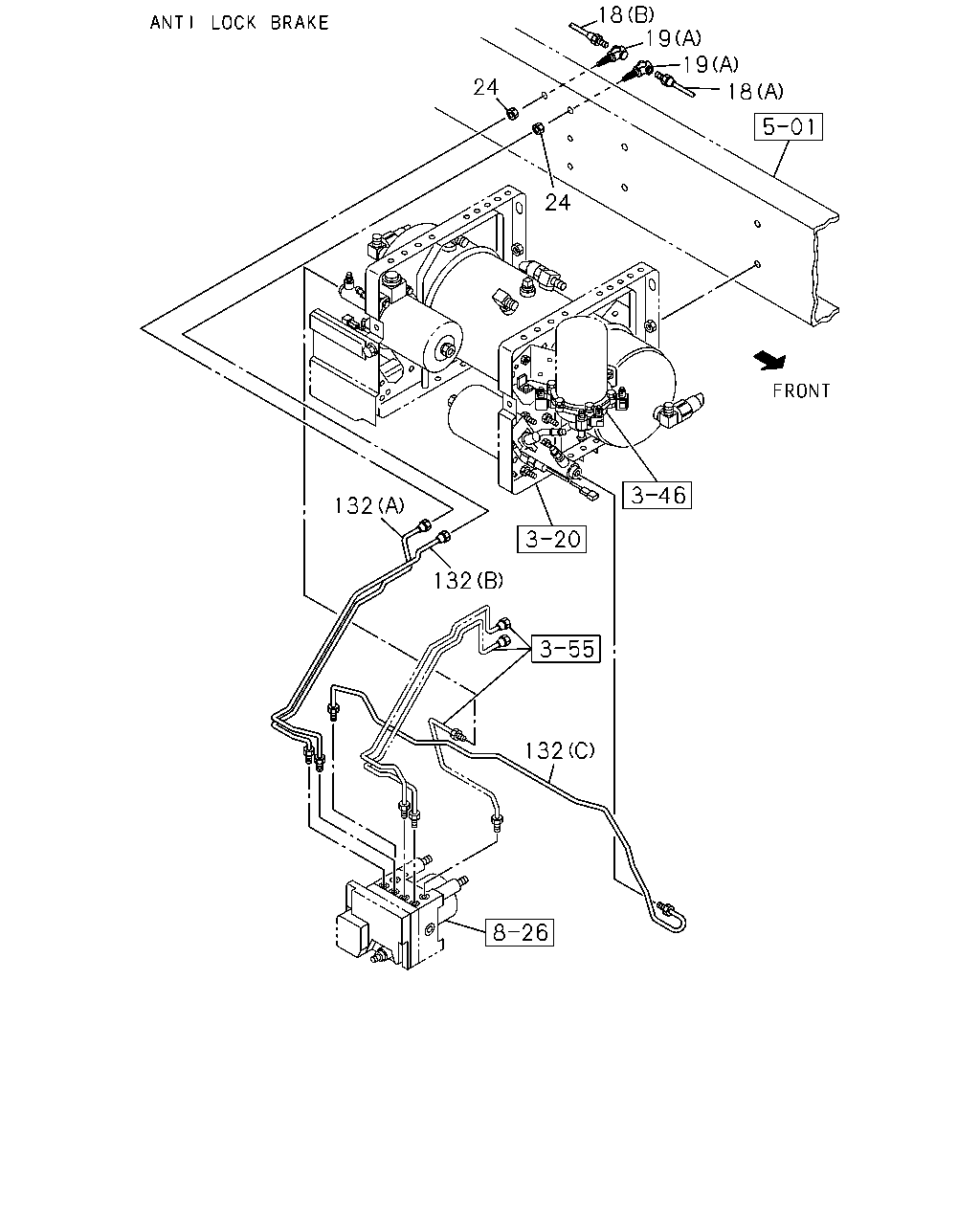

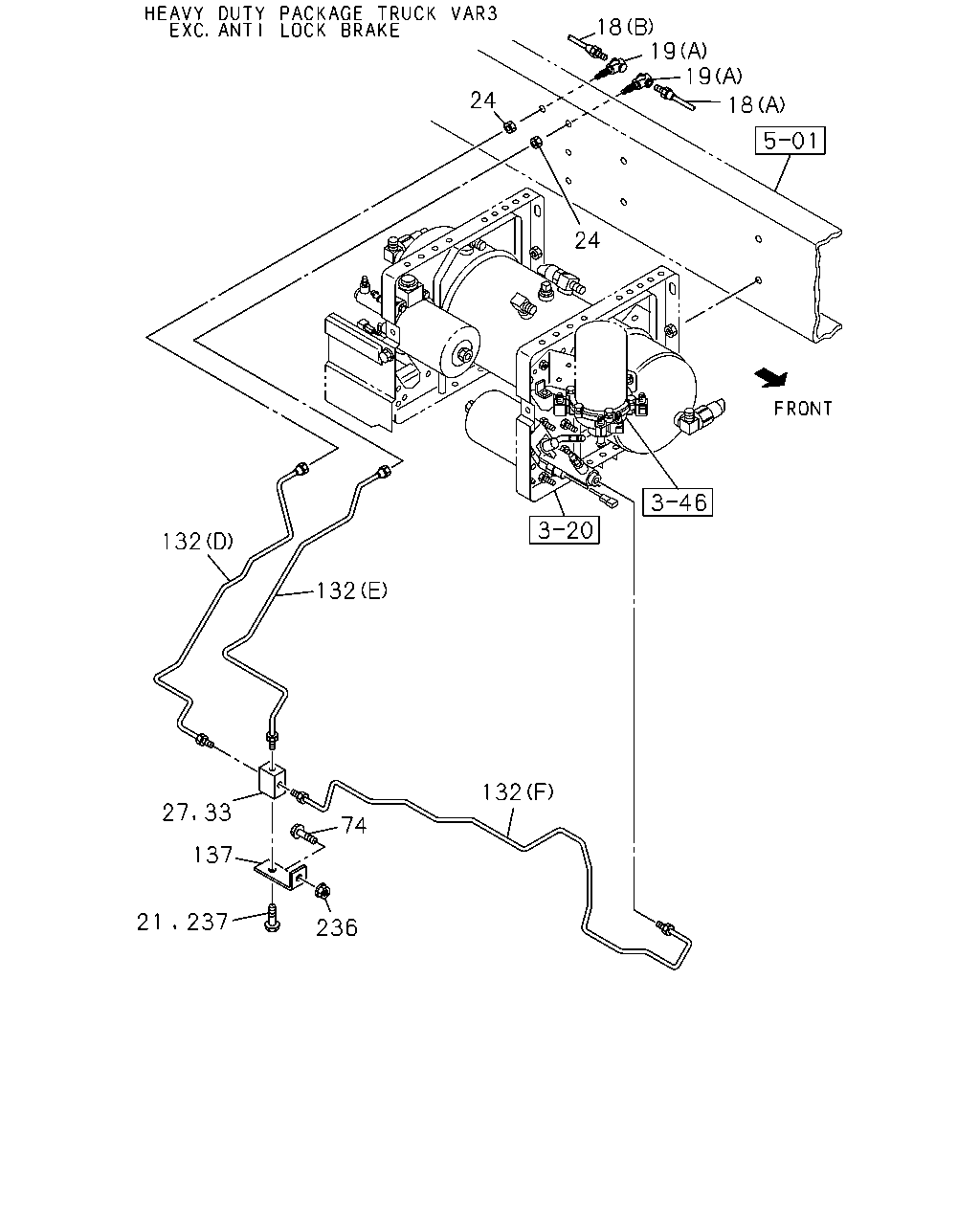

18 19 19 18 24 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=689	8-98134-926-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=1111	8-98134-927-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0803-0808		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0712-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0804-	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0803-0803	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0804-0808	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0809-0912		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0809-0912	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1001-		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	1001-	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0710-0802	●	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0808		●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (E) RH LINE L=407	8-98120-162-0	01	1	0804-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0803-0803	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0809-0811		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0809-0811	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-0912		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	0812-0912	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	1001-		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	1001-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-	●

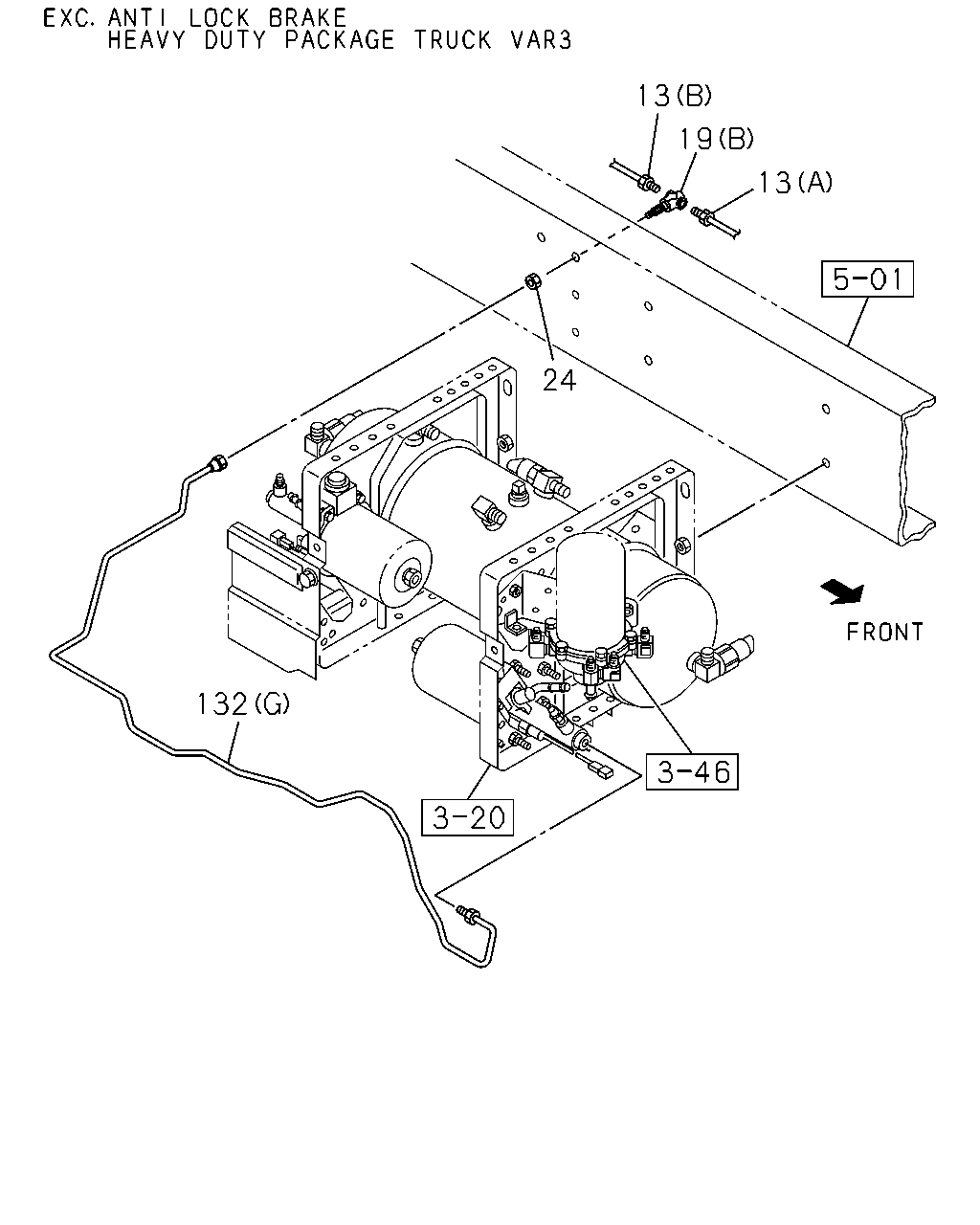

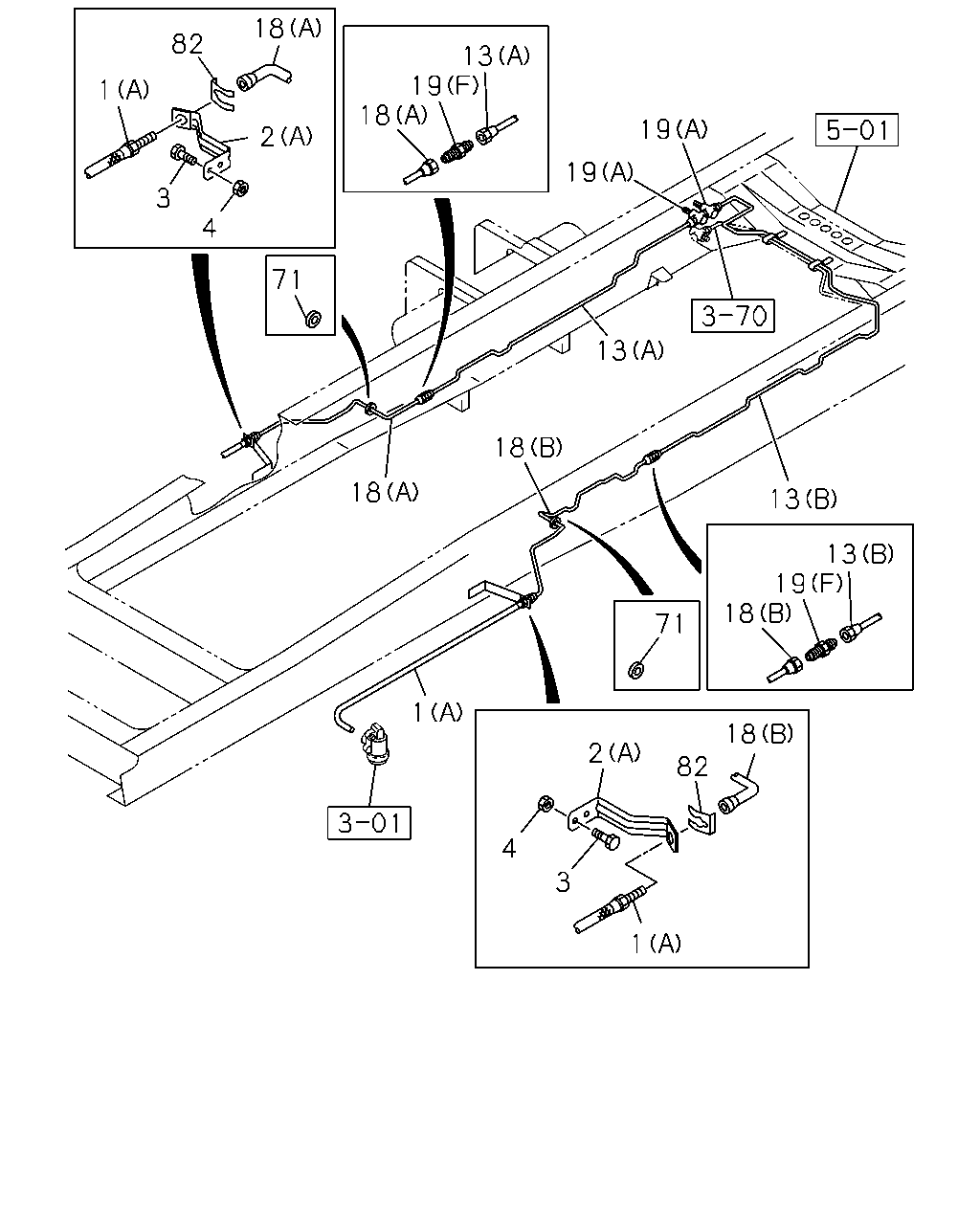

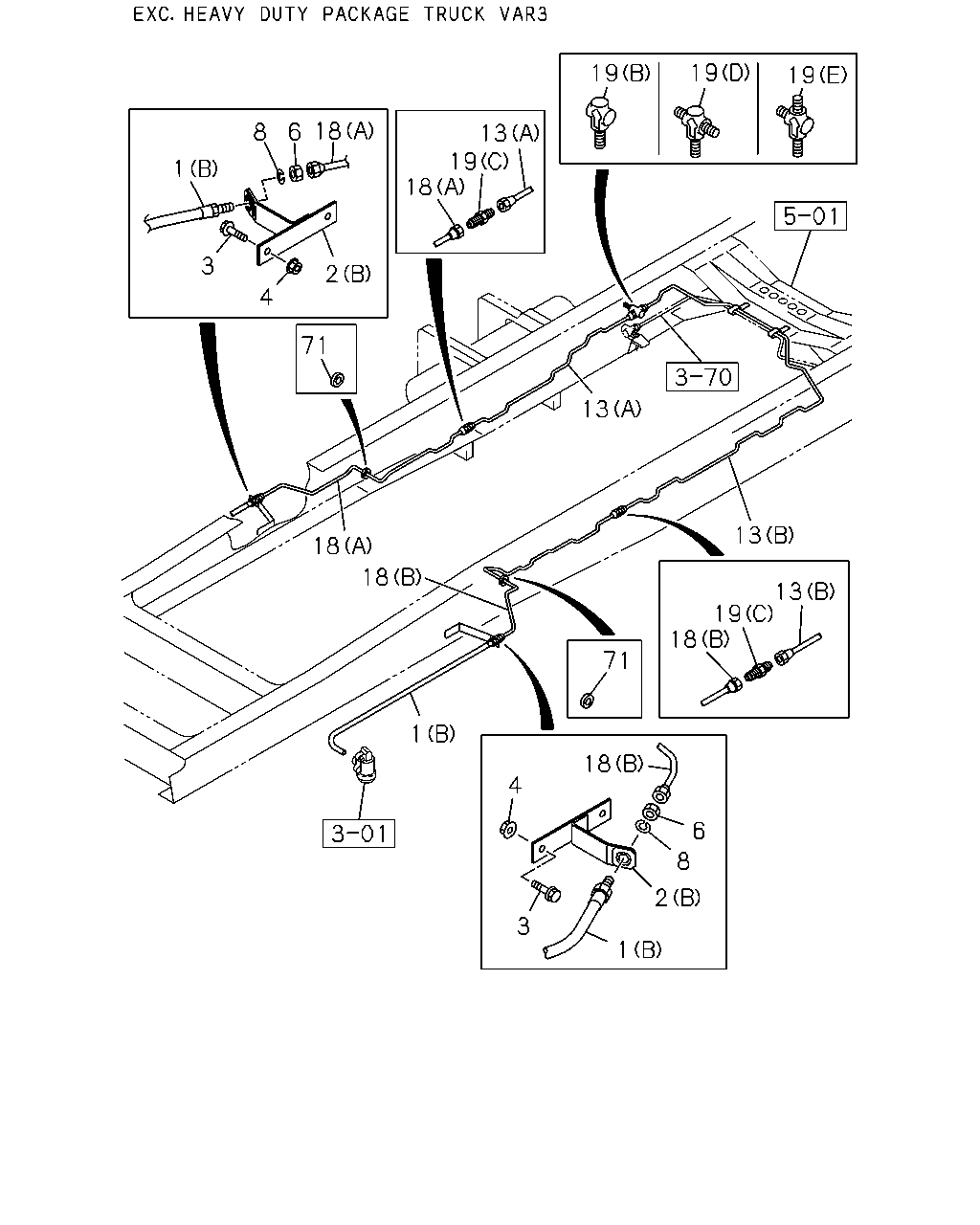

18 19 19 24 18 24 132 132 13 74 137 21 237 236 27 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1785	8-98078-159-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1267	8-98125-568-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=1826	8-98173-027-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0804-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2502 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0805	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0806-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=689	8-98134-926-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=1111	8-98134-927-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0803-0808		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0712-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
21	BOLT; UNION BRKT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE	0-28050-810-0	01	1	0803-	●
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0804-	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0803-0803	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0804-0808	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0809-0912		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0809-0912	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1001-		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	1001-	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0710-0802	●	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0808		●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●
27	UNION; BRK PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5)	8-97314-636-0	01	1	0803-	●
33	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-97314-636-0	01	1	0712-0802	●
74	BOLT; BRKT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (E) RH LINE L=407	8-98120-162-0	01	1	0804-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0803-0803	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0809-0811		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0809-0811	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-0912		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	0812-0912	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	1001-		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	1001-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-	●
137	BRACKET; UNION SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) L=105 B=25	1-47476-161-0	01	1	0803-	●
236	NUT; BRKT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	0803-	●
237	BOLT; UNION EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE	0-28050-810-0	01	1	0712-0802	●

13 19 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1785	8-98078-159-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1267	8-98125-568-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=1826	8-98173-027-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0804-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2502 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0805	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0806-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0804-	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0803-0803	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0804-0808	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0809-0912		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	0809-0912	●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1001-		●
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) M10 H=8	1-09400-029-0	01	1	1001-	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0710-0802	●	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0808		●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-0808	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●	●
24	NUT; UNION,OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0809-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (E) RH LINE L=407	8-98120-162-0	01	1	0804-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0803-0803	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0809-0811		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1464	8-98113-766-0	01	1	0809-0811	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-0912		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	0812-0912	●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	1001-		●
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (G) L=1467	8-98135-796-0	01	1	1001-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0712-0803	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	1012-	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0710-0711	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0712-0808	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0809-1011	●	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-		●
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1012-	●

18 82 1 19 2 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0804-	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0710-0711	●	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0712-0912		●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0712-0912	●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1001-	●	●
2	BRACKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0804-1011	●
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1012-	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0710-0711	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0712-0912		●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0712-0912	●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1001-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0804-0906	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-0912		●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0912	●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1001-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=689	8-98134-926-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=1111	8-98134-927-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0803-0808		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0712-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0710-1307	●	●
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-	●	●

19 19 19 18 6 8 13 19 18 1 3 2 4 71 13 13 18 18 13 19 18 71 1 18 4 6 8 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0804-	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0710-0711	●	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0712-0912		●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0712-0912	●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1001-	●	●
2	BRACKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0804-1011	●
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1012-	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0710-0711	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0712-0912		●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0712-0912	●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1001-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0804-0906	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-0912		●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0912	●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1001-	●	●
6	NUT; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	02	1	0804-	●
8	GASKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 OD=17	9-09920-472-0	02	1	0804-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1785	8-98078-159-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1267	8-98125-568-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=1826	8-98173-027-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0804-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2502 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0805	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0806-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=689	8-98134-926-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=1111	8-98134-927-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0803-0808		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0712-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-	●	●

18 82 13 19 18 1 19 2 19 3 4 71 13 18 18 13 13 19 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0804-	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0710-0711	●	●
1	HOSE; FLEX,FRT BRK (A) L=330	8-98024-433-0	02	1	0712-0912		●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0712-0912	●
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	1001-	●	●
2	BRACKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0804-1011	●
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	1012-	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0710-0711	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98012-343-1	02	1	0712-0912		●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0712-0912	●
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1001-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0804-0906	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-0912		●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0912	●
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1001-	●	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1785	8-98078-159-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1267	8-98125-568-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=1826	8-98173-027-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0804-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	1012-	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2502 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0805	●
13	PIPE; OIL,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0806-1011	●
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=689	8-98134-926-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=1111	8-98134-927-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3280	8-98113-895-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B) LH L=3280	8-98113-895-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=584 SERVICED BY L=600	1-47428-725-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=527 SERVICED BY L=550	1-47428-724-0	01	1	1012-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH L=3240	8-98078-161-0	01	1	0803-0808		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0803-0808	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0809-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	0907-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (B) LH L=3240	8-98078-161-0	01	1	1001-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0710-0711	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH L=1940	8-98067-420-1	01	1	0712-0912		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	0712-0912	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1001-1011	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) RH L=1940	8-98067-420-1	01	1	1012-	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (F) M10 STRAIGHT	0-92107-005-0	02	1	1012-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0804-	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 L=69	0-92138-506-0	01	1	0804-0805	●
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 3WAY	0-92138-906-0	01	1	0806-	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0803-0803	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0804-0808	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	0809-0912		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	0809-0912	●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98113-738-0	01	1	1001-		●
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),SINGAPORE EQUIPMENT(2G0) (B)	8-98113-738-0	01	1	1001-	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0710-0802	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808		●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0803-0808	●
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●	●
19	UNION; OIL PIPE SINGAPORE EQUIPMENT(2G0) EXC. ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW	8-98018-438-0	02	1	0809-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0710-1307	●	●
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
