Sayfa 3-26 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶

3-26 — TRAILER CONTROL (#33432) — 135 parça

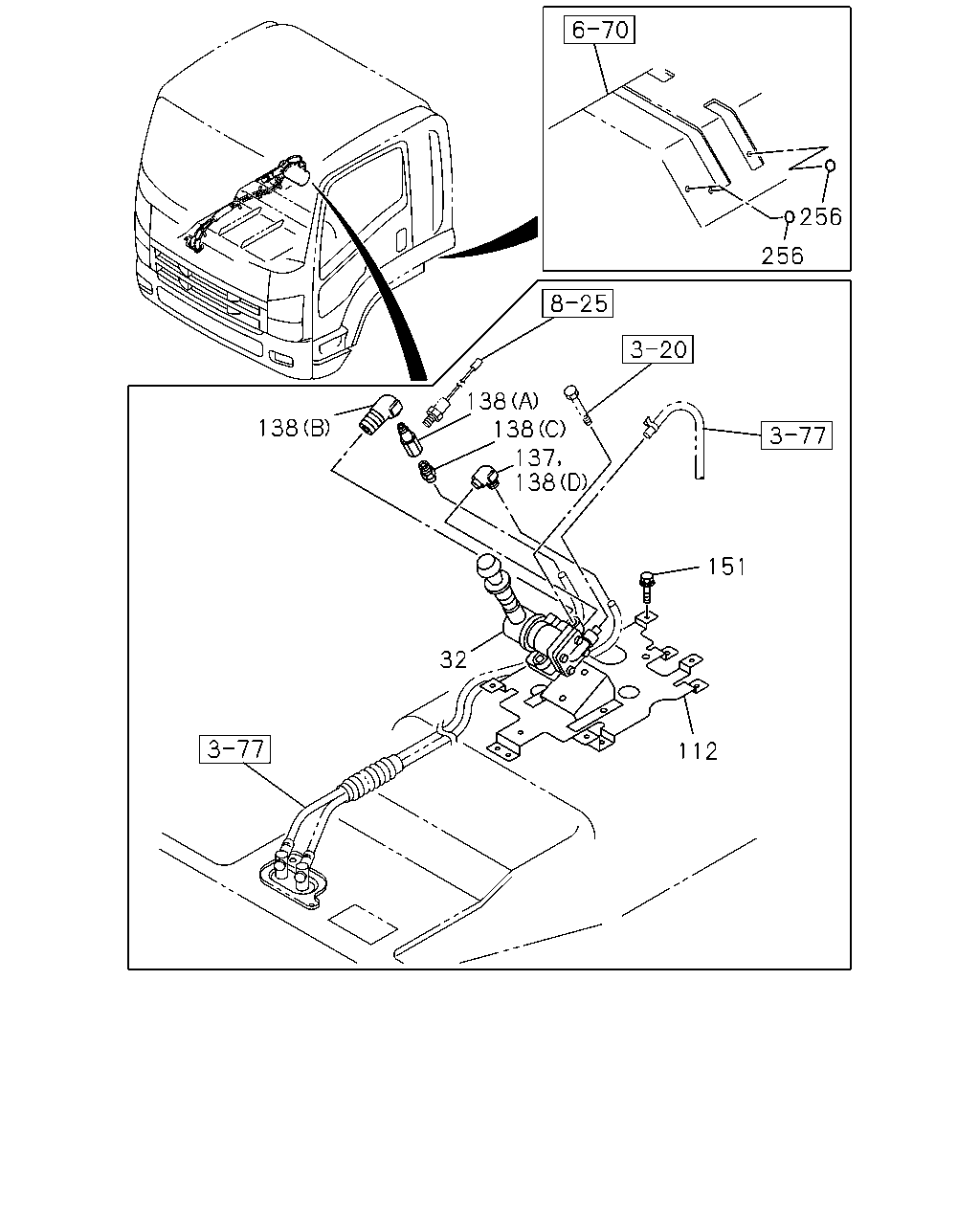

256 256 138 138 137 138 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0712-0808	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0712-0808		●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0809-	●	●
112	BRACKET; CONT VLV	1-73908-054-7	01	1	0710-0711	●	●
112	BRACKET; CONT VLV	1-73908-054-7	01	1	0712-0808	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-054-7	01	1	0712-0808		●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-054-7	01	1	0809-	●	●
137	CONNECTOR; SUPPLY DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●	●
137	CONNECTOR; SUPPLY DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808	●
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-0808		●
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1101	●	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-	●	●
138	CONNECTOR; DELIVERY (B) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (B) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-0712	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-0712		●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0801-0808	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0801-0808		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-	●	●
138	CONNECTOR; DELIVERY (A) PT1/4X3 3WAY	1-09660-335-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (A) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-	●	●
151	BOLT; VLV BRKT M6X16	0-52000-616-0	04	1	0710-0711	●	●
151	BOLT; VLV BRKT M6X16	0-52000-616-0	04	1	0712-0808	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16	0-52000-616-0	04	1	0712-0808		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16	0-52000-616-0	04	1	0809-	●	●
256	SEAL OD=25 BLACK	1-76798-019-0	08	1	0710-0711	●	●
256	SEAL OD=25 BLACK	1-76798-019-0	08	1	0712-0808	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	0712-0808		●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	0809-	●	●

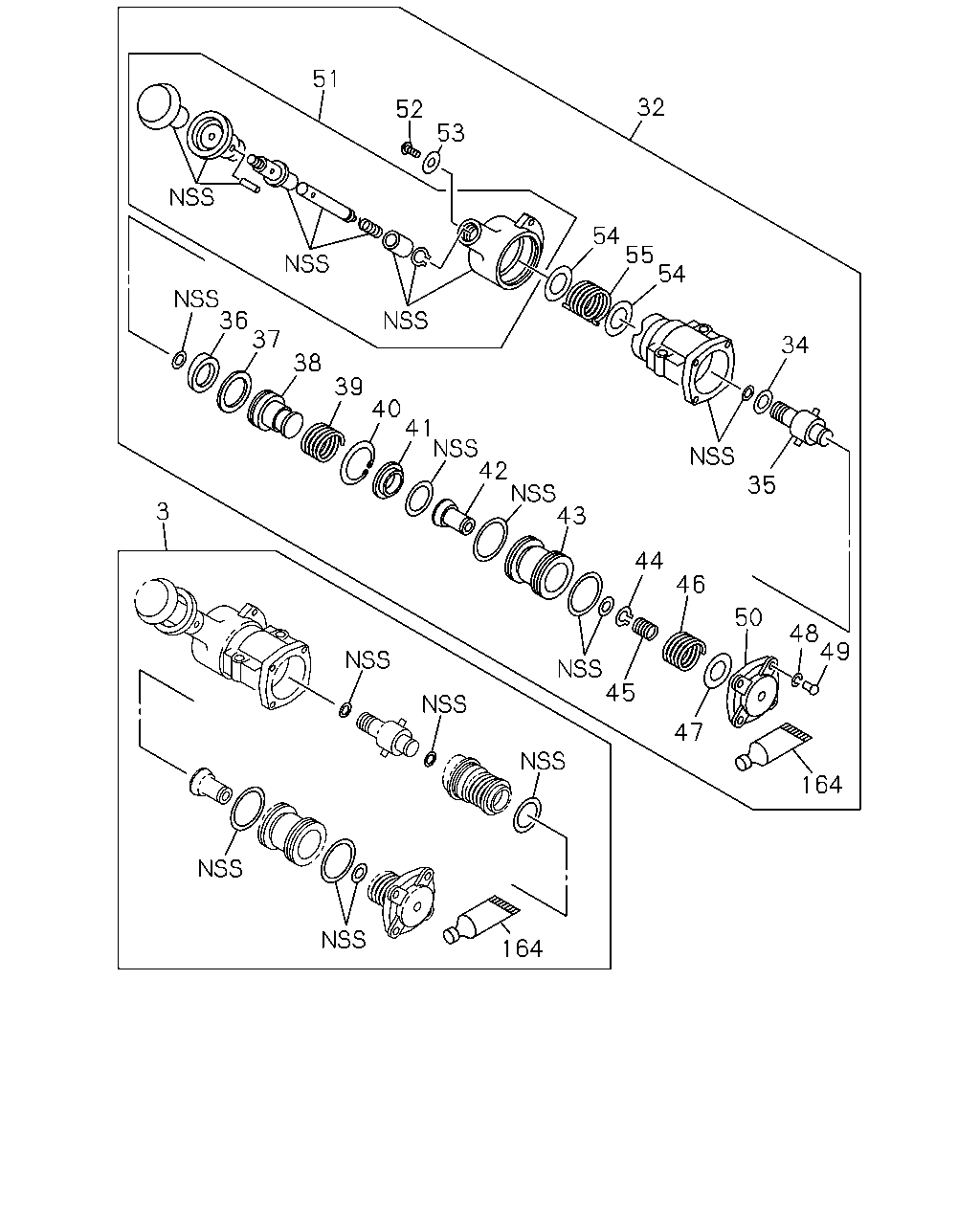

51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	0710-0711	●	●
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	0712-0808	●
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	0712-0808		●
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	0809-	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0712-0808	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0712-0808		●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0809-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0710-0711	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0712-0808	●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0712-0808		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0809-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	0710-0711	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	0712-0808	●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0712-0808		●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0809-	●	●
36	RING; CAM	1-48469-056-0	01	1	0710-0711	●	●
36	RING; CAM	1-48469-056-0	01	1	0712-0808	●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0712-0808		●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0809-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0710-0711	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0712-0808	●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0712-0808		●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0809-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0710-0711	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0712-0808	●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0712-0808		●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0809-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0710-0711	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0712-0808	●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0712-0808		●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0809-	●	●
40	RING; SNAP	1-48469-067-0	01	1	0710-0711	●	●
40	RING; SNAP	1-48469-067-0	01	1	0712-0808	●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0712-0808		●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0809-	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0710-0711	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0712-0808	●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0712-0808		●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0809-	●	●
42	VALVE; FEED	1-48469-065-0	01	1	0710-0711	●	●
42	VALVE; FEED	1-48469-065-0	01	1	0712-0808	●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0712-0808		●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0809-	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0710-0711	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0712-0808	●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0712-0808		●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0809-	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0710-0711	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0712-0808	●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0712-0808		●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0809-	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0710-0711	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0712-0808	●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0712-0808		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0809-	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0710-0711	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0712-0808	●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0712-0808		●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0809-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0710-0711	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0712-0808	●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0712-0808		●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0809-	●	●
48	WASHER; COVER	1-48469-091-0	04	1	0710-0711	●	●
48	WASHER; COVER	1-48469-091-0	04	1	0712-0808	●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0712-0808		●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0809-	●	●
49	SCREW; COVER	1-48469-092-0	04	1	0710-0711	●	●
49	SCREW; COVER	1-48469-092-0	04	1	0712-0808	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0712-0808		●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0809-	●	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0710-0711	●	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0712-0808	●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0712-0808		●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0809-	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0710-0711	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0712-0808	●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0712-0808		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0809-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0710-0711	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0712-0808	●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0712-0808		●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0809-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0710-0711	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0712-0808	●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0712-0808		●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0809-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	0710-0711	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	0712-0808	●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0712-0808		●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0809-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0710-0711	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0712-0808	●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0712-0808		●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0809-	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0710-0711	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0712-0808	●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0712-0808		●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0809-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
