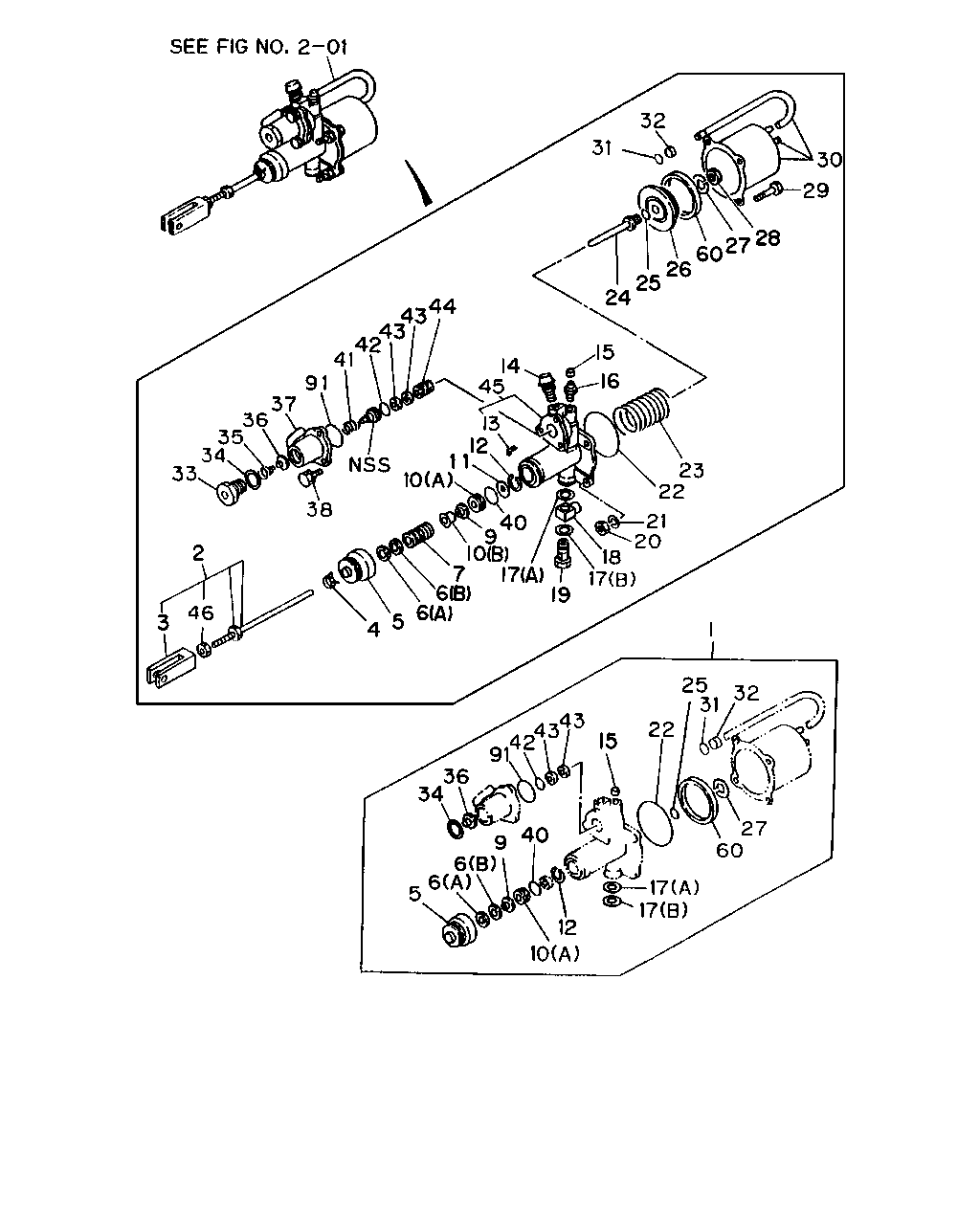

2-07A — CLUTCH BOOSTER; MINIPACK (#3343) — 66 parça

30 29 32 31 28 27 60 26 25 24 44 43 43 42 41 91 37 36 35 34 33 38 2 46 3 15 16 14 45 13 12 11 10 23 22 21 20 18 17 19 17 40 9 10 7 6 6 5 4 1 32 31 25 22 15 43 43 42 91 36 34 40 9 6 6 5 10 12 17 17 60 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	REPAIR KIT; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-326-0	01	1	9002-	●	●	●	●	●	●	●
1	REPAIR KIT; CLU BOOSTER 12PD1 C ENG(43L)	1-31829-297-0	01	1	9307-			●
2	ROD; PUSH,CLU BOOSTER	1-31824-147-0	01	1	9002-9306	●	●	●	●	●	●	●
2	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-163-0	01	1	9307-	●	●	●	●	●	●	●
2	ROD; PUSH,CLU BOOSTER 12PD1 C ENG(43L)	1-31824-116-0	01	1	9307-			●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	9002-	●	●	●	●	●	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9002-	●	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9002-	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9002-	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9002-	●	●	●	●	●	●	●
7	PISTON; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31821-013-0	01	1	9002-	●	●	●	●	●	●	●
7	PISTON; CLU BOOSTER 12PD1 C ENG(43L)	1-31821-048-0	01	1	9307-			●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9002-	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-108-0	01	1	9002-	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-107-0	01	1	9311-	●	●	●	●	●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9002-	●	●	●	●	●	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9002-	●	●	●	●	●	●	●
13	PIN; SPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-109-0	01	1	9002-	●	●	●	●	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9002-	●	●	●	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9002-	●	●	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9002-	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9002-	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9002-	●	●	●	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9002-	●	●	●	●	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9002-	●	●	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	9002-	●	●	●	●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9002-	●	●	●	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-09623-322-0	01	1	9002-	●	●	●	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 12PD1 C ENG(43L)	1-31829-281-0	01	1	9307-			●
23	SPRING; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-110-0	01	1	9002-	●	●	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER 12PD1 C ENG(43L)	1-31829-350-0	01	1	9307-			●
24	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-112-0	01	1	9002-	●	●	●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER 12PD1 C ENG(43L)	1-31824-154-0	01	1	9307-			●
25	GASKET; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-09623-321-0	01	1	9002-	●	●	●	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER 12PD1 C ENG(43L)	1-31829-277-0	01	1	9307-			●
26	PISTON; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31821-017-0	01	1	9002-	●	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER 12PD1 C ENG(43L)	1-31821-060-0	01	1	9307-			●
27	SPRING; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-111-0	01	1	9002-	●	●	●	●	●	●	●
27	SPRING; CLU BOOSTER 12PD1 C ENG(43L)	1-31829-291-0	01	1	9307-			●
28	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	9-88510-365-0	01	1	9002-	●	●	●	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER 12PD1 C ENG(43L)	1-31829-290-0	01	1	9307-			●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9002-	●	●	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-061-0	01	1	9002-	●	●	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER 12PD1 C ENG(43L)	1-31811-076-0	01	1	9307-			●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9002-	●	●	●	●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9002-	●	●	●	●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9002-	●	●	●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9002-	●	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9002-	●	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9002-	●	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-053-0	01	1	9002-	●	●	●	●	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9002-	●	●	●	●	●	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9002-	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	9002-9306	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-422-0	01	1	9307-	●	●	●	●	●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	9002-	●	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9002-9006	●	●	●	●	●		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9007-	●	●	●	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	9002-	●	●	●	●	●	●	●
45	PLATE; END,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-060-0	01	1	9002-	●	●	●	●	●	●	●
45	PLATE; END,CLU BOOSTER 12PD1 C ENG(43L)	1-31811-078-0	01	1	9307-			●
46	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-126-0	01	1	9002-	●	●	●	●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 12PD1 C ENG(43L) M10	9-09111-410-0	01	1	9307-			●
60	GASKET; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-058-0	01	1	9002-	●	●	●	●	●	●	●
60	GASKET; SHELL,CLU BOOSTER 12PD1 C ENG(43L)	1-31829-292-0	01	1	9307-			●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9002-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
