Isuzu WW
▶
TRUCKS
▶
FSR
▶
11103 - FSR-R EU2/4EXC.SPACE
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶

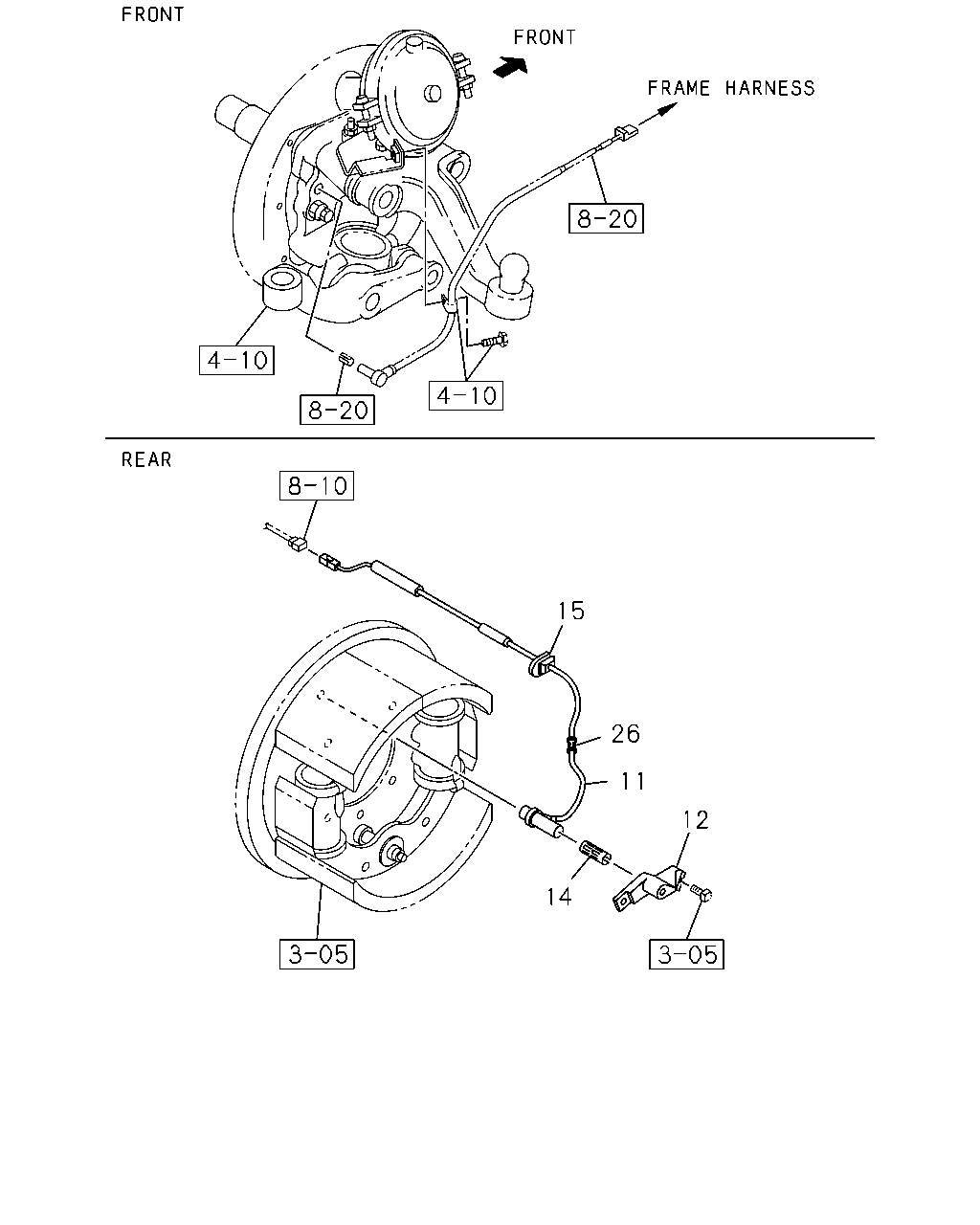

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#33429) — 18 parça
Tümü
A - FCD5MS
B - FCR5MS
15
26
11
12
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
SENSOR; ABS
8-98012-783-2
02
1
0710-0711
●
●
11
SENSOR; ABS
8-98012-783-2
02
1
0712-
●
11
SENSOR; ABS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
8-98012-783-2
02
1
0712-
●
12
BRACKET; SENSOR
1-83129-383-0
01
1
0710-0711
●
●
12
BRACKET; SENSOR
1-83129-383-0
01
1
0712-
●
12
BRACKET; SENSOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
1-83129-383-0
01
1
0712-
●
12
BRACKET; SENSOR
1-83129-384-0
01
1
0710-0711
●
●
12
BRACKET; SENSOR
1-83129-384-0
01
1
0712-
●
12
BRACKET; SENSOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
1-83129-384-0
01
1
0712-
●
14
SLEEVE; SENSOR
1-83129-260-1
02
1
0710-0711
●
●
14
SLEEVE; SENSOR
1-83129-260-1
02
1
0712-
●
14
SLEEVE; SENSOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
1-83129-260-1
02
1
0712-
●
15
COVER; SENSOR
1-83129-378-0
02
1
0710-0711
●
●
15
COVER; SENSOR
1-83129-378-0
02
1
0712-
●
15
COVER; SENSOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
1-83129-378-0
02
1
0712-
●
26
SPACER; SENSOR
1-83129-254-0
02
1
0710-0711
●
●
26
SPACER; SENSOR
1-83129-254-0
02
1
0712-
●
26
SPACER; SENSOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)
1-83129-254-0
02
1
0712-
●
