3-05 — REAR WHEEL BRAKE (#33424) — 530 parça

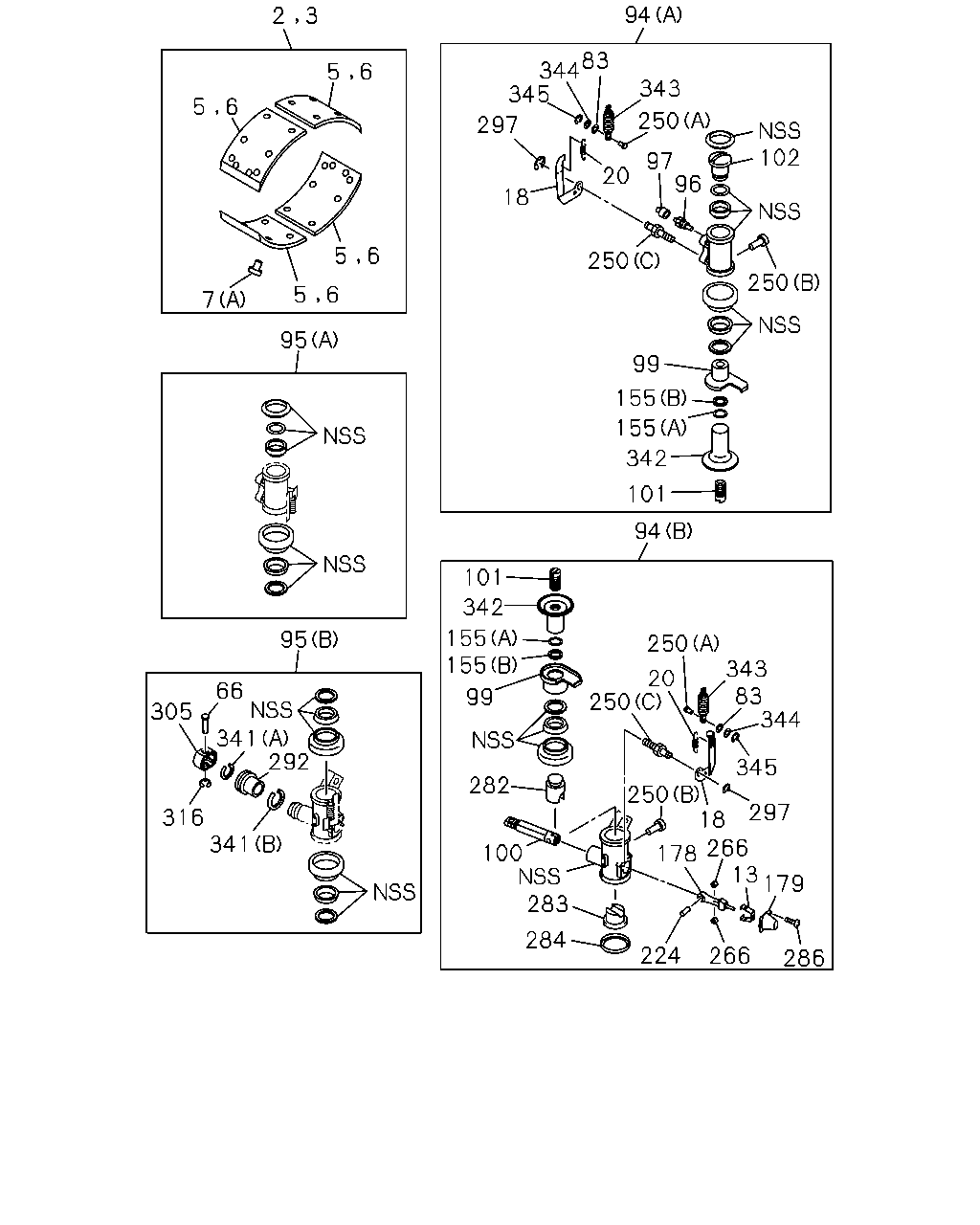

çizim 178625
94 2 3 83 344 345 5 6 343 5 6 250 297 102 97 96 20 18 5 6 250 250 5 6 7 95 99 155 155 342 101 94 101 342 155 155 95 250 343 83 344 20 250 66 99 305 341 292 345 250 18 282 297 316 341 266 178 13 179 100 283 284 224 266 286
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-390-0 01 1 0712- ●
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-394-0 01 1 0712- ●
2 LINING SET; RR BRK,STANDARD 1-88310-839-1 02 1 0710-0711 ● ●
2 LINING SET; RR BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 0712- ● ●
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-391-0 01 1 0712- ●
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-395-0 01 1 0712- ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-840-1 02 1 0710-0711 ● ●
3 LINING SET; RR BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 0712- ● ●
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 0712- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 0710-0711 ● ●
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 0712- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-813-0 08 1 0712- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-162-0 08 1 0710-0711 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) TRAILING L=18.5 		1-09732-034-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING L=15.5 		1-09732-053-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
(A) 		1-09732-029-0 96 1 0710-0711 ● ●
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09732-029-0 96 1 0712- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47619-139-0 02 1 0710-0711 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47619-139-0 02 1 0712- ●
13 CLIP; ROLLER PIN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-139-0 02 1 0712- ●
18 LEVER; AUTO ADJ 1-47629-164-0 02 1 0710-0711 ● ●
18 LEVER; AUTO ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-164-0 02 1 0712- ● ●
18 LEVER; AUTO ADJ 1-47629-165-0 02 1 0710-0711 ● ●
18 LEVER; AUTO ADJ
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-165-0 02 1 0712- ● ●
20 SPRING; ADJ LEVER 1-09583-345-0 04 1 0710-0711 ● ●
20 SPRING; ADJ LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-345-0 04 1 0712- ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 0710-0711 ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 0712- ●
66 PIN; JAW JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09744-128-0 02 1 0712- ●
83 WASHER; PL 1-47619-108-0 04 1 0710-0711 ● ●
83 WASHER; PL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-108-0 04 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47601-046-1 02 1 0712-1003 ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-185-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-185-0 01 1 1411- ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (A) 		1-87830-933-0 04 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 08 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 0801- ●
95 CUP SET; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-87830-922-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 0710-0711 ● ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-87830-933-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 0710-0711 ● ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-87831-246-1 02 1 0712- ●
96 SCREW; BLEEDER,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98050-476-0 02 1 0712- ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0710-0711 ● ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0712- ●
96 SCREW; BLEEDER,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		8-98050-477-0 02 1 0712- ●
96 SCREW; BLEEDER,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-477-0 02 1 0712- ●
97 CAP; BLEEDER,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 0712- ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0710-0711 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 02 1 0712- ● ●
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-349-0 02 1 0712- ●
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-350-0 02 1 0712- ●
99 PISTON; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 0712- ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD 		1-47624-349-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD 		1-47624-350-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD 		1-47624-351-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD 		1-47624-352-0 01 1 0712- ●
100 ROD; PUSH,RR WHEEL CYL 1-47619-169-0 02 1 0710-0711 ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47619-169-0 02 1 0712-1410 ●
100 ROD; PUSH,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-169-0 02 1 0712-1410 ●
100 ROD; PUSH,RR WHEEL CYL 8-98290-467-0 02 1 1411- ●
100 ROD; PUSH,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98290-467-0 02 1 1411- ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-053-0 02 1 0710-0711 ● ●
101 SCREW; ADJ,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-053-0 02 1 0712- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-054-0 02 1 0710-0711 ● ●
101 SCREW; ADJ,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47622-054-0 02 1 0712- ● ●
102 PISTON; REAR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47624-333-0 02 1 1411- ●
102 PISTON; REAR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-333-0 04 1 0712- ●
102 PISTON; REAR WHEEL CYL 1-47624-333-0 02 1 0710-0711 ● ●
102 PISTON; REAR WHEEL CYL 1-47624-333-0 02 1 0712-1410 ●
102 PISTON; REAR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-333-0 02 1 0712-1410 ●
102 PISTON; REAR WHEEL CYL 1-47624-333-0 02 1 1411- ●
102 PISTON; REAR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-333-0 02 1 1411- ●
155 WASHER; PL,WHEEL CYL
(A) 		1-47629-150-0 04 1 0710-0711 ● ●
155 WASHER; PL,WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47629-150-0 04 1 0712- ● ●
155 WASHER; PL,WHEEL CYL
(B) 		1-47629-151-0 04 1 0710-0711 ● ●
155 WASHER; PL,WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-151-0 04 1 0712- ● ●
178 WEDGE; RR WHEEL CYL 1-47619-168-0 02 1 0710-0711 ● ●
178 WEDGE; RR WHEEL CYL 1-47619-168-0 02 1 0712- ●
178 WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-168-0 02 1 0712- ●
179 COVER; WEDGE,RR WHEEL CYL 1-47619-141-0 02 1 0710-0711 ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47619-141-0 02 1 0712- ●
179 COVER; WEDGE,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-141-0 02 1 0712- ●
224 PIN; ROD 1-47619-130-0 02 1 0710-0711 ● ●
224 PIN; ROD 1-47619-130-0 02 1 0712- ●
224 PIN; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-130-0 02 1 0712- ●
250 PIN; RETAINING
(B) 		1-47629-112-0 04 1 0710-0711 ● ●
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-112-0 04 1 0712- ● ●
250 PIN; RETAINING
(C) 		1-47629-262-0 04 1 0710-0711 ● ●
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47629-262-0 04 1 0712- ● ●
250 PIN; RETAINING
(A) 		1-47619-106-0 04 1 0710-0711 ● ●
250 PIN; RETAINING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47619-106-0 04 1 0712- ● ●
266 ROLLER; WEDGE 1-47619-138-0 04 1 0710-0711 ● ●
266 ROLLER; WEDGE 1-47619-138-0 04 1 0712- ●
266 ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-138-0 04 1 0712- ●
282 PLUNGER; INNER 1-47629-255-0 02 1 0710-0711 ● ●
282 PLUNGER; INNER 1-47629-255-0 02 1 0712- ●
282 PLUNGER; INNER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-255-0 02 1 0712- ●
283 PLUNGER; OUTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47629-257-0 02 1 1411- ●
283 PLUNGER; OUTER 1-47629-256-0 01 1 0710-0711 ● ●
283 PLUNGER; OUTER 1-47629-256-0 01 1 0712-1410 ●
283 PLUNGER; OUTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-256-0 01 1 0712-1410 ●
283 PLUNGER; OUTER 1-47629-256-0 01 1 1411- ●
283 PLUNGER; OUTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-256-0 01 1 1411- ●
283 PLUNGER; OUTER 1-47629-257-0 01 1 0710-0711 ● ●
283 PLUNGER; OUTER 1-47629-257-0 01 1 0712-1410 ●
283 PLUNGER; OUTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-257-0 01 1 0712-1410 ●
283 PLUNGER; OUTER 1-47629-257-0 01 1 1411- ●
283 PLUNGER; OUTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-257-0 01 1 1411- ●
284 BOOT; PISTON 1-47616-093-0 02 1 0710-0711 ● ●
284 BOOT; PISTON 1-47616-093-0 02 1 0712- ●
284 BOOT; PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47616-093-0 02 1 0712- ●
286 SCREW; COVER 1-47619-132-0 06 1 0710-0711 ● ●
286 SCREW; COVER 1-47619-132-0 06 1 0712- ●
286 SCREW; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-132-0 06 1 0712- ●
292 BOOT; ROD 1-47616-107-0 02 1 0710-0711 ● ●
292 BOOT; ROD 1-47616-107-0 02 1 0712- ●
292 BOOT; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47616-107-0 02 1 0712- ●
297 RING; SNAP 1-47629-263-0 04 1 0710-0711 ● ●
297 RING; SNAP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-263-0 04 1 0712- ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 0710-0711 ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 0712- ●
305 GUIDE; SLACK ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-46346-023-0 02 1 0712- ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0710-0711 ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0712- ●
316 RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 		0-91805-509-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 0710-0711 ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47619-175-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 0710-0711 ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47619-176-0 02 1 0712- ●
342 GEAR; WHEEL CYL 1-47629-158-0 02 1 0710-0711 ● ●
342 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-158-0 02 1 0712- ● ●
342 GEAR; WHEEL CYL 1-47629-159-0 02 1 0710-0711 ● ●
342 GEAR; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-159-0 02 1 0712- ● ●
343 SPRING; WHEEL CYL 1-47629-141-0 04 1 0710-0711 ● ●
343 SPRING; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-141-0 04 1 0712- ● ●
344 WASHER; WAVE 1-47619-107-0 04 1 0710-0711 ● ●
344 WASHER; WAVE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-107-0 04 1 0712- ● ●
345 RETAINER; LEVER 1-47619-109-0 04 1 0710-0711 ● ●
345 RETAINER; LEVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-109-0 04 1 0712- ● ●

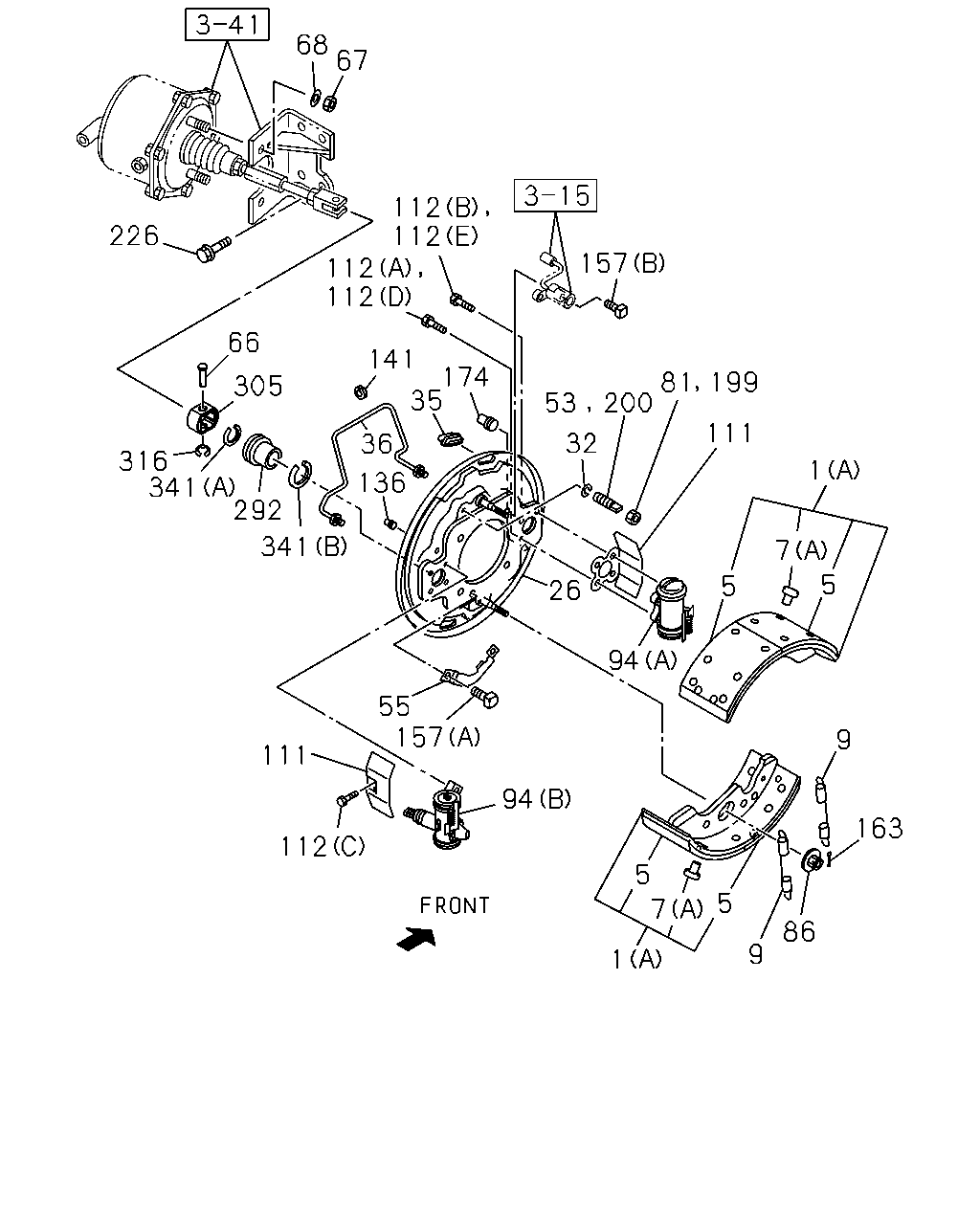

çizim 178635
68 67 112 112 112 112 226 157 66 141 174 35 81 199 305 111 32 36 316 341 1 136 292 341 7 5 5 26 94 55 157 9 111 94 163 112 5 5 7 86 9 1 53 200
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) 		1-47170-003-0 04 1 0712- ●
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47170-003-0 04 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING 		1-47170-496-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) TRAILING 		1-47170-497-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING 		1-47170-498-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) TRAILING 		1-47170-499-0 01 1 0712- ●
1 SHOE; BRK,RR
(A) 		1-47170-466-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR
(A) 		1-47170-466-0 04 1 0712- ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47170-466-0 04 1 0712- ●
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 0712- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 0710-0711 ● ●
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) TRAILING L=18.5 		1-09732-034-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING L=15.5 		1-09732-053-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
(A) 		1-09732-029-0 96 1 0710-0711 ● ●
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09732-029-0 96 1 0712- ● ●
9 SPRING; RETURN,BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-359-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 0712- ● ●
26 PLATE; BACK,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-612-1 01 1 0712- ●
26 PLATE; BACK,RR BRK
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47150-613-1 01 1 0712- ●
26 PLATE; BACK,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47150-644-0 01 1 0712- ●
26 PLATE; BACK,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47150-645-0 01 1 0712- ●
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) 		1-47150-676-0 01 1 0712- ●
26 PLATE; BACK,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) 		1-47150-677-0 01 1 0712- ●
26 PLATE; BACK,RR BRK 1-47150-642-0 01 1 0710-0711 ● ●
26 PLATE; BACK,RR BRK 1-47150-642-0 01 1 0712- ●
26 PLATE; BACK,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-642-0 01 1 0712- ●
26 PLATE; BACK,RR BRK 1-47150-643-0 01 1 0710-0711 ● ●
26 PLATE; BACK,RR BRK 1-47150-643-0 01 1 0712- ●
26 PLATE; BACK,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47150-643-0 01 1 0712- ●
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) ID=12.2 		0-91510-512-0 04 1 0712-1410 ●
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2 		0-91510-512-0 04 1 0712-1410 ●
32 WASHER; LK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2 		0-91510-512-0 04 1 1411- ●
32 WASHER; LK 1-09985-346-0 04 1 0710-0711 ● ●
32 WASHER; LK 1-09985-346-0 04 1 0712-1410 ●
32 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09985-346-0 04 1 0712-1410 ●
32 WASHER; LK 1-09985-346-0 04 1 1411- ●
32 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09985-346-0 04 1 1411- ●
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 0710-0711 ● ●
35 GROMMET; CHECK HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-033-0 04 1 0712- ● ●
36 PIPE; OIL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47421-727-0 02 1 0712- ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-49162-056-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-49162-057-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK 1-49167-875-0 01 1 0710-0711 ● ●
36 PIPE; OIL,RR BRK 1-49167-875-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-875-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK 1-49167-875-0 01 1 1411- ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-875-0 01 1 1411- ●
36 PIPE; OIL,RR BRK 1-49167-876-0 01 1 0710-0711 ● ●
36 PIPE; OIL,RR BRK 1-49167-876-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-876-0 01 1 0712-1410 ●
36 PIPE; OIL,RR BRK 1-49167-876-0 01 1 1411- ●
36 PIPE; OIL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-49167-876-0 01 1 1411- ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-47162-017-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47162-017-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 		0-20851-016-0 02 1 0712- ●
53 BOLT; LOCK PLATE 1-47162-047-0 02 1 0710-0711 ● ●
53 BOLT; LOCK PLATE 1-47162-047-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-047-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 0905- ● ●
55 PLATE; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47139-169-0 04 1 1411- ●
55 PLATE; LK,RR WHEEL CYL
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47139-064-0 02 1 0712- ●
55 PLATE; LK,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) 		1-47139-064-0 04 1 0712-1410 ●
55 PLATE; LK,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) 		1-47139-064-0 04 1 1411- ●
55 PLATE; LK,RR WHEEL CYL 1-47139-169-0 02 1 0710-0711 ● ●
55 PLATE; LK,RR WHEEL CYL 1-47139-169-0 02 1 0712- ●
55 PLATE; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47139-169-0 02 1 0712- ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 0710-0711 ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 0712- ●
66 PIN; JAW JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09744-128-0 02 1 0712- ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 0710-0711 ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 0712- ●
67 NUT; POWER CHAMBER FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91110-516-0 04 1 0712- ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 0710-0711 ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 0712- ●
68 WASHER; LK,CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16.2 		0-91510-816-0 04 1 0712- ●
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-09400-100-0 02 1 0712-1410 ●
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 0712-1410 ●
81 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 1411- ●
81 NUT 1-09400-167-0 02 1 0710-0711 ● ●
81 NUT 1-09400-167-0 02 1 0712-1410 ●
81 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-167-0 02 1 0712-1410 ●
81 NUT 1-09400-167-0 02 1 1411- ●
81 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-167-0 02 1 1411- ●
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-09440-003-0 04 1 0712-1410 ●
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09440-003-0 04 1 0712-1410 ●
86 NUT; FLANGE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09440-003-0 04 1 1411- ●
86 NUT; FLANGE 1-09440-102-0 04 1 0710-0711 ● ●
86 NUT; FLANGE 1-09440-102-0 04 1 0712-1410 ●
86 NUT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09440-102-0 04 1 0712-1410 ●
86 NUT; FLANGE 1-09440-102-0 04 1 1411- ●
86 NUT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09440-102-0 04 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47601-046-1 02 1 0712-1003 ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-185-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-185-0 01 1 1411- ●
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-47159-164-0 04 1 0712-1410 ●
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47159-164-0 04 1 0712-1410 ●
111 COVER; WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47159-164-0 04 1 1411- ●
111 COVER; WHEEL CYL 1-47159-233-0 04 1 0710-0711 ● ●
111 COVER; WHEEL CYL 1-47159-233-0 04 1 0712-1410 ●
111 COVER; WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-233-0 04 1 0712-1410 ●
111 COVER; WHEEL CYL 1-47159-233-0 04 1 1411- ●
111 COVER; WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-233-0 04 1 1411- ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 		1-47159-184-0 08 1 0712- ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) M14 		1-47159-183-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) M12 		1-47159-184-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0712-0906 ●
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907- ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-231-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-231-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-232-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-232-0 06 1 1411- ●
112 BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE 		8-94134-103-0 08 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 0712- ● ●
136 GROMMET 9-09956-640-0 04 1 0710-0711 ● ●
136 GROMMET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-09956-640-0 04 1 0712- ● ●
141 PROTECTOR; RR BRK PIPE 1-47143-008-0 02 1 0710-0711 ● ●
141 PROTECTOR; RR BRK PIPE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47143-008-0 02 1 0712- ● ●
157 BOLT; RR BRK SET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) 		1-09060-021-0 16 1 1411- ●
157 BOLT; RR BRK SET
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X50 SQUARE HEAD 		1-09060-013-0 12 1 0712- ●
157 BOLT; RR BRK SET
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X55 SQUARE HEAD 		1-09060-014-0 04 1 0712- ●
157 BOLT; RR BRK SET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) M14X50 SQUARE HEAD 		1-09060-013-0 16 1 0712-1410 ●
157 BOLT; RR BRK SET
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (A) M14X50 SQUARE HEAD 		1-09060-013-0 16 1 1411- ●
157 BOLT; RR BRK SET
(A) 		1-09060-021-0 12 1 0710-0711 ● ●
157 BOLT; RR BRK SET
(A) 		1-09060-021-0 12 1 0712- ●
157 BOLT; RR BRK SET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09060-021-0 12 1 0712- ●
157 BOLT; RR BRK SET
(B) 		1-09060-022-0 04 1 0710-0711 ● ●
157 BOLT; RR BRK SET
(B) 		1-09060-022-0 04 1 0712- ●
157 BOLT; RR BRK SET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09060-022-0 04 1 0712- ●
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		9-09874-040-0 04 1 0712-1410 ●
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09874-040-0 04 1 0712-1410 ●
163 PIN; SPLIT,SHOE HOLD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09874-040-0 04 1 1411- ●
163 PIN; SPLIT,SHOE HOLD 1-09740-098-0 04 1 0710-0711 ● ●
163 PIN; SPLIT,SHOE HOLD 1-09740-098-0 04 1 0712-1410 ●
163 PIN; SPLIT,SHOE HOLD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09740-098-0 04 1 0712-1410 ●
163 PIN; SPLIT,SHOE HOLD 1-09740-098-0 04 1 1411- ●
163 PIN; SPLIT,SHOE HOLD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09740-098-0 04 1 1411- ●
174 COVER; CYL,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 0712- ●
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) 		1-47154-008-0 02 1 0712- ●
174 COVER; CYL,RR WHEEL CYL 1-47154-008-0 04 1 0710-0711 ● ●
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 04 1 0712- ● ●
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-09400-100-0 02 1 0712-1410 ●
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 0712-1410 ●
199 NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09400-100-0 02 1 1411- ●
199 NUT 1-09400-167-0 02 1 0710-0711 ● ●
199 NUT 1-09400-167-0 02 1 0712-1410 ●
199 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-167-0 02 1 0712-1410 ●
199 NUT 1-09400-167-0 02 1 1411- ●
199 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09400-167-0 02 1 1411- ●
200 BOLT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-47162-017-0 02 1 0712-0904 ●
200 BOLT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47162-017-0 02 1 0712-0904 ●
200 BOLT 1-47162-047-0 02 1 0710-0711 ● ●
200 BOLT 1-47162-047-0 02 1 0712-0904 ●
200 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-047-0 02 1 0712-0904 ●
200 BOLT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 0905- ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 0710-0711 ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 0712- ●
226 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X35 FLANGE 		0-28651-435-0 08 1 0712- ●
292 BOOT; ROD 1-47616-107-0 02 1 0710-0711 ● ●
292 BOOT; ROD 1-47616-107-0 02 1 0712- ●
292 BOOT; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47616-107-0 02 1 0712- ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 0710-0711 ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 0712- ●
305 GUIDE; SLACK ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-46346-023-0 02 1 0712- ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0710-0711 ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0712- ●
316 RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 		0-91805-509-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 0710-0711 ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47619-175-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 0710-0711 ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 0712- ●
341 SPRING; ASSIST,BOOT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47619-176-0 02 1 0712- ●

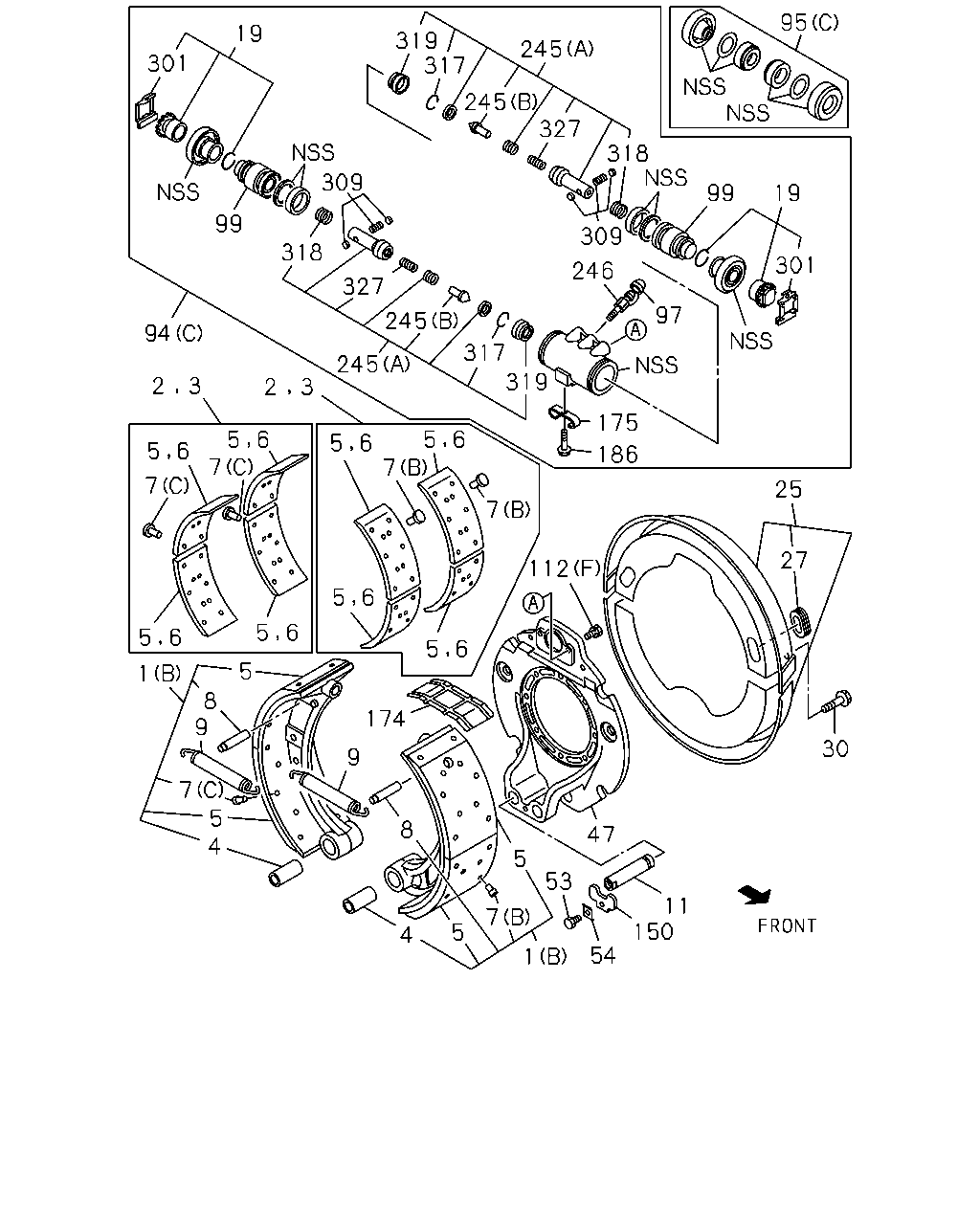

çizim 178871
95 19 319 317 245 301 245 327 318 309 99 19 309 99 318 301 246 327 97 245 94 317 245 319 2 3 2 3 175 7 7 186 7 25 7 27 112 5 1 8 9 174 30 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1 5 6 5 6 5 6 5 6 6 5 6 5 6 5 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) 		1-47170-003-0 04 1 0712- ●
1 SHOE; BRK,RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47170-003-0 04 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING 		1-47170-496-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) TRAILING 		1-47170-497-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING 		1-47170-498-0 01 1 0712- ●
1 SHOE; BRK,RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) TRAILING 		1-47170-499-0 01 1 0712- ●
1 SHOE; BRK,RR
(A) 		1-47170-466-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR
(A) 		1-47170-466-0 04 1 0712- ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47170-466-0 04 1 0712- ●
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-390-0 01 1 0712- ●
2 LINING SET; RR BRK,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-394-0 01 1 0712- ●
2 LINING SET; RR BRK,STANDARD 1-88310-839-1 02 1 0710-0711 ● ●
2 LINING SET; RR BRK,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-839-1 02 1 0712- ● ●
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING 		1-88311-391-0 01 1 0712- ●
3 LINING SET; RR BRK,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING 		1-88311-395-0 01 1 0712- ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-840-1 02 1 0710-0711 ● ●
3 LINING SET; RR BRK,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-88310-840-1 02 1 0712- ● ●
4 BUSHING; BRK SHOE,RR WHEEL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47112-011-0 04 1 0712- ●
5 LINING; RR BRK SHOE,STANDARD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-812-0 08 1 0712- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 0710-0711 ● ●
5 LINING; RR BRK SHOE,STANDARD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-161-0 08 1 0712- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-813-0 08 1 0712- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-162-0 08 1 0710-0711 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47126-162-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) TRAILING L=18.5 		1-09732-034-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) LEADING L=15.5 		1-09732-053-0 40 1 0712- ●
7 RIVET; LINING,RR BRK
(A) 		1-09732-029-0 96 1 0710-0711 ● ●
7 RIVET; LINING,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09732-029-0 96 1 0712- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47119-134-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-359-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09583-346-0 04 1 0712- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=106.5 		1-47131-038-0 04 1 0712- ●
19 ADJUSTER; RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-015-0 04 1 0712- ●
25 COVER SET; RR BRK DRUM
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47151-458-1 02 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09333-151-0 04 1 0712- ●
30 BOLT; DRUM COVER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12 		1-47159-187-0 12 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47137-577-0 02 1 0712- ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		1-47162-017-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47162-017-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16 		0-20851-016-0 02 1 0712- ●
53 BOLT; LOCK PLATE 1-47162-047-0 02 1 0710-0711 ● ●
53 BOLT; LOCK PLATE 1-47162-047-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-047-0 02 1 0712-0904 ●
53 BOLT; LOCK PLATE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47162-050-0 02 1 0905- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-011-0 02 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-198-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD 		1-47601-199-0 01 1 0712- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-010-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD 		1-47601-011-1 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-47601-046-1 02 1 0712-1003 ●
94 CYLINDER; WHEEL,RR BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-184-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-367-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		1-47601-185-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD 		8-98289-368-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-186-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-184-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0710-0711 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-187-0 01 1 0712-1410 ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-185-0 01 1 1411- ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD 		1-47601-185-0 01 1 1411- ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (A) 		1-87830-933-0 04 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 08 1 0712-0712 ●
95 CUP SET; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-933-0 04 1 0801- ●
95 CUP SET; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		1-87830-922-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 0710-0711 ● ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-87830-933-0 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 0710-0711 ● ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 0712- ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-87831-246-1 02 1 0712- ●
97 CAP; BLEEDER,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12 		1-47619-011-0 02 1 0712- ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0710-0711 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98050-479-0 02 1 0712- ● ●
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-349-0 02 1 0712- ●
99 PISTON; RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47624-350-0 02 1 0712- ●
99 PISTON; RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47624-357-0 04 1 0712- ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD 		1-47624-349-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD 		1-47624-350-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD 		1-47624-351-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 0710-0711 ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 0712- ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD 		1-47624-352-0 01 1 0712- ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 		1-47159-184-0 08 1 0712- ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) M14 		1-47159-183-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 		1-47159-183-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) M12 		1-47159-184-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0712-0906 ●
112 BOLT; WHEEL CYL SETTING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907- ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-231-0 08 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47159-231-0 08 1 1411- ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-232-0 06 1 0712-1410 ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 1411- ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47159-232-0 06 1 1411- ●
112 BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE 		8-94134-103-0 08 1 0710-0711 ● ●
112 BOLT; WHEEL CYL SETTING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE 		8-94134-103-0 08 1 0712- ● ●
150 PLATE; LK,ANCHOR PIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47133-005-0 02 1 0712- ●
174 COVER; CYL,RR WHEEL CYL
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47159-197-0 02 1 0712- ●
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) 		1-47154-008-0 02 1 0712- ●
174 COVER; CYL,RR WHEEL CYL 1-47154-008-0 04 1 0710-0711 ● ●
174 COVER; CYL,RR WHEEL CYL
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47154-008-0 04 1 0712- ● ●
175 HANGER; RR WHEEL BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47619-145-0 02 1 0712- ●
186 BOLT; HANGER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 W/LK WASHER 		0-50540-816-0 02 1 0712- ●
245 SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-47623-027-1 04 1 0712- ●
245 SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-47629-121-0 04 1 0712- ●
246 BLEEDER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47615-002-0 02 1 0712- ●
301 CLIP; ANTI LOTATION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47621-016-0 04 1 0712- ●
309 SPRING; ADJUSTER SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-544-0 04 1 0712- ●
317 RING; RETAINER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-119-0 04 1 0712- ●
318 SPRING; ADJ
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-542-0 04 1 0712- ●
319 RING; DRIVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-47629-120-0 04 1 0712- ●
327 SPRING; ADJ
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09580-543-0 04 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
