◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#33422) — 29 parça

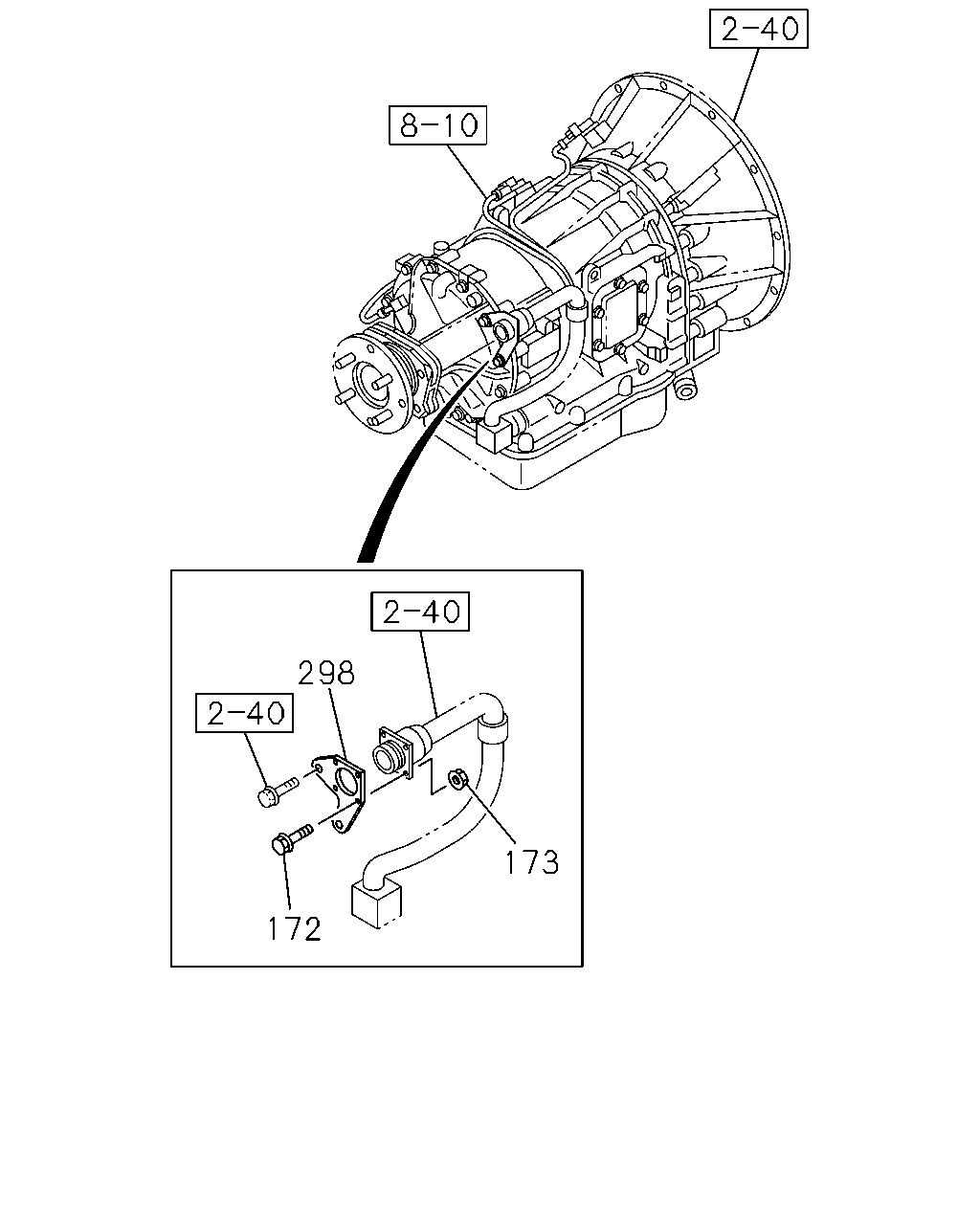

çizim 178620
298 173 172
BalonParca AdiParca NoAdetTipApplied Date A B
172 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M4X16 		9-03494-416-0 04 1 0710- ●
173 NUT; BRKT
LCT2000 A/T ALLISON(Y4F) M4 FLANGE 		8-97368-853-0 04 1 0710- ●
298 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) 		8-98081-822-0 01 1 0710- ●

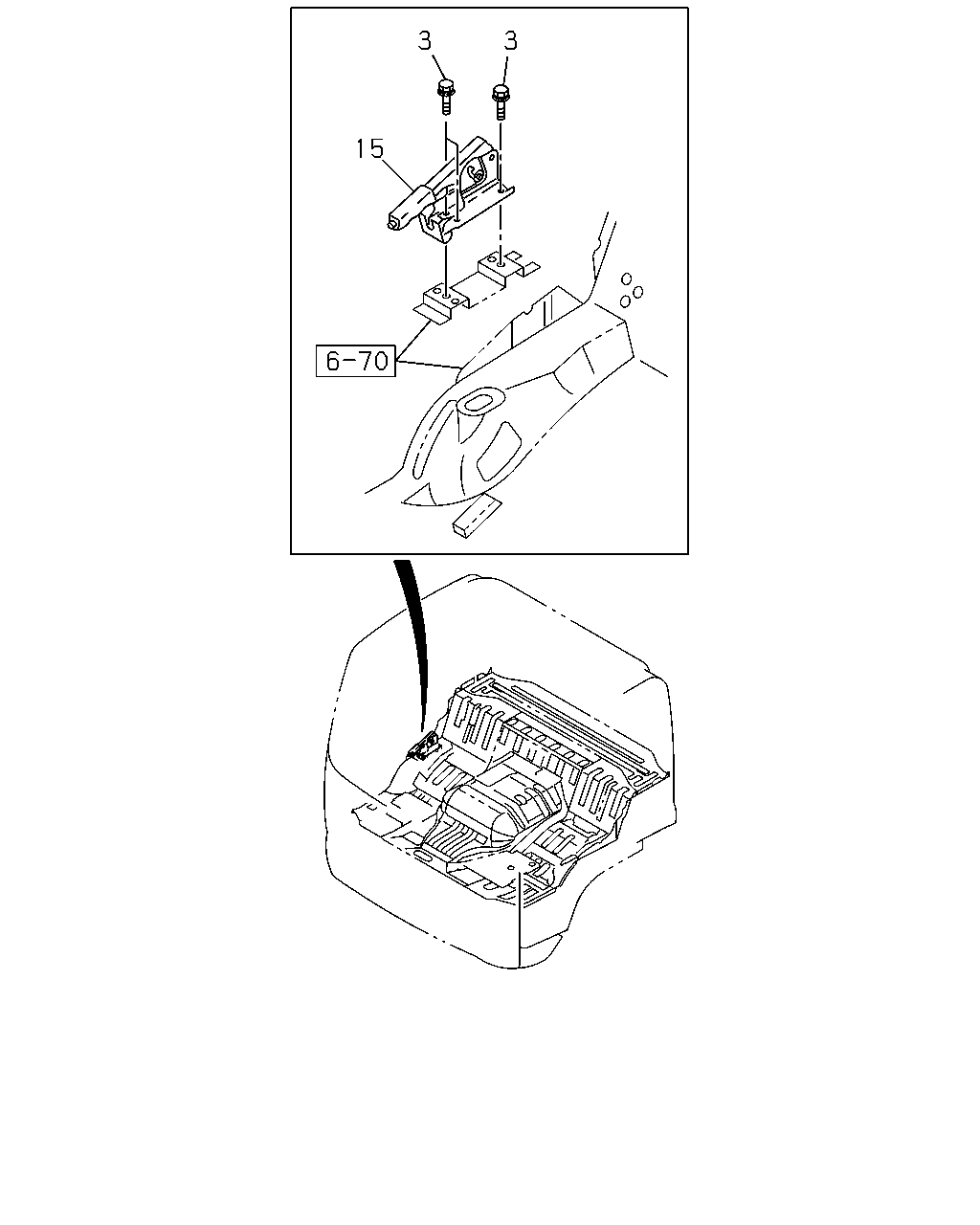

çizim 178629
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710- ● ●

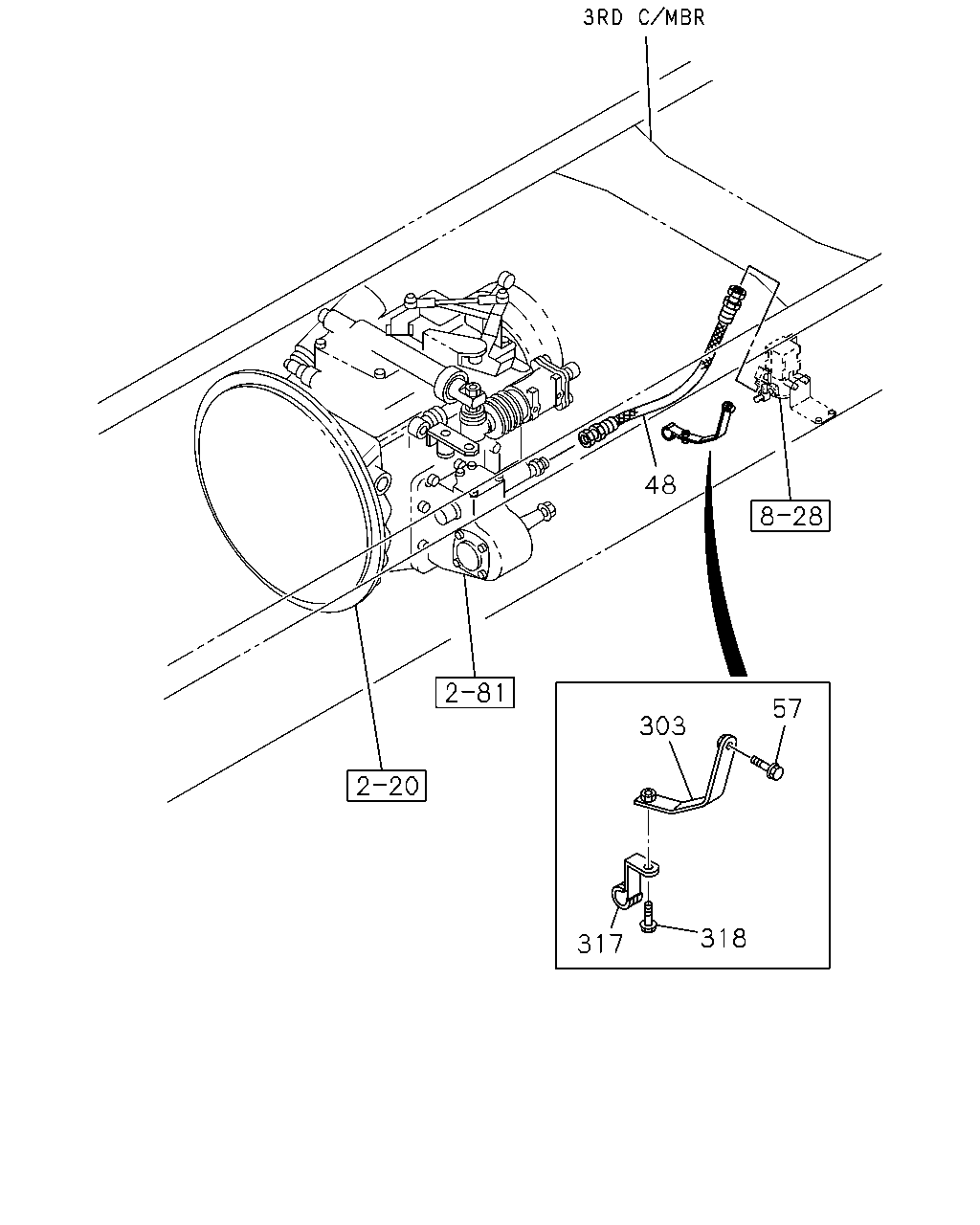

çizim 178854
48 57 303 318 317
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=450 		1-09363-965-0 01 1 1012- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 1012- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=470 		1-09363-714-0 01 1 1012- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560 		1-09363-914-0 01 1 1012- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=580 		1-09363-613-1 01 1 1012- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0806-0906 ● ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0907- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0907- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0710-0803 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0804-1011 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 1012- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 1012- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0710-0803 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0804-1011 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 1012- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 1012- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 1012- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> 		8-98136-974-0 01 1 1012- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> 		8-98136-973-0 01 1 1012- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) PTO CONTROL<SV6> 		8-98136-977-0 01 1 1012- ●
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1012- ●
318 BOLT; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
