Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#3342) — 185 parça

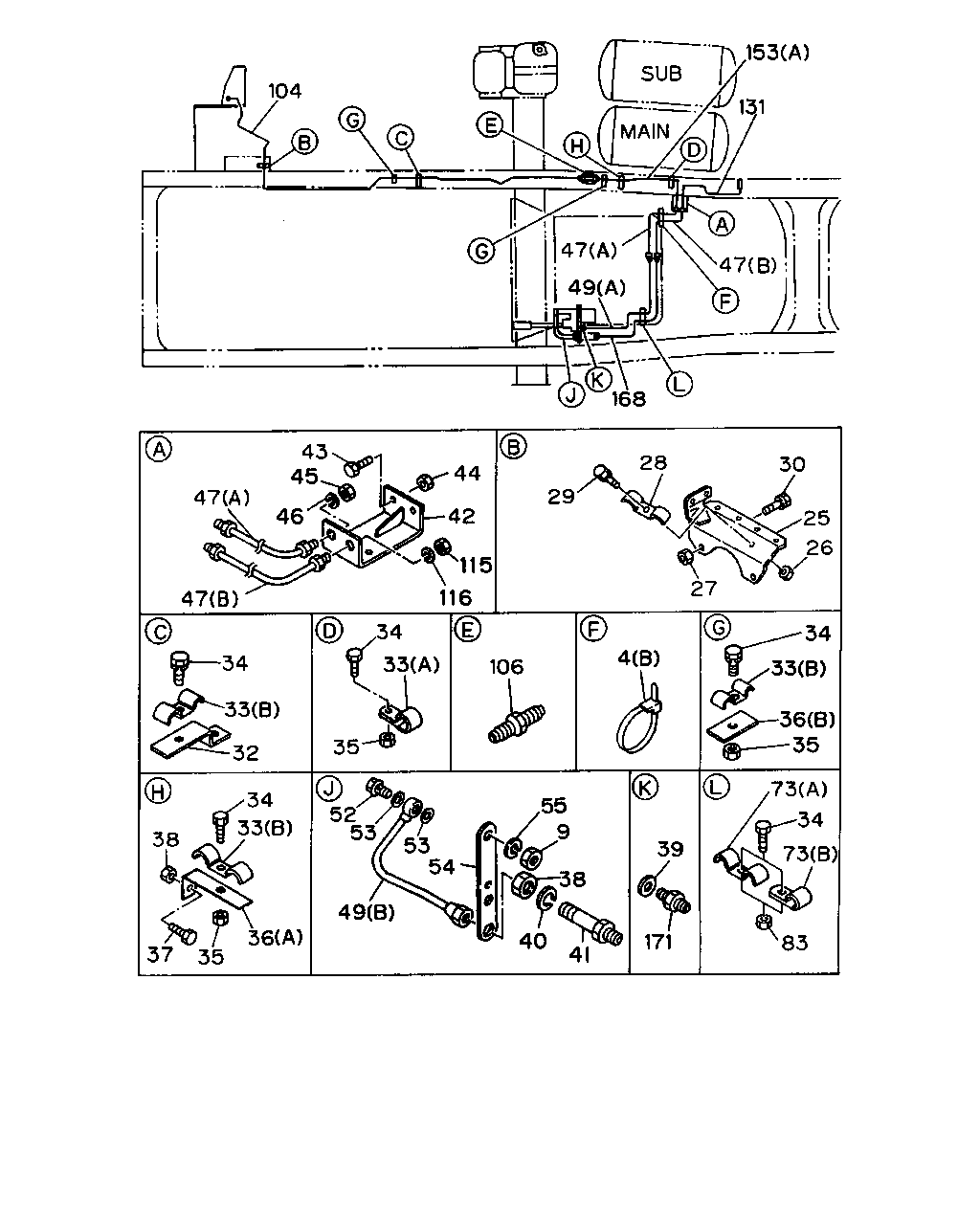

153 131 104 47 49 47 168 30 25 26 27 28 29 44 42 115 116 43 45 46 47 47 34 33 32 34 33 35 106 4 34 33 36 35 73 34 73 83 39 171 41 40 38 9 55 52 53 53 54 49 34 33 38 36 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (B) L=140	5-09707-031-0	01	1	9002-	●	●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-	●	●	●	●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●			●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-9203	●	●	●	●
26	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8	9-09110-408-0	01	1	9002-9203	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9204-	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●			●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9203	●	●	●	●
29	BOLT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9203	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9204-9204	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●			●
32	BRACKET; CLIP OIL PIPE	1-47475-774-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9307	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●	●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9302	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9303-9307	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●			●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●			●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9009	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9307-9307	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9308-	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9308-	●			●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9308-	●			●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9306	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	02	1	9307-	●			●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9010-9203	●	●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L) (B) L=50	1-47475-299-2	03	1	9002-9307	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L) (B) L=50	1-47475-299-2	02	1	9308-	●	●	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	02	1	9002-9307	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	03	1	9308-	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9009	●	●	●	●
37	BOLT; CLIP BRKT M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●	●
37	BOLT; CLIP BRKT M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●	●	●
38	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9002-	●	●	●	●
38	NUT; CLIP BRKT M12	9-09840-280-0	01	1	9002-	●	●	●	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-	●	●	●	●
40	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-	●	●	●	●
41	UNION; AIR PIPE M12 L=62.5	9-09223-206-1	01	1	9002-	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47475-592-2	01	1	9002-	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9002-	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9002-	●	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (A) AIR L=320	0-07030-320-0	01	1	9002-	●	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (B) OIL L=320	1-09364-477-0	01	1	9002-	●	●	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (A) AIR L=450	0-07030-450-0	01	1	9002-	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=206	1-47439-426-1	01	1	9002-	●	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-	●	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-	●	●	●	●
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 L=35 W/NUT	1-09700-684-0	01	1	9002-9208	●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-	●	●	●	●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L) L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L) L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2521 SERVICED BY L=2700	1-47426-396-0	01	1	9307-9307	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9308-	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●	●	●	●
106	UNION; OIL PIPE M12 STRAIGHT	9-09233-008-1	01	1	9307-9509	●			●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9510-	●			●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=460 SERVICED BY L=500	1-47426-343-0	01	1	9002-	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●			●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●			●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●
168	PIPE; AIR,FLEX HOSE TO UNION L=693 SERVICED BY L=700	1-47434-466-0	01	1	9002-	●	●	●	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9002-	●	●	●	●

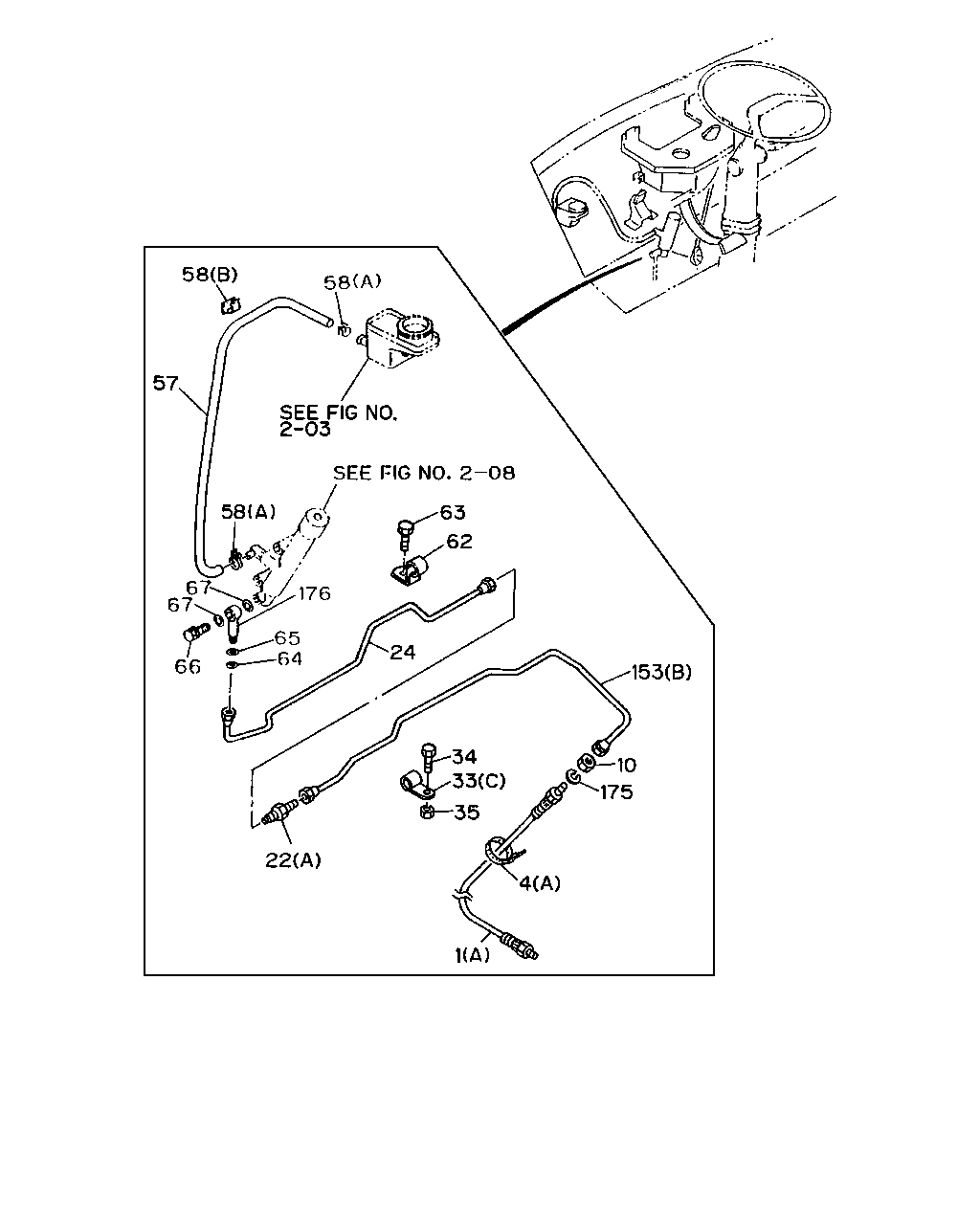

58 58 57 58 67 67 66 176 65 64 63 62 24 22 34 33 35 153 10 175 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,CLU CONT (A) L=840	1-09364-466-0	01	1	9002-	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (B) L=140	5-09707-031-0	01	1	9002-	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●
22	UNION; CLU PIPE (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●	●	●	●
22	UNION; CLU PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47416-511-2	01	1	9002-9306	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47425-256-0	01	1	9307-	●			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9307	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●	●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9302	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9303-9307	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●			●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●			●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9009	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9307-9307	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9308-	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9308-	●			●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9308-	●			●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9306	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	02	1	9307-	●			●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9010-9203	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=470 SERVICED BY L=1800	1-09360-320-0	01	1	9002-	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=15	1-09987-115-0	01	1	9002-	●	●	●	●
62	CLIP; CLU PIPE ID=9 H=20 L=20	9-09527-008-0	01	1	9002-	●	●	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●			●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●			●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
