Sayfa 2-53 - Isuzu EPC

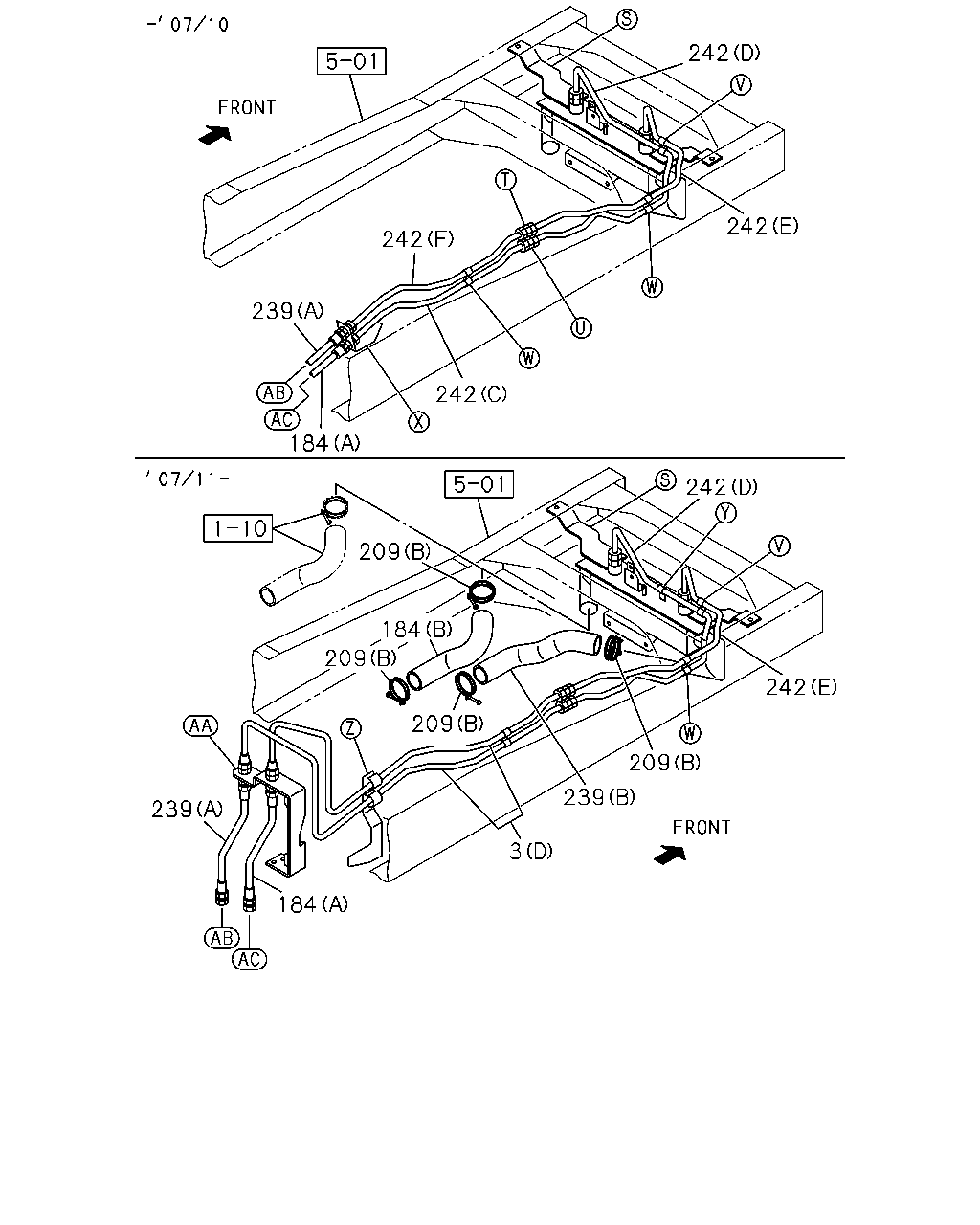

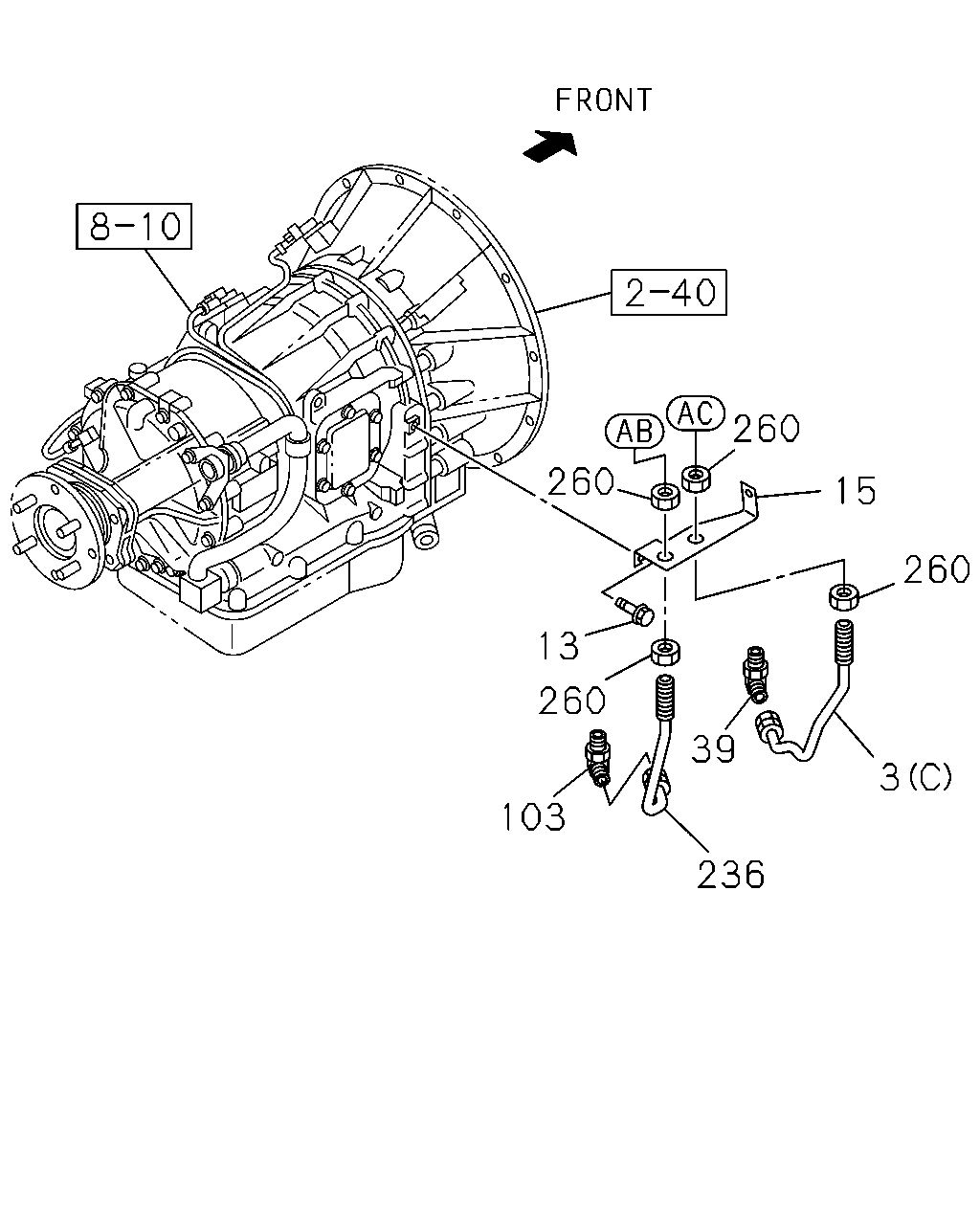

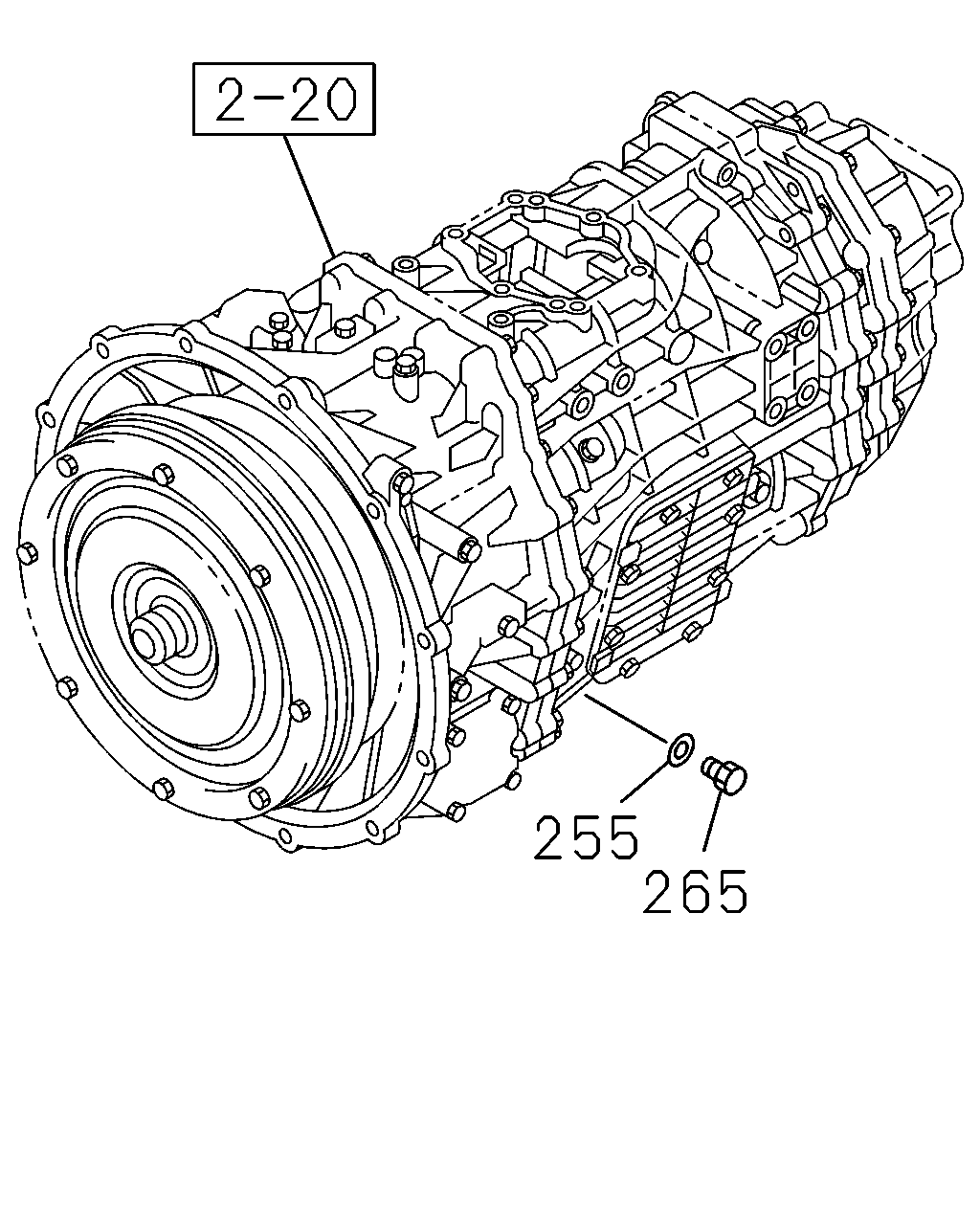

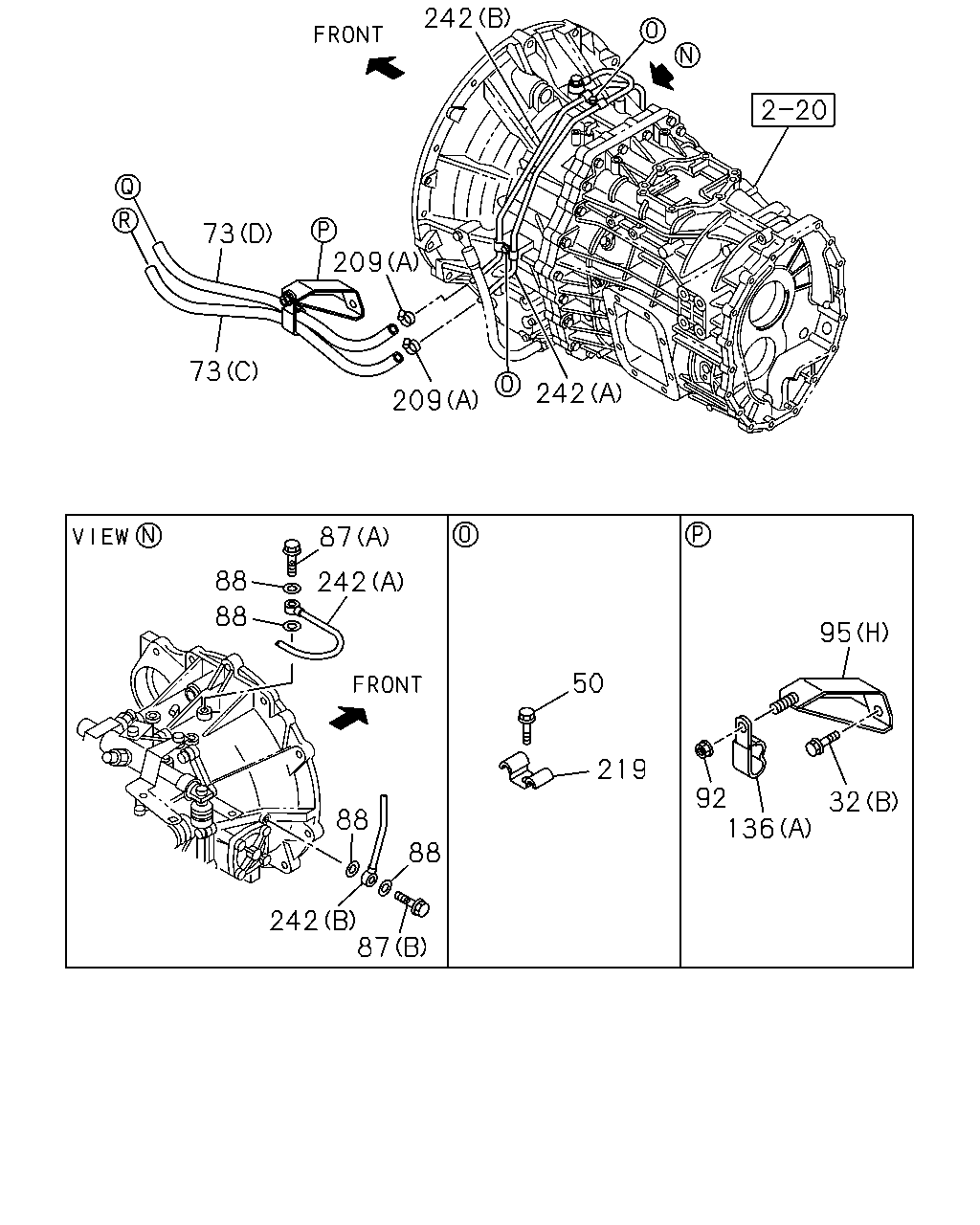

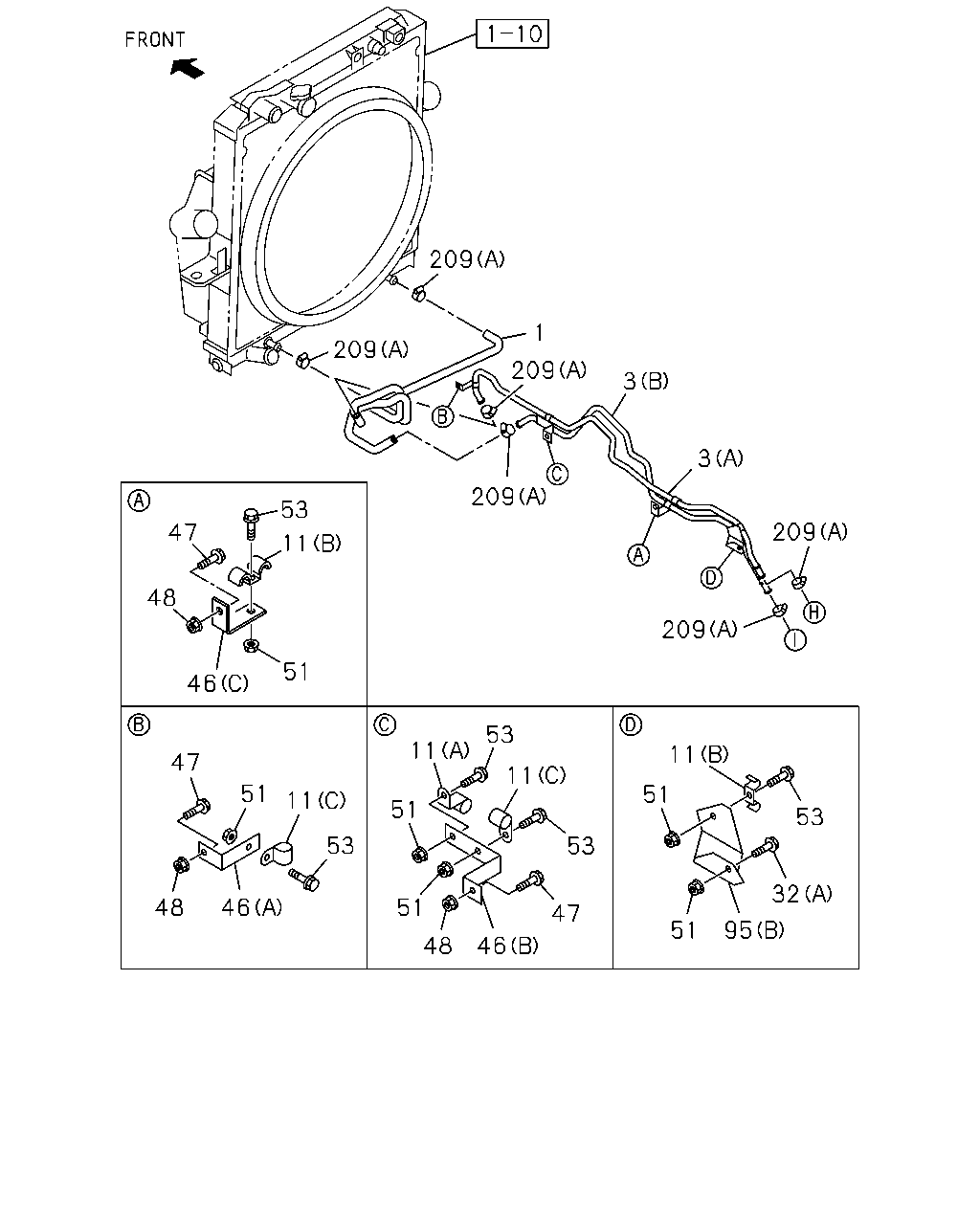

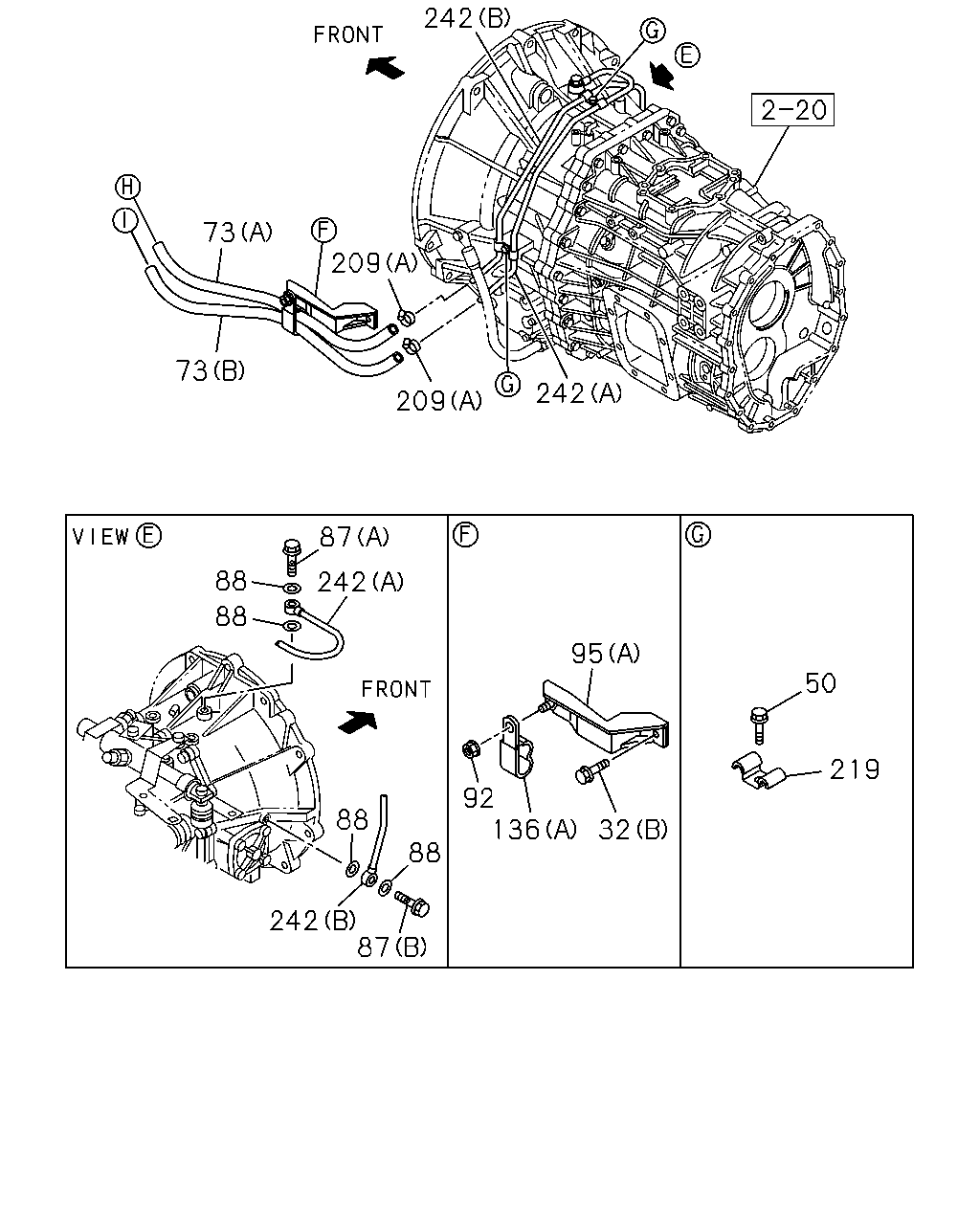

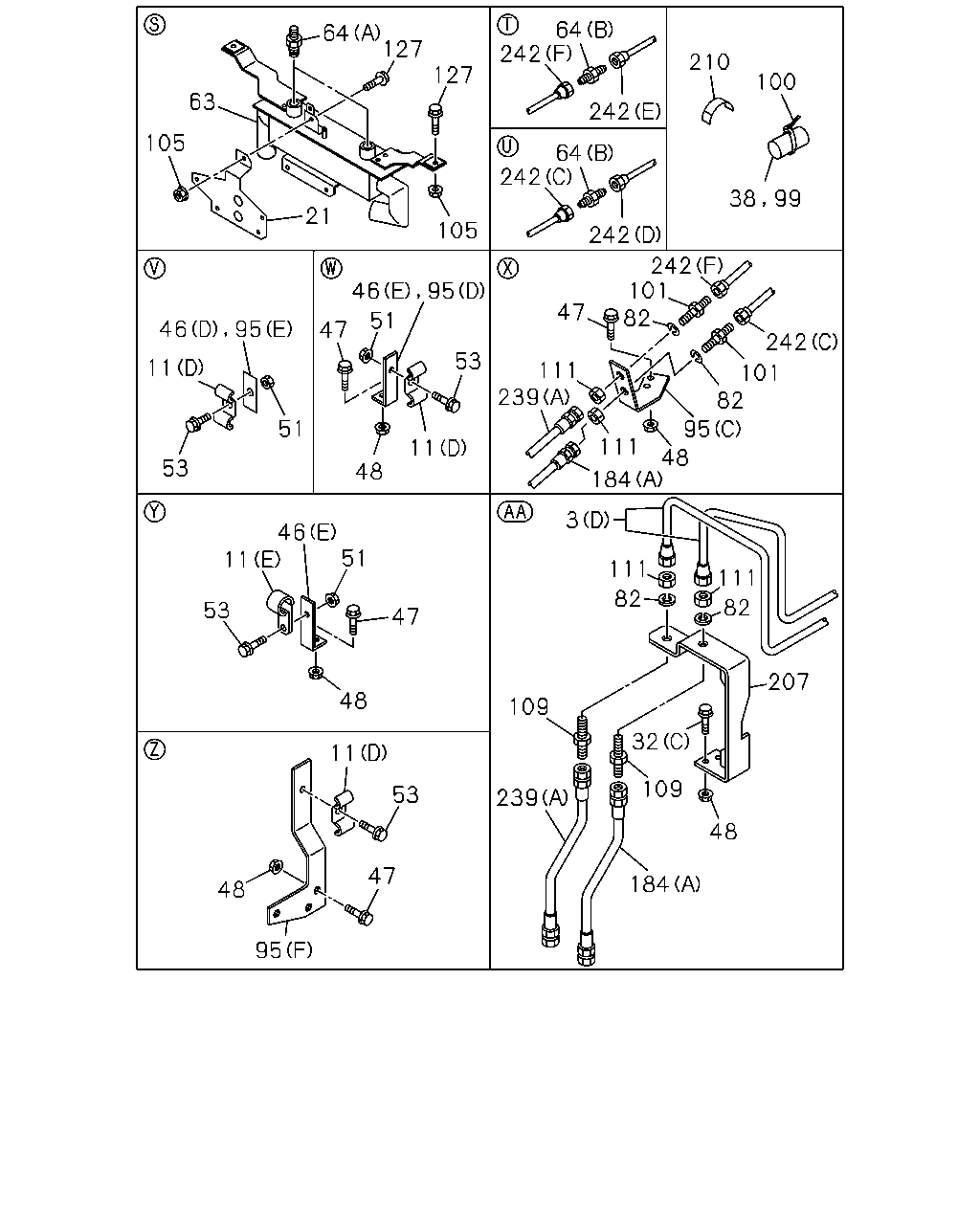

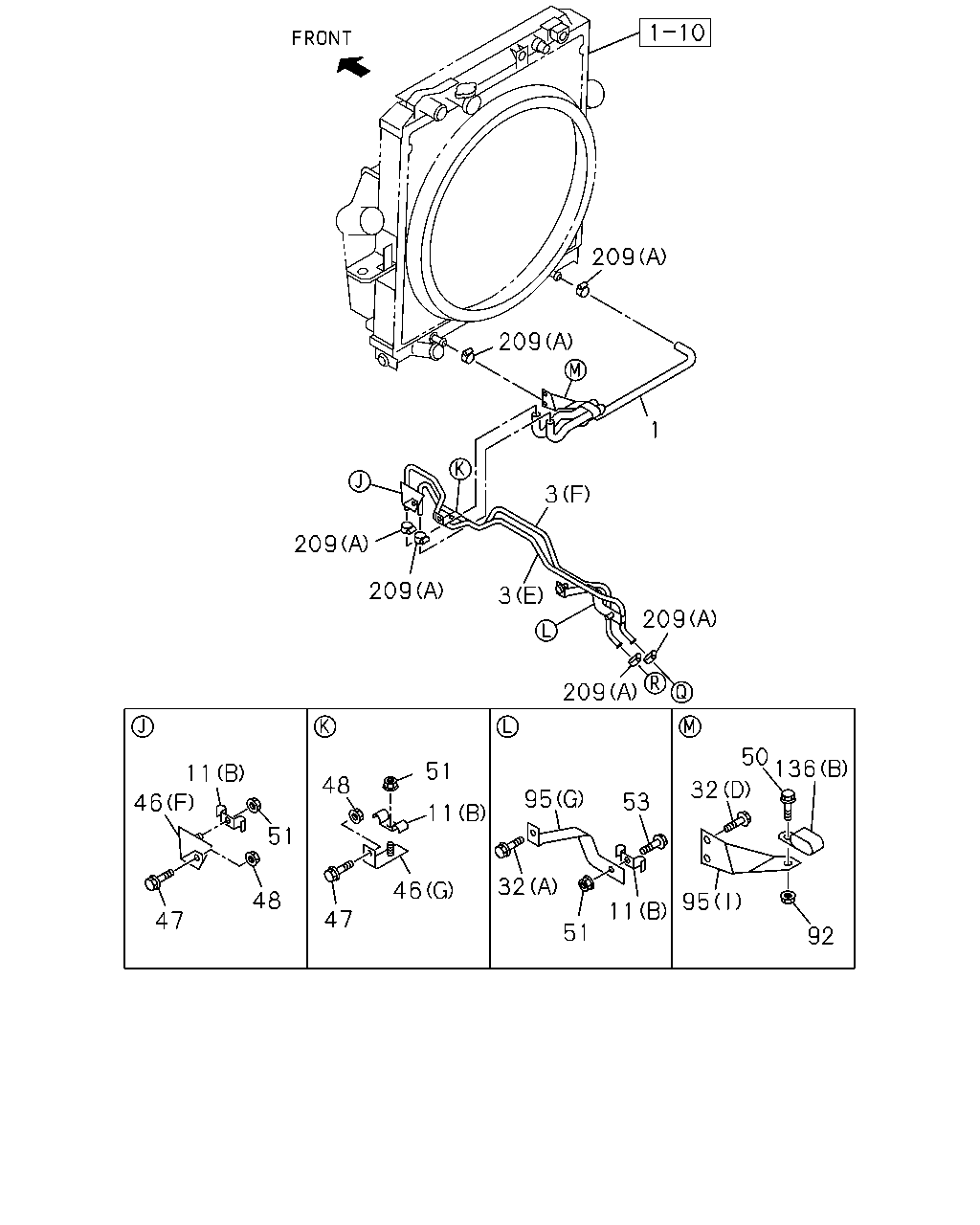

2-53 — TRANSMISSION OIL COOLER SYSTEM (#33418) — 444 parça

209 1 209 209 3 3 209 53 209 47 11 48 209 51 46 53 11 11 47 11 51 51 11 51 53 53 53 32 48 46 51 47 51 95 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	0710-1011	●	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1012-	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=989	8-98065-879-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=881	8-98065-880-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1012-		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (E) ID=17 L=28	8-94427-862-0	01	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	05	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	02	1	0711-0711		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0711-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-		●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-		●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98045-565-0	01	1	1012-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98081-044-0	01	1	1012-		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (D) L=50	1-47475-299-2	01	1	0710-0710		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (E) L=76	1-47475-588-0	02	1	0710-0710		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1012-		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	05	1	0711-0711		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0711-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	0710-1011	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0711-0711		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0711-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	0711-		●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1012-		●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-1011	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	05	1	0710-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98045-564-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98065-885-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98065-886-0	01	1	1012-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-		●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●

209 209 1 3 209 209 3 209 209 50 136 51 11 48 32 95 53 46 11 51 32 46 48 95 11 47 47 51 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	0710-1011	●	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1012-	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=989	8-98065-879-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=881	8-98065-880-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1012-		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (E) ID=17 L=28	8-94427-862-0	01	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	05	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	02	1	0711-0711		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0711-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-		●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-		●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98045-565-0	01	1	1012-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98081-044-0	01	1	1012-		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (D) L=50	1-47475-299-2	01	1	0710-0710		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (E) L=76	1-47475-588-0	02	1	0710-0710		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1012-		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	05	1	0711-0711		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0711-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	0710-1011	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0711-0711		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0711-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	0711-		●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1012-		●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-1011	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	05	1	0710-		●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1012-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98045-564-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98065-885-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98065-886-0	01	1	1012-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-		●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1012-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●

242 73 209 73 242 209 87 88 242 88 95 50 219 92 136 88 32 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-		●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1012-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1012-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	0710-1011	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1012-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1012-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	0710-1011	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1012-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1012-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1012-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98045-564-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98065-885-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98065-886-0	01	1	1012-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-		●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1012-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

242 209 73 73 242 209 87 88 242 88 95 50 219 92 136 32 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-		●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1012-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1012-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	0710-1011	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1012-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1012-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	0710-1011	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1012-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1012-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1012-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98045-564-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98065-885-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98065-886-0	01	1	1012-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-		●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1012-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●

64 127 127 63 105 21 105 46 95 51 11 53 46 47 95 53 51 48 11 46 11 53 51 47 48 11 53 47 48 95 109 239 32 109 184 48 207 82 111 3 111 82 184 48 111 239 111 47 242 101 82 242 101 82 95 99 100 210 38 64 242 242 64 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=989	8-98065-879-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=881	8-98065-880-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1012-		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (E) ID=17 L=28	8-94427-862-0	01	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	05	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	02	1	0711-0711		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0711-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1012-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-1011	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1012-		●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	0710-		●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1012-		●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
38	SLEEVE; RUBBER,FLEX HOSE LCT2000 A/T ALLISON(Y4F) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98045-565-0	01	1	1012-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98081-044-0	01	1	1012-		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (D) L=50	1-47475-299-2	01	1	0710-0710		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (E) L=76	1-47475-588-0	02	1	0710-0710		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1012-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	0710-1011	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1012-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1012-		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	05	1	0711-0711		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0711-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	0710-1011	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0711-0711		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0711-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	0711-		●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1012-		●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-1011	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	05	1	0710-		●
63	COOLER; OIL A/T<X9D>	8-98025-665-2	01	1	0710-		●
64	CONNECTOR; OIL COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09660-210-0	02	1	0710-		●
64	CONNECTOR; OIL COOLER LCT2000 A/T ALLISON(Y4F) (B)	1-09664-263-0	02	1	0710-0710		●
82	WASHER; LK,UNION LCT2000 A/T ALLISON(Y4F) ID=30.5	9-09150-530-0	02	1	0710-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98045-564-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98065-885-0	01	1	1012-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98065-886-0	01	1	1012-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0711-0711		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1012-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-1011	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1012-		●
99	SLEEVE; RUBBER,FLEX HOSE LCT2000 A/T ALLISON(Y4F) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0906		●
100	CLIP; BAND,RUBBER SLEEVE LCT2000 A/T ALLISON(Y4F) L=250	5-09707-030-1	01	1	0710-0906		●
101	UNION; FLEX HOSE LCT2000 A/T ALLISON(Y4F) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-0710		●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	0710-		●
109	UNION LCT2000 A/T ALLISON(Y4F) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-		●
111	NUT; UNION LCT2000 A/T ALLISON(Y4F) M30	9-09840-252-1	02	1	0710-		●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	0710-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-865-0	01	1	0710-0710		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0711-		●
207	BRACKET; UNION LCT2000 A/T ALLISON(Y4F)	8-98098-725-1	01	1	0710-		●
210	BAND; FLEX HOSE LCT2000 A/T ALLISON(Y4F) L=175	1-09707-178-0	01	1	0907-		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	8-98093-057-0	01	1	0710-0710		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

242 242 242 242 239 184 209 184 209 209 239 184 3 239 209 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=989	8-98065-879-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=881	8-98065-880-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-865-0	01	1	0710-0710		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0711-		●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	8-98093-057-0	01	1	0710-0710		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0711-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

260 260 260 15 3 39 13 260 103 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=989	8-98065-879-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=881	8-98065-880-2	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-1011	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1012-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F)	8-98090-453-0	01	1	0710-0711		●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	8-98105-048-0	01	1	0712-		●
15	BRACKET; ATF PIPE LCT2000 A/T ALLISON(Y4F)	8-98075-836-0	01	1	0710-		●
39	CONNECTOR; FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	0710-		●
103	CONNECTOR; OIL PIPE LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	0710-		●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98075-835-1	01	1	0710-1106		●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98158-384-1	01	1	1107-		●
260	NUT LCT2000 A/T ALLISON(Y4F) M30	1-09400-166-0	04	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
