2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#33411) — 430 parça

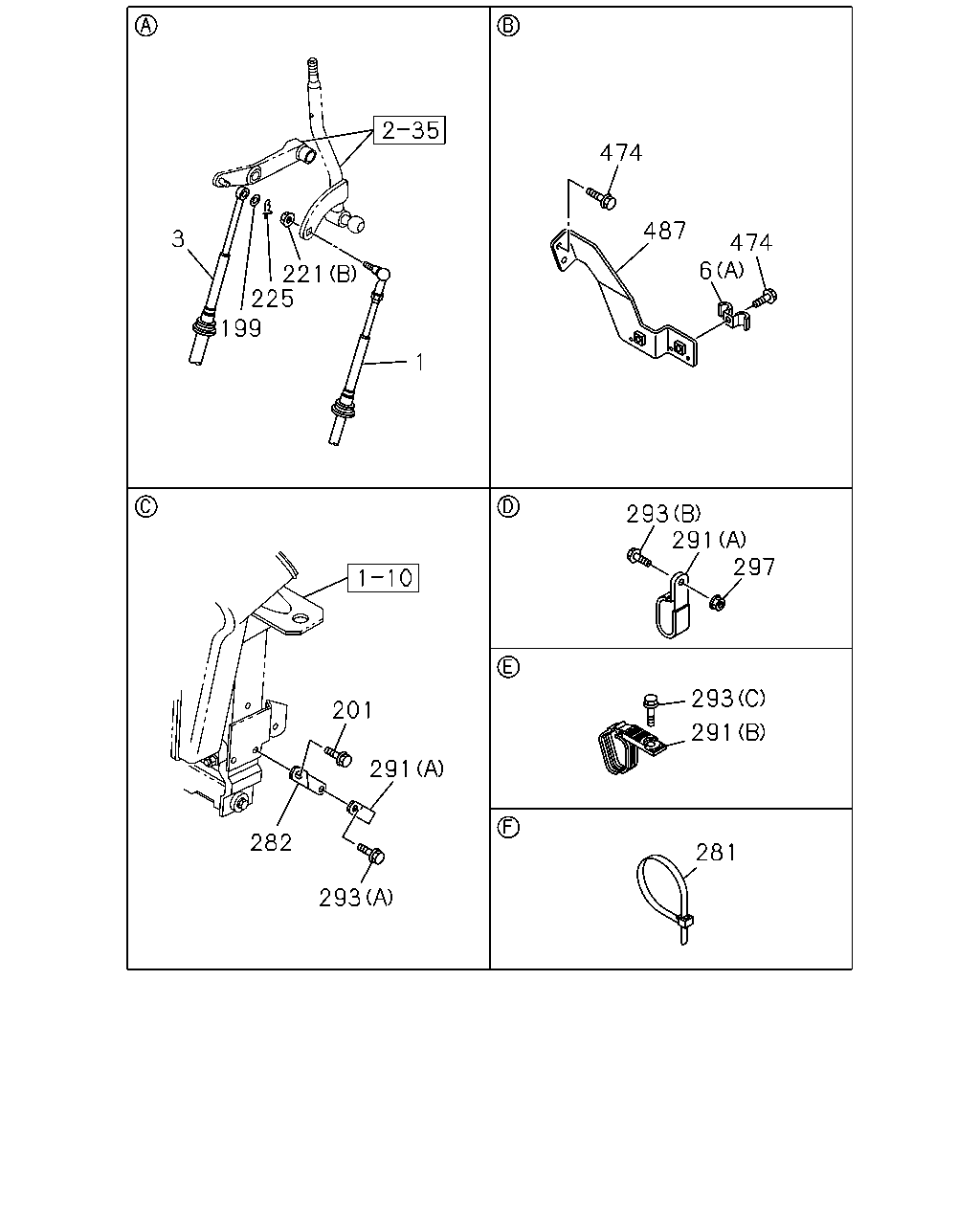

çizim 178596
474 487 3 474 6 221 225 199 1 293 291 297 293 201 291 291 282 281 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3085 		8-98010-462-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710- ● ●
6 CLIP; CABLE
LCT2000 A/T ALLISON(Y4F) (B) ID=13 L=20 		0-95235-236-0 01 1 0710- ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0710- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0801 ● ●
201 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0801 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0802-1011 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
221 NUT; SHIFT WIRE TO LEVER
LCT2000 A/T ALLISON(Y4F) (A) 		5-09400-048-0 02 1 0710-0801 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-049-0 01 1 0710-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0710- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0710-1011 ● ●
281 CLIP; BAND
LCT2000 A/T ALLISON(Y4F) L=300 		1-09707-001-1 01 1 0710-1011 ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1012- ●
281 CLIP; BAND
LCT2000 A/T ALLISON(Y4F) L=300 		1-09707-001-1 01 1 1012- ●
281 CLIP; BAND
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1012- ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 0710-0801 ● ●
282 BRACKET; TRANS SIDE
LCT2000 A/T ALLISON(Y4F) 		8-98010-418-0 01 1 0710-0801 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 0802-1011 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1012- ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1012- ●
282 BRACKET; TRANS SIDE
LCT2000 A/T ALLISON(Y4F) 		8-98010-418-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (E) ID=13 L=24 		0-95235-245-0 02 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (F) ID=13 L=28 		0-95235-255-0 01 1 0710- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0802- ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ● ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0802- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0710-0711 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0712-1012 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-009-0 01 1 1101- ●

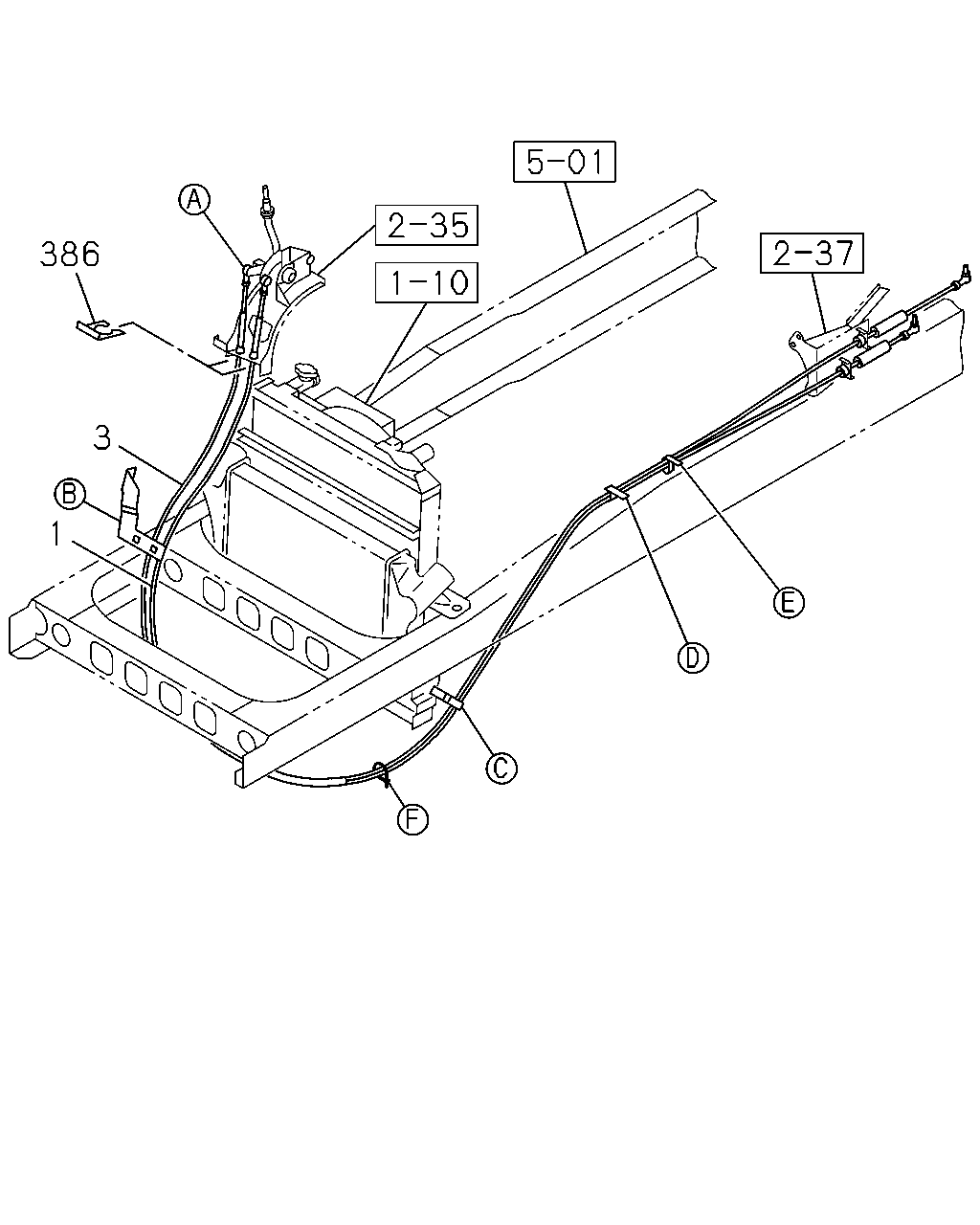

çizim 178600
386 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3085 		8-98010-462-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0710- ● ●
çizim 178861
474 225 487 474 3 6 199 221 1 293 291 3 297 3 1 291 1 293 291 291 293 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3085 		8-98010-462-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710- ● ●
6 CLIP; CABLE
LCT2000 A/T ALLISON(Y4F) (B) ID=13 L=20 		0-95235-236-0 01 1 0710- ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0710- ● ●
221 NUT; SHIFT WIRE TO LEVER
LCT2000 A/T ALLISON(Y4F) (A) 		5-09400-048-0 02 1 0710-0801 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-049-0 01 1 0710-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0710- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (E) ID=13 L=24 		0-95235-245-0 02 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (F) ID=13 L=28 		0-95235-255-0 01 1 0710- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0802- ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ● ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0802- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0710-0711 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0712-1012 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-009-0 01 1 1101- ●

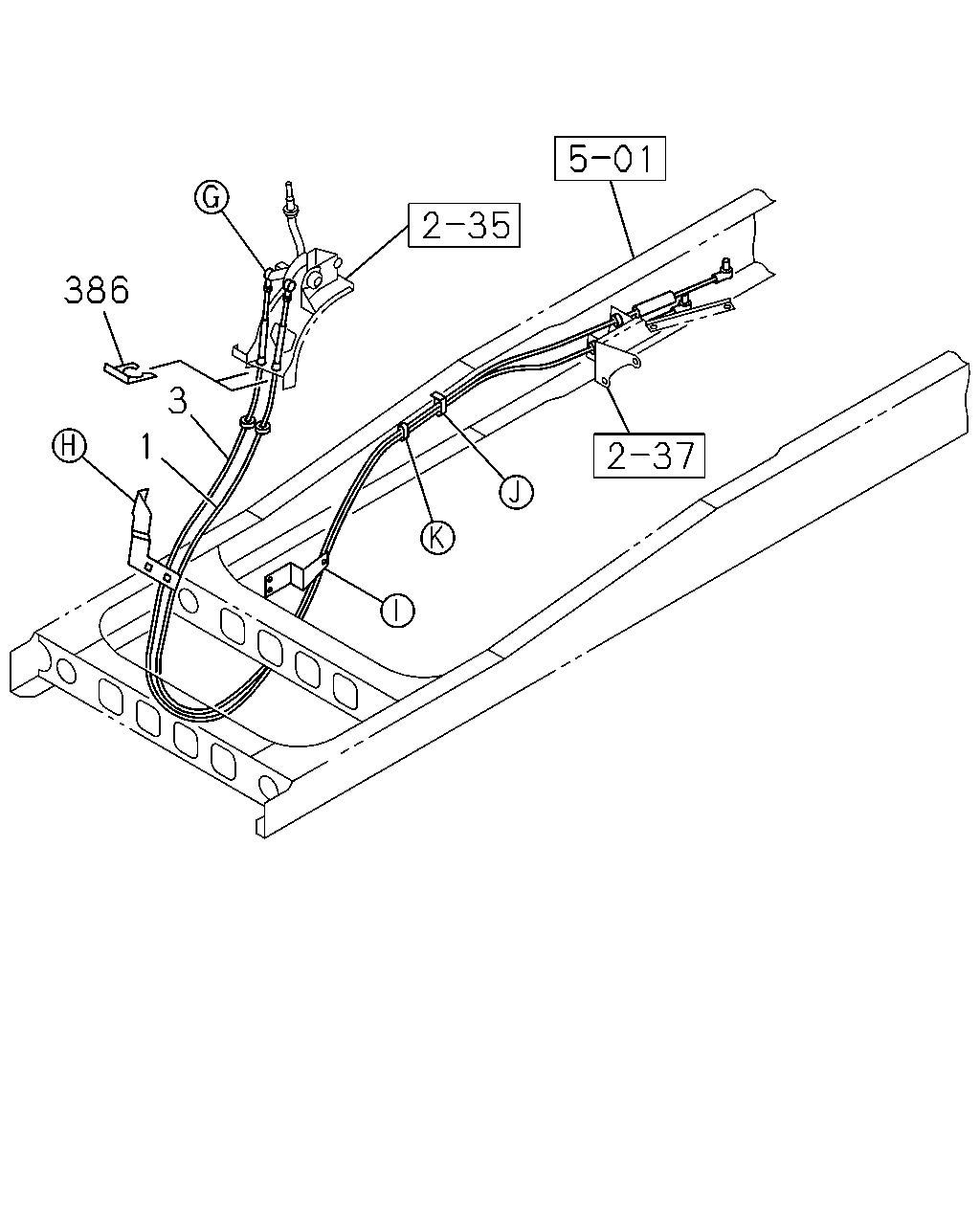

çizim 178872
386 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98119-253-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-2 01 1 0806-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-2 01 1 0710-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907-1011 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3085 		8-98010-462-5 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98119-261-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-2 01 1 0806-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-2 01 1 0710-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907-1011 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 1012- ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0710- ● ●
çizim 179001
281 474 487 293 6 291 293 291 297 201 293 291 282 221 293 275 474 488
BalonParca AdiParca NoAdetTipApplied Date A B
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710- ● ●
6 CLIP; CABLE
LCT2000 A/T ALLISON(Y4F) (B) ID=13 L=20 		0-95235-236-0 01 1 0710- ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0801 ● ●
201 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0801 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0802-1011 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
221 NUT; SHIFT WIRE TO LEVER
LCT2000 A/T ALLISON(Y4F) (A) 		5-09400-048-0 02 1 0710-0801 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-049-0 01 1 0710-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
275 BOLT; CONT CABLE CLIP
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 01 1 0802- ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0710-1011 ● ●
281 CLIP; BAND
LCT2000 A/T ALLISON(Y4F) L=300 		1-09707-001-1 01 1 0710-1011 ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1012- ●
281 CLIP; BAND
LCT2000 A/T ALLISON(Y4F) L=300 		1-09707-001-1 01 1 1012- ●
281 CLIP; BAND
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1012- ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 0710-0801 ● ●
282 BRACKET; TRANS SIDE
LCT2000 A/T ALLISON(Y4F) 		8-98010-418-0 01 1 0710-0801 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 0802-1011 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1012- ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1012- ●
282 BRACKET; TRANS SIDE
LCT2000 A/T ALLISON(Y4F) 		8-98010-418-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (E) ID=13 L=24 		0-95235-245-0 02 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (F) ID=13 L=28 		0-95235-255-0 01 1 0710- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0802- ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ● ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 0710-1011 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
LCT2000 A/T ALLISON(Y4F) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
297 NUT; CLIP
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0801 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0802- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
474 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0710-0711 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0712-1012 ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●
487 BRACKET; CONT CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-009-0 01 1 1101- ●
488 NUT; CABLE
LCT2000 A/T ALLISON(Y4F) 		5-09400-048-0 02 1 0802- ●

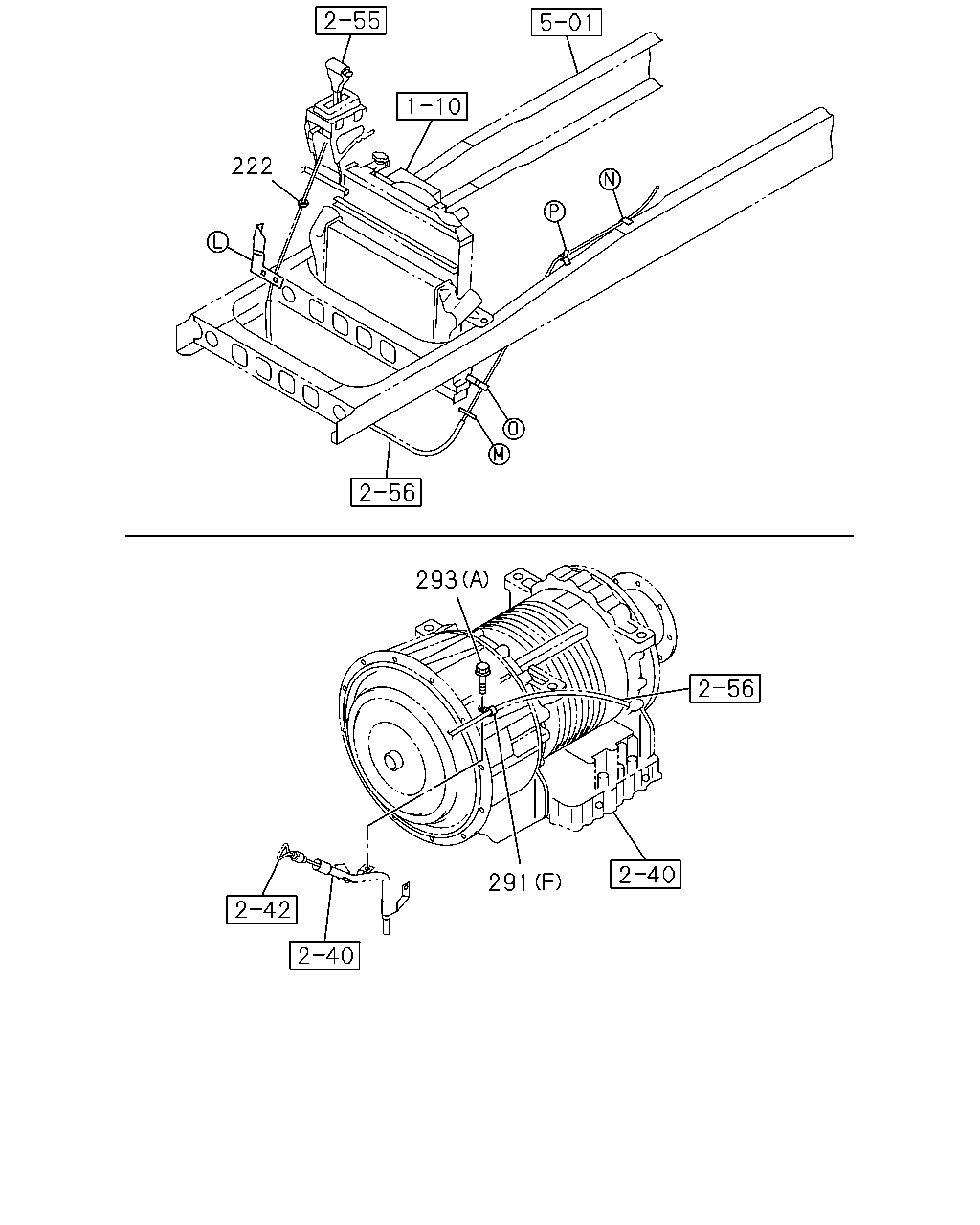

çizim 179014
222 293 291
BalonParca AdiParca NoAdetTipApplied Date A B
222 GROMMET; CABLE
LCT2000 A/T ALLISON(Y4F) 		8-98043-470-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0906 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0907-1011 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1012- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0801 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802-1011 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (E) ID=13 L=24 		0-95235-245-0 02 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0802- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2000 A/T ALLISON(Y4F) (F) ID=13 L=28 		0-95235-255-0 01 1 0710- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1011 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802-1011 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2000 A/T ALLISON(Y4F) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0802- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
