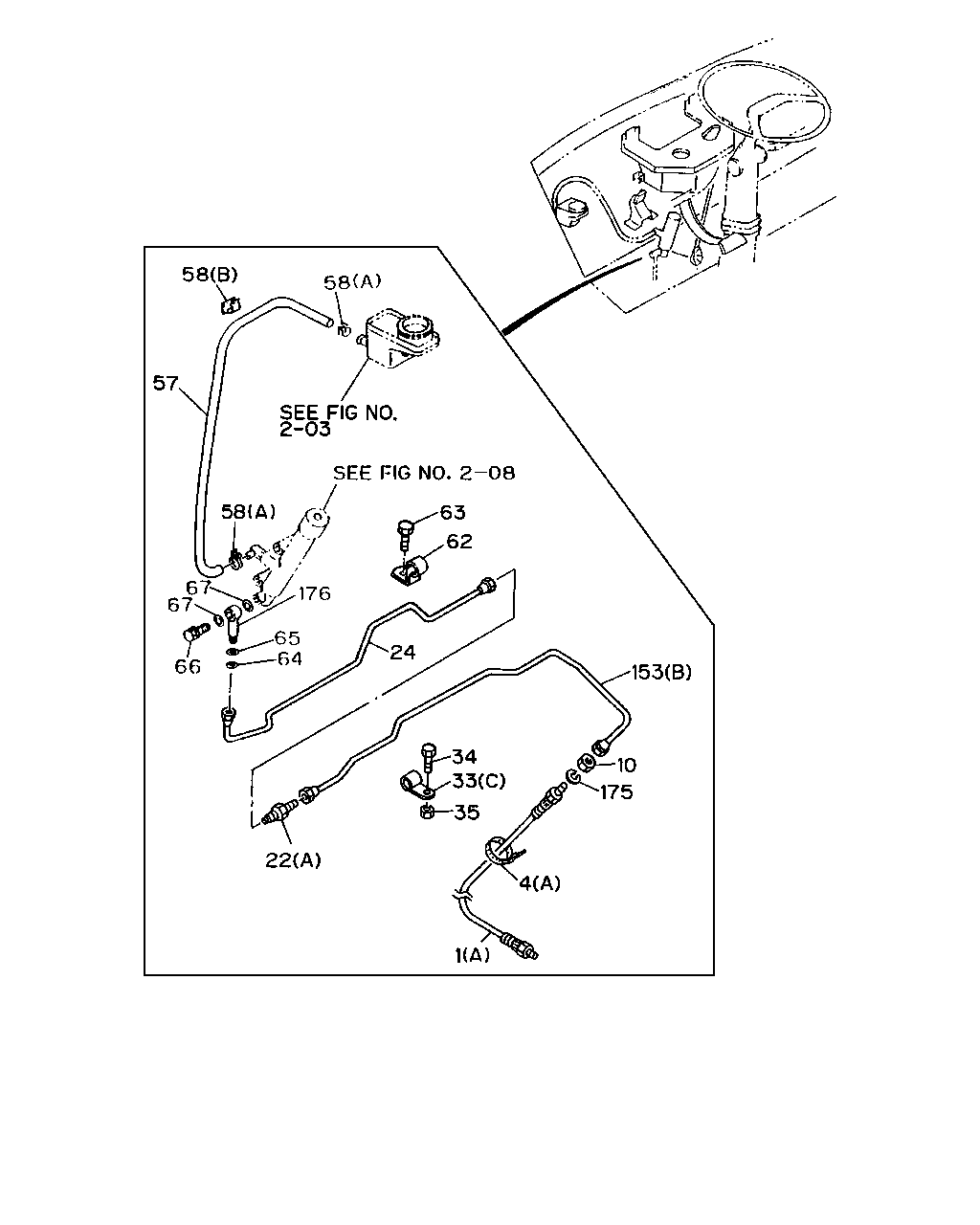

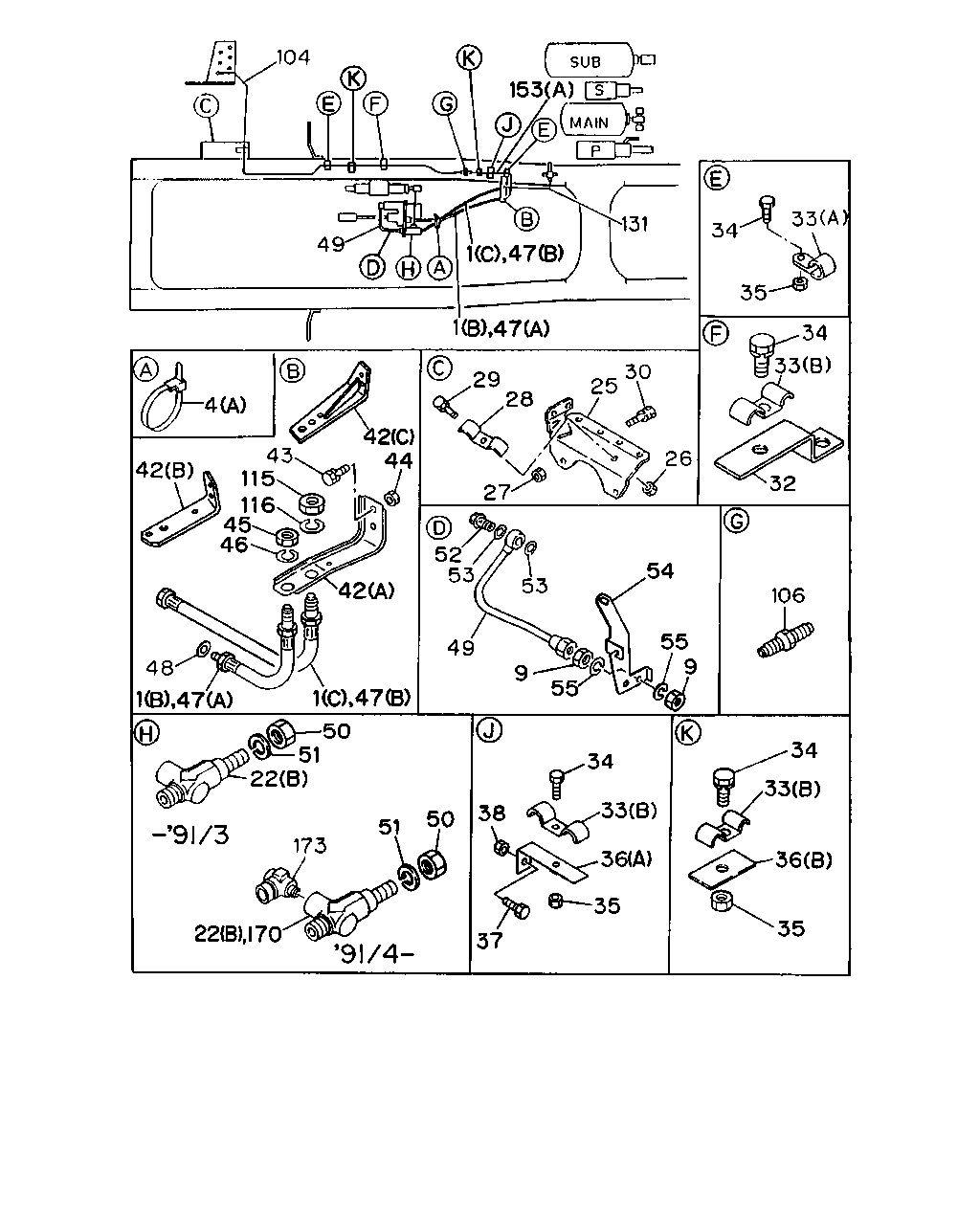

2-05A — CLUTCH PIPING (#3341) — 281 parça

104 153 49 1 47 131 34 33 35 34 33 32 1 47 26 30 25 28 29 27 4 42 43 42 44 115 116 45 46 42 47 1 47 1 48 52 53 49 53 54 55 9 55 9 106 50 51 22 173 51 50 22 170 34 33 36 35 38 37 34 33 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (B) AIR L=430	0-07424-430-0	01	1	9308-	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (C) OIL L=350	1-09364-446-0	01	1	9308-	●
1	HOSE; FLEX,CLU CONT (A) L=840	1-09364-466-0	01	1	9002-	●	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (B) AIR L=530	0-07424-530-0	01	1	9308-						●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (C) OIL L=430	1-09364-725-0	01	1	9308-						●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205	●	●	●	●	●		●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●	●	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-1	01	1	9104-							●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-0	01	1	9002-9103			●	●	●		●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●	●	●		●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●	●	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-9203	●	●	●	●	●		●
26	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8	9-09110-408-0	01	1	9002-9203			●		●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9204-	●	●	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●		●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●	●	●	●	●	●	●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9203	●	●	●	●	●		●
29	BOLT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9203			●		●		●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9204-9204	●	●	●	●	●		●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●		●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●		●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●		●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●		●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●		●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE	1-47475-774-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9307	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307			●		●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-			●		●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-			●		●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9302	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9303-9307	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306			●		●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306			●		●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●	●		●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9009			●		●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9307-9307	●	●	●	●	●		●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9308-			●		●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●	●	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9308-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9308-	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9306	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	02	1	9307-	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9010-9203			●		●		●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L) (B) L=50	1-47475-299-2	03	1	9002-9307	●	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L) (B) L=50	1-47475-299-2	02	1	9308-	●	●	●	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	02	1	9002-9307			●		●	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	03	1	9308-			●		●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9009	●	●	●	●	●		●
37	BOLT; CLIP BRKT CXM(CXM***) M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204			●				●
37	BOLT; CLIP BRKT CXM(CXM***) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302			●				●
37	BOLT; CLIP BRKT M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●	●	●		●
37	BOLT; CLIP BRKT M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●	●	●		●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●		●	●	●
37	BOLT; CLIP BRKT CXZ(CXZ***) M8X30 FLANGE	0-28080-830-0	01	1	9303-			●				●
37	BOLT; CLIP BRKT CXM(CXM***) M8X25 FLANGE	0-28080-825-0	01	1	9303-			●				●
38	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT FIRE TRUCK<RA9> (C)	1-47475-883-2	01	1	9002-	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. FIRE TRUCK<RA9> (A)	1-47475-815-3	01	1	9002-9210	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47475-815-3	01	1	9002-9210		●	●	●	●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L) EXC. FIRE TRUCK<RA9>,ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9211-9306	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) (A)	1-47475-815-3	01	1	9211-9306			●		●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L) EXC. FIRE TRUCK<RA9> (A)	1-47475-815-3	01	1	9307-9307	●	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9307-9307			●
42	BRACKET; FLEX HOSE,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9308-			●
42	BRACKET; FLEX HOSE,CLU CONT FIRE TRUCK<RA9> (A)	1-47475-815-3	01	1	9308-						●
42	BRACKET; FLEX HOSE,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9307-9307			●
42	BRACKET; FLEX HOSE,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9308-			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-453-0	01	1	9308-						●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9211-9306				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●		●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) M8X30 FLANGE	0-28080-830-0	02	1	9303-			●				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXM(CXM***) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204			●				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXM(CXM***) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302			●				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXM(CXM***) M8X25 FLANGE	0-28080-825-0	02	1	9303-			●				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	9002-	●	●	●	●	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●	●		●
47	HOSE; FLEX,CLU CONT FIRE TRUCK<RA9> (A) AIR L=590	0-07424-590-0	01	1	9002-9306	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-9306			●		●		●
47	HOSE; FLEX,CLU CONT FIRE TRUCK<RA9> (B) OIL L=500	1-09364-329-0	01	1	9002-	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-			●		●		●
47	HOSE; FLEX,CLU CONT FIRE TRUCK<RA9> (A) AIR L=590	0-07424-590-0	01	1	9307-9307	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9307-9307			●		●		●
47	HOSE; FLEX,CLU CONT (A) AIR L=590	0-07424-590-0	01	1	9307-9307						●
47	HOSE; FLEX,CLU CONT FIRE TRUCK<RA9> (A) AIR L=590	0-07424-590-0	01	1	9308-	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9308-			●		●		●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) AIR L=370	0-07424-370-0	01	1	9002-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (B) OIL L=320	1-09364-450-0	01	1	9002-	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>, ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07424-460-0	01	1	9002-	●	●	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>, ASSISTER SHIFT CONTROL<WX8> (B) OIL L=390	1-09364-475-0	01	1	9002-	●	●	●	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-9004			●		●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9005-9306			●		●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9307-			●				●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=410	0-07472-410-1	01	1	9307-			●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B) OIL L=470	1-09364-692-0	01	1	9307-			●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=490	0-07422-490-0	01	1	9307-			●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9307-			●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9211-9306				●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> (B) OIL L=600	1-09364-705-0	01	1	9211-9306				●
47	HOSE; FLEX,CLU CONT (A) AIR L=700	0-07424-700-0	01	1	9308-						●
47	HOSE; FLEX,CLU CONT (B) OIL L=600	1-09364-705-0	01	1	9308-						●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9306	●	●	●	●	●		●
48	GASKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9306			●		●		●
48	GASKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9306				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9307-9412	●	●	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=10.2 OD=16.0	9-09571-410-0	01	1	9307-9412			●				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9501-	●	●	●	●	●		●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9501-			●	●	●		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=254	1-47487-082-0	01	1	9002-9306	●	●	●	●	●		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=254	1-47496-282-0	01	1	9307-	●	●	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 12PD1 C ENG(43L) L=275	1-47496-283-0	01	1	9307-			●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> M16	9-99111-416-0	01	1	9002-			●	●	●		●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9002-			●	●	●		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-331-1	01	1	9002-9306	●	●					●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306			●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L) L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L) L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306			●		●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=2521 SERVICED BY L=2700	1-47426-396-0	01	1	9307-9307			●		●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9308-			●		●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●	●	●	●	●		●
106	UNION; OIL PIPE M12 STRAIGHT	9-09233-008-1	01	1	9307-9509	●	●	●	●	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-	●	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK<RA9> L=324 SERVICED BY L=350	1-47437-961-0	01	1	9002-9306	●
131	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK<RA9> L=323 SERVICED BY L=350	1-47426-403-0	01	1	9307-	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. FIRE TRUCK<RA9>,ASSISTER SHIFT CONTROL<WX8> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. FIRE TRUCK<RA9> L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306			●		●		●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> L=618 SERVICED BY L=660	1-47426-409-0	01	1	9307-9307			●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> L=618 SERVICED BY L=660	1-47426-409-0	01	1	9308-			●
131	PIPE; AIR,UNION TO FLEX HOSE L=618 SERVICED BY L=660	1-47426-409-0	01	1	9308-						●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> L=538	1-47491-710-0	01	1	9211-9306				●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-9307			●		●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-9307			●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9308-			●		●		●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> L=660 SERVICED BY L=700	1-47426-410-0	01	1	9308-			●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (A) L=1252 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,ASSISTER SHIFT CONTROL<WX8> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9307-9307			●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9308-			●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9308-						●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=688 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=688 SERVICED BY L=730	1-47426-382-0	01	1	9307-9307			●		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=688 SERVICED BY L=730	1-47426-382-0	01	1	9307-9307			●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=698 SERVICED BY L=730	1-47426-382-0	01	1	9308-			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=698 SERVICED BY L=730	1-47426-382-0	01	1	9308-			●
153	PIPE ASM; CLU,UNION TO FLEX CXZ&LONG CHASISS(CXZ**F) 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9211-9306				●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9> (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●	●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-173-1	01	1	9104-9306			●	●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-173-1	01	1	9307-			●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9104-9302			●	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-9306			●	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-			●

58 58 57 58 67 67 66 176 65 64 63 62 24 22 34 33 35 153 10 175 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (B) AIR L=430	0-07424-430-0	01	1	9308-	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (C) OIL L=350	1-09364-446-0	01	1	9308-	●
1	HOSE; FLEX,CLU CONT (A) L=840	1-09364-466-0	01	1	9002-	●	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (B) AIR L=530	0-07424-530-0	01	1	9308-						●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> (C) OIL L=430	1-09364-725-0	01	1	9308-						●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●	●	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-1	01	1	9104-							●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-0	01	1	9002-9103			●	●	●		●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47416-511-2	01	1	9002-9306	●	●	●	●	●		●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47425-256-0	01	1	9307-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9307	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307			●		●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-			●		●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●	●	●		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●	●	●		●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-			●		●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-9302	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9303-9307	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306			●		●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306			●		●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●	●		●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9009			●		●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9307-9307	●	●	●	●	●		●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9308-			●		●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●	●	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9308-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9308-	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9306	●	●	●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L) M8	9-09110-408-0	02	1	9307-	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9010-9203			●		●		●
57	HOSE; CLU M/CYL TO OIL TANK L=470 SERVICED BY L=1800	1-09360-320-0	01	1	9002-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●		●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=15	1-09987-115-0	01	1	9002-	●	●	●	●	●	●	●
62	CLIP; CLU PIPE ID=9 H=20 L=20	9-09527-008-0	01	1	9002-	●	●	●	●	●	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●	●		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (A) L=1252 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,ASSISTER SHIFT CONTROL<WX8> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9307-9307			●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9308-			●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=754 SERVICED BY L=800	1-47426-383-0	01	1	9308-						●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=688 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=688 SERVICED BY L=730	1-47426-382-0	01	1	9307-9307			●		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=688 SERVICED BY L=730	1-47426-382-0	01	1	9307-9307			●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=698 SERVICED BY L=730	1-47426-382-0	01	1	9308-			●		●		●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=698 SERVICED BY L=730	1-47426-382-0	01	1	9308-			●
153	PIPE ASM; CLU,UNION TO FLEX CXZ&LONG CHASISS(CXZ**F) 6RB1 STD ENG(07L) ASSISTER SHIFT CONTROL<WX8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9211-9306				●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9> (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
