◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10A - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10A — REPAIR KIT; TRANSMISSION OVERHAUL (#33404) — 42 parça

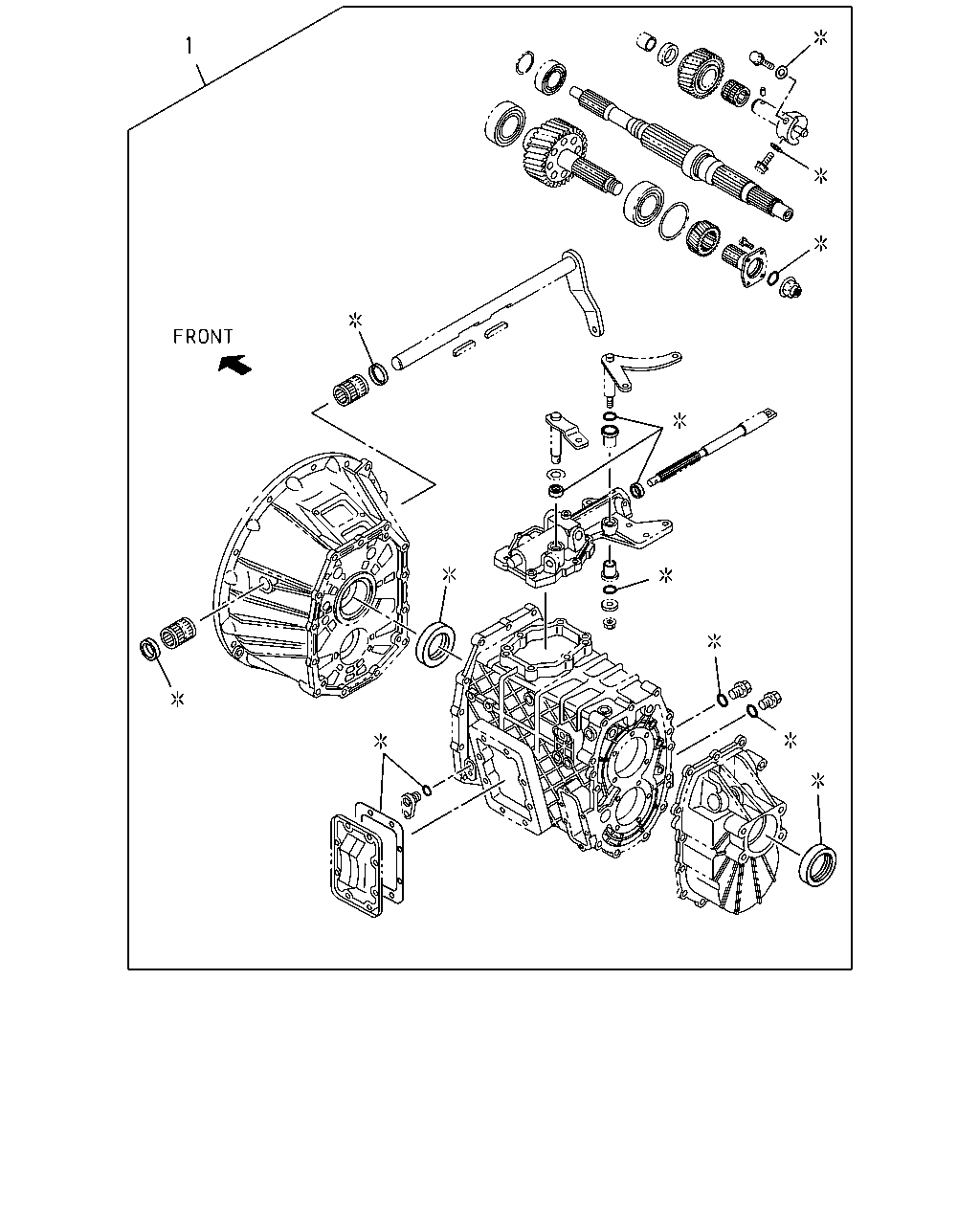

çizim 178588
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-215-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-213-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1001- ●

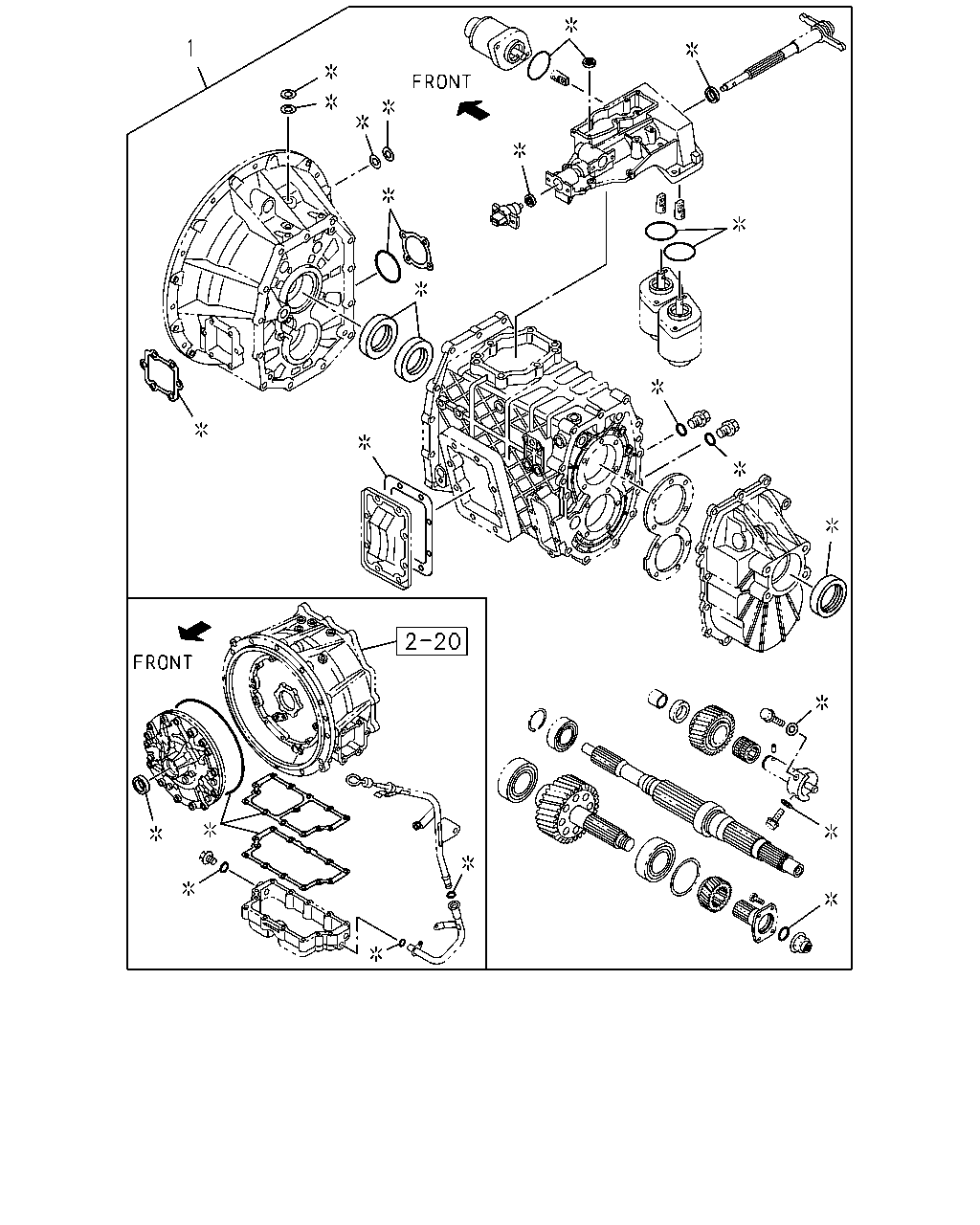

çizim 178603
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-215-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-213-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1001- ●

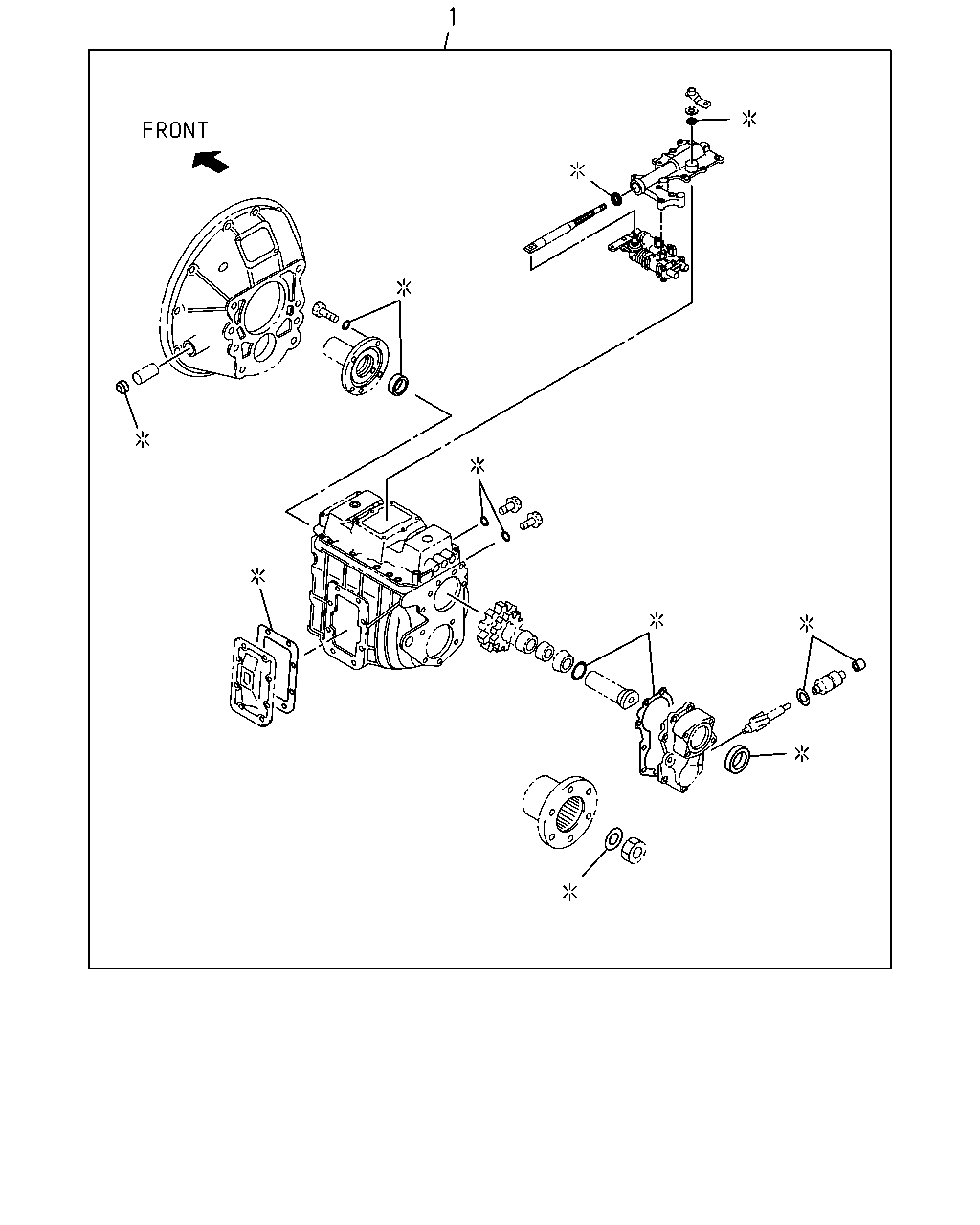

çizim 178899
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-229-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-243-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-215-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-213-1 01 1 0710-0912 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1001- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
