◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#33401) — 236 parça

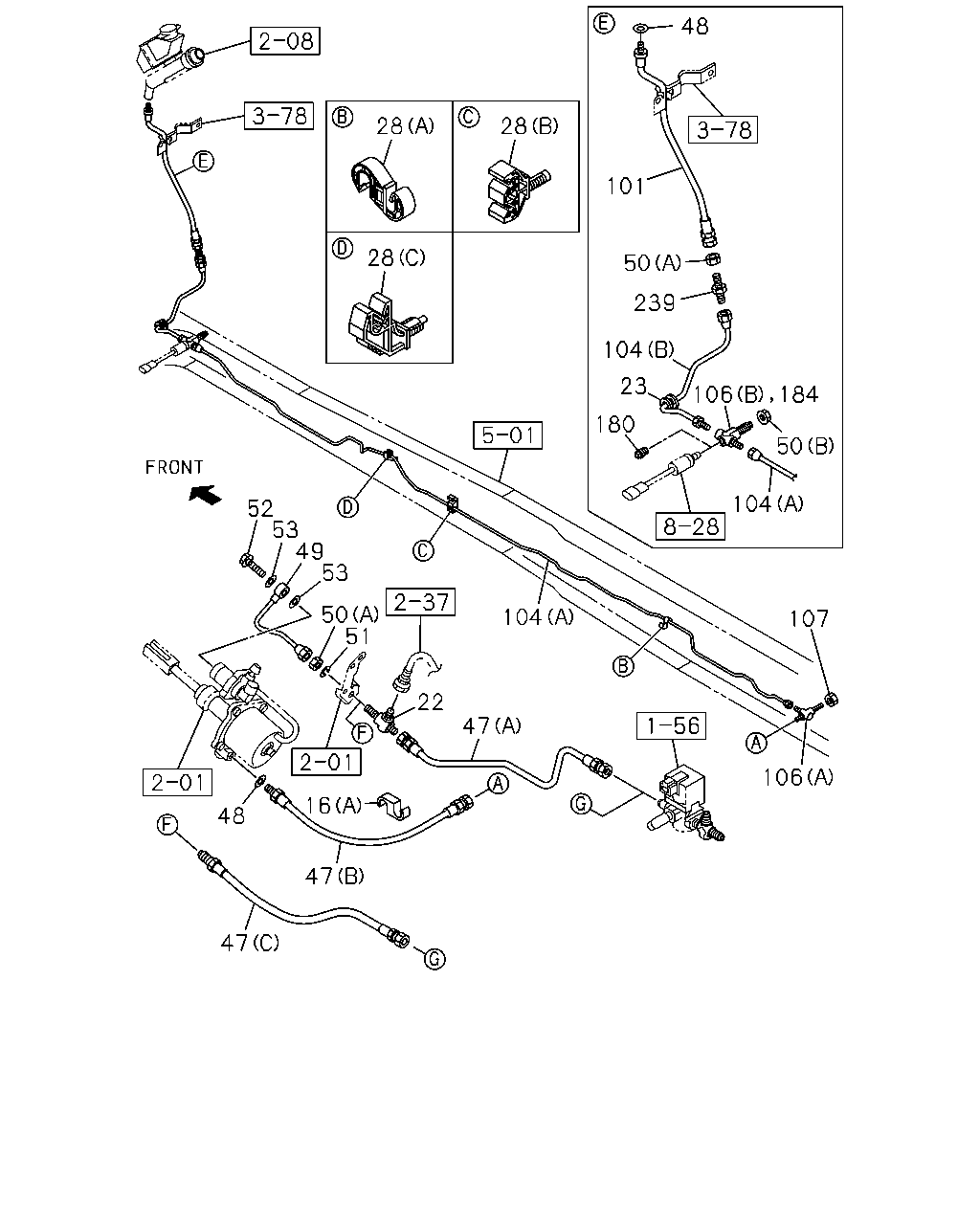

çizim 178582
48 28 28 101 28 50 239 104 23 106 184 180 50 104 52 53 49 53 50 51 104 107 22 47 106 16 48 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1012- ●
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=10 & 10 		1-09709-277-1 01 1 0806-0901 ● ●
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-1008 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1009- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0710-1011 ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1012- ● ●
23 GROMMET; CLU PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710-0906 ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0907- ●
23 GROMMET; CLU PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0907- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 0710-1011 ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 0710-1011 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1012- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1012- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0710-0910 ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (D) L=660 		1-09363-971-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (F) L=740 		1-09363-674-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=480 		8-98072-349-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. A/T<X9D>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560 		1-09363-914-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=660 		1-09363-719-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0804-0906 ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0804-0906 ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 0710-1011 ●
47 HOSE; FLEX,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 0710-1011 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1012- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0710-0712 ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0801- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1012- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0710-1011 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1012- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) L=239 		1-49117-401-0 01 1 1012- ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710- ● ●
50 NUT; UNION
MZX6P M/T(RSW) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0710-0712 ● ●
51 WASHER; LK
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0801-0805 ● ●
51 WASHER; LK
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0806-0906 ● ●
51 WASHER; LK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0907- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0710-1011 ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
52 BOLT; EYE,AIR PIPE
6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-1011 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
53 GASKET; JOINT BOLT
6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
53 GASKET; JOINT BOLT
6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 1012- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 0710-1011 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 0710-1011 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1012- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2560 SERVICED BY L=2650 		1-47428-743-0 01 1 1012-1012 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2558 SERVICED BY L=2650 		1-47428-743-0 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669 		8-98119-697-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0804-0912 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0804- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
107 NUT; UNION,OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0710- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ●
180 PLUG; PIPE
EXC. A/T<X9D>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ●
184 UNION; FLEX HOSE
EXC. A/T<X9D>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ●
239 UNION; CLU HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0710-0906 ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0907- ●
239 UNION; CLU HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0907- ●
çizim 178991
48 101 50 180 106 184 239 104 23 104 50
BalonParca AdiParca NoAdetTipApplied Date A B
23 GROMMET; CLU PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710-0906 ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0907- ●
23 GROMMET; CLU PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0907- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0710-0712 ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0801- ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710- ● ●
50 NUT; UNION
MZX6P M/T(RSW) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 1012- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 0710-1011 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 0710-1011 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1012- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2560 SERVICED BY L=2650 		1-47428-743-0 01 1 1012-1012 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2558 SERVICED BY L=2650 		1-47428-743-0 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669 		8-98119-697-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0804-0912 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0804- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ●
180 PLUG; PIPE
EXC. A/T<X9D>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ●
184 UNION; FLEX HOSE
EXC. A/T<X9D>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ●
239 UNION; CLU HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0710-0906 ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0907- ●
239 UNION; CLU HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0907- ●

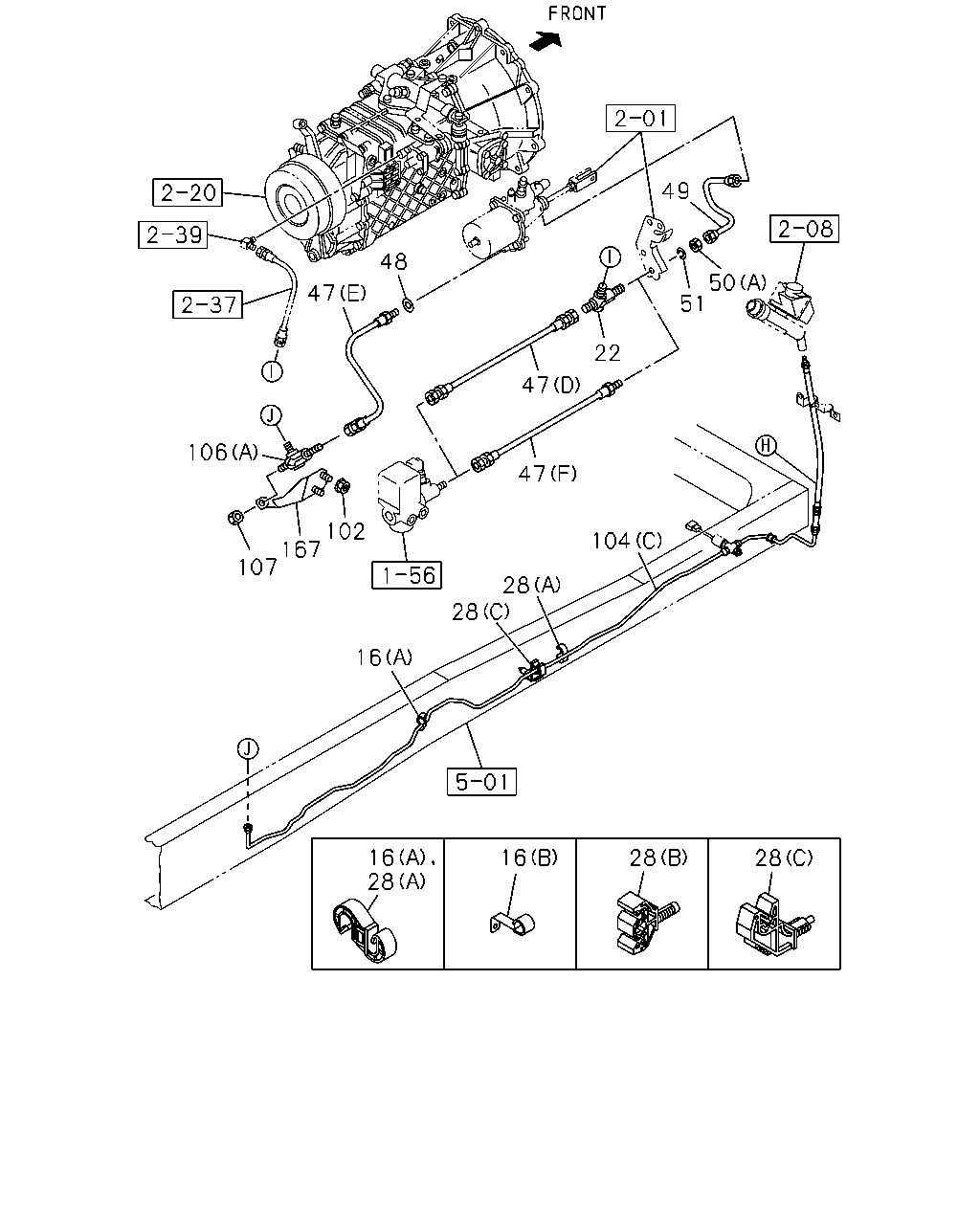

çizim 179025
49 48 50 51 47 22 47 106 47 102 167 107 104 28 28 16 16 28 16 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1012- ●
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=10 & 10 		1-09709-277-1 01 1 0806-0901 ● ●
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-1008 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1009- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0710-1011 ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1012- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 0710-1011 ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 0710-1011 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1012- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1012- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0710-0910 ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0911- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (D) L=660 		1-09363-971-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (F) L=740 		1-09363-674-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=480 		8-98072-349-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. A/T<X9D>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560 		1-09363-914-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=660 		1-09363-719-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0804-0906 ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0804-0906 ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0907-1011 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 0710-1011 ●
47 HOSE; FLEX,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 0710-1011 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1012- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0710-0712 ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0801- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1012- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0710-1011 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1012- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) L=239 		1-49117-401-0 01 1 1012- ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710- ● ●
50 NUT; UNION
MZX6P M/T(RSW) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ●
50 NUT; UNION
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801-0805 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0806-0906 ● ●
50 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0907- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0710-0712 ● ●
51 WASHER; LK
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0801-0805 ● ●
51 WASHER; LK
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0806-0906 ● ●
51 WASHER; LK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0907- ● ●
102 NUT; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2560 SERVICED BY L=2650 		1-47428-743-0 01 1 1012-1012 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2558 SERVICED BY L=2650 		1-47428-743-0 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669 		8-98119-697-1 01 1 0806- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0710-0803 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 0804-0912 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1001-1011 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1012- ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 0804- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ●
107 NUT; UNION,OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0710- ● ●
167 BRACKET; UNION
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98078-090-1 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
