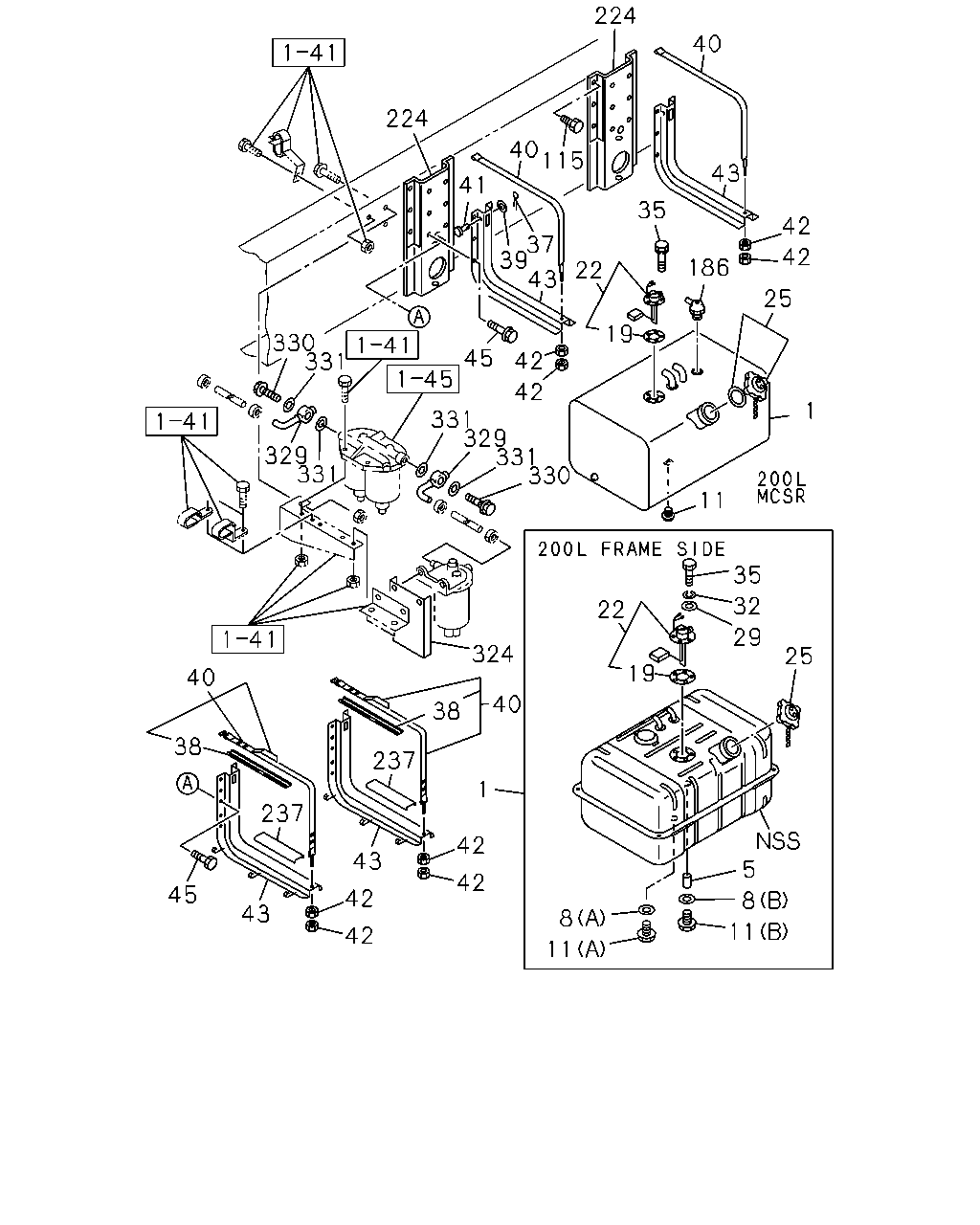

1-40 — FUEL TANK (#334) — 44 parça

224 40 224 40 115 43 41 35 42 37 39 43 42 186 22 25 42 19 330 331 45 42 1 331 329 331 330 329 331 11 35 32 22 29 324 25 19 40 40 38 38 237 1 237 5 42 43 42 45 42 8 43 8 11 42 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9202-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-571-4	01	1	9202-	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	9202-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22416-001-0	01	1	9202-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9202-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-09604-052-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9202-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	9202-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-086-1	01	1	9202-	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-056-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9202-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9202-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9202-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9202-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9202-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9202-	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9202-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9202-	●	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9202-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9202-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9202-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1040 L=1040	1-22550-194-2	02	1	9405-	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9202-	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9202-	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>	9-09110-510-0	04	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-355-2	02	1	9202-	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-309-1	02	1	9202-	●	●
45	BOLT; BRKT,FUEL TANK M12X35 W/LK WASHER	0-50041-235-0	12	1	9202-9307	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28081-235-0	12	1	9308-9412	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	12	1	9501-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-9504	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M12X40 W/LK WASHER	0-50041-240-0	12	1	9505-	●	●
115	BOLT; BRKT M12X35 W/LK WASHER	0-50041-235-0	12	1	9202-9307	●	●
115	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9202-	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 200L FMCSR<PK6>	1-53461-397-0	02	1	9202-	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20>	1-53461-383-1	02	1	9202-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9202-	●	●
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9202-	●	●
329	JOINT ASM; EYE,FUEL PIPE	5-15411-472-0	02	1	9202-	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9202-	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●
