1-56 — EXHAUST BRAKE SYSTEM (#33398) — 254 parça

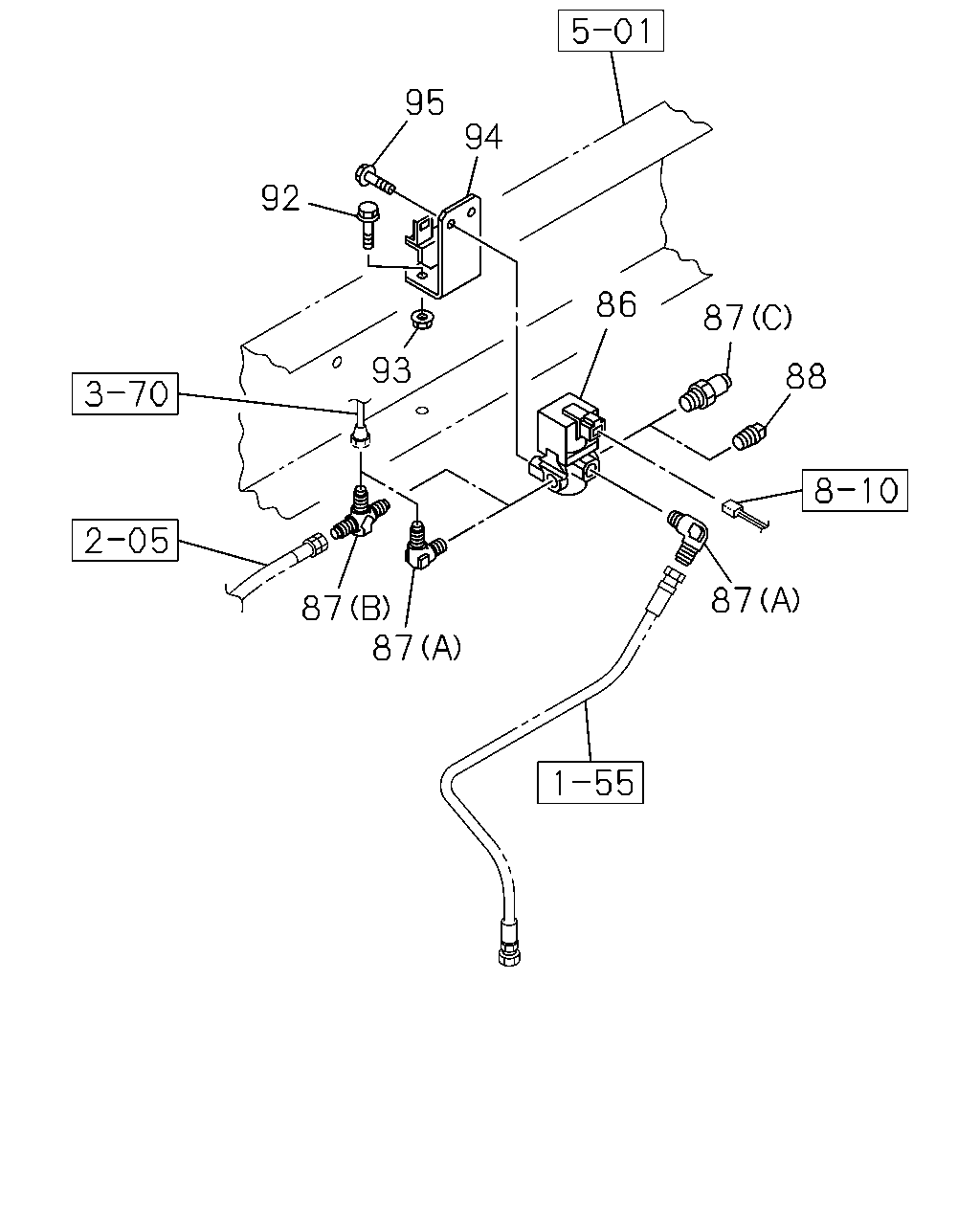

çizim 178574
95 94 92 86 87 93 88 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0710-1011 ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1012- ● ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0711 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0712-0803 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0907-1008 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1009-1011 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1012- ●
87 CONNECTOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ● ● ●
87 CONNECTOR
MZX6P M/T(RSW),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0808 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0809-0906 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907-1008 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907-1008 ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-1011 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-1011 ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ●
87 CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0803 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0808 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0710-0803 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0804-0805 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0806-0808 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
88 PLUG
MZX6P M/T(RSW) EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0712-0803 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0804-0805 ● ●
88 PLUG
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0804-0805 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0806-0808 ● ●
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> PT1/4 		9-99204-513-0 01 1 1012- ● ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 01 1 0809-1008 ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X25 FLANGE 		0-28651-025-0 01 1 1009-1009 ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1009- ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 0804-0912 ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 1001-1008 ● ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1009-1011 ● ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1012- ● ●
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0803 ● ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0804-0808 ● ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0906 ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0906 ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8X30 FLANGE 		0-28650-830-0 02 1 0907-0912 ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0907-0912 ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1001-1008 ●
92 BOLT; MAG VLV
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1001-1008 ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ● ●
93 NUT; MAG VLV
LEAF SUS(FCR***) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 01 1 0809-0901 ●
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
93 NUT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 0804-0808 ● ●
93 NUT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ● ●
93 NUT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
93 NUT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0907-0912 ● ●
93 NUT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 0907-0912 ●
93 NUT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1001-1008 ●
93 NUT; MAG VLV
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1001-1008 ●
93 NUT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98123-165-0 01 1 0809-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> 		8-98123-165-0 01 1 1009- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98078-098-0 01 1 0804-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98078-098-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> 		8-98078-098-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98067-005-0 01 1 0710-0803 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW) 		8-98067-005-0 01 1 0804-0805 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0804-0805 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0804-0805 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98067-005-0 01 1 0806-0808 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0806-0808 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0806-0808 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 		8-98067-005-0 01 1 0809-0906 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 		8-98067-005-0 01 1 0907-0912 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0907-0912 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0907-0912 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 1001-1008 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1001-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 1001-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1009-1011 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1009-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C>,A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1009-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1012- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C>,A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-005-0 01 1 1012- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1011 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ● ●

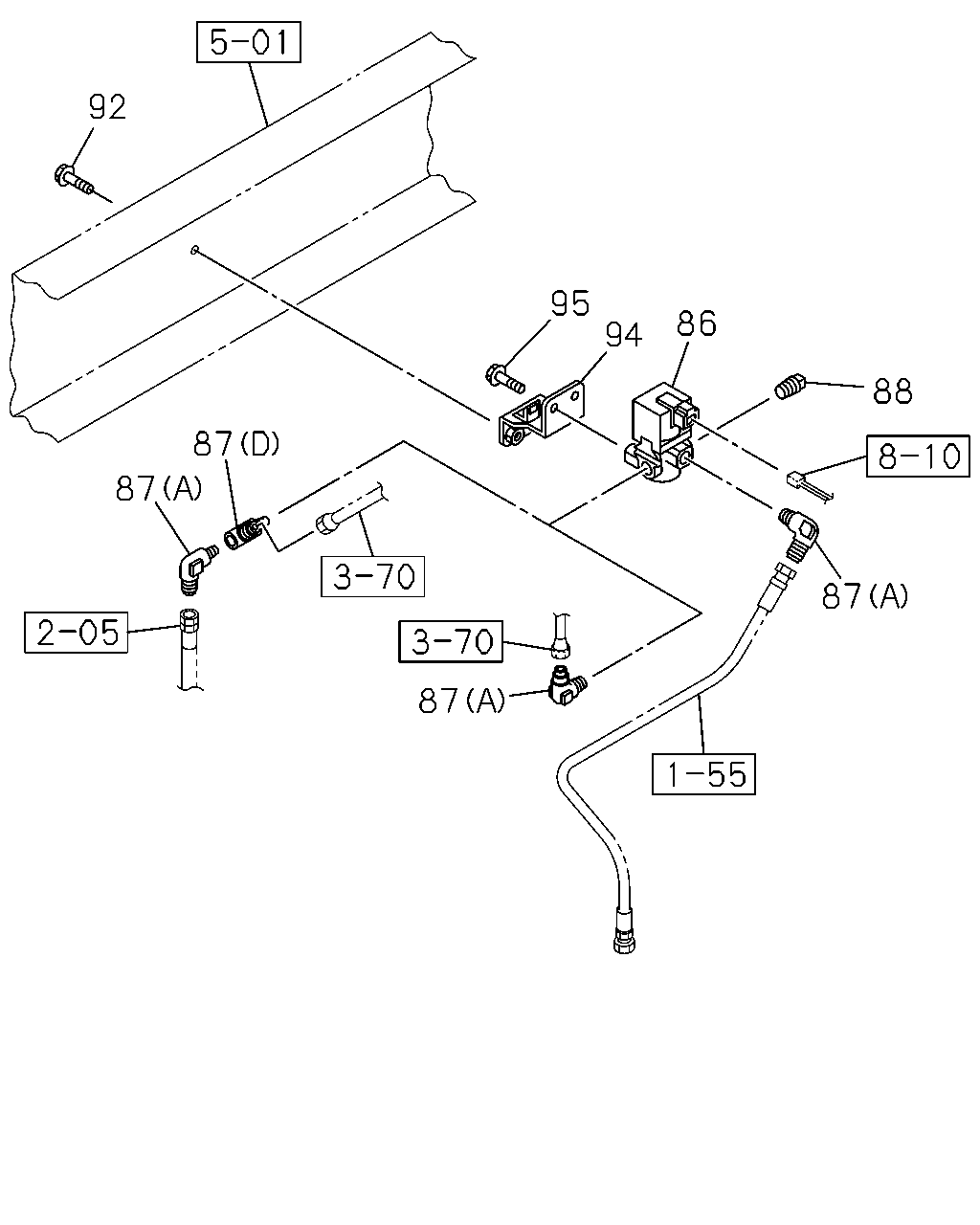

çizim 179024
92 95 86 94 88 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0710-1011 ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1012- ● ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0711 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0712-0803 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0907-1008 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1009-1011 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1012- ●
87 CONNECTOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ● ● ●
87 CONNECTOR
MZX6P M/T(RSW),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0808 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0809-0906 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907-1008 ● ●
87 CONNECTOR
LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907-1008 ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-1011 ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-1011 ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ● ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ●
87 CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0803 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0808 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1008 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009- ● ●
87 CONNECTOR
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0710-0803 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0804-0805 ● ●
87 CONNECTOR
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0804-0805 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0806-0808 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0806-0808 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1008 ● ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
87 CONNECTOR
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1009- ● ●
88 PLUG
MZX6P M/T(RSW) EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0712-0803 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0804-0805 ● ●
88 PLUG
MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0804-0805 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0806-0808 ● ●
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0809-0906 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0907-1008 ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> PT1/4 		9-99204-513-0 01 1 1009-1011 ● ●
88 PLUG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> PT1/4 		9-99204-513-0 01 1 1012- ● ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 01 1 0809-1008 ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X25 FLANGE 		0-28651-025-0 01 1 1009-1009 ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE 		0-28651-030-0 01 1 1009- ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 0804-0912 ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 1001-1008 ● ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1009-1011 ● ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1012- ● ●
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0803 ● ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0804-0808 ● ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0906 ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0906 ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> M8X30 FLANGE 		0-28650-830-0 02 1 0907-0912 ● ●
92 BOLT; MAG VLV
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 0907-0912 ●
92 BOLT; MAG VLV
AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1001-1008 ●
92 BOLT; MAG VLV
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1001-1008 ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98123-165-0 01 1 0809-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> 		8-98123-165-0 01 1 1009- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98078-098-0 01 1 0804-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98078-098-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU),CATALYSIS CONTROL WITH DPD<8JM> 		8-98078-098-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98067-005-0 01 1 0710-0803 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW) 		8-98067-005-0 01 1 0804-0805 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0804-0805 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0804-0805 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98067-005-0 01 1 0806-0808 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0806-0808 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C),LCT2000 A/T ALLISON(Y4F) BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0806-0808 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 		8-98067-005-0 01 1 0809-0906 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MLD6W M/T(Y2C),LCT2000 A/T ALLISON(Y4F) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> 		8-98067-005-0 01 1 0907-0912 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 0907-0912 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 0907-0912 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 1001-1008 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1001-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98067-005-0 01 1 1001-1008 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1009-1011 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1009-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C>,A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1009-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
AIR SUS(FCD***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1012- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) MANUAL TRANSMISSION<X9C> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> EXC. BRAKE REGULATION ADR(TDU) 		8-98067-005-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C>,A/T<X9D> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> CATALYSIS CONTROL WITH DPD<8JM> 		8-98067-005-0 01 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-005-0 01 1 1012- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1011 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
