1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#33397) — 59 parça

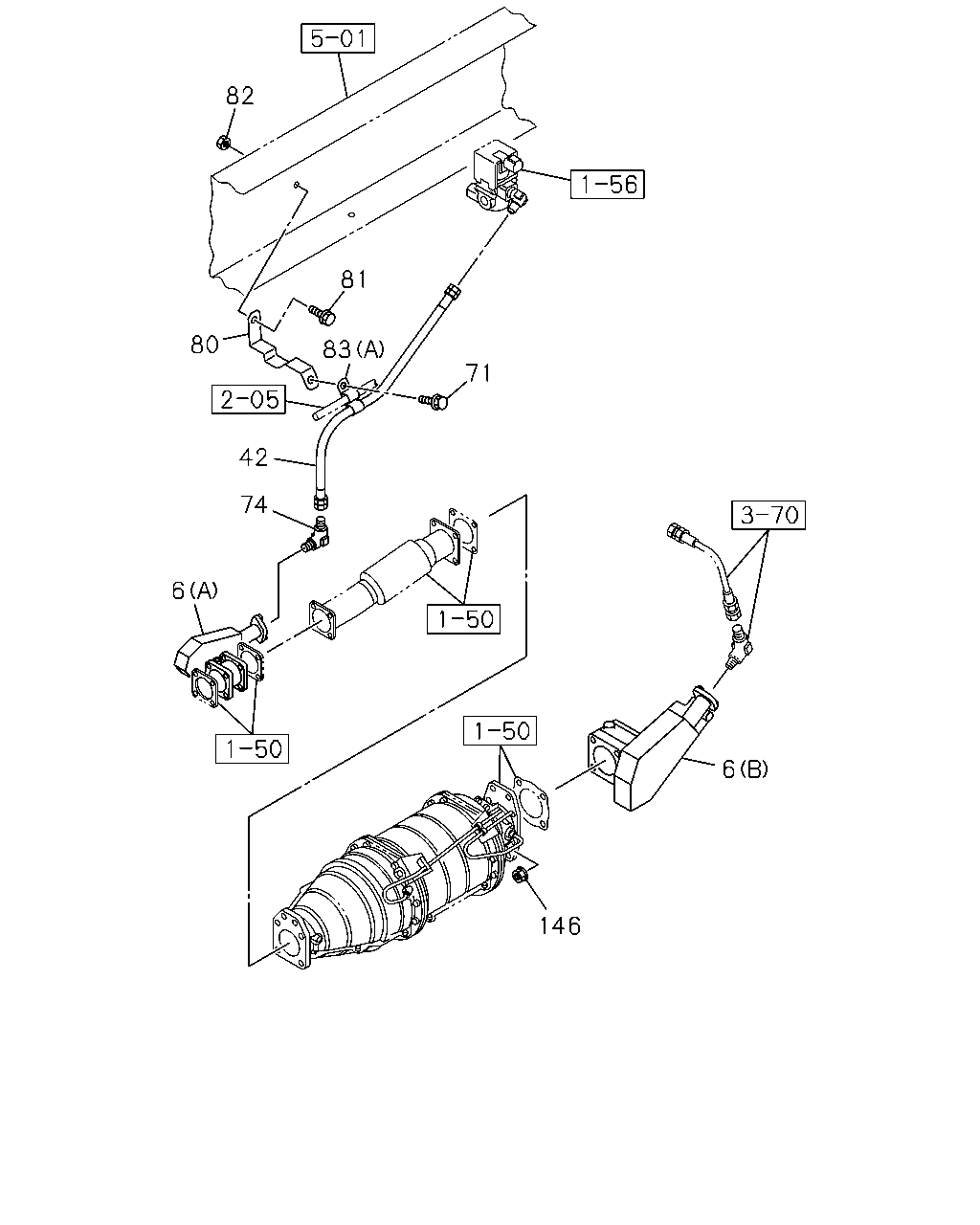

82 81 80 83 71 42 74 6 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE (C)	8-98054-172-6	01	1	1102-	●
6	VALVE; EXH BRAKE WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> (B)	8-98054-188-6	01	1	1102-	●
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	0710-1302		●	●
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-		●	●
6	VALVE; EXH BRAKE (B)	8-98054-186-4	01	1	0710-0808		●	●
6	VALVE; EXH BRAKE CATALYSIS CONTROL WITH DPD<8JM> (B)	8-98054-186-6	01	1	0809-		●	●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600	1-09363-639-0	01	1	1012-	●
42	HOSE; FLEX,EXH BRK MLD6W M/T(Y2C) L=660	1-09363-971-0	01	1	1012-	●
42	HOSE; FLEX,EXH BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=540	1-09363-612-1	01	1	0804-		●	●
42	HOSE; FLEX,EXH BRK L=520	1-09363-957-0	01	1	0710-0803		●	●
42	HOSE; FLEX,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520	1-09363-957-0	01	1	0804-		●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0710-1011		●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1011		●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-	●	●	●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0710-1011		●	●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	1012-		●	●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98078-153-0	01	1	1012-	●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0801		●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	0802-1011		●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	1012-	●	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0710-1011		●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	1012-	●	●	●
83	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=11 L=50	0-95235-085-0	01	1	1012-	●
83	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10	1-09709-277-1	01	1	1012-	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0710-1011		●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1012-		●	●
83	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16	1-09700-820-0	01	1	1012-	●
146	NUT; EXH BRK VLV M10	0-91110-510-0	04	1	0710-0712		●	●
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	0801-0808		●	●
146	NUT; EXH BRK VLV EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	04	1	0809-		●	●

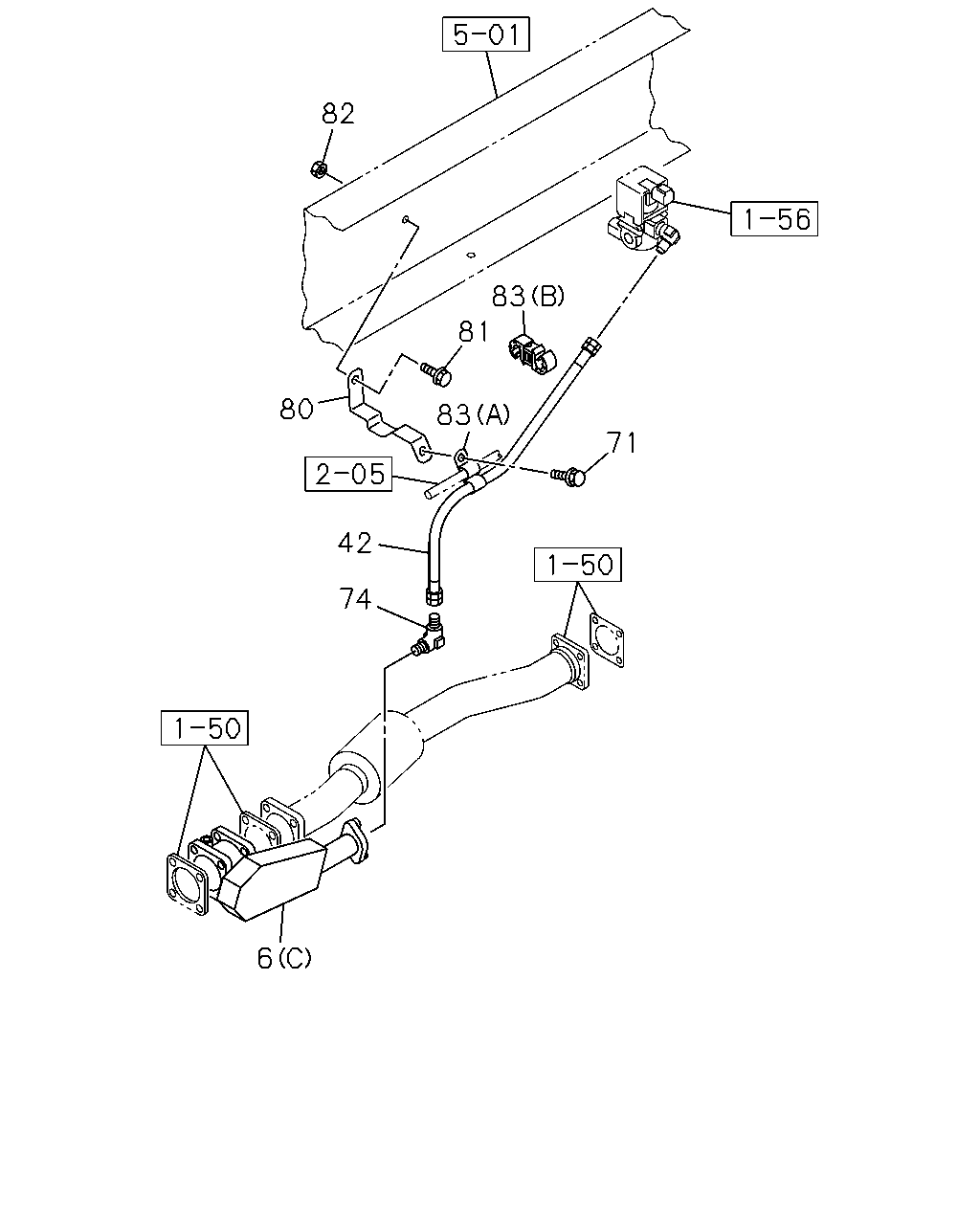

82 83 81 80 83 71 42 74 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE (C)	8-98054-172-6	01	1	1102-	●
6	VALVE; EXH BRAKE WHEEL BASE 5100MM(51W) CATALYSIS CONTROL WITH DPD<8JM> (B)	8-98054-188-6	01	1	1102-	●
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	0710-1302		●	●
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-		●	●
6	VALVE; EXH BRAKE (B)	8-98054-186-4	01	1	0710-0808		●	●
6	VALVE; EXH BRAKE CATALYSIS CONTROL WITH DPD<8JM> (B)	8-98054-186-6	01	1	0809-		●	●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600	1-09363-639-0	01	1	1012-	●
42	HOSE; FLEX,EXH BRK MLD6W M/T(Y2C) L=660	1-09363-971-0	01	1	1012-	●
42	HOSE; FLEX,EXH BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=540	1-09363-612-1	01	1	0804-		●	●
42	HOSE; FLEX,EXH BRK L=520	1-09363-957-0	01	1	0710-0803		●	●
42	HOSE; FLEX,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520	1-09363-957-0	01	1	0804-		●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0710-1011		●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1011		●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-	●	●	●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0710-1011		●	●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	1012-		●	●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98078-153-0	01	1	1012-	●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0801		●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	0802-1011		●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	1012-	●	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0710-1011		●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	1012-	●	●	●
83	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=11 L=50	0-95235-085-0	01	1	1012-	●
83	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10	1-09709-277-1	01	1	1012-	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0710-1011		●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1012-		●	●
83	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16	1-09700-820-0	01	1	1012-	●
