Sayfa 1-41 - Isuzu EPC

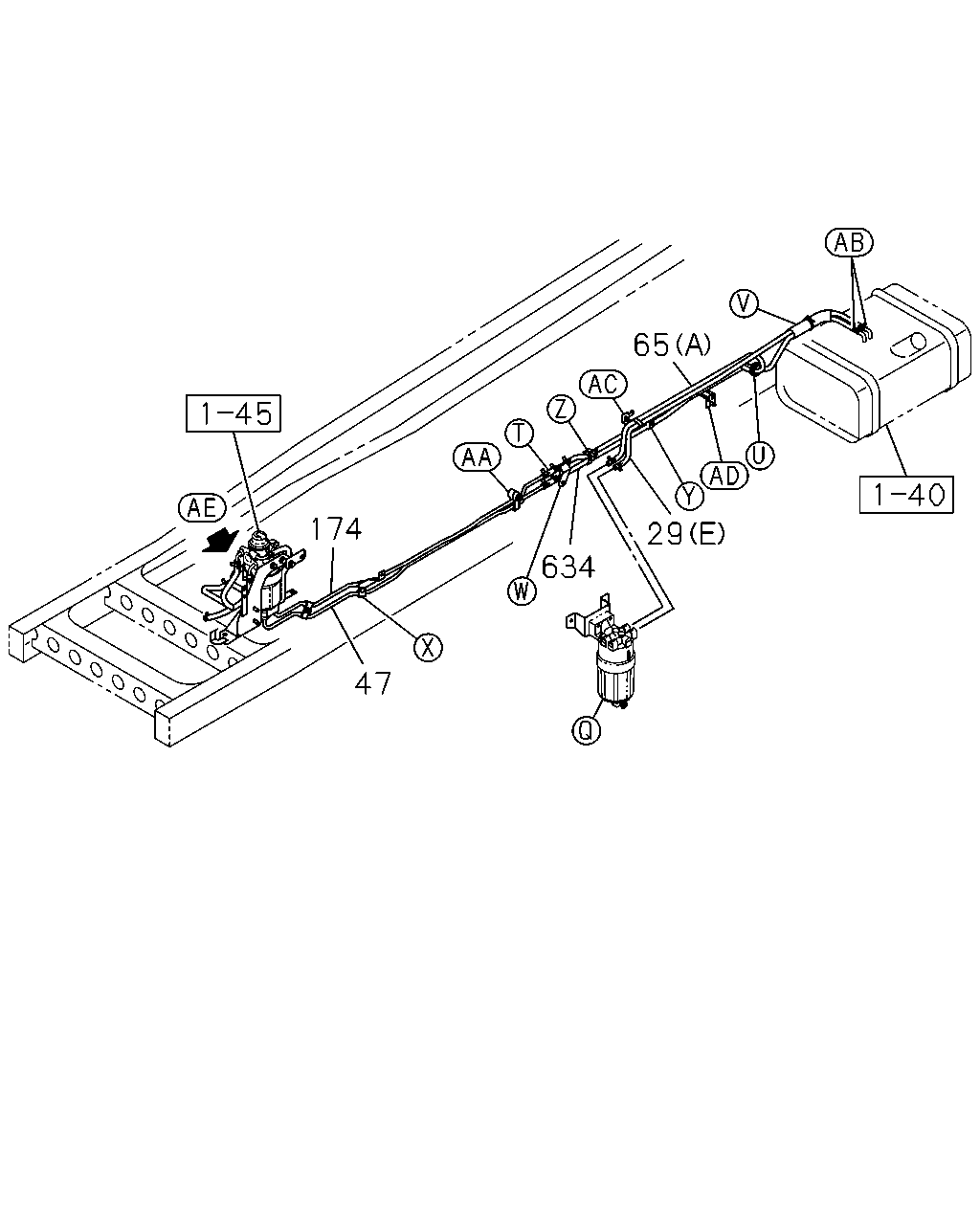

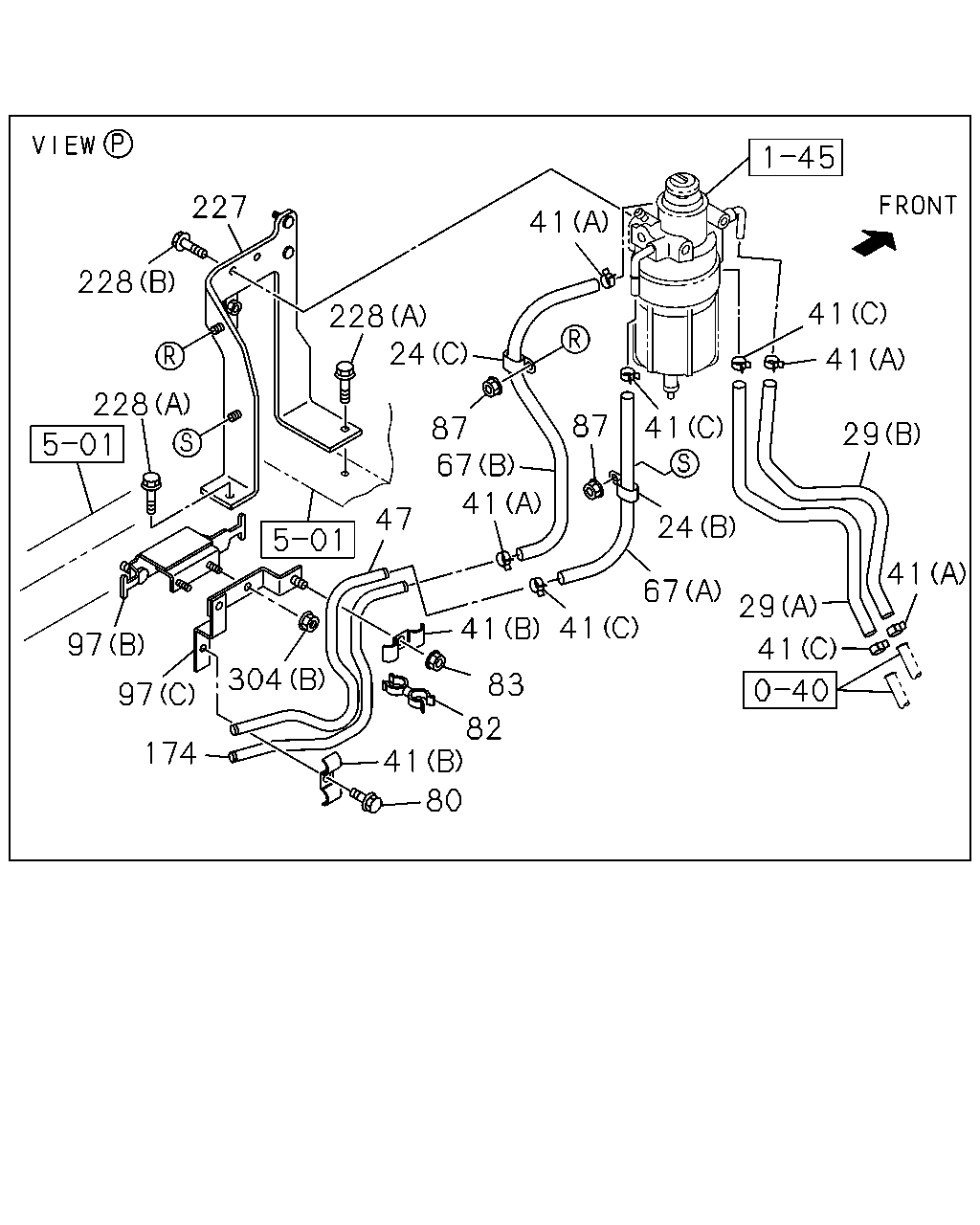

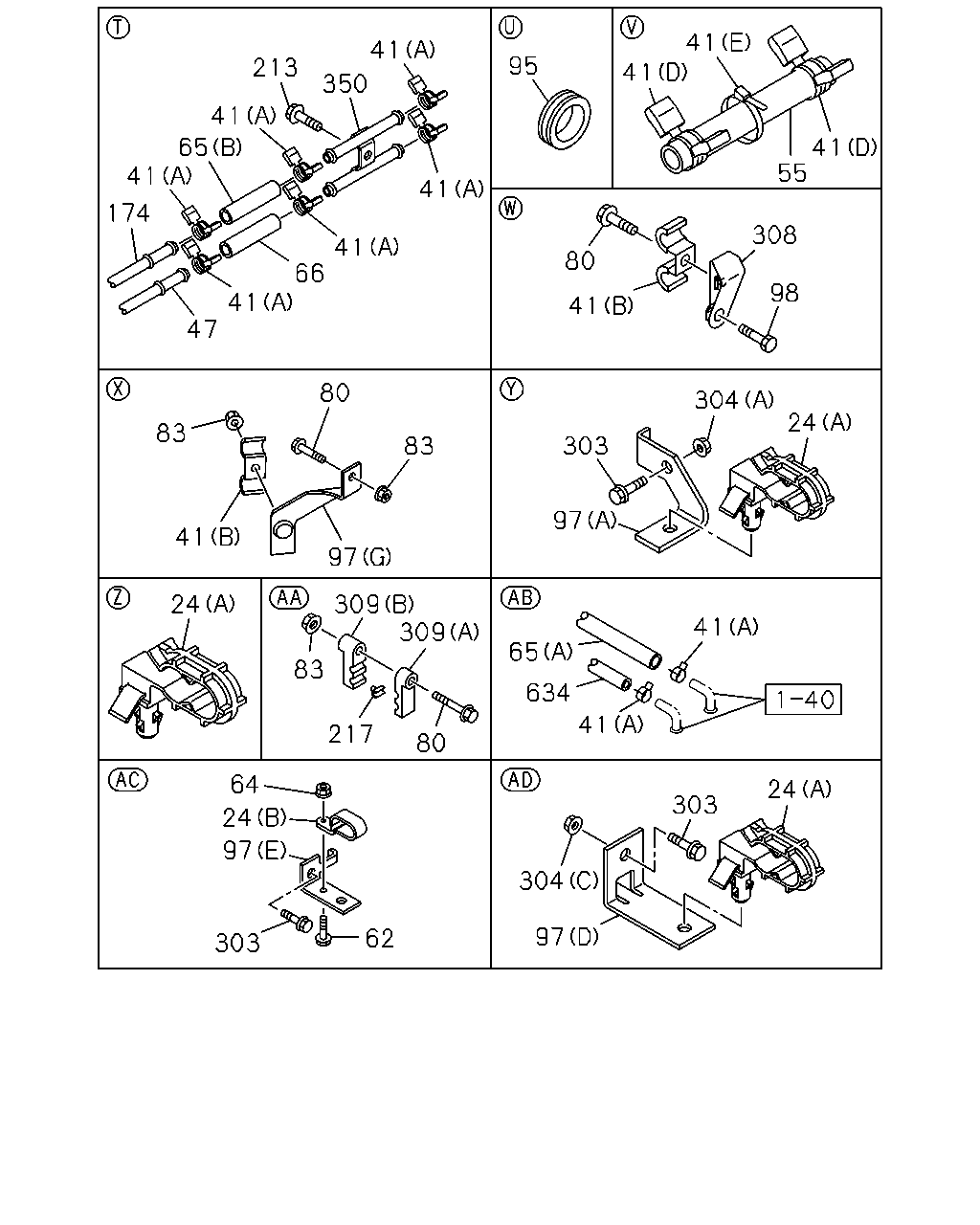

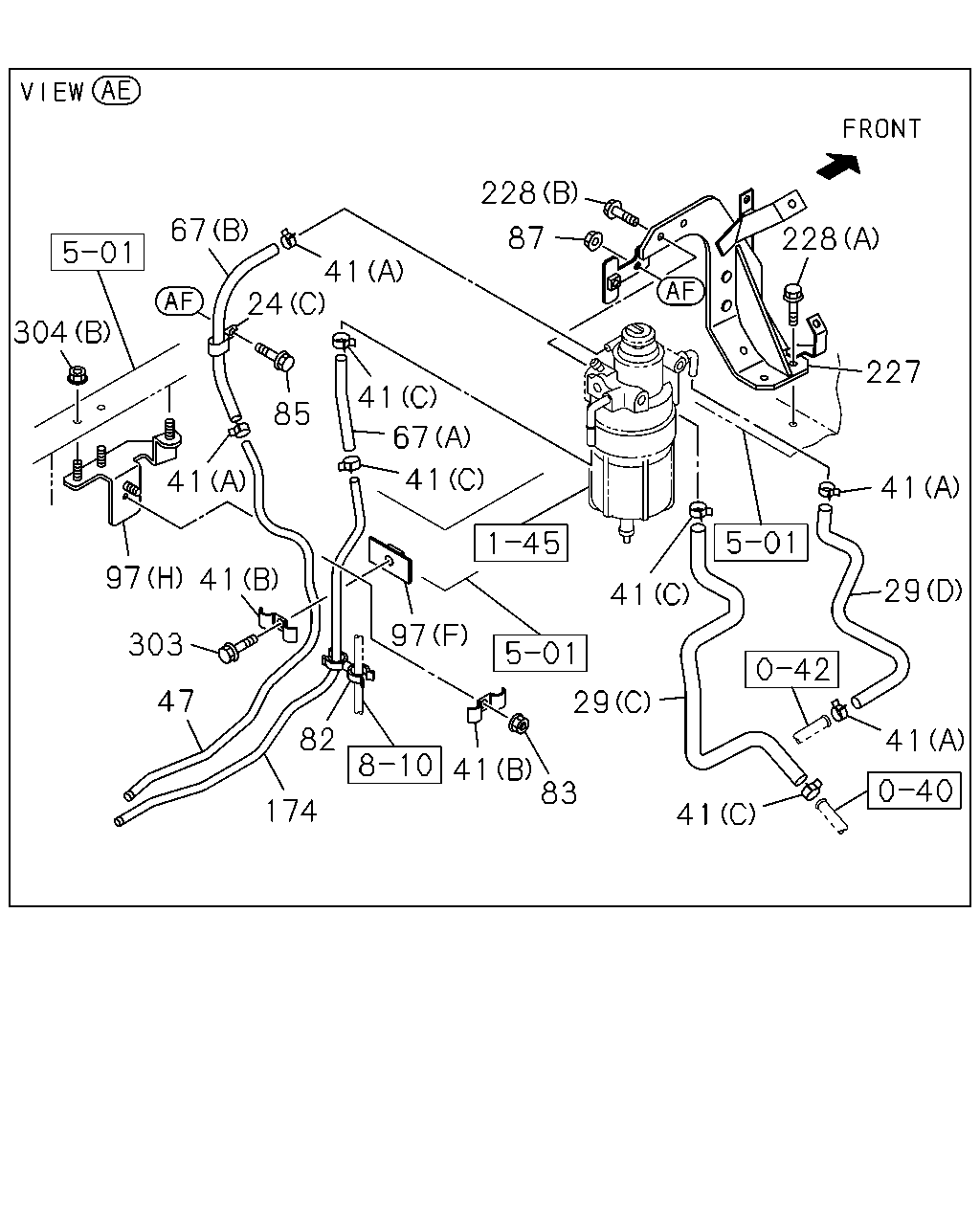

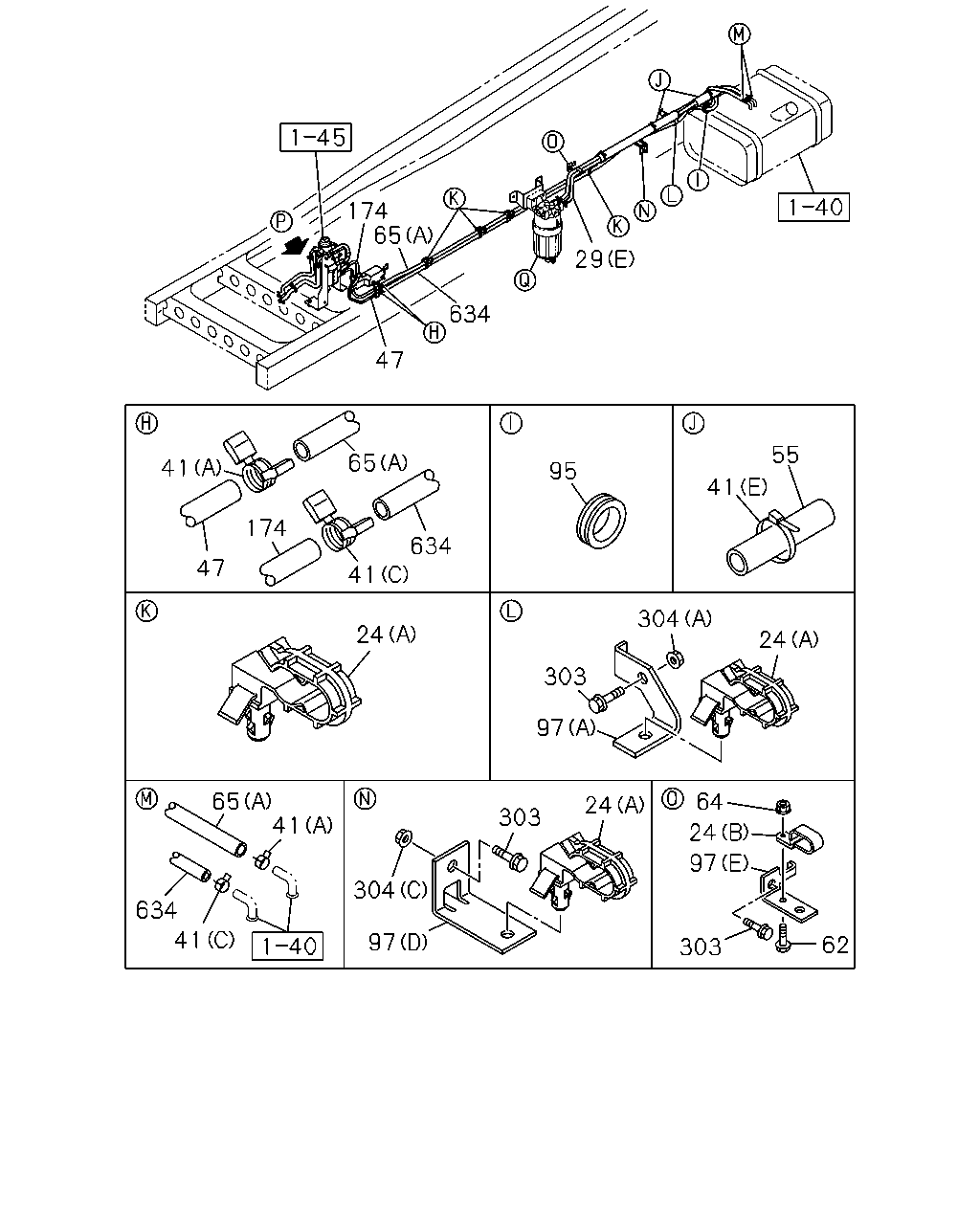

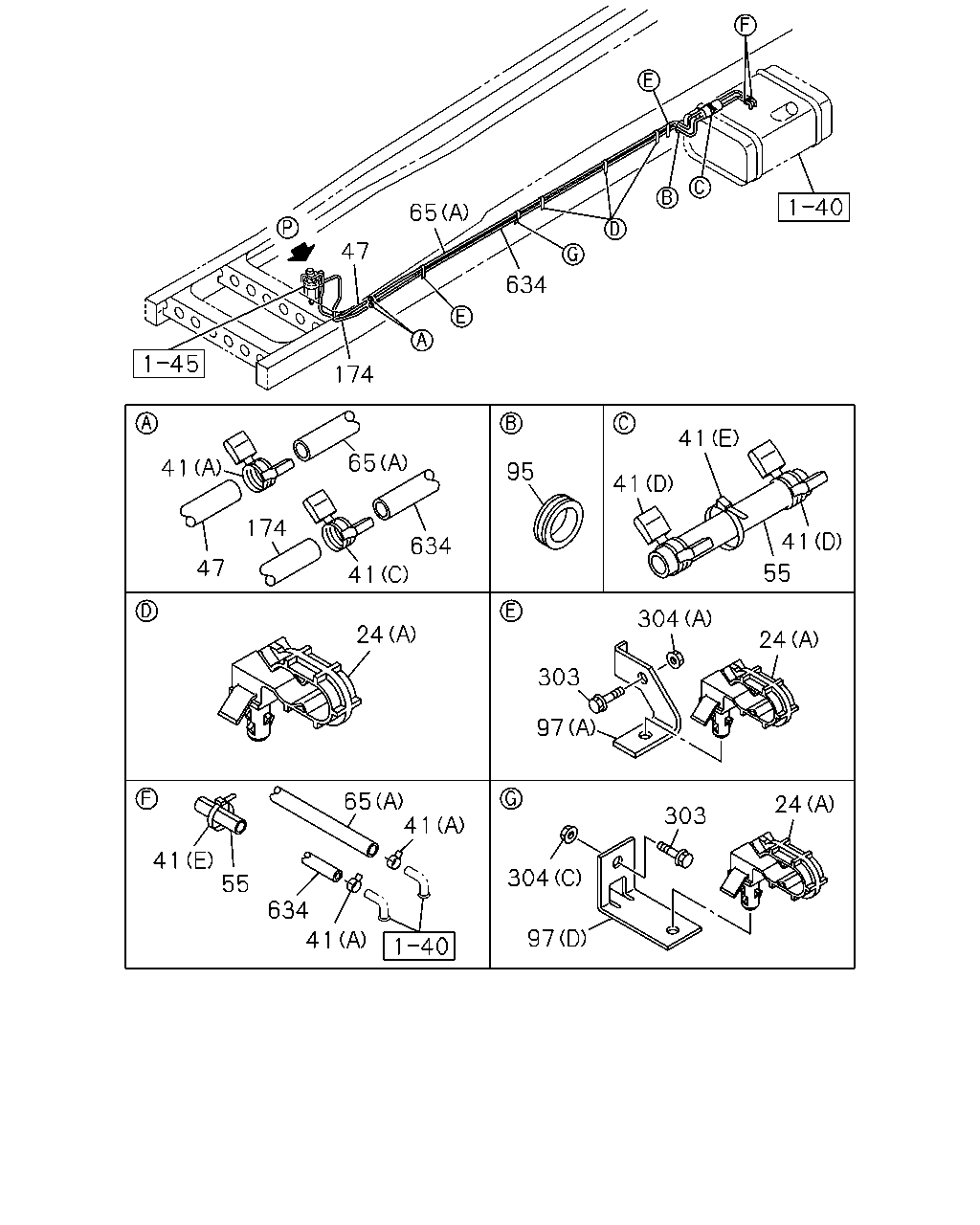

1-41 — FUEL PIPING; CHASSIS (#33394) — 1019 parça

65 47 634 174 41 65 41 95 41 174 41 634 41 47 55 304 24 24 303 97 65 41 24 303 41 55 304 634 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808		●
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-1011	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1012-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-0901	●	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0902-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-		●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-0711	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-0808		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0712-0808	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-1011	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-1011	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0712-0808	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

174 65 634 47 29 41 174 47 65 634 41 95 55 41 24 304 303 97 24 65 41 634 41 304 97 303 24 64 24 97 303 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808		●
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-1011	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-1011	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-1011	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1012-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-0901	●	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0902-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-		●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-0711	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-0808		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0712-0808	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-1011	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-1011	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0712-0808	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

227 228 228 97 174 97 304 41 82 83 41 41 47 41 67 87 24 228 41 87 24 41 67 41 41 29 41 41 29 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808		●
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-1011	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-1011	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1012-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-	●
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0710-1005	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-		●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-0711	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-0808		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0712-0808	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-1011	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-1011	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-1011	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1012-		●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●

65 29 634 47 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-1011	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-1011	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

228 227 41 29 41 41 41 228 87 67 41 24 304 85 41 97 41 303 47 41 67 41 97 82 174 83 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808		●
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-1011	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-1011	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1012-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-	●
85	BOLT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0710-1005	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-		●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-0711	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-0808		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0712-0808	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-1011	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-1011	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-1011	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1012-		●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0712-0808	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●

41 41 41 95 213 350 41 65 41 41 55 41 174 308 41 66 80 98 41 47 41 80 304 24 83 303 83 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808		●
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0712-0808	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-0808	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-1011	●	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-1011	●	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1012-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-0901	●	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0902-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1012-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-		●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-0711	●	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-0808		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0712-0808	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0809-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-1011	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-1011	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-1011	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
213	BOLT; FUEL PIPE FIX 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
217	COLLAR; FUEL PIPE FIX 4HK1-TCS ENG(RJS) ID=8	1-47459-011-0	01	1	1012-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0712-0808	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS)	8-98117-691-0	01	1	1012-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (A) ID=10 & 10	1-09709-241-0	01	1	1012-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (B) ID=10 & 10	1-09709-243-0	01	1	1012-	●
350	PIPE; FUEL,DEL & RET 4HK1-TCS ENG(RJS)	8-98084-131-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808		●
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0808	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-1011	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

304 418 304 303 345 345 279 228 39 41 41 39 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1005	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-		●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0907-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-1011	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-1011	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2>	8-97358-699-0	02	1	0809-0903	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-1011	●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-	●	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-1005	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0712-0808		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0712-0808	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEEL BASE 5100MM(51W) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (C) M10 FLANGE	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0801-0803	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804	●
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0712-0808	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0710-0906	●	●
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-	●	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98114-787-0	01	1	0809-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
