◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#33393) — 38 parça

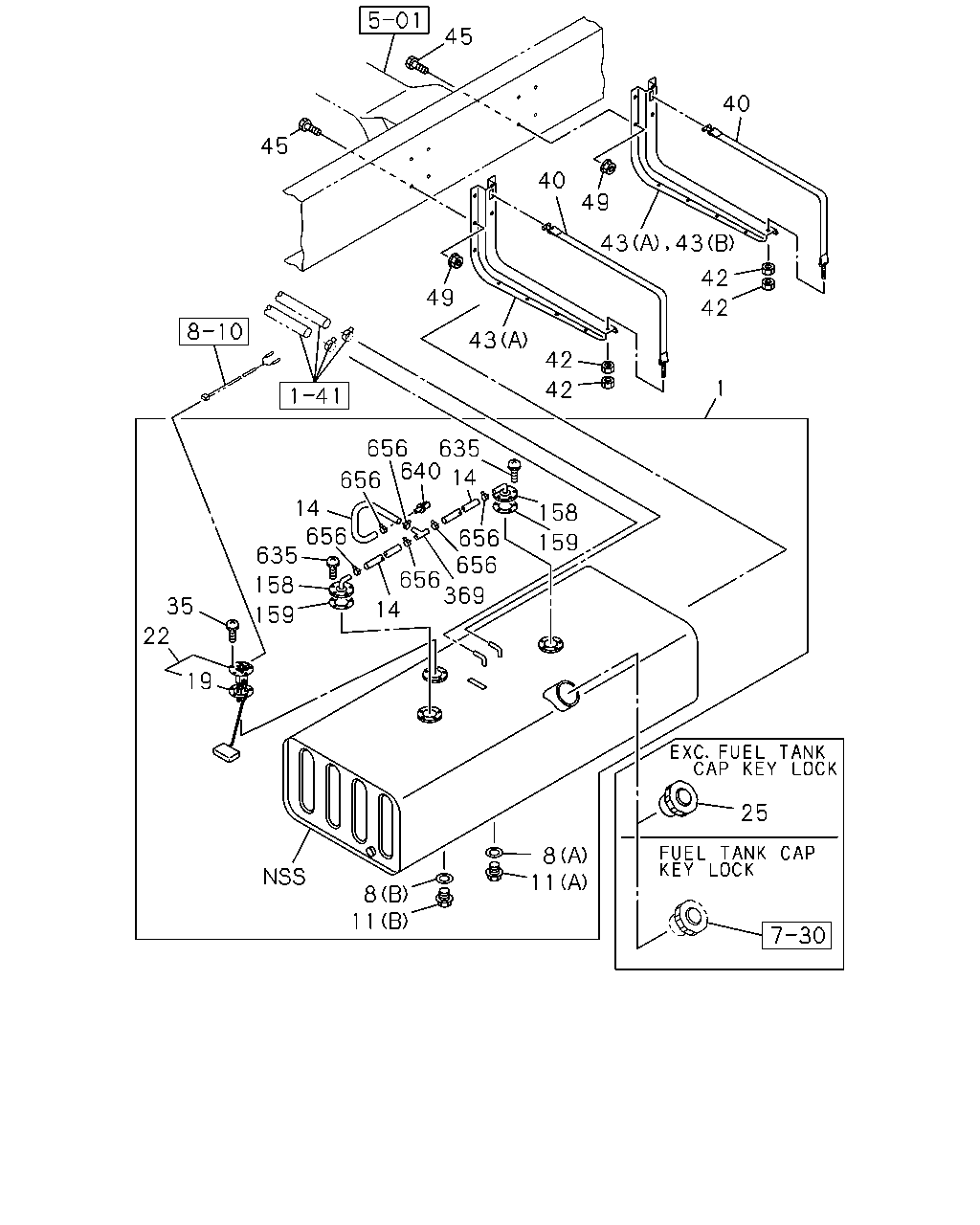

çizim 178569
45 40 40 49 43 43 42 42 49 43 42 42 25 158 159 8 11 11 8 369 656 656 14 635 19 22 35 159 158 14 656 635 656 14 656 640 656 45 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
1345X532X322 200L 		8-98042-714-0 01 1 0710-0710 ● ●
1 TANK; FUEL
1345X532X322 200L 		8-98099-832-0 01 1 0710-0809 ● ●
1 TANK; FUEL
1345X532X322 200L 		8-98122-992-3 01 1 0810- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710-0912 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1001- ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 0710- ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M14X14 		9-09862-156-0 01 1 0710-0912 ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1001-1504 ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18 		8-98068-006-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 0810-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=90 		8-98304-415-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
L=270 SERVICED BY L=3000 		0-01256-300-0 02 1 0710-0809 ● ●
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 0810-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=430 		8-98131-037-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000 		0-01256-300-0 01 1 0710-0809 ● ●
14 HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 0810-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=460 		8-98304-414-0 01 1 1505- ● ●
19 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0710-0710 ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710- ● ●
22 UNIT; FUEL TANK 8-98065-305-0 01 1 0710-0710 ● ●
22 UNIT; FUEL TANK 8-98099-320-0 01 1 0710- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 0712-0808 ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 0809- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ●
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 0710- ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 0710- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 0810- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 02 1 0710-0809 ● ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 0810- ● ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 0710- ● ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 0710- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 0710- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 0710- ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 0710- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 0710- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0810- ● ●
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
