2-01B — CLUTCH (#3339) — 59 parça

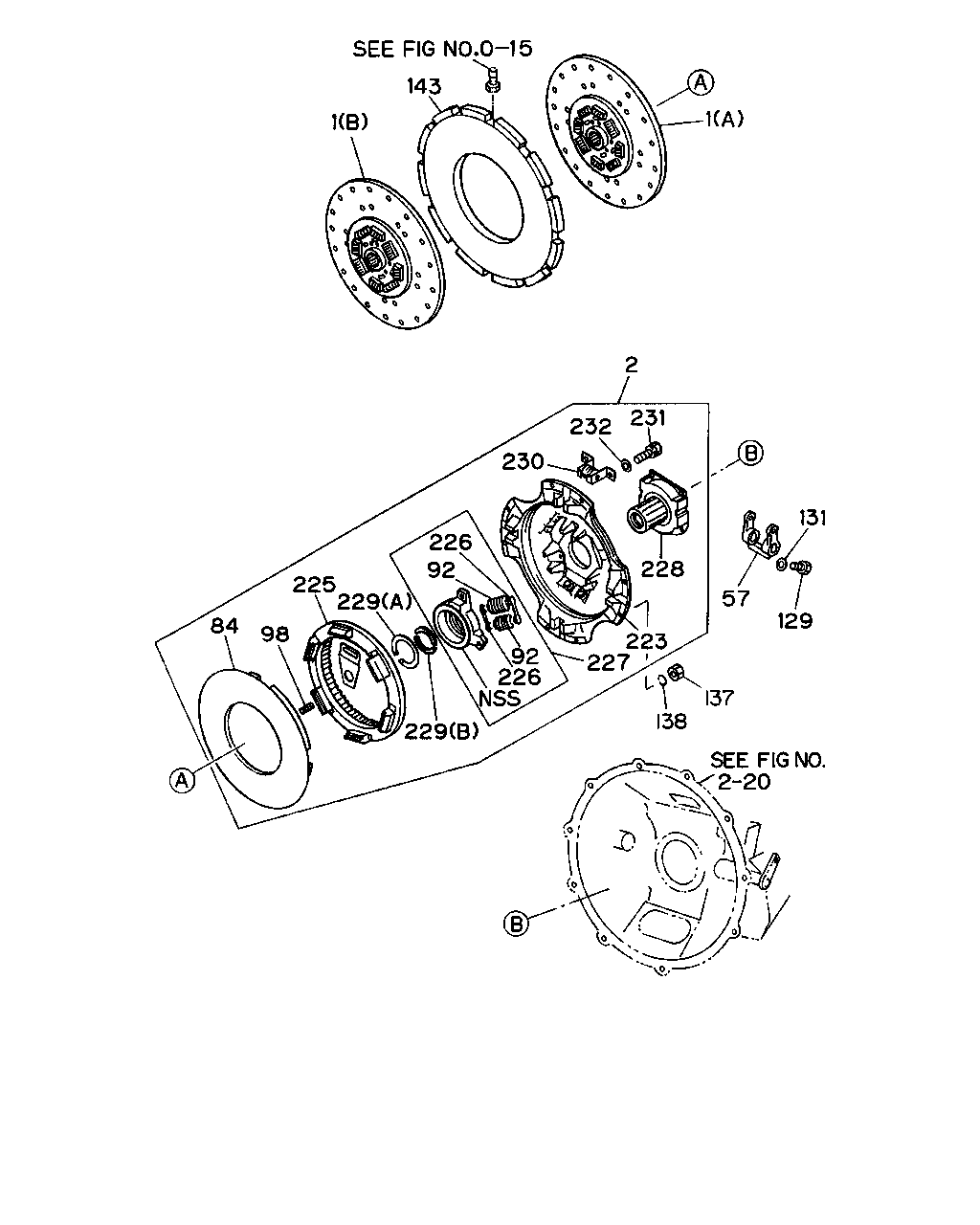

çizim 36083
1 143 1 2 131 129 57 137 138 231 232 230 228 223 227 226 92 92 226 229 229 225 98 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DISC; CLUTCH
(A) 14" 		1-31240-327-0 01 1 9002- ● ● ● ●
1 DISC; CLUTCH
(B) 14" 		1-31240-328-0 01 1 9002- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L) 		1-31220-141-2 01 1 9002- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
10PD1 STD ENG(40L) 		1-31220-142-1 01 1 9002- ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9002- ● ● ● ●
84 PLATE; PRESSURE 1-31221-088-0 01 1 9002- ● ● ● ●
92 SPRING; CLU
6RB1 STD ENG(07L) 		1-31214-044-0 06 1 9002- ● ● ● ●
92 SPRING; CLU
10PD1 STD ENG(40L) 		1-31214-043-0 06 1 9002- ● ●
98 SPRING; RETURN 1-31233-008-0 04 1 9201- ● ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9002- ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9002- ● ● ● ●
137 BOLT; CLU COVER
M16X28 		1-09087-026-0 08 1 9002- ● ● ● ●
138 WASHER; LK,CLU COVER
ID=9.8 		1-09500-020-0 08 1 9002- ● ● ● ●
143 PLATE; INTERMEDIATE 1-31221-025-0 01 1 9002- ● ● ● ●
223 COVER; CLU 1-31211-030-0 01 1 9002- ● ● ● ●
225 RING; ADJUSTING 1-31239-022-0 01 1 9002- ● ● ● ●
226 PIVOT 1-31239-023-0 06 1 9002- ● ● ● ●
227 RETAINER 1-31239-024-0 01 1 9002- ● ● ● ●
228 BEARING; RELEASE 1-31320-038-0 01 1 9002- ● ● ● ●
229 RING
(B) 		1-31239-026-0 02 1 9002- ● ● ● ●
229 RING
(A) 		1-31239-028-0 01 1 9002- ● ● ● ●
230 ADJUSTER 1-31239-029-0 01 1 9002- ● ● ● ●
231 BOLT; ADJUSTER 1-31239-030-0 02 1 9002- ● ● ● ●
232 WASHER; ADJUSTER 1-31239-031-0 02 1 9002- ● ● ● ●

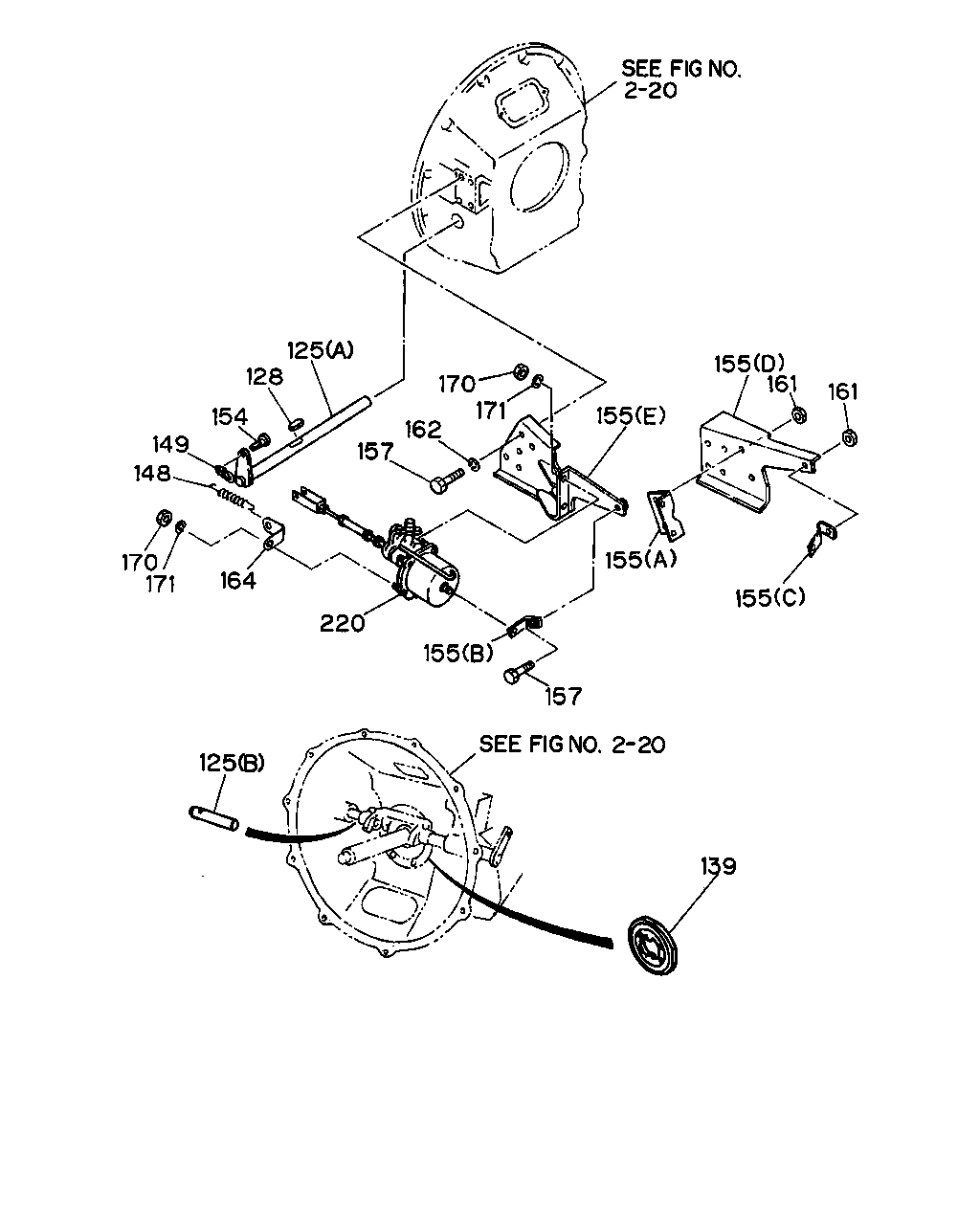

çizim 36116
155 161 161 155 155 155 170 171 162 157 125 128 154 149 148 170 171 164 220 155 157 125 139
BalonParca AdiParca NoAdetTipApplied Date A B C D
125 SHAFT; CLU
(B) L=146 		1-31342-085-0 01 1 9002-9412 ● ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9501- ● ● ● ●
125 SHAFT; CLU
(A) L=225 W/LEVER 		1-31342-246-0 01 1 9002-9006 ● ● ● ●
125 SHAFT; CLU
COUNTER SHAFT BRAKE<BAP> (A) L=225 W/LEVER 		1-31342-246-0 01 1 9007-9306 ● ● ● ●
125 SHAFT; CLU
(A) L=225 W/LEVER 		1-31342-246-0 01 1 9307-9412 ● ● ● ●
125 SHAFT; CLU
(A) L=225 		1-31342-285-0 01 1 9501- ● ● ● ●
125 SHAFT; CLU
CLUTCH BRAKE<BBG> (A) 		1-31342-134-0 01 1 9007-9306 ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9002- ● ● ● ●
139 BRAKE; CLU 1-31259-036-0 01 1 9007-9306 ● ● ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9002- ● ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9002- ● ● ● ●
154 PIN; JAW JOINT 1-31424-001-1 01 1 9002-9312 ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9401- ● ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-066-0 01 1 9002-9206 ● ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-344-0 01 1 9207- ● ● ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-116-0 01 1 9002-9206 ● ● ● ●
155 BRACKET; MINIPACK
(D) 		1-31429-300-0 01 1 9002-9006 ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (D) 		1-31429-300-0 01 1 9007-9206 ● ● ● ●
155 BRACKET; MINIPACK
(E) 		1-31429-343-0 01 1 9307- ● ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (D) 		1-31429-215-0 01 1 9007-9206 ● ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (E) 		1-31429-342-0 01 1 9207-9306 ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (E) 		1-31429-343-0 01 1 9207-9306 ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9002- ● ● ● ●
157 BOLT; BRKT
M10X18 		9-02051-018-0 03 1 9002-9002 ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X18 		0-20801-018-0 03 1 9002-9006 ● ● ● ●
157 BOLT; BRKT
COUNTER SHAFT BRAKE<BAP> M10X18 		0-20801-018-0 03 1 9007-9206 ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X18 		0-20801-018-0 01 1 9007-9206 ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X25 		0-20801-025-0 02 1 9007-9206 ● ● ● ●
161 NUT; BRKT
CLUTCH BRAKE<BBG> M10 		9-09110-510-0 02 1 9007-9206 ● ● ● ●
162 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 03 1 9002-9206 ● ● ● ●
164 EYE; SPRING 1-31426-016-1 01 1 9002- ● ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9002- ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9002- ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-224-0 01 1 9002-9006 ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-351-0 01 1 9007- ● ● ● ●
