Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#33388) — 326 parça

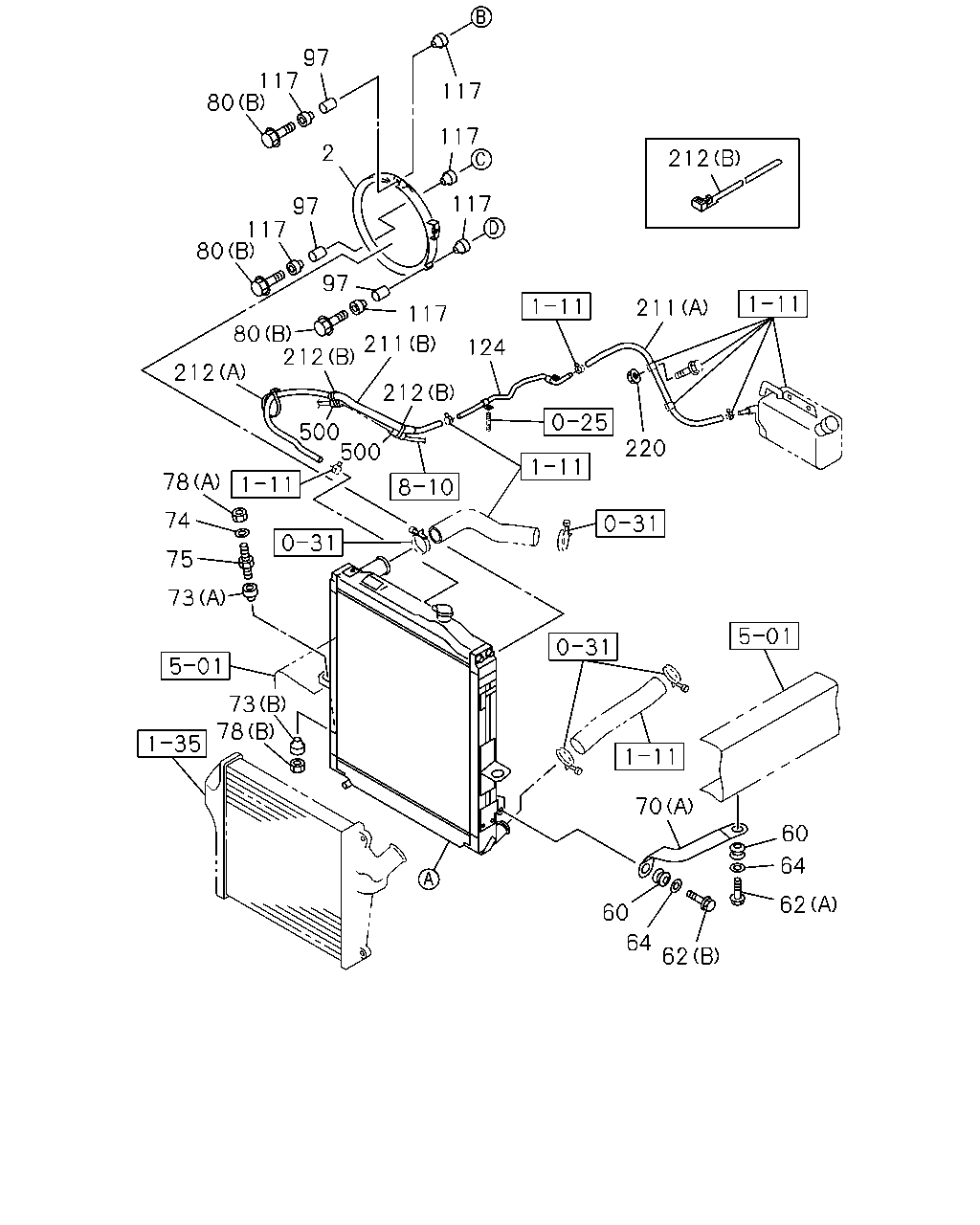

97 117 80 117 117 2 212 117 97 117 80 97 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GUIDE; FAN	8-97350-995-0	01	1	1102-	●
2	GUIDE; FAN	8-94393-779-1	01	1	0710-		●	●
60	GROMMET	1-09332-117-0	04	1	0710-		●	●
62	BOLT; STAY (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
62	BOLT; STAY (A) M8X30	1-09009-020-1	02	1	0710-		●	●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	0710-		●	●
64	WASHER; STAY TO RAD ID=10.5	0-91610-510-0	02	1	1012-	●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0710-		●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	1012-	●
70	STAY; RAD (C)	8-98018-941-0	01	1	1012-	●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-			●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-897-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-896-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-			●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0710-1011		●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	1012-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0710-1011		●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	1012-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0710-1011		●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	1012-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0710-1011		●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	1012-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0710-1011		●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1012-	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0710-1011		●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	1012-	●	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1012-	●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505		●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-1101		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1102-	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0710-		●	●
117	RUBBER; MTG,FAN GUIDE	1-09337-027-0	06	1	1102-	●
117	RUBBER; MTG,FAN GUIDE OD=32	8-94395-766-0	06	1	0710-		●	●
124	PIPE; WATER,TANK TO RAD	8-97611-022-1	01	1	0710-		●	●
211	HOSE; RAD TO PIPE (C)	8-98171-358-0	01	1	1012-	●
211	HOSE; RAD TO PIPE (A) L=560	8-98067-261-2	01	1	0710-0805		●	●
211	HOSE; RAD TO PIPE (A) L=560	8-98119-375-0	01	1	0806-		●	●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	0710-		●	●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0809-0906		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0809-0906			●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0907-1007		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0907-1007			●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	02	1	1008-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	02	1	1008-			●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0809-0906		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0809-0906			●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0907-1007		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0907-1007			●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	01	1	1008-		●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	01	1	1008-			●
212	CLIP; HOSE (A) L=250	5-09707-030-1	01	1	0710-0808		●	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) L=250	5-09707-030-1	01	1	0809-1007		●	●
212	CLIP; HOSE AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	01	1	1008-		●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	01	1	1008-			●
212	CLIP; HOSE (B) L=140	5-09707-031-1	02	1	0710-0808		●	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	02	1	0809-1007		●	●
212	CLIP; HOSE AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	02	1	1008-		●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	02	1	1008-			●
212	CLIP; HOSE A/T<X9D> (C) ID=63	1-09704-067-0	04	1	0710-0801			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-1011		●	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1012-	●	●	●
500	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	02	1	0710-0808		●	●
500	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40	1-09337-012-0	02	1	0809-1007		●	●
500	SLEEVE; RUBBER AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=17 OD=21 L=40	1-09337-012-0	02	1	1008-		●
500	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=17 OD=21 L=40	1-09337-012-0	02	1	1008-			●

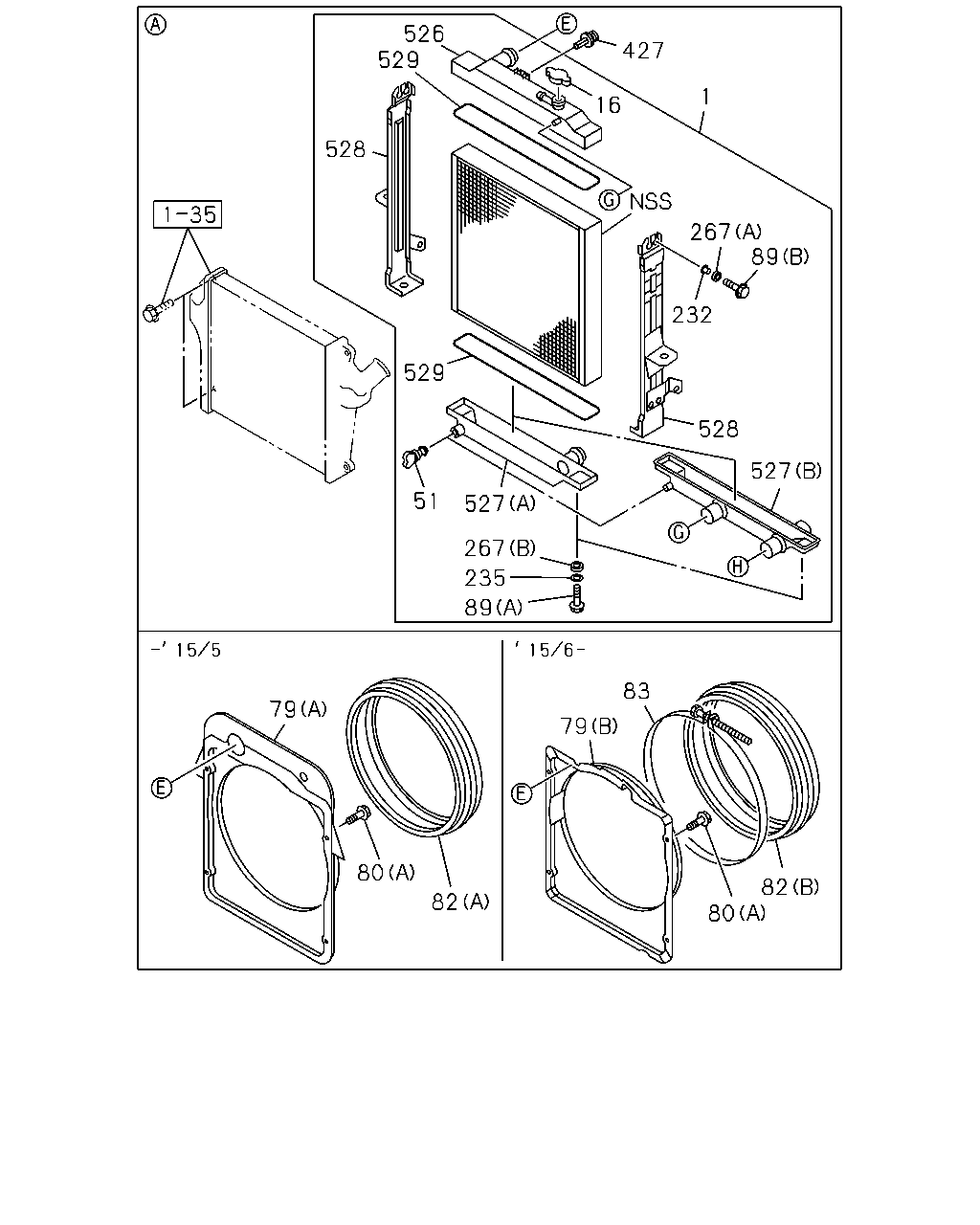

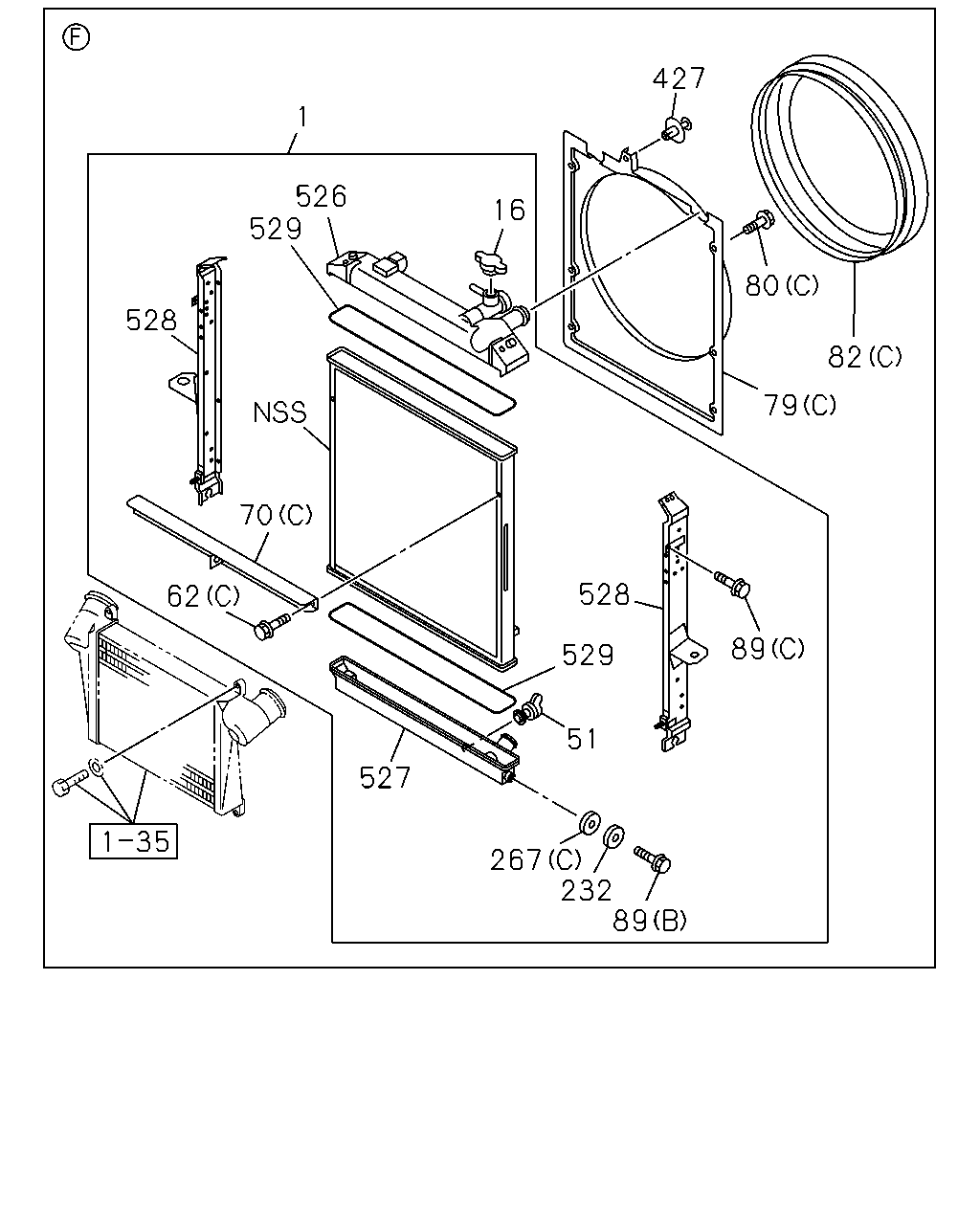

526 529 528 529 51 527 267 235 89 527 528 232 89 267 16 427 82 80 83 79 82 80 79 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-322-0	01	1	1012-	●
1	RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-320-0	01	1	1012-	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-040-1	01	1	0710-1505		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-726-0	01	1	1506-		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-027-1	01	1	0710-1505		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-725-0	01	1	1506-		●	●
1	RADIATOR ASM A/T<X9D>	8-98043-044-1	01	1	0710-1505			●
1	RADIATOR ASM A/T<X9D>	8-98299-727-0	01	1	1506-			●
16	CAP; RAD MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98096-226-0	01	1	0801-		●	●
16	CAP; RAD	8-97239-187-0	01	1	0710-0712		●	●
16	CAP; RAD A/T<X9D>	8-97239-187-0	01	1	0801-1011		●	●
16	CAP; RAD MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	0801-1011		●	●
16	CAP; RAD A/T<X9D>	8-97239-187-0	01	1	1012-		●	●
16	CAP; RAD MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	1012-		●	●
16	CAP; RAD	8-97239-187-0	01	1	1012-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0710-1011		●	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●
79	GUIDE; FAN,RAD (C)	8-98010-297-0	01	1	1012-	●
79	GUIDE; FAN,RAD (A)	8-98004-207-0	01	1	0710-1505		●	●
79	GUIDE; FAN,RAD (B)	8-98286-937-0	01	1	1506-		●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1012-	●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505		●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-1101		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1102-	●	●	●
82	COVER; FAN,RAD (C)	8-98006-478-0	01	1	1012-	●
82	COVER; FAN,RAD (A)	8-98004-211-0	01	1	0710-1505		●	●
82	COVER; FAN,RAD (B)	8-98293-253-0	01	1	1506-		●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	1506-		●	●
89	BOLT (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-	●
89	BOLT (A) M6X12 FLANGE	0-28050-612-0	02	1	0710-		●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	0710-		●	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1012-	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	0710-		●	●
235	WASHER; CUSHION RUBBER	1-21469-133-0	02	1	0710-		●	●
267	RUBBER; CUSHION (C)	1-21467-023-0	02	1	1012-	●
267	RUBBER; CUSHION (A)	1-21469-130-0	04	1	0710-		●	●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	0710-		●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0710-1011		●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1012-1505	●	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1506-	●
526	TANK; UPR,RADIATOR CORE	8-98010-271-2	01	1	1012-	●
526	TANK; UPR,RADIATOR CORE	8-98004-202-2	01	1	0710-		●
526	TANK; UPR,RADIATOR CORE MANUAL TRANSMISSION<X9C>	8-98004-202-2	01	1	0710-			●
526	TANK; UPR,RADIATOR CORE A/T<X9D>	8-98010-366-2	01	1	0710-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-279-0	01	1	1012-	●
527	TANK; LWR,RADIATOR CORE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-433-1	01	1	1012-	●
527	TANK; LWR,RADIATOR CORE MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-365-0	01	1	0710-		●	●
527	TANK; LWR,RADIATOR CORE MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98004-203-0	01	1	0710-		●	●
527	TANK; LWR,RADIATOR CORE A/T<X9D> (B)	8-98038-558-2	01	1	0710-			●
528	PLATE; SIDE,RADIATOR CORE	8-98010-290-1	01	1	1012-	●
528	PLATE; SIDE,RADIATOR CORE	8-98010-291-1	01	1	1012-	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-028-0	01	1	0710-0805		●	●
528	PLATE; SIDE,RADIATOR CORE	8-98035-117-3	01	1	0806-		●	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-029-1	01	1	0710-		●	●
529	GASKET; CORE,RADIATOR	8-98032-435-0	02	1	1012-	●
529	GASKET; CORE,RADIATOR	8-98004-206-0	02	1	0710-		●	●

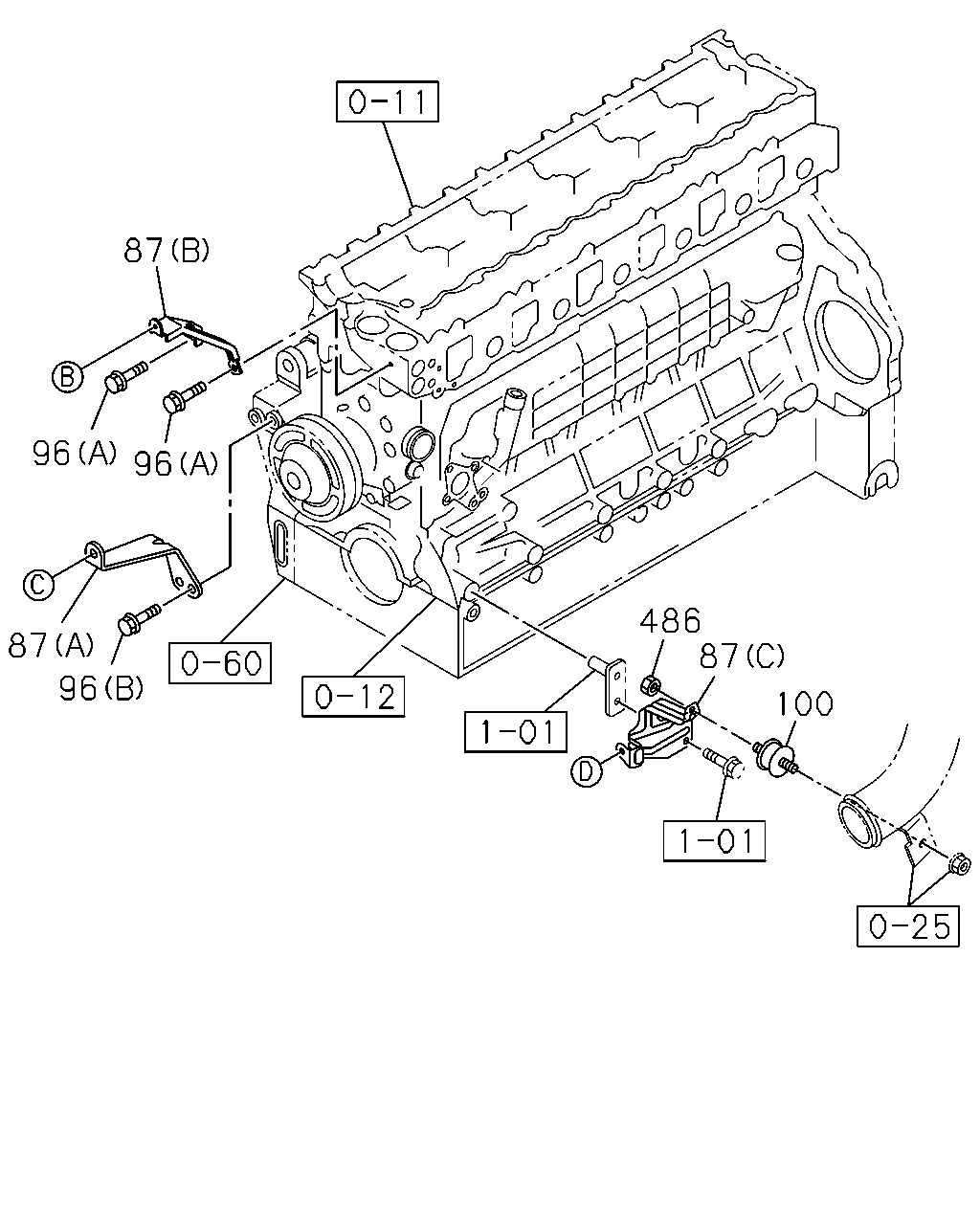

87 96 96 486 87 87 96 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	STAY; FAN GUIDE (B)	8-94393-776-1	01	1	0710-		●	●
87	STAY; FAN GUIDE (C)	8-94393-778-2	01	1	0710-		●	●
87	STAY; FAN GUIDE (A)	8-97602-988-0	01	1	0710-		●	●
96	BOLT; STAY FIX LEAF SUS(FCR***) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE	8-94399-669-1	02	1	1110-	●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	1102-	●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (D) M10X25 FLANGE	0-28751-025-0	02	1	1102-	●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-		●	●
96	BOLT; STAY FIX (A) M10X16 FLANGE	0-28151-016-0	02	1	0710-		●	●
100	RUBBER; MTG	8-94394-268-1	01	1	0710-0910		●	●
100	RUBBER; MTG	8-98148-109-0	01	1	0911-		●	●
486	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0710-		●	●

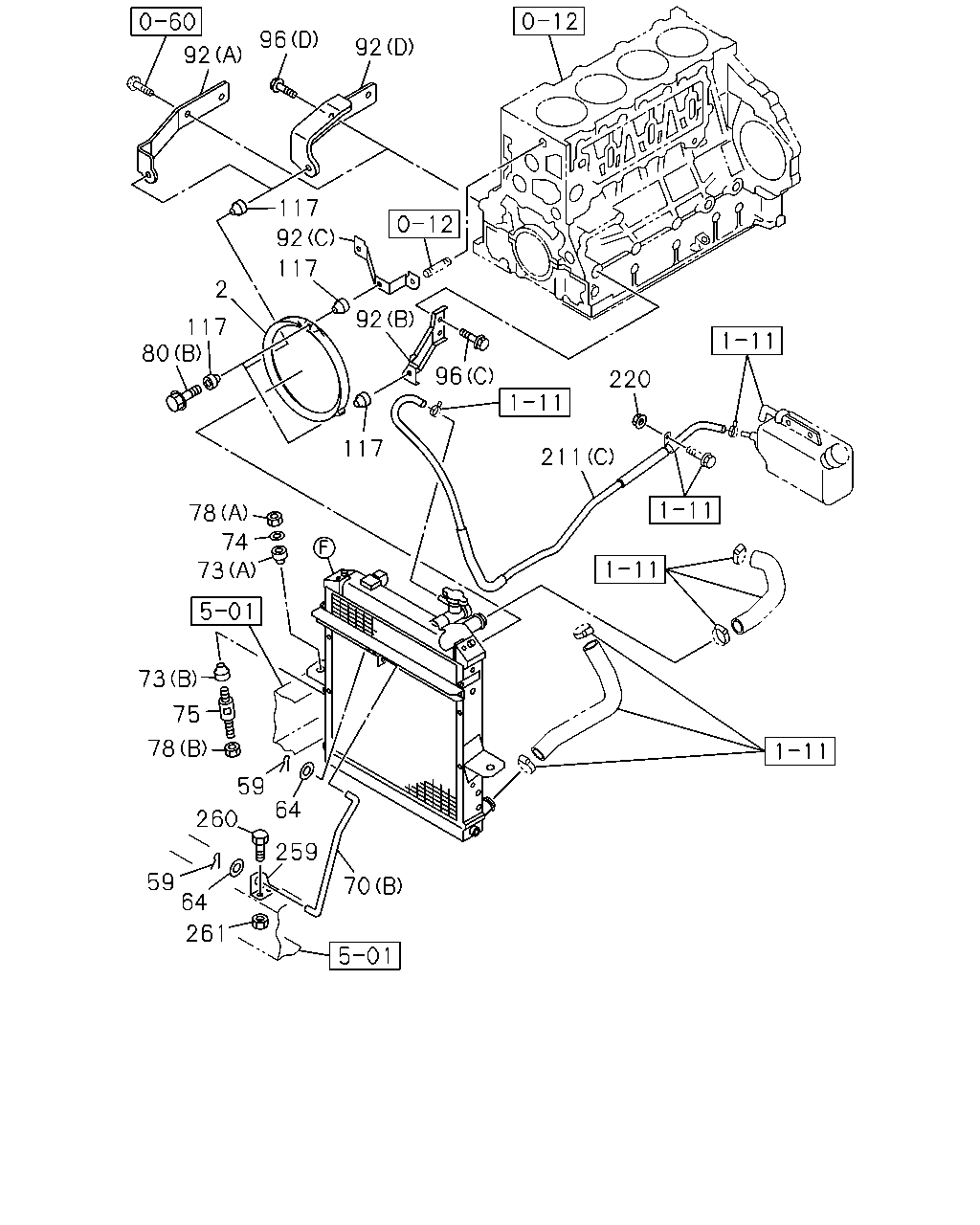

70 259 64 59 260 59 64 261 78 73 75 73 74 78 117 211 220 96 92 117 92 117 2 117 80 92 96 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GUIDE; FAN	8-97350-995-0	01	1	1102-	●
2	GUIDE; FAN	8-94393-779-1	01	1	0710-		●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●
64	WASHER; STAY TO RAD ID=10.5	0-91610-510-0	02	1	1012-	●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0710-		●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	1012-	●
70	STAY; RAD (C)	8-98018-941-0	01	1	1012-	●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-			●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-897-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-896-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-			●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0710-1011		●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	1012-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0710-1011		●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	1012-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	0710-1011		●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-2	02	1	1012-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0710-1011		●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	1012-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	0710-1011		●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	0-91180-210-0	02	1	1012-	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0710-1011		●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	1012-	●	●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1012-	●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505		●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-1101		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1102-	●	●	●
92	BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1102-	●
92	BRACKET; FAN GUIDE GENERATOR 24V90A(K44) (D)	8-98032-526-0	01	1	1102-	●
92	BRACKET; FAN GUIDE EXC. GENERATOR 24V90A(K44) (A)	8-97350-997-0	01	1	1102-	●
92	BRACKET; FAN GUIDE (C)	8-97382-827-2	01	1	1012-	●
96	BOLT; STAY FIX LEAF SUS(FCR***) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M10X75 FLANGE	8-94399-669-1	02	1	1110-	●
96	BOLT; STAY FIX (C) M10X20 FLANGE	0-28151-020-0	02	1	1102-	●
96	BOLT; STAY FIX GENERATOR 24V90A(K44) (D) M10X25 FLANGE	0-28751-025-0	02	1	1102-	●
96	BOLT; STAY FIX (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-		●	●
96	BOLT; STAY FIX (A) M10X16 FLANGE	0-28151-016-0	02	1	0710-		●	●
117	RUBBER; MTG,FAN GUIDE	1-09337-027-0	06	1	1102-	●
117	RUBBER; MTG,FAN GUIDE OD=32	8-94395-766-0	06	1	0710-		●	●
211	HOSE; RAD TO PIPE (C)	8-98171-358-0	01	1	1012-	●
211	HOSE; RAD TO PIPE (A) L=560	8-98067-261-2	01	1	0710-0805		●	●
211	HOSE; RAD TO PIPE (A) L=560	8-98119-375-0	01	1	0806-		●	●
211	HOSE; RAD TO PIPE (B) L=940	8-98073-544-0	01	1	0710-		●	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-1011		●	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1012-	●	●	●
259	BRACKET; RAD STAY	8-98063-603-0	01	1	1012-	●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1012-	●

82 80 79 89 528 529 51 267 232 89 527 62 70 528 529 1 427 16 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-322-0	01	1	1012-	●
1	RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-320-0	01	1	1012-	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-040-1	01	1	0710-1505		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-726-0	01	1	1506-		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98043-027-1	01	1	0710-1505		●	●
1	RADIATOR ASM MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98299-725-0	01	1	1506-		●	●
1	RADIATOR ASM A/T<X9D>	8-98043-044-1	01	1	0710-1505			●
1	RADIATOR ASM A/T<X9D>	8-98299-727-0	01	1	1506-			●
16	CAP; RAD MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98096-226-0	01	1	0801-		●	●
16	CAP; RAD	8-97239-187-0	01	1	0710-0712		●	●
16	CAP; RAD A/T<X9D>	8-97239-187-0	01	1	0801-1011		●	●
16	CAP; RAD MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	0801-1011		●	●
16	CAP; RAD A/T<X9D>	8-97239-187-0	01	1	1012-		●	●
16	CAP; RAD MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97239-187-0	01	1	1012-		●	●
16	CAP; RAD	8-97239-187-0	01	1	1012-	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0710-1011		●	●
51	PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●
62	BOLT; STAY (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
62	BOLT; STAY (A) M8X30	1-09009-020-1	02	1	0710-		●	●
62	BOLT; STAY (B) M8X26	1-09009-175-0	02	1	0710-		●	●
70	STAY; RAD (B)	8-98010-657-0	01	1	1012-	●
70	STAY; RAD (C)	8-98018-941-0	01	1	1012-	●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-898-0	01	1	1001-			●
70	STAY; RAD LEAF SUS(FCR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	0712-0912			●
70	STAY; RAD AIR SUS(FCD***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-		●
70	STAY; RAD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-899-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-897-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-897-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-897-0	01	1	1001-			●
70	STAY; RAD (A)	8-98078-896-0	01	1	0710-0711		●	●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0712-0906		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0712-0906			●
70	STAY; RAD AIR SUS(FCD***) (A)	8-98078-896-0	01	1	0907-0912		●	●
70	STAY; RAD LEAF SUS(FCR***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	0907-0912			●
70	STAY; RAD AIR SUS(FCD***) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-		●
70	STAY; RAD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98078-896-0	01	1	1001-			●
79	GUIDE; FAN,RAD (C)	8-98010-297-0	01	1	1012-	●
79	GUIDE; FAN,RAD (A)	8-98004-207-0	01	1	0710-1505		●	●
79	GUIDE; FAN,RAD (B)	8-98286-937-0	01	1	1506-		●	●
80	BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1012-	●
80	BOLT; FAN GUIDE (A) M8X14	8-98046-222-0	04	1	0710-1505		●	●
80	BOLT; FAN GUIDE (A) M8X12 FLANGE	0-28050-812-0	04	1	1506-		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-1101		●	●
80	BOLT; FAN GUIDE (B) M8X30 FLANGE	0-28650-830-0	03	1	1102-	●	●	●
82	COVER; FAN,RAD (C)	8-98006-478-0	01	1	1012-	●
82	COVER; FAN,RAD (A)	8-98004-211-0	01	1	0710-1505		●	●
82	COVER; FAN,RAD (B)	8-98293-253-0	01	1	1506-		●	●
89	BOLT (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-	●
89	BOLT (A) M6X12 FLANGE	0-28050-612-0	02	1	0710-		●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	04	1	0710-		●	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1012-	●
232	COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	04	1	0710-		●	●
267	RUBBER; CUSHION (C)	1-21467-023-0	02	1	1012-	●
267	RUBBER; CUSHION (A)	1-21469-130-0	04	1	0710-		●	●
267	RUBBER; CUSHION (B)	1-21469-131-0	02	1	0710-		●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	0710-1011		●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1012-1505	●	●	●
427	CLIP; FAN GUIDE	1-09470-009-0	01	1	1506-	●
526	TANK; UPR,RADIATOR CORE	8-98010-271-2	01	1	1012-	●
526	TANK; UPR,RADIATOR CORE	8-98004-202-2	01	1	0710-		●
526	TANK; UPR,RADIATOR CORE MANUAL TRANSMISSION<X9C>	8-98004-202-2	01	1	0710-			●
526	TANK; UPR,RADIATOR CORE A/T<X9D>	8-98010-366-2	01	1	0710-			●
527	TANK; LWR,RADIATOR CORE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-279-0	01	1	1012-	●
527	TANK; LWR,RADIATOR CORE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-433-1	01	1	1012-	●
527	TANK; LWR,RADIATOR CORE MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-365-0	01	1	0710-		●	●
527	TANK; LWR,RADIATOR CORE MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98004-203-0	01	1	0710-		●	●
527	TANK; LWR,RADIATOR CORE A/T<X9D> (B)	8-98038-558-2	01	1	0710-			●
528	PLATE; SIDE,RADIATOR CORE	8-98010-290-1	01	1	1012-	●
528	PLATE; SIDE,RADIATOR CORE	8-98010-291-1	01	1	1012-	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-028-0	01	1	0710-0805		●	●
528	PLATE; SIDE,RADIATOR CORE	8-98035-117-3	01	1	0806-		●	●
528	PLATE; SIDE,RADIATOR CORE	8-98043-029-1	01	1	0710-		●	●
529	GASKET; CORE,RADIATOR	8-98032-435-0	02	1	1012-	●
529	GASKET; CORE,RADIATOR	8-98004-206-0	02	1	0710-		●	●

168 167 169 168 167 212 150 212 167 148 167 212 144 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
144	HOSE; RUBBER,PIPE A/T<X9D>	8-98010-583-2	01	1	0710-0801		●
148	HOSE; WATER,BYPASS,SUB RAD A/T<X9D>	8-98079-560-1	01	1	0710-0802		●
148	HOSE; WATER,BYPASS,SUB RAD A/T<X9D>	8-98116-257-0	01	1	0803-		●
150	HOSE; OIL COOLER A/T<X9D>	8-98010-582-2	01	1	0710-0801		●
167	CLIP; BYPASS HOSE A/T<X9D> (A) ID=13 H=75 L=25	1-09700-601-0	01	1	0710-		●
167	CLIP; BYPASS HOSE A/T<X9D> (B) ID=12 L=70	1-09700-097-1	01	1	0710-		●
167	CLIP; BYPASS HOSE A/T<X9D> (C) ID=11.5	8-97375-638-0	02	1	0710-		●
168	BOLT; CLIP,BYPASS HOSE A/T<X9D> M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
169	NUT; CLIP,BYPASS HOSE A/T<X9D> M8 FLANGE	0-91180-108-0	01	1	0710-		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0809-0906	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0809-0906		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0907-1007	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	02	1	0907-1007		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	02	1	1008-	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	02	1	1008-		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0809-0906	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0809-0906		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0907-1007	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	0907-1007		●
212	CLIP; HOSE AIR SUS(FCD***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	01	1	1008-	●
212	CLIP; HOSE EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	01	1	1008-		●
212	CLIP; HOSE (A) L=250	5-09707-030-1	01	1	0710-0808	●	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) L=250	5-09707-030-1	01	1	0809-1007	●	●
212	CLIP; HOSE AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	01	1	1008-	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	01	1	1008-		●
212	CLIP; HOSE (B) L=140	5-09707-031-1	02	1	0710-0808	●	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	02	1	0809-1007	●	●
212	CLIP; HOSE AIR SUS(FCD***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	02	1	1008-	●
212	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140	5-09707-031-1	02	1	1008-		●
212	CLIP; HOSE A/T<X9D> (C) ID=63	1-09704-067-0	04	1	0710-0801		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
