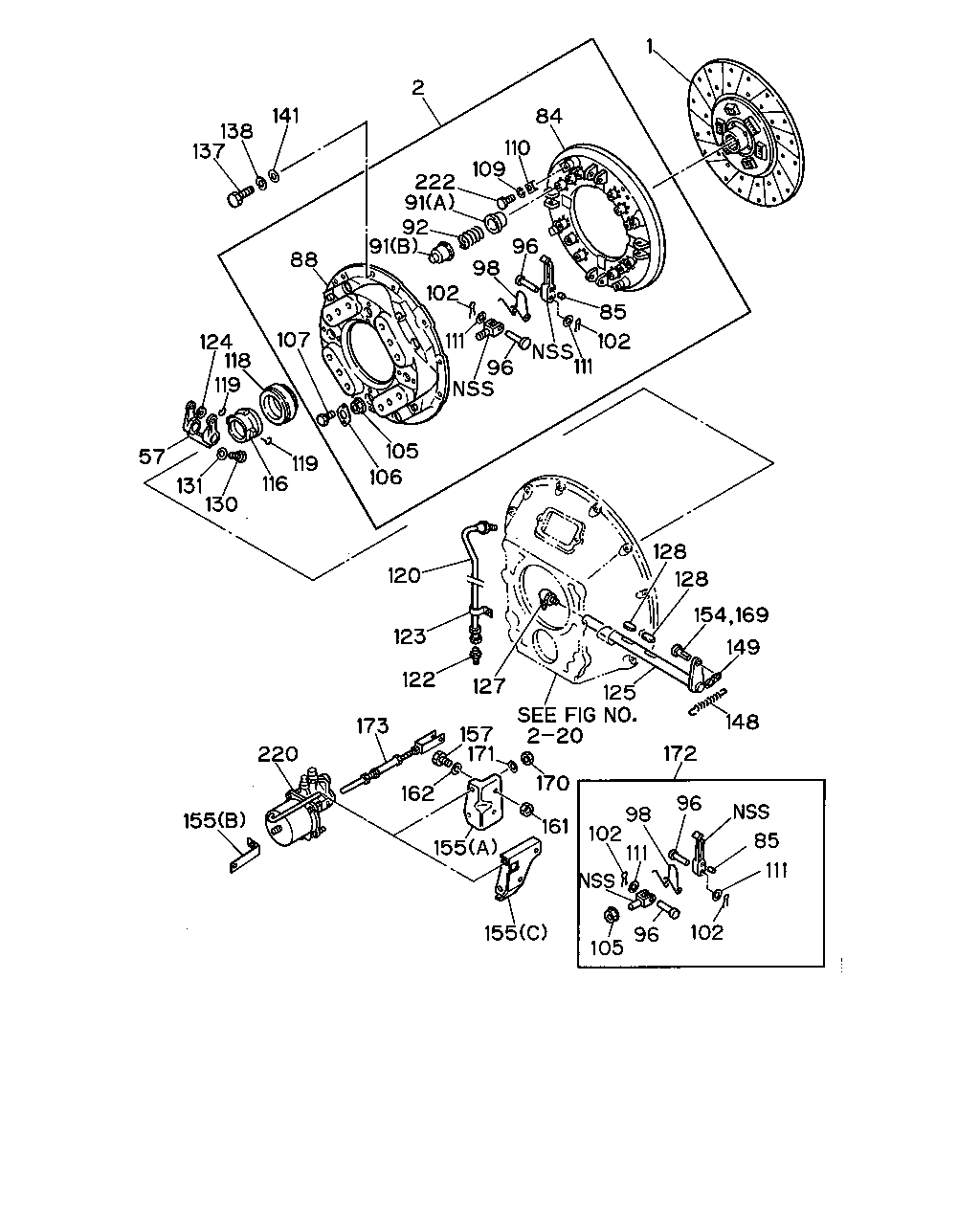

2-01A — CLUTCH (#3338) — 131 parça

1 84 110 109 222 91 92 91 2 88 107 96 98 102 111 85 102 111 96 105 106 141 138 137 124 118 119 119 116 130 131 57 120 123 122 127 125 128 128 154 169 149 148 172 85 111 102 96 105 111 102 98 96 170 161 155 155 162 171 157 173 220 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DISC; CLUTCH 16 INCH CLUTCH(RF2) 16"	1-31240-417-0	01	1	9002-9306	●	●
1	DISC; CLUTCH 17 INCH CLUTCH(RF3) 17"	1-31240-542-0	01	1	9002-9011	●	●	●	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3) 17"	1-31240-395-0	01	1	9012-	●	●	●	●	●	●	●
1	DISC; CLUTCH 16 INCH CLUTCH(RF2) 16"	1-31240-417-0	01	1	9307-	●
1	DISC; CLUTCH 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3) 17"	1-31240-627-1	01	1	9307-9507			●
1	DISC; CLUTCH 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3) 17"	1-31240-624-0	01	1	9508-9602			●
1	DISC; CLUTCH 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3) 17"	1-31240-753-1	01	1	9603-			●
2	PLATE ASM; PRESSURE,CLU 16 INCH CLUTCH(RF2)	1-31220-213-1	01	1	9002-9306	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L) 17 INCH CLUTCH(RF3)	1-31220-234-1	01	1	9002-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 16 INCH CLUTCH(RF2)	1-31220-213-1	01	1	9307-	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-31220-227-1	01	1	9002-			●		●	●	●
2	PLATE ASM; PRESSURE,CLU 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31220-265-2	01	1	9307-			●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●	●	●	●	●
84	PLATE; PRESSURE 16 INCH CLUTCH(RF2)	1-31221-069-0	01	1	9002-9306	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-31221-041-0	01	1	9002-	●	●	●	●	●	●	●
84	PLATE; PRESSURE 16 INCH CLUTCH(RF2)	1-31221-069-0	01	1	9307-	●
84	PLATE; PRESSURE 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31221-083-1	01	1	9307-			●
85	BUSHING; RELEASE LEVER 16 INCH CLUTCH(RF2)	9-31239-116-0	08	1	9002-9306	●	●
85	BUSHING; RELEASE LEVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-31239-003-0	08	1	9002-	●	●	●	●	●	●	●
85	BUSHING; RELEASE LEVER 16 INCH CLUTCH(RF2)	9-31239-116-0	08	1	9307-	●
85	BUSHING; RELEASE LEVER 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31239-021-0	08	1	9307-			●
88	COVER SUB ASM; CLU 16 INCH CLUTCH(RF2)	1-31210-009-0	01	1	9002-9306	●	●
88	COVER SUB ASM; CLU 17 INCH CLUTCH(RF3)	1-31210-008-0	01	1	9307-	●	●	●	●	●	●	●
88	COVER SUB ASM; CLU 16 INCH CLUTCH(RF2)	1-31210-009-0	01	1	9307-	●
91	SEAT; SPR 17 INCH CLUTCH(RF3) (A)	1-31219-032-0	04	1	9002-	●	●	●	●	●	●	●
91	SEAT; SPR 17 INCH CLUTCH(RF3) (B)	1-31219-033-0	04	1	9002-	●	●	●	●	●	●	●
92	SPRING; CLU 16 INCH CLUTCH(RF2)	1-31214-001-0	16	1	9002-9306	●	●
92	SPRING; CLU 6RB1 STD ENG(07L) 17 INCH CLUTCH(RF3)	1-09580-273-0	12	1	9002-	●	●	●	●	●
92	SPRING; CLU 16 INCH CLUTCH(RF2)	1-31214-001-0	16	1	9307-	●
92	SPRING; CLU 10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-31214-026-0	12	1	9002-			●		●	●	●
92	SPRING; CLU 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31214-040-0	12	1	9307-			●
96	PIN; RELEASE LEVER 16 INCH CLUTCH(RF2) 10X77	1-31232-001-0	04	1	9002-9306	●	●
96	PIN; RELEASE LEVER 16 INCH CLUTCH(RF2) D10X57	9-31232-019-0	04	1	9002-9306	●	●
96	PIN; RELEASE LEVER 16 INCH CLUTCH(RF2) D10X57	9-31232-019-0	04	1	9307-	●
96	PIN; RELEASE LEVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3) L=77	1-31232-010-0	08	1	9002-	●	●	●	●	●	●	●
96	PIN; RELEASE LEVER 16 INCH CLUTCH(RF2) 10X77	1-31232-001-0	04	1	9307-	●
96	PIN; RELEASE LEVER 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31232-013-0	08	1	9307-9503			●
96	PIN; RELEASE LEVER 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31232-017-0	08	1	9504-			●
98	SPRING; RETURN	1-31233-001-0	04	1	9002-9306	●	●	●	●	●	●
98	SPRING; RETURN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-31233-001-0	04	1	9307-	●	●	●	●	●	●	●
98	SPRING; RETURN 16 INCH CLUTCH(RF2)	1-31233-001-0	04	1	9307-	●
98	SPRING; RETURN 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31233-007-0	04	1	9307-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9002-	●	●	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9002-9503	●	●	●	●	●	●	●
105	NUT; SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	9-31235-061-0	04	1	9504-	●	●	●	●	●	●	●
105	NUT; SUPPORT 16 INCH CLUTCH(RF2)	9-31235-061-0	04	1	9504-	●
105	NUT; SUPPORT 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-31235-009-0	04	1	9504-			●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	9002-9007	●	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9008-	●	●	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-010-0	08	1	9002-9007	●	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-	●	●	●	●	●	●	●
109	WASHER; LK,STRAP 16 INCH CLUTCH(RF2) ID=10.2	9-09150-610-0	04	1	9002-9306	●	●
109	WASHER; LK,STRAP 17 INCH CLUTCH(RF3) ID=12.2	9-09150-512-0	04	1	9002-	●	●	●	●	●	●	●
109	WASHER; LK,STRAP 16 INCH CLUTCH(RF2) ID=10.2	9-09150-610-0	04	1	9307-	●
110	WASHER; SPECIAL,STRAP 16 INCH CLUTCH(RF2)	9-09854-125-0	04	1	9002-9306	●	●
110	WASHER; SPECIAL,STRAP 17 INCH CLUTCH(RF3) ID=12	1-31229-006-0	04	1	9002-	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 16 INCH CLUTCH(RF2)	9-09854-125-0	04	1	9307-	●
111	WASHER; PL,STRAP 16 INCH CLUTCH(RF2)	9-31239-039-0	08	1	9002-9306	●	●
111	WASHER; PL,STRAP 17 INCH CLUTCH(RF3)	9-09651-098-0	08	1	9002-	●	●	●	●	●	●	●
111	WASHER; PL,STRAP 16 INCH CLUTCH(RF2)	9-31239-039-0	08	1	9307-	●
116	BLOCK; SHIFT,CLU 16 INCH CLUTCH(RF2)	1-31321-068-0	01	1	9002-9003	●	●
116	BLOCK; SHIFT,CLU 16 INCH CLUTCH(RF2)	1-31321-074-2	01	1	9004-9006	●	●
116	BLOCK; SHIFT,CLU 16 INCH CLUTCH(RF2)	1-31321-076-0	01	1	9007-	●	●
116	BLOCK; SHIFT,CLU 17 INCH CLUTCH(RF3)	1-31321-067-0	01	1	9002-9003	●	●	●	●	●	●
116	BLOCK; SHIFT,CLU 17 INCH CLUTCH(RF3)	1-31321-073-2	01	1	9004-	●	●	●	●	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9002-	●	●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-	●	●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-	●	●	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	9002-	●	●	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	9002-	●	●	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-	●	●	●	●	●	●	●
125	SHAFT; CLU 16 INCH CLUTCH(RF2)	1-31342-244-0	01	1	9002-	●	●
125	SHAFT; CLU 17 INCH CLUTCH(RF3) L=477	1-31342-240-1	01	1	9002-	●	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9002-	●	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●	●	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X28	9-02351-228-0	08	1	9002-9005	●	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X28	0-23801-228-0	08	1	9006-9306	●	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X38	9-02351-238-0	04	1	9002-9005	●	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X38	0-23801-238-0	04	1	9006-9306	●	●
137	BOLT; CLU COVER 17 INCH CLUTCH(RF3) M10X25	9-02351-025-0	12	1	9002-9002	●	●	●	●	●	●
137	BOLT; CLU COVER 17 INCH CLUTCH(RF3) M10X25	0-23801-025-0	12	1	9003-9504	●	●	●	●	●	●	●
137	BOLT; CLU COVER 17 INCH CLUTCH(RF3) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●	●	●	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X28	0-23801-228-0	08	1	9307-	●
137	BOLT; CLU COVER 16 INCH CLUTCH(RF2) M12X38	0-23801-238-0	04	1	9307-	●
138	WASHER; LK,CLU COVER 16 INCH CLUTCH(RF2) ID=12.2	9-09150-612-0	12	1	9002-9306	●	●
138	WASHER; LK,CLU COVER 17 INCH CLUTCH(RF3) ID=10.2	9-09150-510-0	12	1	9002-9504	●	●	●	●	●	●	●
138	WASHER; LK,CLU COVER 16 INCH CLUTCH(RF2) ID=12.2	9-09150-612-0	12	1	9307-	●
138	WASHER; LK,CLU COVER 16 INCH CLUTCH(RF2) ID=12.5 OD=26	9-09164-612-0	04	1	9307-	●
141	WASHER; PL,CLU COVER 16 INCH CLUTCH(RF2) ID=12.5 OD=26	9-09164-612-0	04	1	9002-9306	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102	●	●	●	●	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9103-	●	●				●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-			●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9002-9312	●	●				●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-	●	●				●	●
155	BRACKET; MINIPACK 17 INCH CLUTCH(RF3) (B)	1-31429-291-2	01	1	9002-9205	●	●				●
155	BRACKET; MINIPACK 17 INCH CLUTCH(RF3) (B)	1-31429-345-0	01	1	9206-	●	●				●	●
155	BRACKET; MINIPACK 17 INCH CLUTCH(RF3) (A)	1-31429-290-0	01	1	9002-	●	●				●	●
155	BRACKET; MINIPACK 16 INCH CLUTCH(RF2) (A)	1-31429-298-0	01	1	9002-	●
155	BRACKET; MINIPACK 16 INCH CLUTCH(RF2) (B)	1-31429-299-0	01	1	9002-	●
155	BRACKET; MINIPACK (B)	1-31429-289-1	01	1	9002-			●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31429-288-0	01	1	9002-			●	●	●
155	BRACKET; MINIPACK 12PD1 C ENG(43L) (C)	1-31429-301-0	01	1	9307-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●	●	●	●	●
157	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	03	1	9002-9002	●	●		●	●
157	BOLT; BRKT CXM(CXM***) M10X20 W/LK WASHER	9-01931-020-0	03	1	9002-9002			●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9002-9205	●	●	●	●	●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205			●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-			●	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205			●	●			●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9312			●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-			●	●	●
170	NUT; BOOSTER FIX M10	9-09110-410-0	03	1	9002-9205	●	●				●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9206-	●	●				●	●
171	WASHER; LK,BOOSTER FIX ID=10.2	9-09150-510-0	03	1	9002-9205	●	●				●
172	LEVER KIT; RELEASE,CLU 16 INCH CLUTCH(RF2)	1-87830-502-0	01	1	9002-9306	●	●
172	LEVER KIT; RELEASE,CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3)	1-87830-526-1	01	1	9002-	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 16 INCH CLUTCH(RF2)	1-87830-502-0	01	1	9307-	●
172	LEVER KIT; RELEASE,CLU 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-87830-650-1	01	1	9307-			●
173	ROD; PUSH,MINIPACK FIRE ENGINE PACKAGE<WS2>	1-31824-113-0	01	1	9002-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-344-0	01	1	9002-	●	●		●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31800-344-0	01	1	9002-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 12PD1 C ENG(43L)	1-31800-327-1	01	1	9307-			●
222	BOLT; STRAP 16 INCH CLUTCH(RF2) M10X30	9-09809-126-0	04	1	9002-9306	●	●
222	BOLT; STRAP 17 INCH CLUTCH(RF3) M12X30	1-09040-016-0	04	1	9002-9503	●	●	●	●	●	●	●
222	BOLT; STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17 INCH CLUTCH(RF3) M12X30	1-09040-016-0	04	1	9504-	●	●	●	●	●	●	●
222	BOLT; STRAP 16 INCH CLUTCH(RF2) M10X30	9-09809-126-0	04	1	9307-	●
222	BOLT; STRAP 12PD1 C ENG(43L) 17 INCH CLUTCH(RF3)	1-09040-102-0	04	1	9504-			●
