Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#33377) — 237 parça

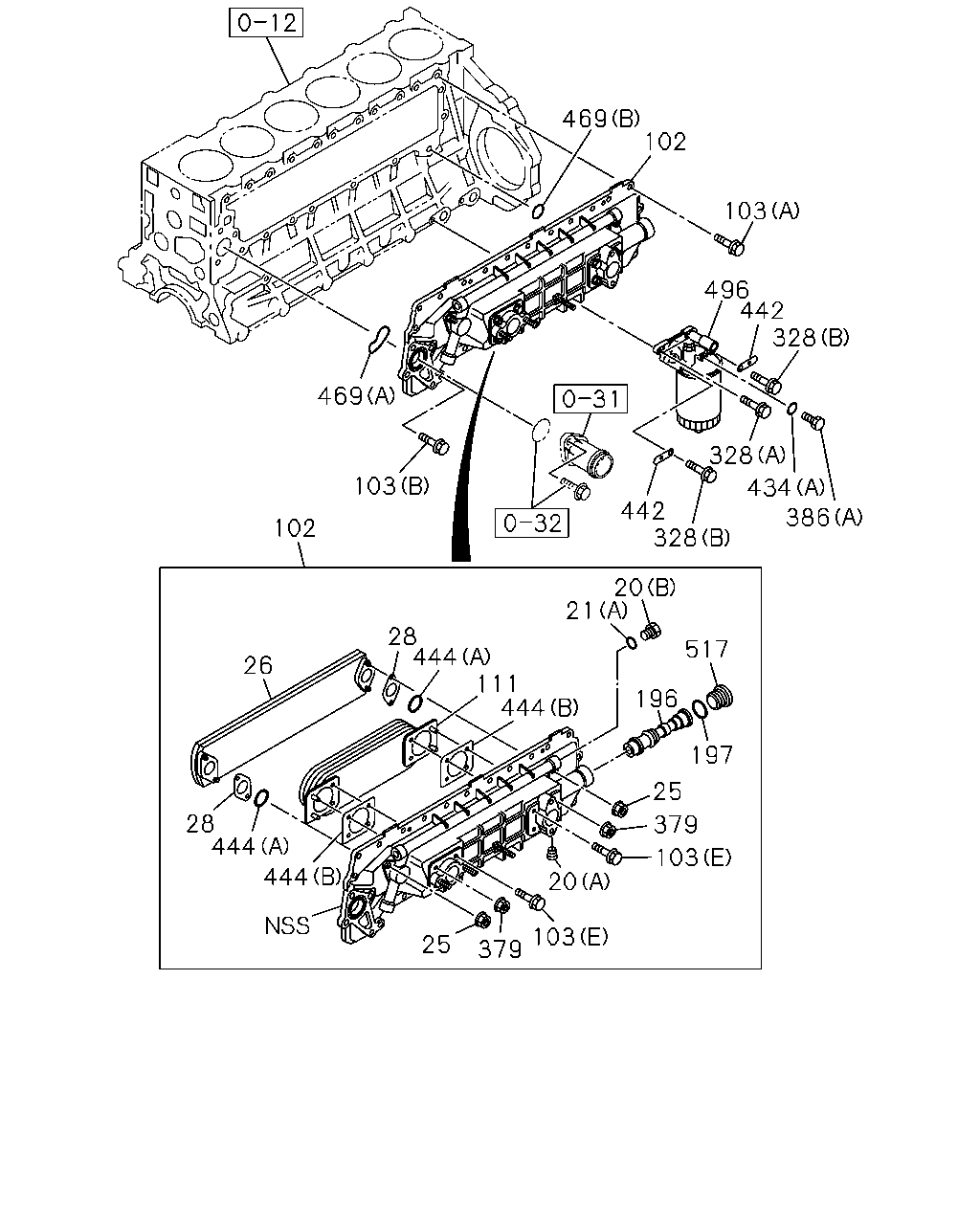

469 103 469 103 102 496 442 328 386 434 328 328 442 102 518 517 20 21 197 196 444 28 26 20 21 25 25 110 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0710-0808	●	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0809-		●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0710-0808	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0809-		●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0710-0808	●	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0809-		●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0710-	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0710-0808	●	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0809-		●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0710-0808	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0809-1004		●
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-			●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0710-0808	●	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0809-0809		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809	●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0809-1307		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307	●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (D) M8X20 FLANGE	0-28050-820-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0710-0808	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (C) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0710-0808	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-	●
110	BODY; CASE,OIL COOLER EURO2 SPECIFICATION<NT2>	8-97600-158-0	01	1	0809-0906	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0710-	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0710-0808	●	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0809-		●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0710-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0710-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0710-1011	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1309-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-			●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0809-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0710-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0710-	●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509			●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0710-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0710-0808	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0809-		●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0809-	●

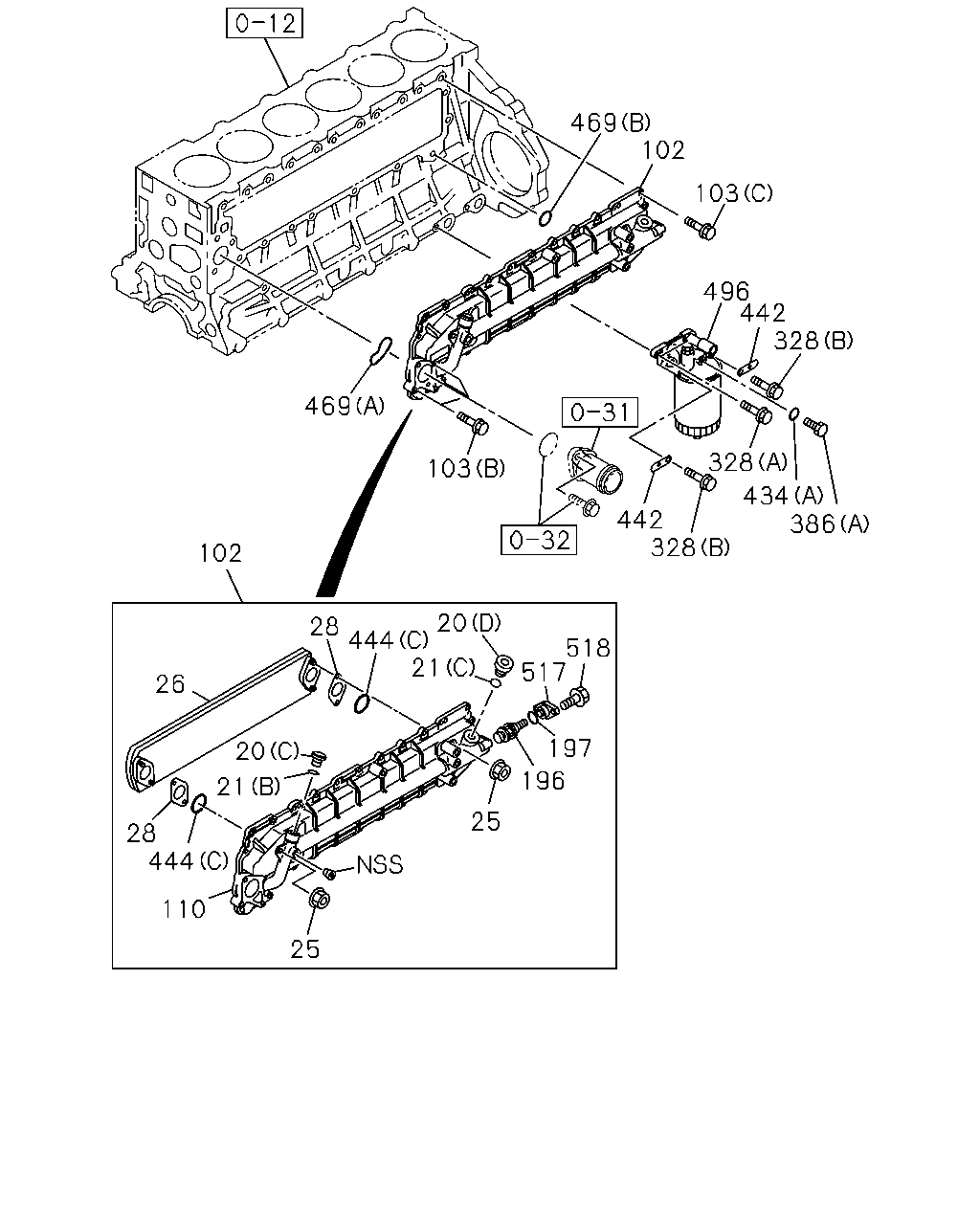

469 103 496 442 326 328 442 328 386 103 469 102 102 434 20 21 517 196 197 25 379 103 20 103 379 25 444 111 444 28 26 28 444 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0710-0808	●	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0809-		●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0710-0808	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0809-		●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0710-0808	●	●
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0809-		●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0710-	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0710-0808	●	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0809-		●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0710-0808	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0809-1004		●
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-			●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0710-0808	●	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0809-0809		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809	●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0809-1307		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307	●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (D) M8X20 FLANGE	0-28050-820-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0710-0808	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (C) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0710-0808	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-	●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1309-		●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1012-			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0710-	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0710-0808	●	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0809-		●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0710-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0710-	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1309-		●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1012-			●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0710-1011	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1309-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-			●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0809-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0710-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0710-	●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509			●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0710-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0710-0808	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0809-		●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-	●

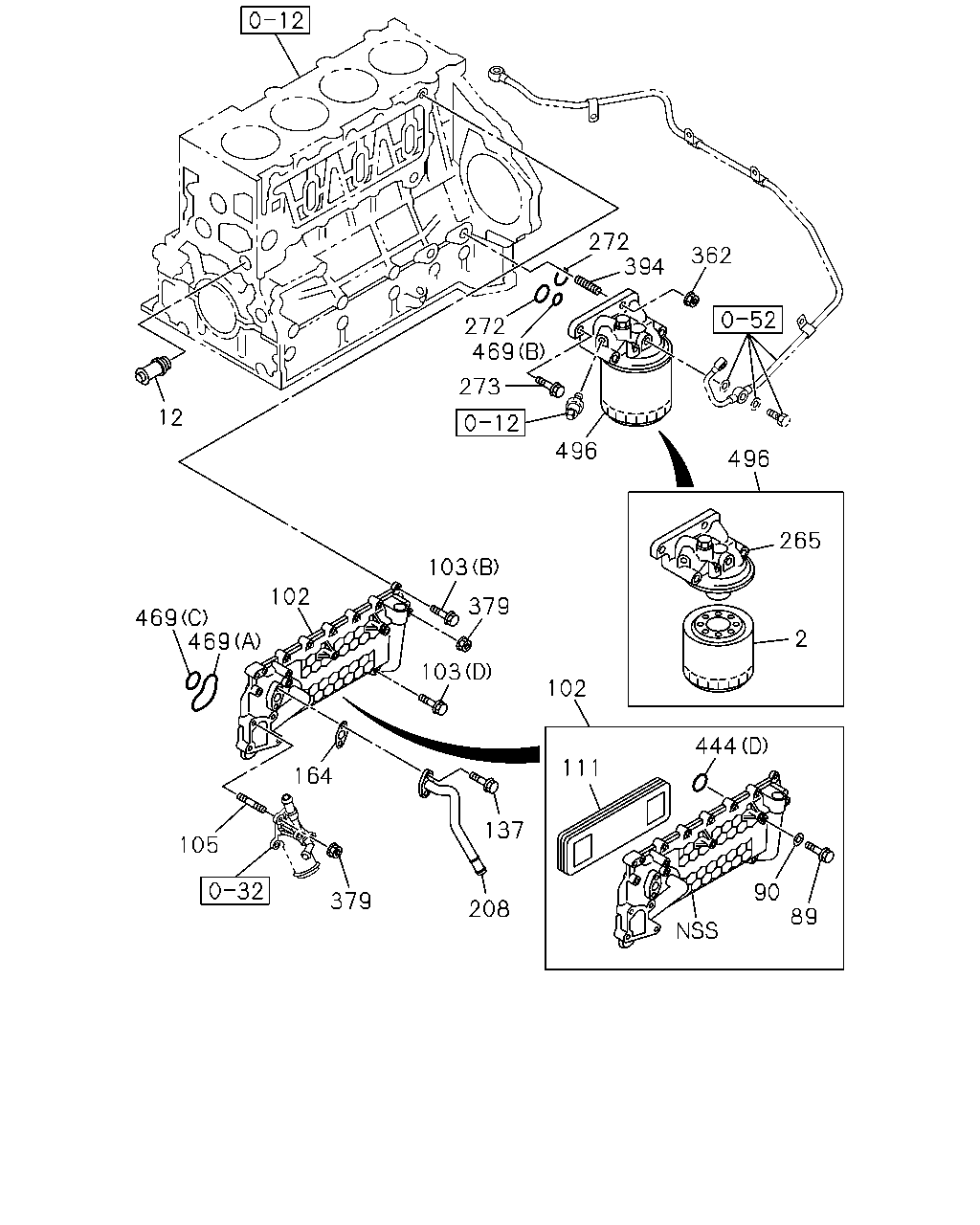

496 386 66 434 13 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0710-	●	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509			●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509			●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0710-1307	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0710-1307	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0710-1307	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0710-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0710-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0710-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-	●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509			●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0710-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●

12 469 469 105 102 164 379 103 379 103 137 208 272 469 273 496 102 111 272 394 362 496 265 2 444 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0710-	●	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509			●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509			●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1012-			●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1012-			●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1012-			●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-			●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0710-0808	●	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0809-0809		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809	●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0809-1307		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307	●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (E) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (D) M8X20 FLANGE	0-28050-820-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0710-0808	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (C) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0710-0808	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-		●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1012-			●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1309-		●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1012-			●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1012-			●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1012-			●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1012-			●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0710-1307	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1012-			●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1012-			●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1012-			●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1309-		●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1012-			●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1012-			●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1309-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-			●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0809-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0710-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0710-	●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509			●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0710-1307	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
