Isuzu WW
▶
TRUCKS
▶
FSR
▶
11103 - FSR-R EU2/4EXC.SPACE
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#33376) — 69 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCC ENG
C - 4HK1-TCS ENG
◀
[042A] 6HK1;EURO4 (28 parça)
[042A] 6HK1;EURO2 (28 parça)
[042A] 4HK1 (13 parça)
▶

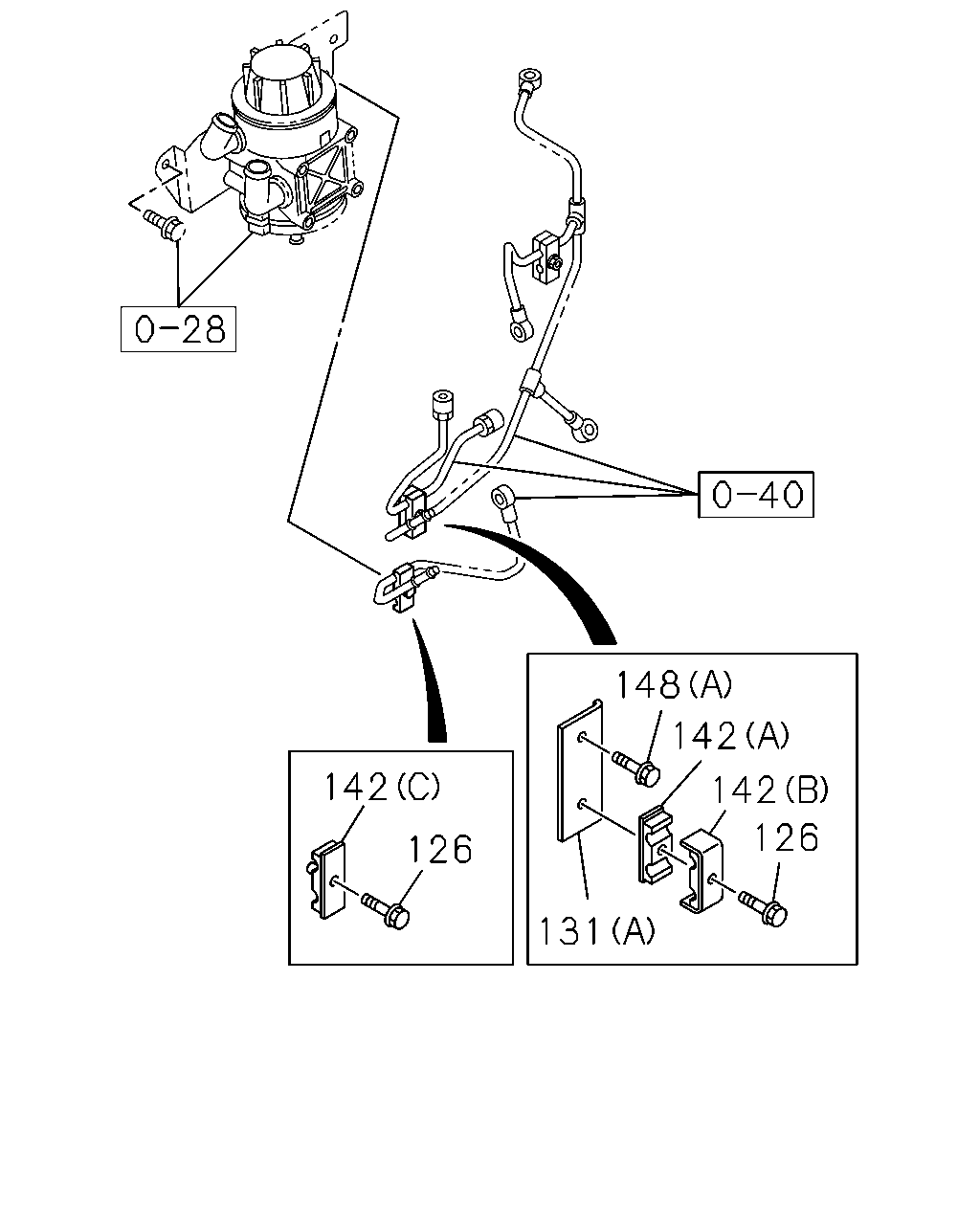

148
142
142
142
126
126
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
126
BOLT; CLIP,FUEL PIPE
EURO2 SPECIFICATION<NT2> M6X35 FLANGE
0-28650-635-0
01
1
0907-
●
126
BOLT; CLIP,FUEL PIPE
M10X25 FLANGE
0-28151-025-0
01
1
0710-0808
●
●
126
BOLT; CLIP,FUEL PIPE
M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
03
1
0710-0808
●
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
03
1
0809-0809
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M6X35 FLANGE
0-28650-635-0
03
1
0809-0809
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
02
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M6X35 FLANGE
0-28650-635-0
02
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
EURO2 SPECIFICATION<NT2> (B)
8-98059-806-0
01
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-391-1
01
1
0710-0808
●
●
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-391-1
01
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
EURO4 SPECIFICATION<NT4> (A)
1-15419-391-1
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25
1-09701-180-0
01
1
0809-
●
142
CLIP; FUEL PIPE
(C) L=48
5-09709-103-0
01
1
0710-0808
●
●
142
CLIP; FUEL PIPE
(C) L=48
5-09709-103-0
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO4 SPECIFICATION<NT4> (C) L=48
5-09709-103-0
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (E) ID=9 & 9 L=25
8-94393-280-3
01
1
0809-
●
142
CLIP; FUEL PIPE
(B) ID=7 & 9 L=25
8-98000-010-2
01
1
0710-0908
●
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25
8-98000-010-2
01
1
0909-
●
142
CLIP; FUEL PIPE
(A) ID=7 & 9 L=25
8-98000-011-2
01
1
0710-0908
●
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25
8-98000-011-2
01
1
0909-
●
148
BOLT; BRKT
(D) M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE
0-28151-016-0
01
1
0809-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0710-0808
●
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●
148
BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●
142
142
126
142
142
126
131
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
126
BOLT; CLIP,FUEL PIPE
EURO2 SPECIFICATION<NT2> M6X35 FLANGE
0-28650-635-0
01
1
0907-
●
126
BOLT; CLIP,FUEL PIPE
M10X25 FLANGE
0-28151-025-0
01
1
0710-0808
●
●
126
BOLT; CLIP,FUEL PIPE
M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
03
1
0710-0808
●
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
03
1
0809-0809
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M6X35 FLANGE
0-28650-635-0
03
1
0809-0809
●
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
02
1
0809-
●
126
BOLT; CLIP,FUEL PIPE
EURO4 SPECIFICATION<NT4> M6X35 FLANGE
0-28650-635-0
02
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
EURO2 SPECIFICATION<NT2> (B)
8-98059-806-0
01
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-391-1
01
1
0710-0808
●
●
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-391-1
01
1
0809-
●
131
BRACKET; FUEL PIPE CLIP
EURO4 SPECIFICATION<NT4> (A)
1-15419-391-1
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25
1-09701-180-0
01
1
0809-
●
142
CLIP; FUEL PIPE
(C) L=48
5-09709-103-0
01
1
0710-0808
●
●
142
CLIP; FUEL PIPE
(C) L=48
5-09709-103-0
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO4 SPECIFICATION<NT4> (C) L=48
5-09709-103-0
01
1
0809-
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (E) ID=9 & 9 L=25
8-94393-280-3
01
1
0809-
●
142
CLIP; FUEL PIPE
(B) ID=7 & 9 L=25
8-98000-010-2
01
1
0710-0908
●
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25
8-98000-010-2
01
1
0909-
●
142
CLIP; FUEL PIPE
(A) ID=7 & 9 L=25
8-98000-011-2
01
1
0710-0908
●
●
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25
8-98000-011-2
01
1
0909-
●
148
BOLT; BRKT
(D) M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE
0-28151-016-0
01
1
0809-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0710-0808
●
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●
148
BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●

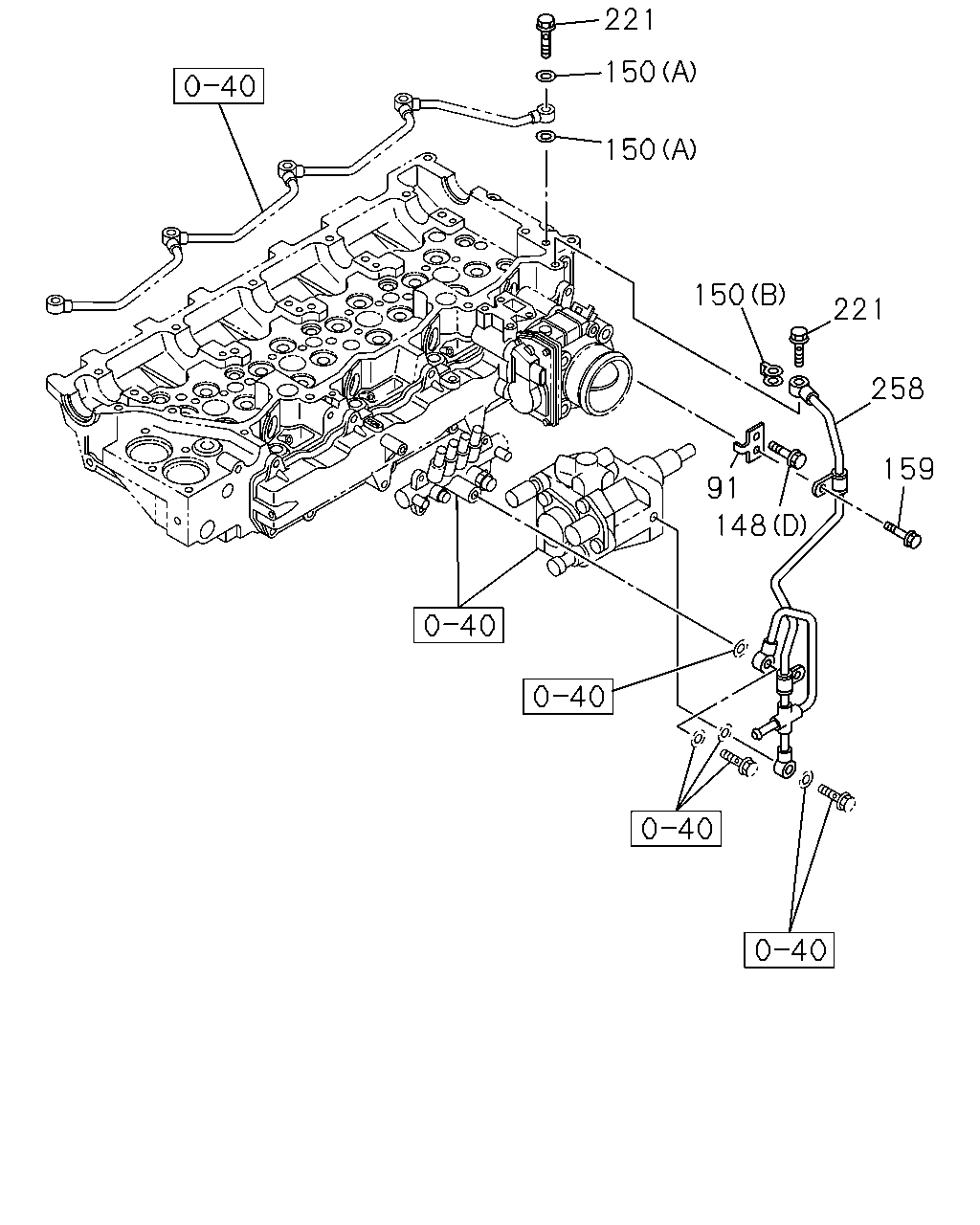

221
150
150
150
221
258
159
91
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
91
BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
1012-
●
148
BOLT; BRKT
(D) M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE
0-28151-016-0
01
1
0809-
●
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X25 FLANGE
0-28151-025-0
01
1
0809-
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0710-0808
●
●
148
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●
148
BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE
0-28050-812-0
01
1
0809-
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1012-
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1012-
●
159
BOLT; CLIP
M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
159
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
221
BOLT; FUEL PIPE
M10X21 FLANGE
8-94396-711-0
02
1
1012-
●
258
PIPE ASM; FUEL,LEAK OFF
8-98055-815-1
01
1
1012-
●
