◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#33375) — 391 parça

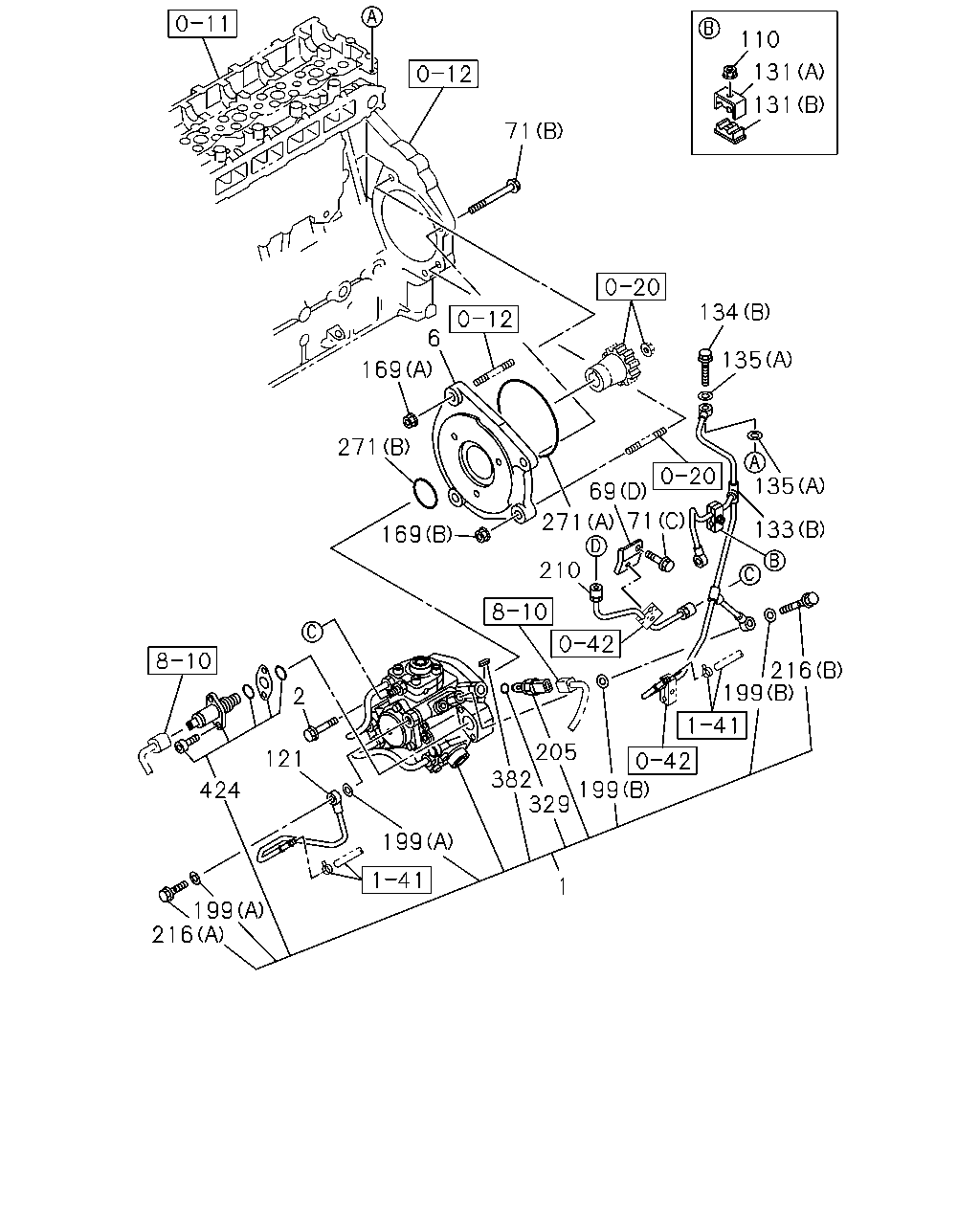

çizim 178537
110 131 131 71 6 169 271 169 2 121 424 199 216 199 382 329 199 205 199 216 210 271 69 71 135 134 135 133 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 0710- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0710- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0809- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0710- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
71 BOLT; BRKT
(F) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
71 BOLT; BRKT
(G) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0710- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-502-0 01 1 0710-0808 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 0809- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 0710- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 0710- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 0809- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0710- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0710-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0710-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0710-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0710- ● ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1012- ● ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 04 1 1012- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0710-1011 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1012- ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 0809- ●
210 PIPE; INJ,C/R 8-97608-480-0 01 1 0710-0808 ● ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0809- ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-97608-480-1 01 1 0809- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0710- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0710- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710-1011 ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1201 ● ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1201 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0710-0910 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911-1201 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0710-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906- ● ●

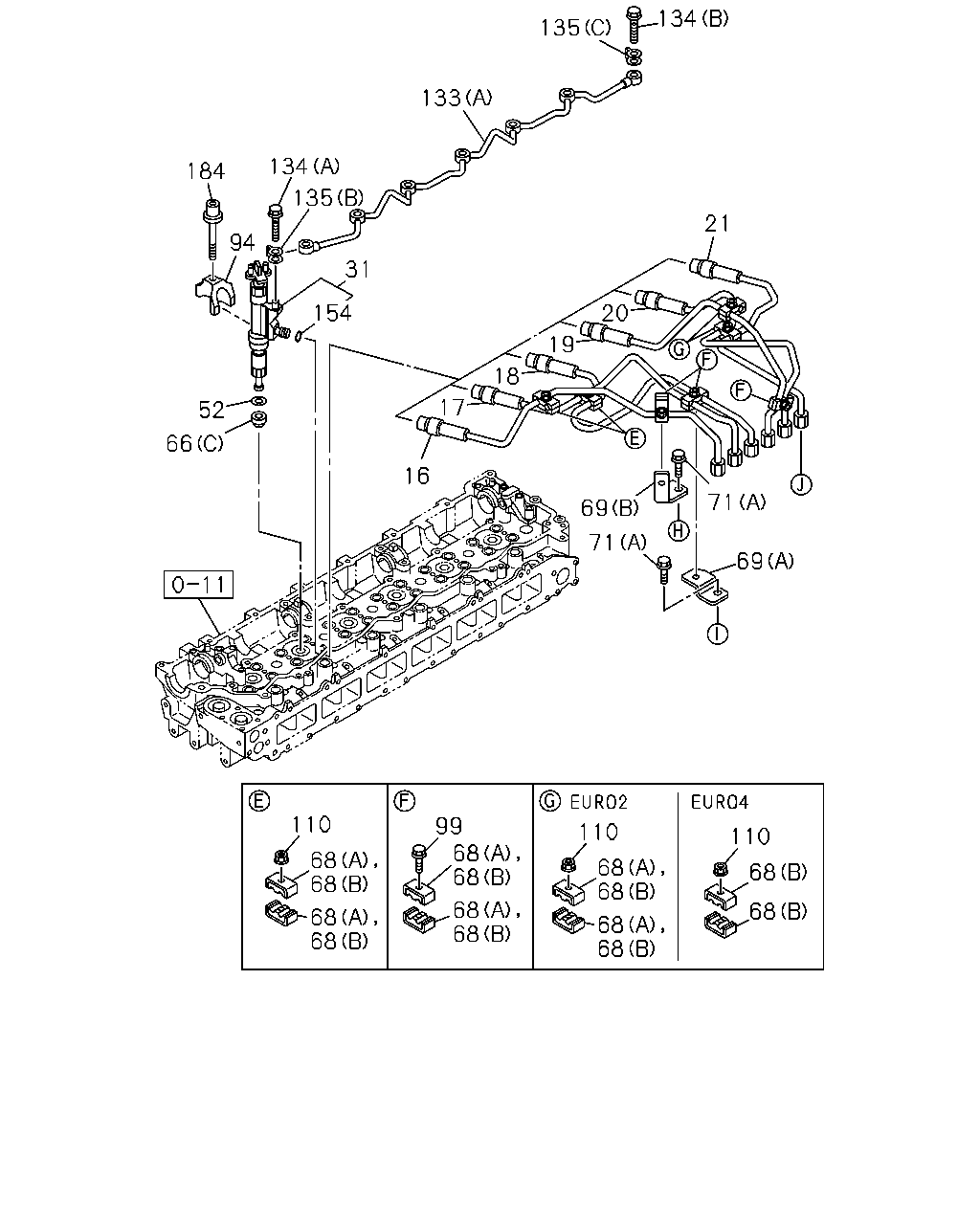

çizim 178539
135 134 133 134 184 94 31 154 52 66 16 17 18 19 20 21 71 71 69 69 135 110 68 68 110 68 68 68 68 68 68 68 68 99 110 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0710-1102 ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0710-1102 ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0710-1102 ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0710-1102 ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0710-1102 ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502- ● ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0710-1102 ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 0809- ●
31 NOZZLE ASM; INJ 8-97609-788-3 06 1 0710-0808 ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0809- ●
31 NOZZLE ASM; INJ
EURO4 SPECIFICATION<NT4> 		8-97609-788-6 06 1 0809- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0710- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-97601-447-2 06 1 0710-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
68 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 01 1 1012- ●
68 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 01 1 1012- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 10 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 0910-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 14 1 0710-0909 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19 		8-98039-293-0 14 1 0910-1405 ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0809- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0710- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
71 BOLT; BRKT
(F) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
71 BOLT; BRKT
(G) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0710- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0710- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0710- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 0809- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0710- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0710-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0710-1301 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0710-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 1012-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1011 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 1012-1106 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107- ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0710- ● ●

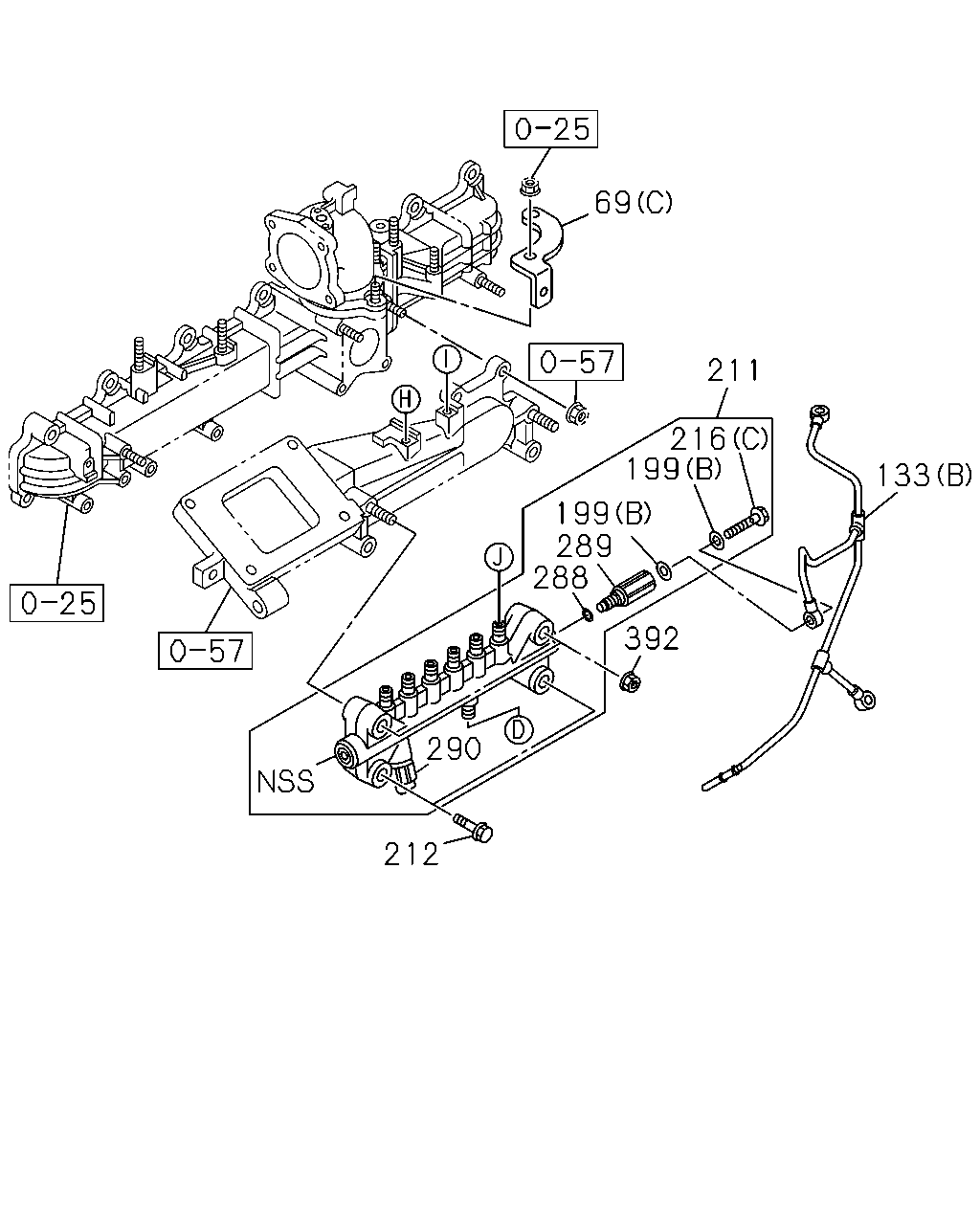

çizim 178540
69 211 133 216 199 199 392 289 288 290 212
BalonParca AdiParca NoAdetTipApplied Date A B C
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0809- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0710- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0710- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-0808 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0809- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 0809- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1012- ● ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 04 1 1012- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0710- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0710- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710-1011 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0710-1011 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-0808 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809-1011 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●

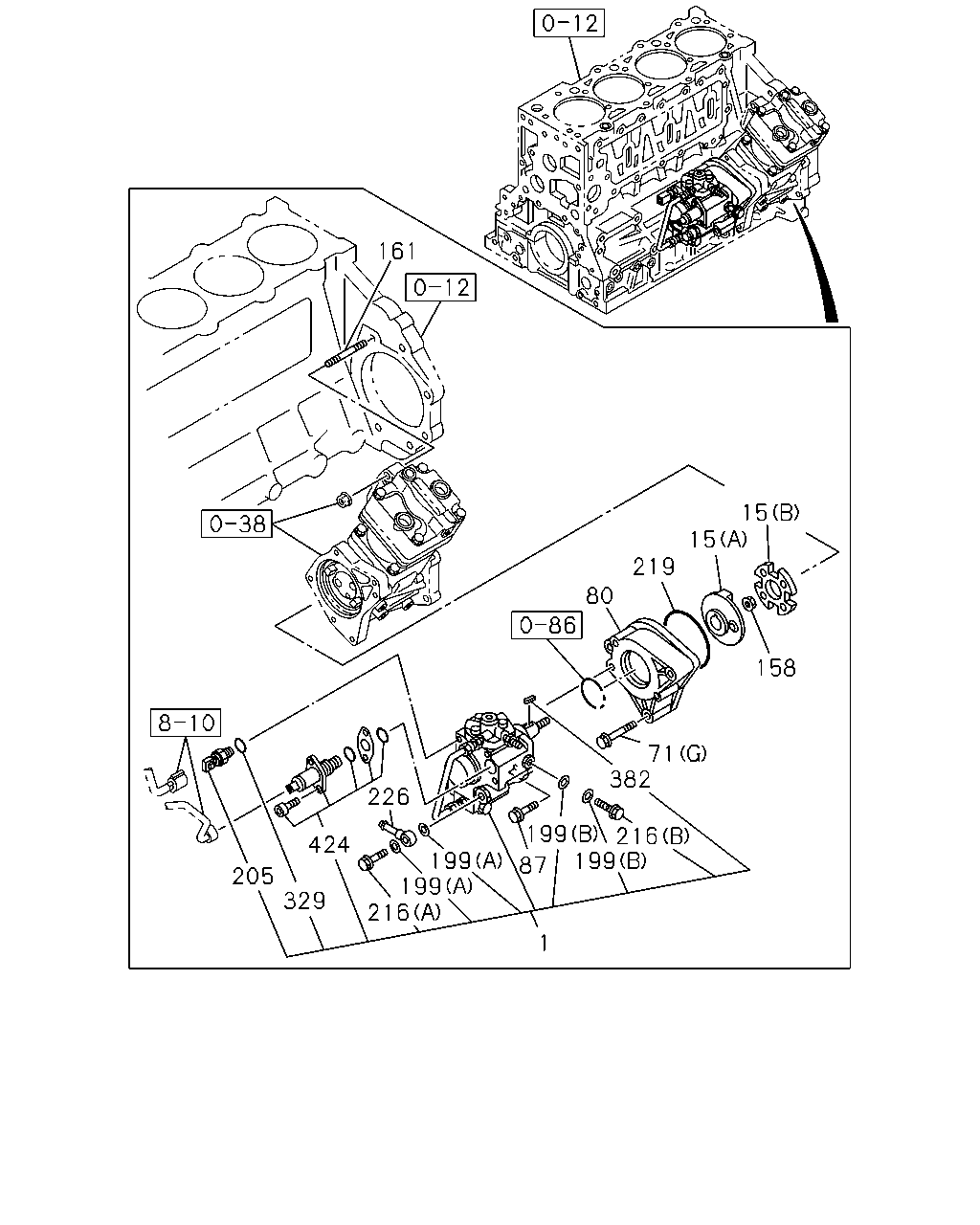

çizim 178989
161 205 226 424 329 199 199 216 199 87 382 216 199 71 158 15 15 219 80 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 0710- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1012- ●
15 COUPLING ASM; INJ PUMP
(B) 		8-97306-059-1 01 1 1012- ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
71 BOLT; BRKT
(F) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
71 BOLT; BRKT
(G) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1012- ●
87 BOLT; PUMP
M8X40 FLANGE 		0-28650-840-0 02 1 1012- ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1012- ● ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 04 1 1012- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0710-1011 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1012- ●
226 PIPE; FUEL 8-98126-332-0 01 1 1012- ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710-1011 ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1201 ● ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1201 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0710-0910 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911-1201 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0710-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906- ● ●

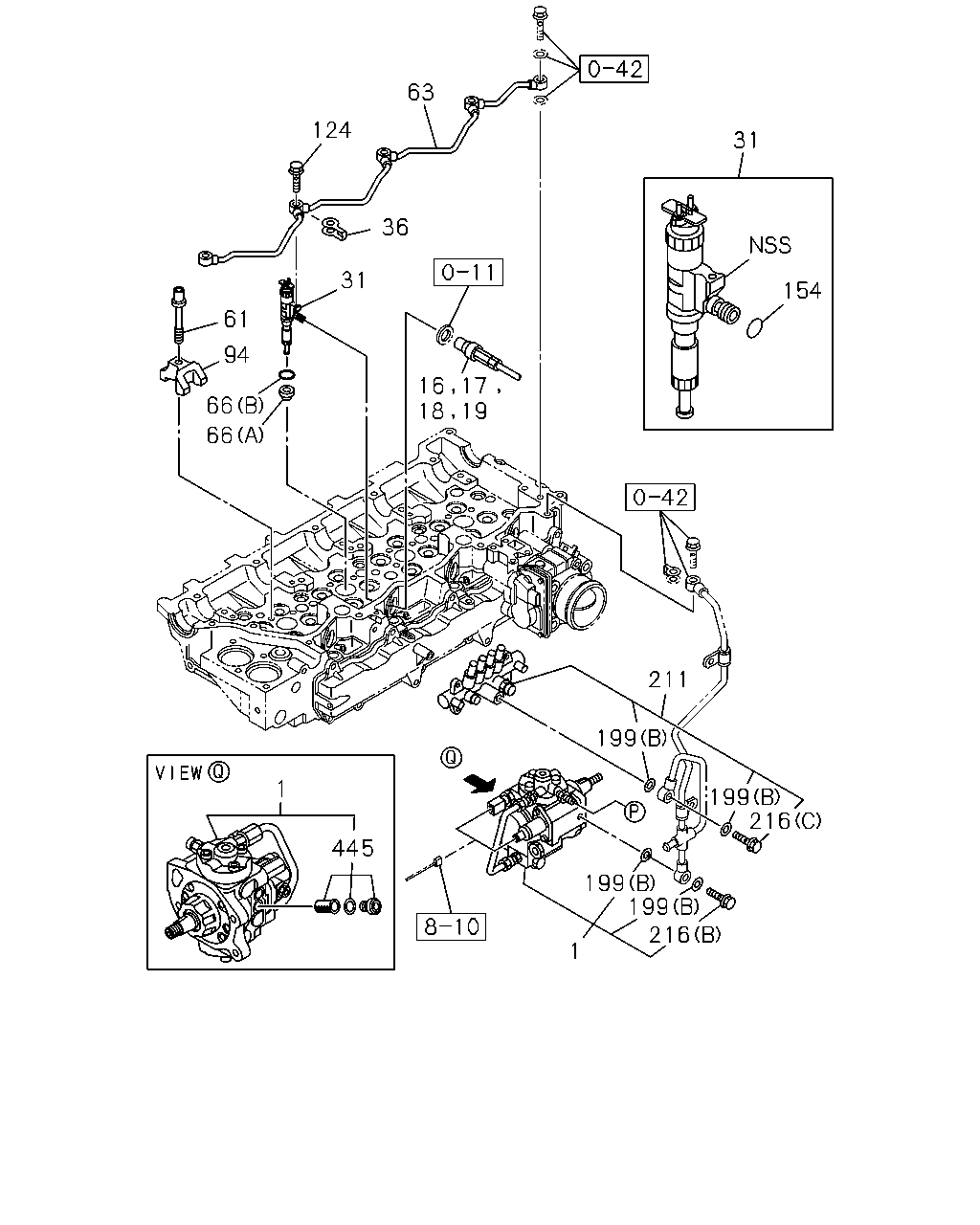

çizim 178997
63 124 36 31 154 31 61 94 66 66 16 17 18 19 1 445 1 216 199 199 216 199 199 211
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 0710- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0710-1102 ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0710-1102 ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0710-1102 ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0710-1102 ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 0809- ●
31 NOZZLE ASM; INJ 8-97609-788-3 06 1 0710-0808 ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0809- ●
31 NOZZLE ASM; INJ
EURO4 SPECIFICATION<NT4> 		8-97609-788-6 06 1 0809- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1012- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-97601-447-2 06 1 0710-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0710- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 1012-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1011 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 1012-1106 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1012- ● ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 04 1 1012- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0710- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ● ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ●

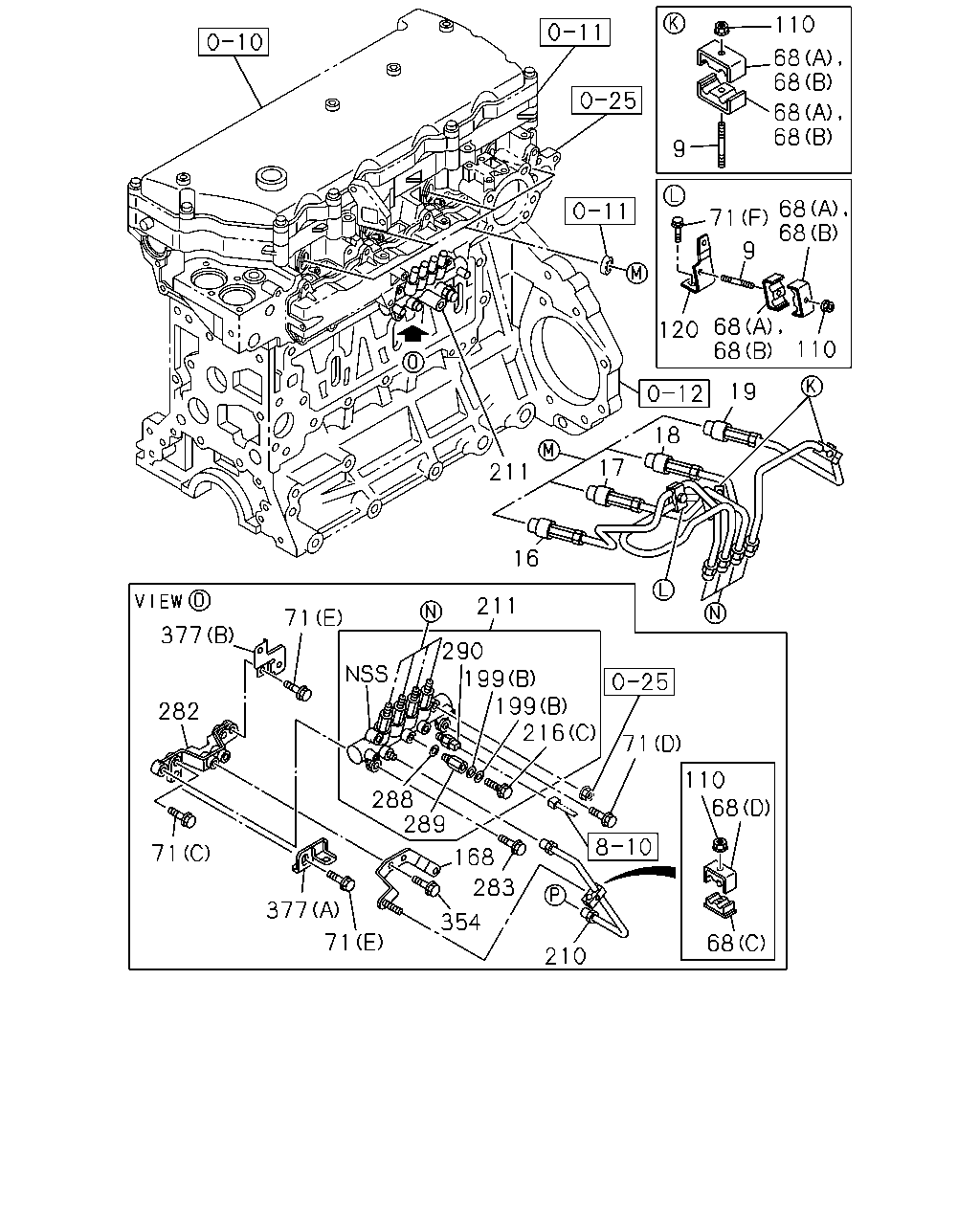

çizim 179010
110 68 68 68 68 68 68 71 120 68 68 110 19 18 17 211 16 211 71 377 282 71 377 71 288 289 168 283 354 210 110 68 68 71 216 199 199 290 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1012- ●
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 1012- ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0710-1102 ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0710-1102 ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0710-1102 ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0710-1102 ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 01 1 1012- ●
68 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 01 1 1012- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 10 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19 		8-98039-293-0 10 1 0910-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO4 SPECIFICATION<NT4> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
68 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 14 1 0710-0909 ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19 		8-98039-293-0 14 1 0910-1405 ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
71 BOLT; BRKT
(F) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
71 BOLT; BRKT
(G) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0809- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1012- ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0710- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1012- ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1012- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15619-507-0 02 1 1012- ● ● ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0710-1011 ● ●
199 GASKET; EYE BOLT
(B) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 04 1 1012- ● ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1012- ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 0809- ●
210 PIPE; INJ,C/R 8-97608-480-0 01 1 0710-0808 ● ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0809- ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-97608-480-1 01 1 0809- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0710- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-1011 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ● ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ●
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1012- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710-1011 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0710-1011 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-0808 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809-1011 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 1012- ●
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
