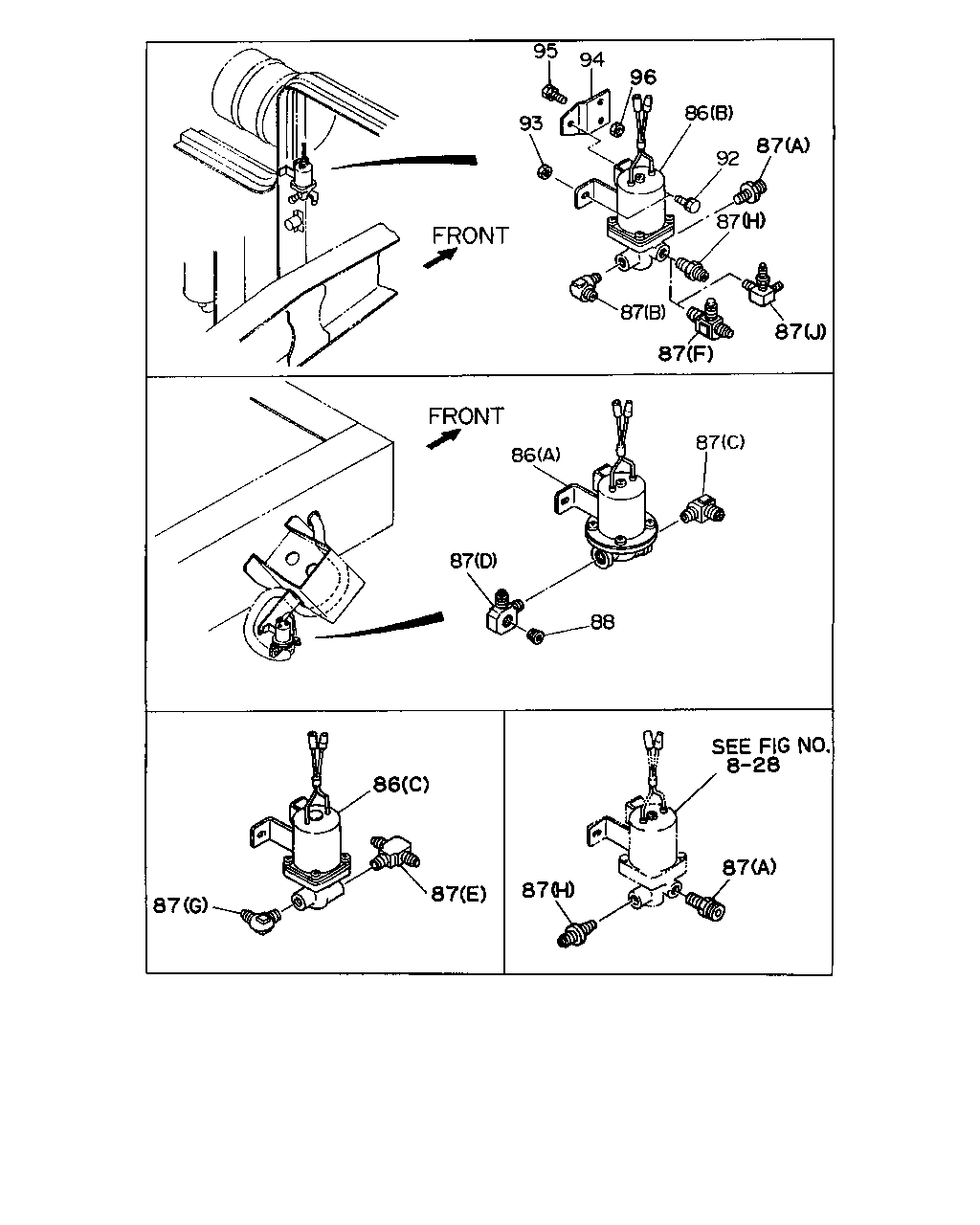

86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-094-0 |
01 |
1 |
9002-9006 |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-172-0 |
01 |
1 |
9007-9012 |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-158-0 |
01 |
1 |
9101-9306 |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(A)
|
1-82563-299-1 |
01 |
1 |
9002- |
● |
● |
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-402-0 |
01 |
1 |
9307-9407 |
● |
● |
| |
86 |
VALVE; MAG,EXH BRK
EXC. GOVERNOR CONTROL<W69>
(B)
|
1-82563-402-0 |
01 |
1 |
9408- |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-402-0 |
01 |
1 |
9408- |
|
● |
| |
86 |
VALVE; MAG,EXH BRK
GOVERNOR CONTROL<W69>
(B)
|
1-82563-404-0 |
01 |
1 |
9408- |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50)
(C)
|
1-82563-307-0 |
01 |
1 |
9002- |
● |
|
| |
87 |
CONNECTOR
(C)
M14 & PT1/4 ELBOW
|
1-09650-034-1 |
01 |
1 |
9002-9302 |
● |
|
| |
87 |
CONNECTOR
(C)
M14 & PT1/4 ELBOW
|
1-09650-432-0 |
01 |
1 |
9303- |
● |
● |
| |
87 |
CONNECTOR
(H)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
9002- |
● |
● |
| |
87 |
CONNECTOR
EXC. GOVERNOR CONTROL<W69>
(H)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
9002- |
● |
● |
| |
87 |
CONNECTOR
(D)
|
1-09656-316-1 |
01 |
1 |
9002- |
● |
● |
| |
87 |
CONNECTOR
(B)
M20 & PT1/4 ELBOW
|
1-09660-681-0 |
01 |
1 |
9002- |
● |
● |
| |
87 |
CONNECTOR
(A)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
9002- |
● |
● |
| |
87 |
CONNECTOR
POWER BRAKE LOCK SYSTEM(J50)
(E)
M12X2 & PT1/4 3WAY
|
1-09656-229-1 |
01 |
1 |
9002- |
● |
|
| |
87 |
CONNECTOR
POWER BRAKE LOCK SYSTEM(J50)
(G)
PT1/4 & M12 ELBOW
|
1-09650-117-1 |
01 |
1 |
9002-9302 |
● |
|
| |
87 |
CONNECTOR
POWER BRAKE LOCK SYSTEM(J50)
(G)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9303- |
● |
● |
| |
87 |
CONNECTOR
GOVERNOR CONTROL<W69>
(F)
M12X2 & PT1/4 3WAY
|
1-09656-230-1 |
01 |
1 |
9002-9407 |
● |
|
| |
87 |
CONNECTOR
GOVERNOR CONTROL<W69>
(J)
PT1/4 & M12 ELBOW
|
1-09656-665-0 |
01 |
1 |
9408- |
● |
|
| |
87 |
CONNECTOR
GOVERNOR CONTROL<W69>
(A)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
9408- |
● |
|
| |
88 |
PLUG
PT3/8
|
9-09204-517-0 |
01 |
1 |
9002- |
● |
● |
| |
92 |
BOLT; MAG VLV
M8X25 W/LK WASHER
|
9-01900-825-0 |
02 |
1 |
9002-9204 |
● |
|
| |
92 |
BOLT; MAG VLV
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9205-9302 |
● |
|
| |
92 |
BOLT; MAG VLV
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9303-9306 |
● |
|
| |
92 |
BOLT; MAG VLV
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
● |
● |
| |
93 |
NUT; MAG VLV
M8
|
9-09110-408-0 |
01 |
1 |
9002-9407 |
● |
● |
| |
93 |
NUT; MAG VLV
M8
|
9-09110-408-0 |
01 |
1 |
9408- |
● |
● |
| |
93 |
NUT; MAG VLV
GOVERNOR CONTROL<W69>
M8
|
9-09110-408-0 |
01 |
1 |
9408- |
● |
|
| |
94 |
BRACKET; MAG VLV,EXH BRAKE
|
1-82569-022-1 |
01 |
1 |
9002-9407 |
● |
● |
| |
94 |
BRACKET; MAG VLV,EXH BRAKE
EXC. GOVERNOR CONTROL<W69>
|
1-82569-022-1 |
01 |
1 |
9408- |
● |
|
| |
94 |
BRACKET; MAG VLV,EXH BRAKE
|
1-82569-022-1 |
01 |
1 |
9408- |
|
● |
| |
94 |
BRACKET; MAG VLV,EXH BRAKE
GOVERNOR CONTROL<W69>
|
1-82569-080-0 |
01 |
1 |
9408- |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22
|
9-01900-822-0 |
02 |
1 |
9002-9204 |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER
|
0-50040-822-0 |
02 |
1 |
9205-9302 |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9303-9306 |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
● |
● |
| |
96 |
NUT; BRKT,MAG VLV,EXH BRAKE
M8
|
9-09110-408-0 |
02 |
1 |
9002- |
● |
● |
