◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#33367) — 58 parça

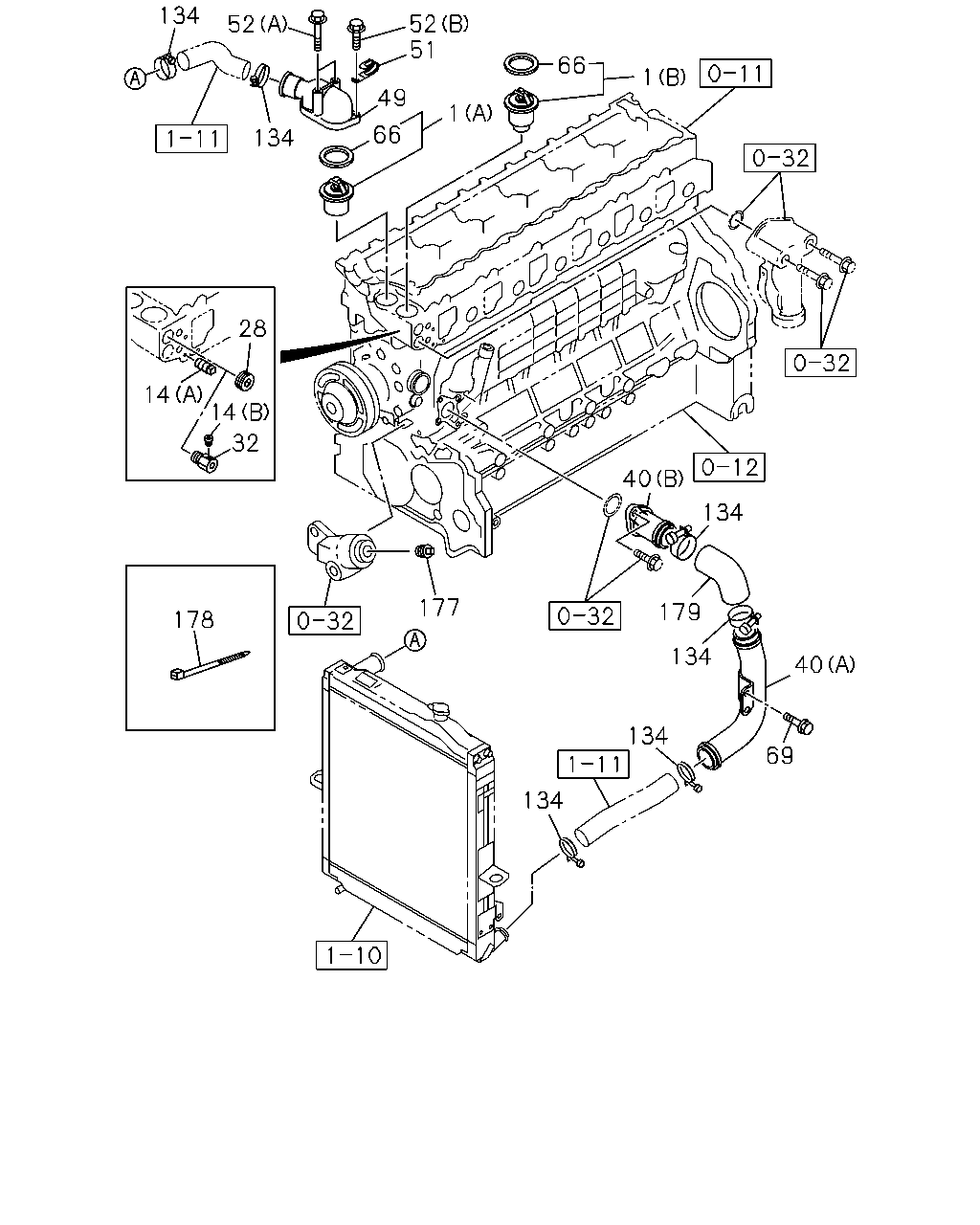

çizim 178527
134 52 52 51 49 134 66 1 66 28 14 32 14 40 178 177 134 179 134 40 69 134 134 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1012- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1012- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0710- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0710-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
(C) M16X8 PLUG 		9-09661-005-0 01 1 1012- ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0710-0808 ● ●
14 PLUG; SW
EURO2 SPECIFICATION<NT2> (B) PT1/4 		1-09605-019-0 01 1 0809-1008 ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0809- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0710-0808 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0809- ●
28 PLUG; HTR
EURO4 SPECIFICATION<NT4> PT3/4 		1-09605-020-0 01 1 0809- ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-94395-851-1 01 1 0809-1008 ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-98177-501-0 01 1 1009- ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0710- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0710- ● ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1012- ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0710- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0808 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE 		0-28050-880-0 02 1 0809- ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0710-0808 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0809- ●
52 BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4> (A) M8X85 FLANGE 		8-97023-062-0 02 1 0809- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0710-1011 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1012-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 0710- ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) PT1/2 		9-09204-521-0 01 1 0809- ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		5-09707-030-1 01 1 0710-0808 ● ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		5-09707-030-1 01 1 0809-1205 ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		5-09707-030-1 01 1 0809-1205 ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		8-98216-430-0 01 1 1206- ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		8-98216-430-0 01 1 1206- ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0710- ● ●

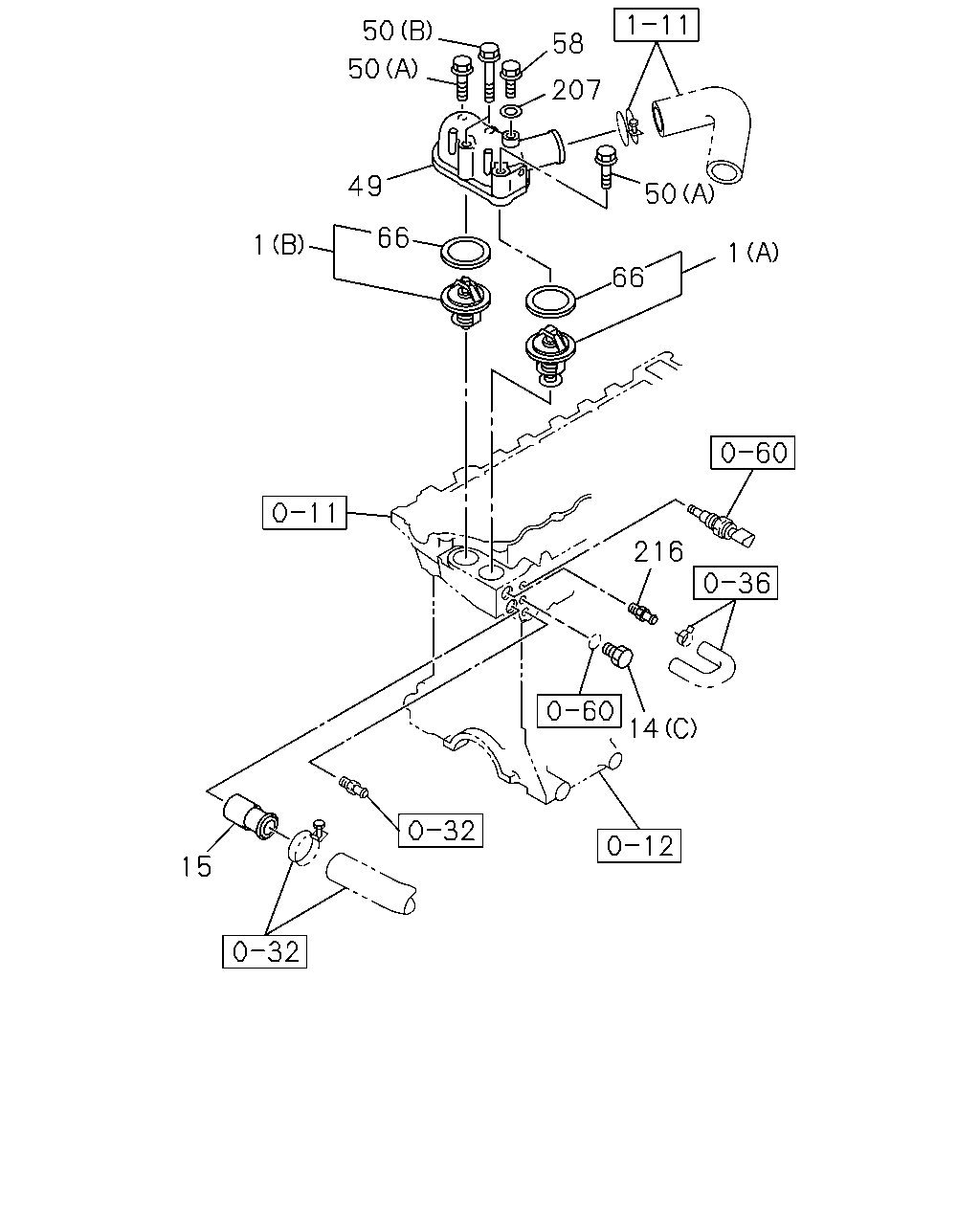

çizim 178961
50 58 50 207 49 50 66 1 1 66 216 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1012- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1012- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0710- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0710-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
(C) M16X8 PLUG 		9-09661-005-0 01 1 1012- ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0710-0808 ● ●
14 PLUG; SW
EURO2 SPECIFICATION<NT2> (B) PT1/4 		1-09605-019-0 01 1 0809-1008 ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0809- ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 1012- ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1012- ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0710- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0710-1011 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1012-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1012- ●
