0-27 — EXHAUST MANIFOLD (#33364) — 117 parça

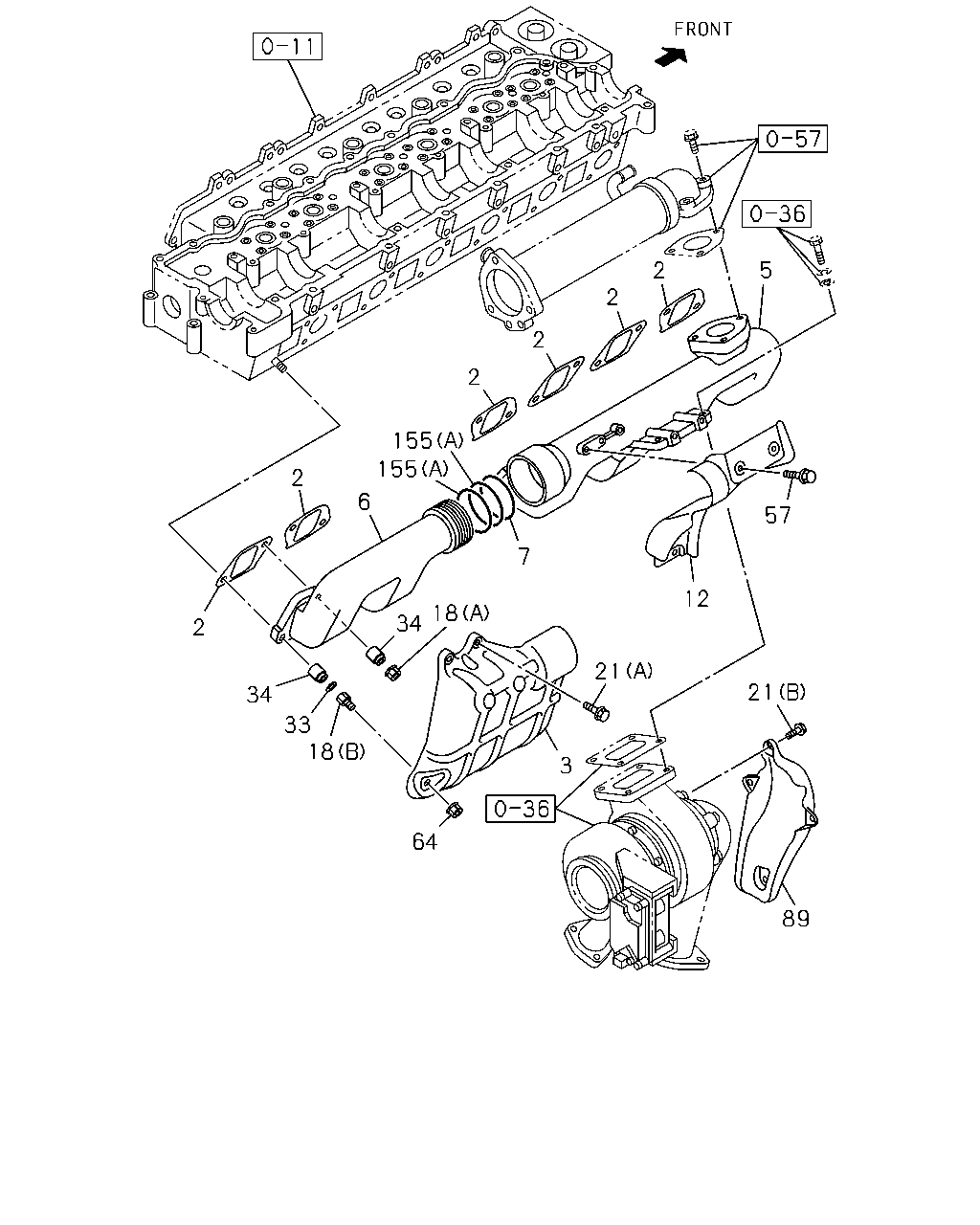

çizim 178505
5 2 2 2 2 155 155 6 2 2 34 34 18 7 33 18 64 3 21 12 57 21 89
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 1012- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0710- ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97039-753-1 01 1 1012- ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0710-0808 ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0809-1202 ●
3 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-97611-986-1 01 1 0809-1202 ●
3 PROTECTOR; HEAT,EXH MANIF 8-98205-395-0 01 1 1203- ●
3 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-98205-395-0 01 1 1203- ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 0809- ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0710-0808 ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 0809- ●
5 MANIFOLD; EXH,FRT
EURO4 SPECIFICATION<NT4> 		8-97604-942-1 01 1 0809- ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-97600-970-0 01 1 0809- ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0710-0808 ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0809- ●
6 MANIFOLD; EXH,RR
EURO4 SPECIFICATION<NT4> 		8-97604-944-0 01 1 0809- ●
7 RING; SEAL,EXH MANIF
STAMP RH 		1-14149-151-0 01 1 0710-0808 ● ●
7 RING; SEAL,EXH MANIF
STAMP RH 		1-14149-151-0 01 1 0809- ●
7 RING; SEAL,EXH MANIF
EURO4 SPECIFICATION<NT4> STAMP RH 		1-14149-151-0 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0710-0808 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-97610-717-3 01 1 0809- ●
18 NUT; EXH MANIF
(C) M10 		0-91110-510-0 02 1 1012- ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0710- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0710-1202 ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ●
21 BOLT; HEAT PROTECTOR
(C) M6X12 FLANGE 		8-97108-669-0 02 1 1012- ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0710- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0710- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 0710-0808 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 0809- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO4 SPECIFICATION<NT4> M8X14 FLANGE 		8-97378-075-0 03 1 0809- ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
89 PROTECTOR; HEAT 8-97611-985-2 01 1 0710-0808 ● ●
89 PROTECTOR; HEAT 8-97611-985-3 01 1 0809- ●
89 PROTECTOR; HEAT
EURO4 SPECIFICATION<NT4> 		8-97611-985-3 01 1 0809- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0710-0808 ● ●
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION<NT2> (B) STAMP RH 		1-14149-151-0 01 1 0809- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ●

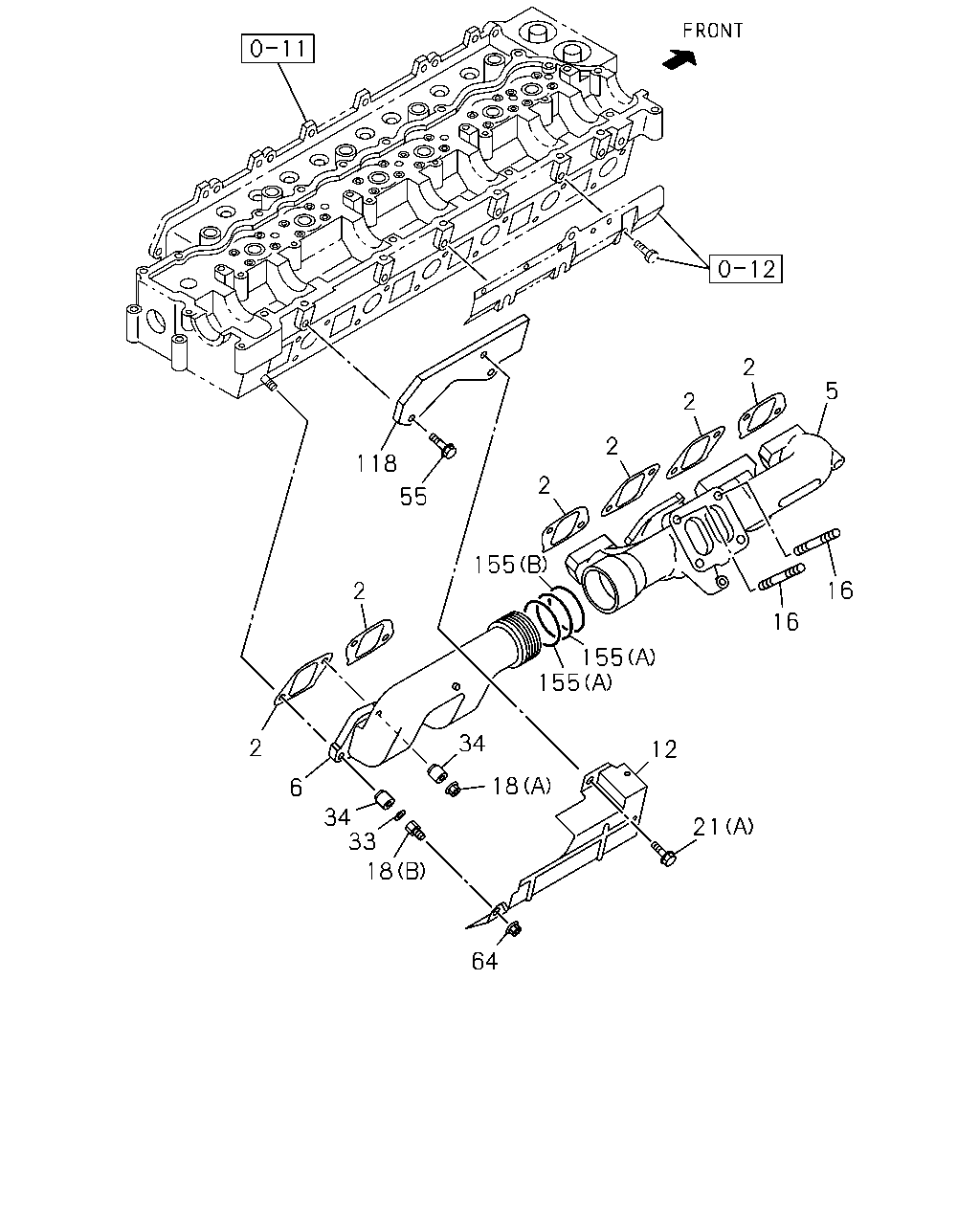

çizim 178952
118 55 2 2 2 2 5 16 16 155 155 18 34 2 2 6 34 33 18 64 21 12 155
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 1012- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0710- ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 0809- ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0710-0808 ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 0809- ●
5 MANIFOLD; EXH,FRT
EURO4 SPECIFICATION<NT4> 		8-97604-942-1 01 1 0809- ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-97600-970-0 01 1 0809- ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0710-0808 ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0809- ●
6 MANIFOLD; EXH,RR
EURO4 SPECIFICATION<NT4> 		8-97604-944-0 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0710-0808 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0809- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-97610-717-3 01 1 0809- ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 0809-1011 ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 1012- ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 1012- ●
18 NUT; EXH MANIF
(C) M10 		0-91110-510-0 02 1 1012- ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0710- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0710-1202 ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ●
21 BOLT; HEAT PROTECTOR
(C) M6X12 FLANGE 		8-97108-669-0 02 1 1012- ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0710- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0710- ● ●
55 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 		8-97603-366-0 01 1 0809- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0710-0808 ● ●
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION<NT2> (B) STAMP RH 		1-14149-151-0 01 1 0809- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ●

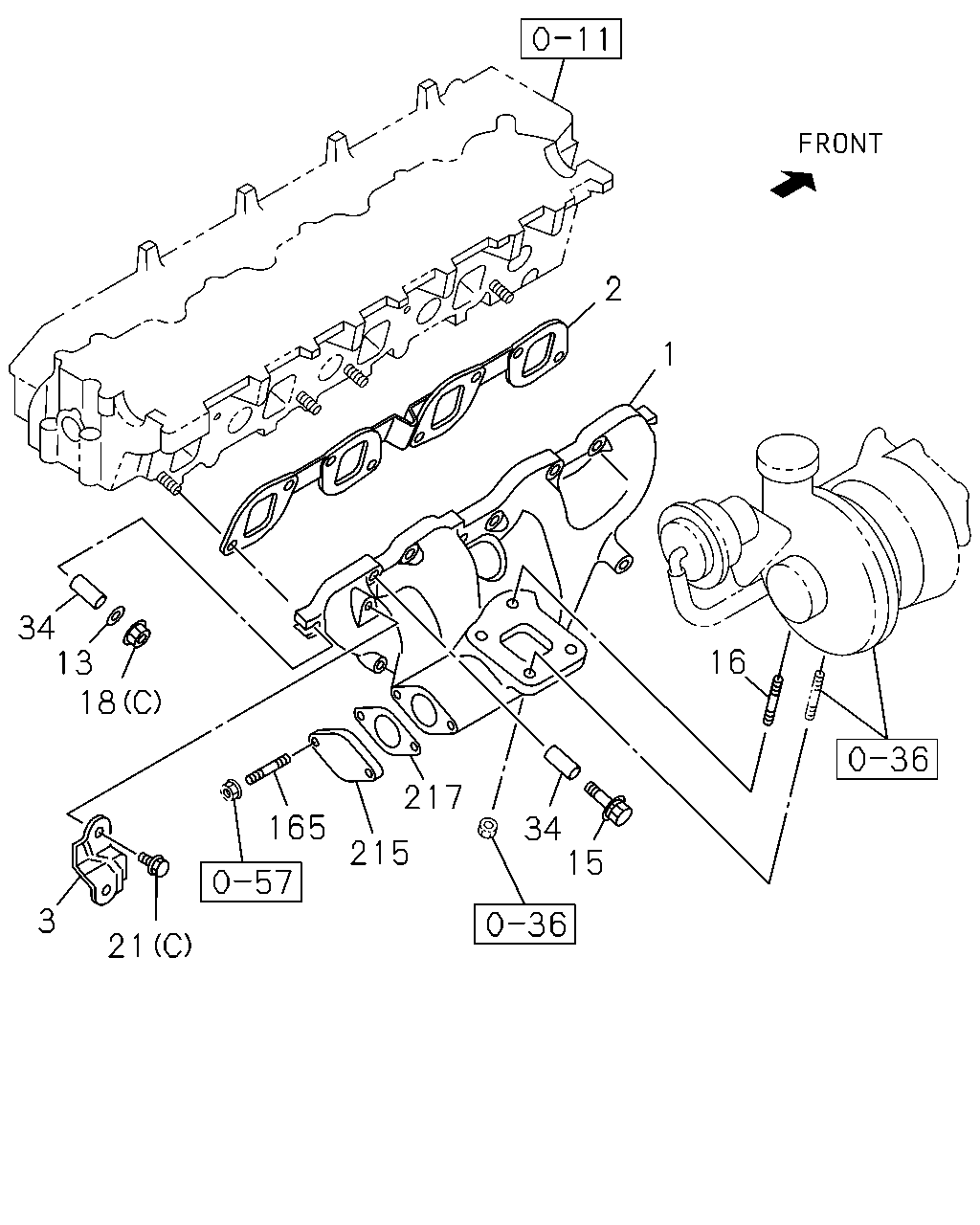

çizim 178975
2 1 34 13 18 16 217 165 34 15 215 3 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; EXHAUST 8-98027-968-1 01 1 1012- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 1012- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0710- ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97039-753-1 01 1 1012- ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0710-0808 ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0809-1202 ●
3 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-97611-986-1 01 1 0809-1202 ●
3 PROTECTOR; HEAT,EXH MANIF 8-98205-395-0 01 1 1203- ●
3 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION<NT4> 		8-98205-395-0 01 1 1203- ●
13 WASHER; LK,EXH MANIF
T=2.2 		1-09556-015-0 02 1 1012- ●
15 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1012- ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 0809-1011 ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 1012- ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 1012- ●
18 NUT; EXH MANIF
(C) M10 		0-91110-510-0 02 1 1012- ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0710- ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0710-1202 ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ●
21 BOLT; HEAT PROTECTOR
(C) M6X12 FLANGE 		8-97108-669-0 02 1 1012- ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0710-0808 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
21 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0809- ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1012- ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0710- ● ●
165 STUD; EGR PIPE
M8X45 L=57 		8-94105-162-1 02 1 1012- ●
215 PLATE; BOSS,EXH MANIF 8-98170-965-0 01 1 1012- ●
217 GASKET; EXH MANIF TO PLATE 8-94340-670-0 01 1 1012- ●
