0-22 — ENGINE MOUNTING (#33362) — 80 parça

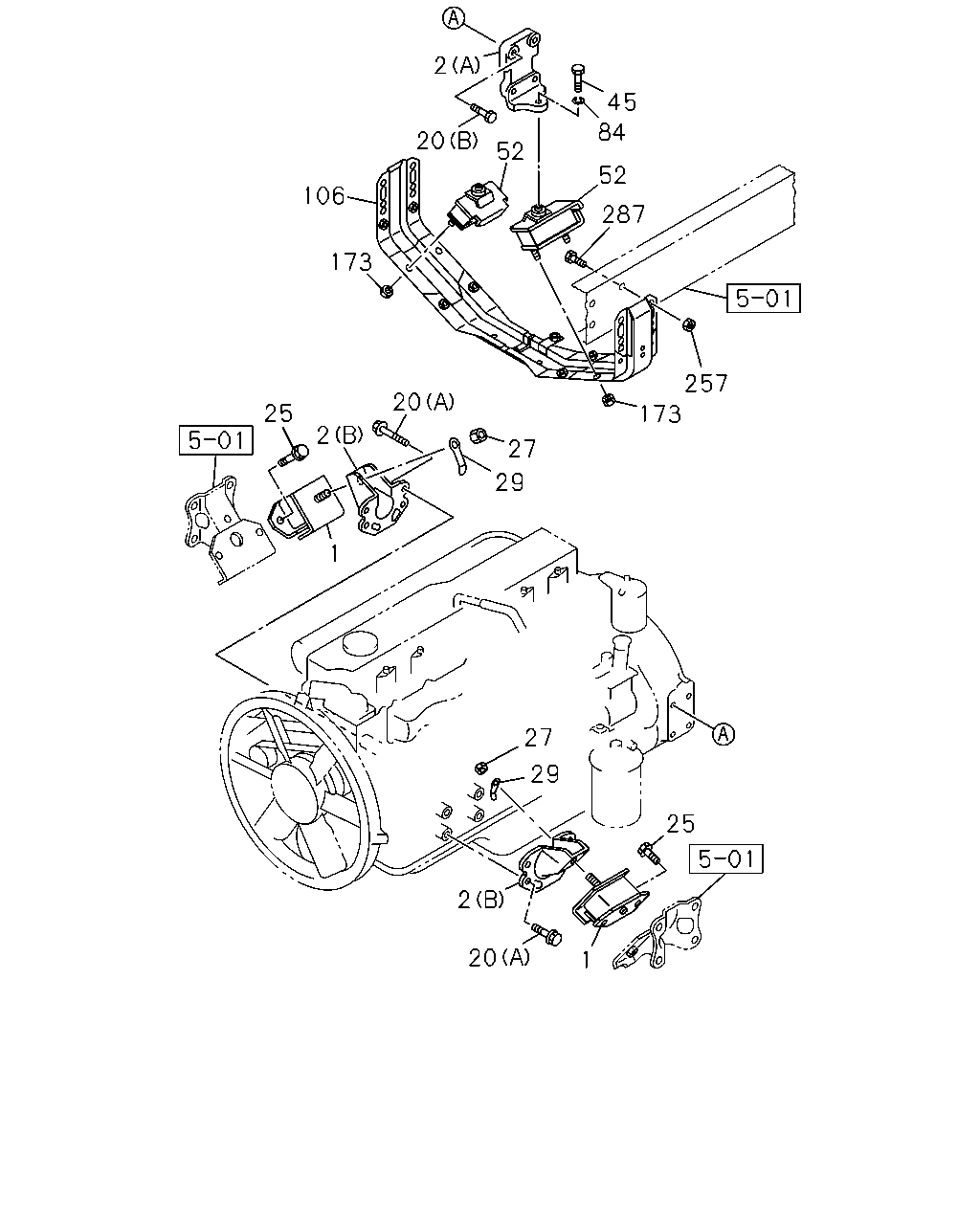

çizim 178525
2 20 45 84 52 52 287 257 173 20 27 29 2 25 1 27 29 25 2 20 1 106 173
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1012- ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 3700MM(37W) 		1-53215-173-0 02 1 0710-0808 ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0809- ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710-0808 ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0809- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 1012- ●
2 FOOT; ENG
(A) 		8-94390-563-1 01 1 0710- ● ●
2 FOOT; ENG
(A) 		8-94390-564-1 01 1 0710- ● ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0710-1008 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1009- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 1012- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0710- ● ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0710-1008 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0710-1011 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1012- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0710-1011 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1012- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0710-1011 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1012- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M16X60 		0-10956-660-0 02 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1012- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0710- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1012- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=17 		9-09164-516-0 02 1 0710- ● ●
106 MEMBER; MTG,RR 1-53221-199-0 01 1 0710-1410 ● ●
106 MEMBER; MTG,RR 1-53221-190-0 01 1 1411- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-210-0 04 1 1012- ●
173 NUT; ENG MTG RR TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0710- ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0710- ● ●

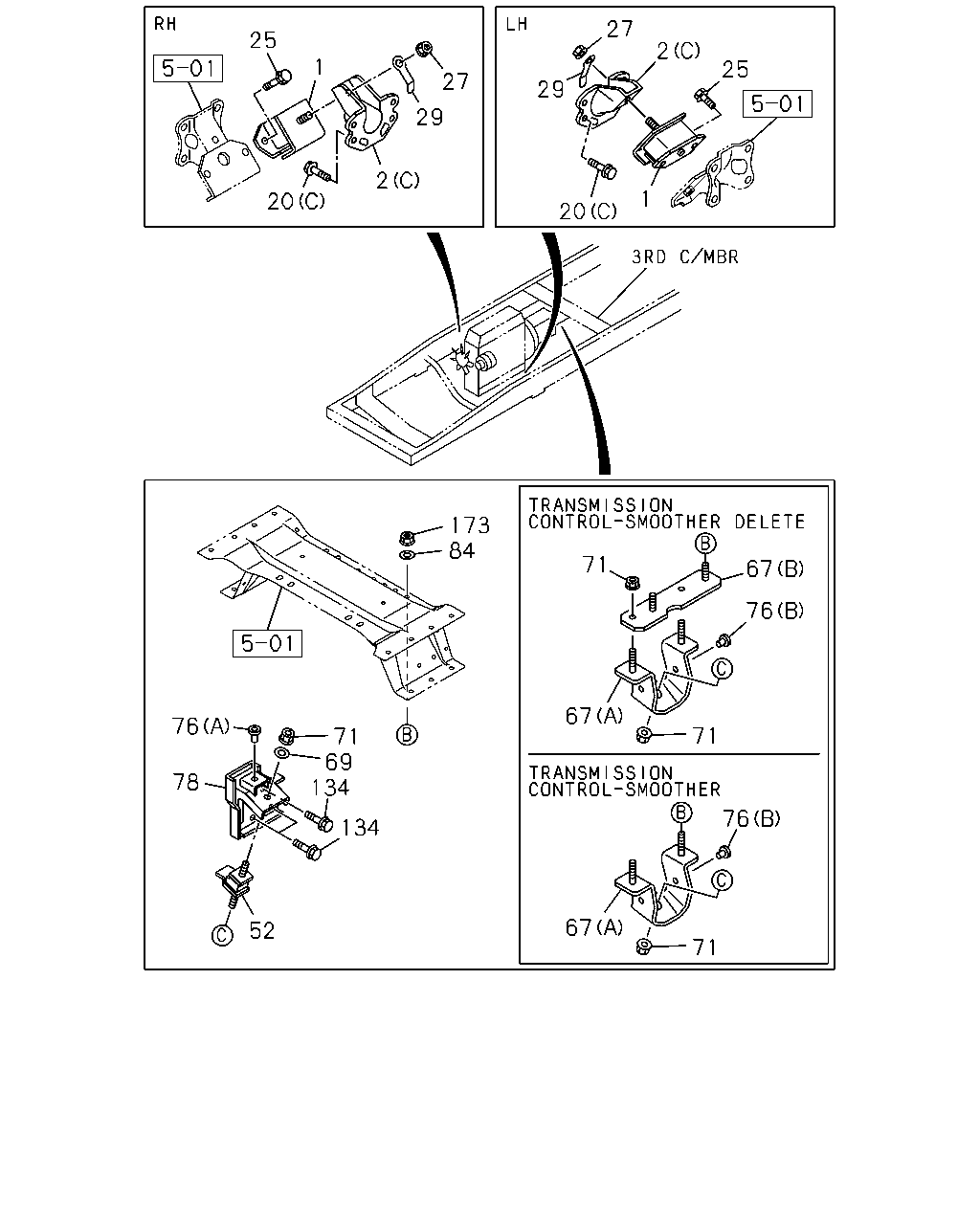

çizim 178958
25 20 1 2 29 27 27 29 1 20 2 25 173 84 71 69 134 134 52 78 76 71 71 67 76 67 76 71 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1012- ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 3700MM(37W) 		1-53215-173-0 02 1 0710-0808 ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0809- ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710-0808 ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0809- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 1012- ●
2 FOOT; ENG
(A) 		8-94390-563-1 01 1 0710- ● ●
2 FOOT; ENG
(A) 		8-94390-564-1 01 1 0710- ● ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0710-1008 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1009- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 1012- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0710- ● ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0710-1008 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0710-1011 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1012- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0710-1011 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1012- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0710-1011 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1012- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1012- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0710- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98055-142-0 02 1 1012- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-942-0 02 1 1012- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-917-0 01 1 1012- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-918-0 01 1 1012- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 1012- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZW6P M/T(RSZ) ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1012- ●
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 1012- ●
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 08 1 1012- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1012- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1012- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98013-948-0 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98013-949-1 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98013-946-0 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98013-947-1 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-070-0 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-071-1 01 1 1012- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98127-067-0 01 1 1012-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-167-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98127-068-1 01 1 1012-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-175-0 01 1 1303- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1012- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=17 		9-09164-516-0 02 1 0710- ● ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1012- ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-210-0 04 1 1012- ●
173 NUT; ENG MTG RR TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
