0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#33349) — 45 parça

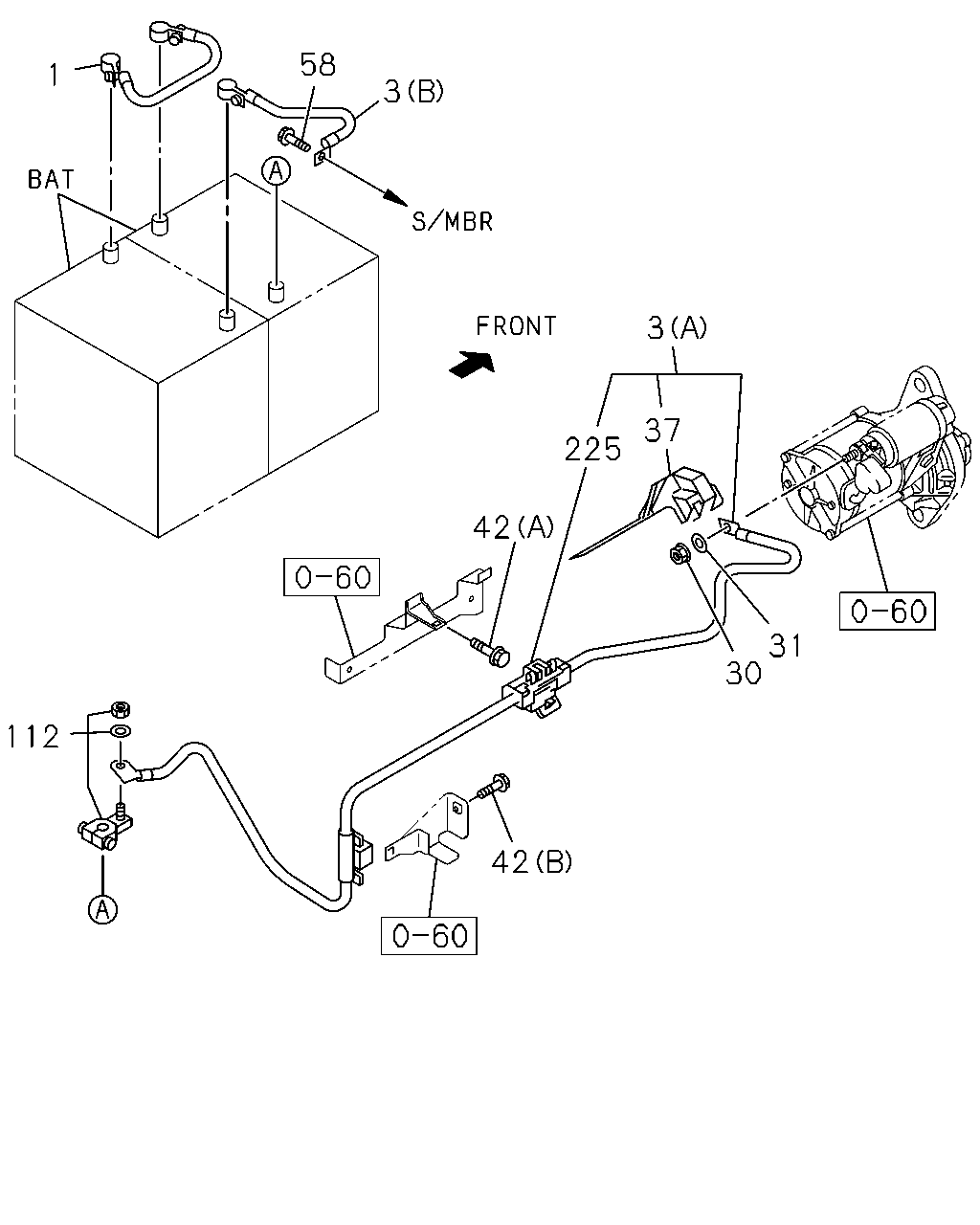

çizim 35659
58 1 3 3 37 225 42 31 30 112 42
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0710-1203
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) 		8-98072-275-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) 		8-98056-338-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98070-232-3 01 1 0710-0712
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 0801-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0710-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0710-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1004
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0710-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0710-

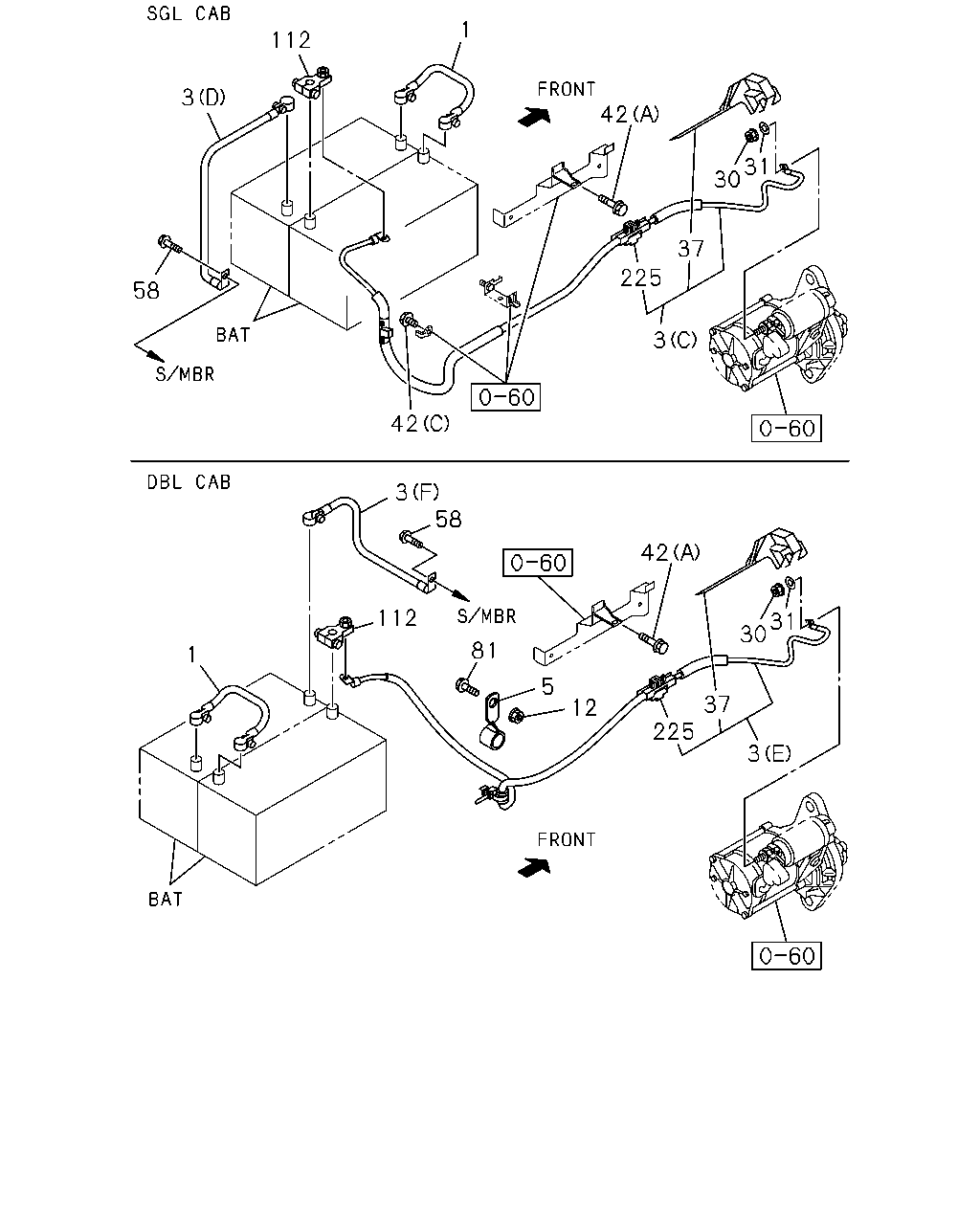

çizim 35660
1 112 42 3 31 30 37 225 58 3 42 3 5 42 112 31 30 81 1 5 37 225 12 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0710-1203
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) 		8-98072-275-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) 		8-98056-338-1 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0710-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98070-232-3 01 1 0710-0712
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 0801-
5 02.559 CLIP; BATTERY CABLE TO BODY
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 0710-
12 02.343 NUT; BATTERY CABLE CLIP
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0710-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0710-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 0710-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1004
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
81 02.559 BOLT; BATTERY CABLE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0710-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0710-
