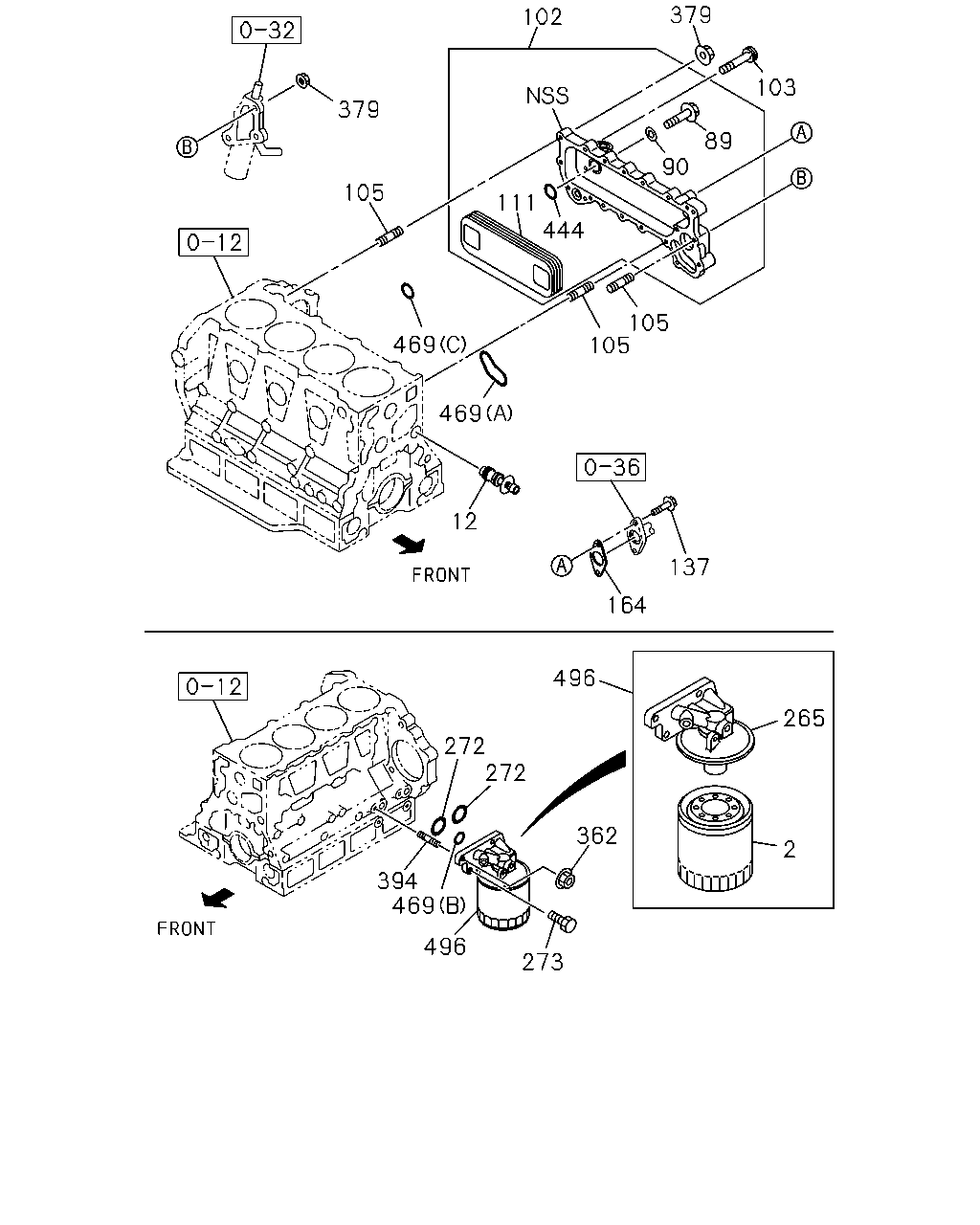

0-50 — OIL COOLER AND OIL FILTER (#33344) — 23 parça

102 379 103 89 90 444 111 105 105 469 469 12 164 137 265 2 362 272 272 394 469 496 496 105 379 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0710-
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0710-
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0710-
102	01.540 COOLER ASM; OIL	8-98085-312-4	01	1	0710-
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0710-
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	08	1	0710-
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0710-
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	0710-
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0710-
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0710-
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0710-
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0710-
273	01.840 BOLT; OIL FILTER M10X30	0-59311-030-0	03	1	0710-0805
273	01.840 BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	0806-
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0710-
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	0710-
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0710-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0710-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0710-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0710-
496	01.835 FILTER ASM; OIL	8-97148-268-3	01	1	0710-
