0-36 — TURBOCHARGER SYSTEM (#33340) — 74 parça

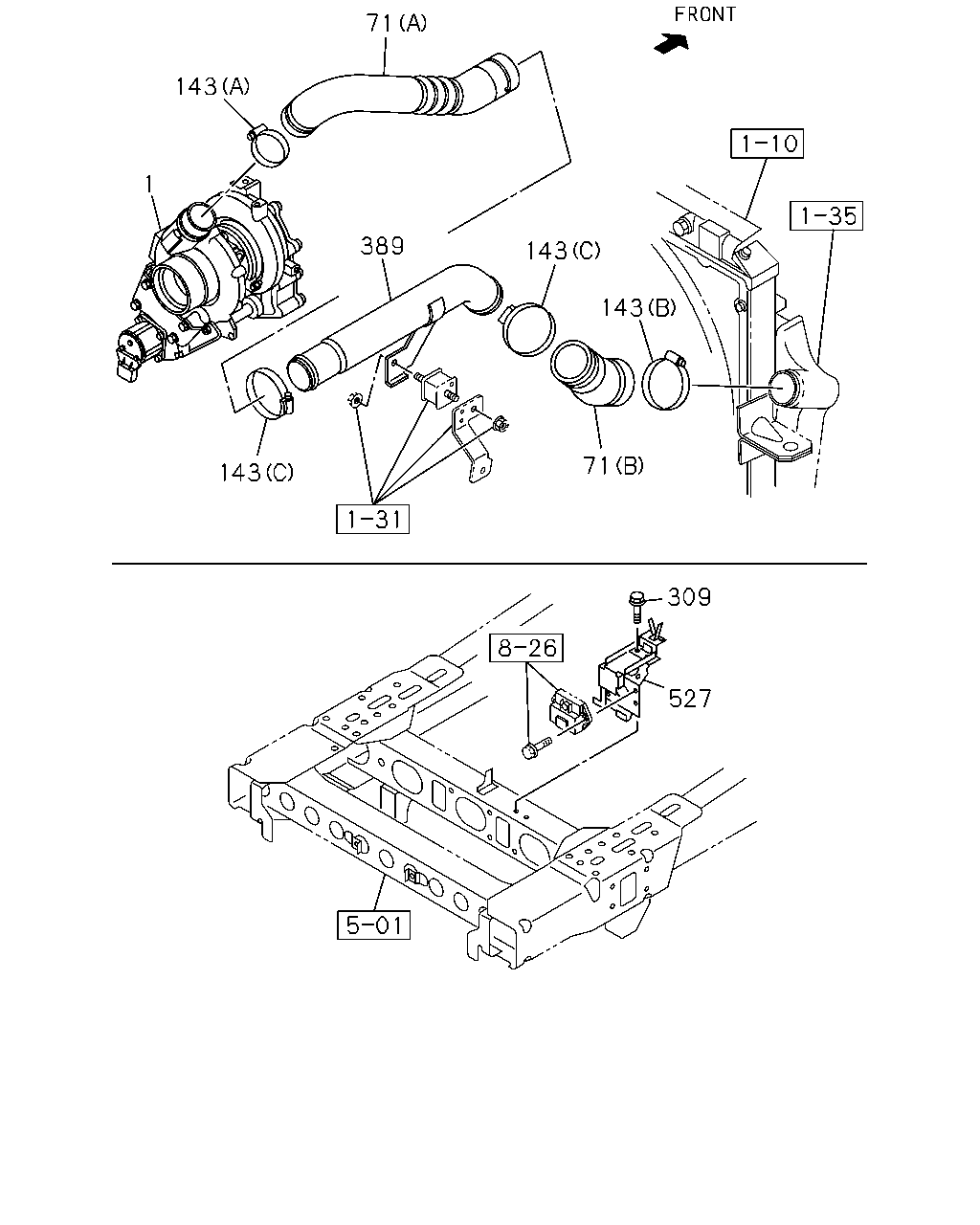

çizim 36012
71 143 1 389 143 143 71 143 309 527
BalonParca AdiParca NoAdetTipApplied Date
1 03.342 TURBOCHARGER ASM 8-98027-772-5 01 1 0710-
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98006-133-1 01 1 0710-
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98060-008-0 01 1 0710-
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=50-69 		1-09707-135-0 01 1 0710-0711
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=60-65 		8-98096-418-0 01 1 0712-
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=68-85 		1-09707-202-0 01 1 0710-0810
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS SGL CAB(NP**S*) MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (C) ID=58-76 		1-09707-203-0 02 1 0710-0811
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=55-75 		8-98133-349-0 02 1 0812-0812
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS SGL CAB(NP**S*) MANUAL TILT CAB<RWZ> (C) ID=45-65 		8-98133-348-0 02 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS SGL CAB(NP**S*) EXC. MANUAL TILT CAB<RWZ> (C) ID=60-65 		8-98096-418-0 02 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS DBL CAB(NP**W*) (C) ID=60-65 		8-98096-418-0 02 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=60-65 		8-98096-418-0 02 1 1002-
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS SGL CAB(NP**S*) EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
NPS DBL CAB(NP**W*) (B) ID=70-90 		8-98122-372-0 01 1 0901-1001
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=70-90 		8-98122-372-0 01 1 1002-
309 03.342 BOLT; TURBOCHARGER
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0710-
527 03.373 BRACKET; TURBOCHARGER 8-98100-583-0 01 1 0710-

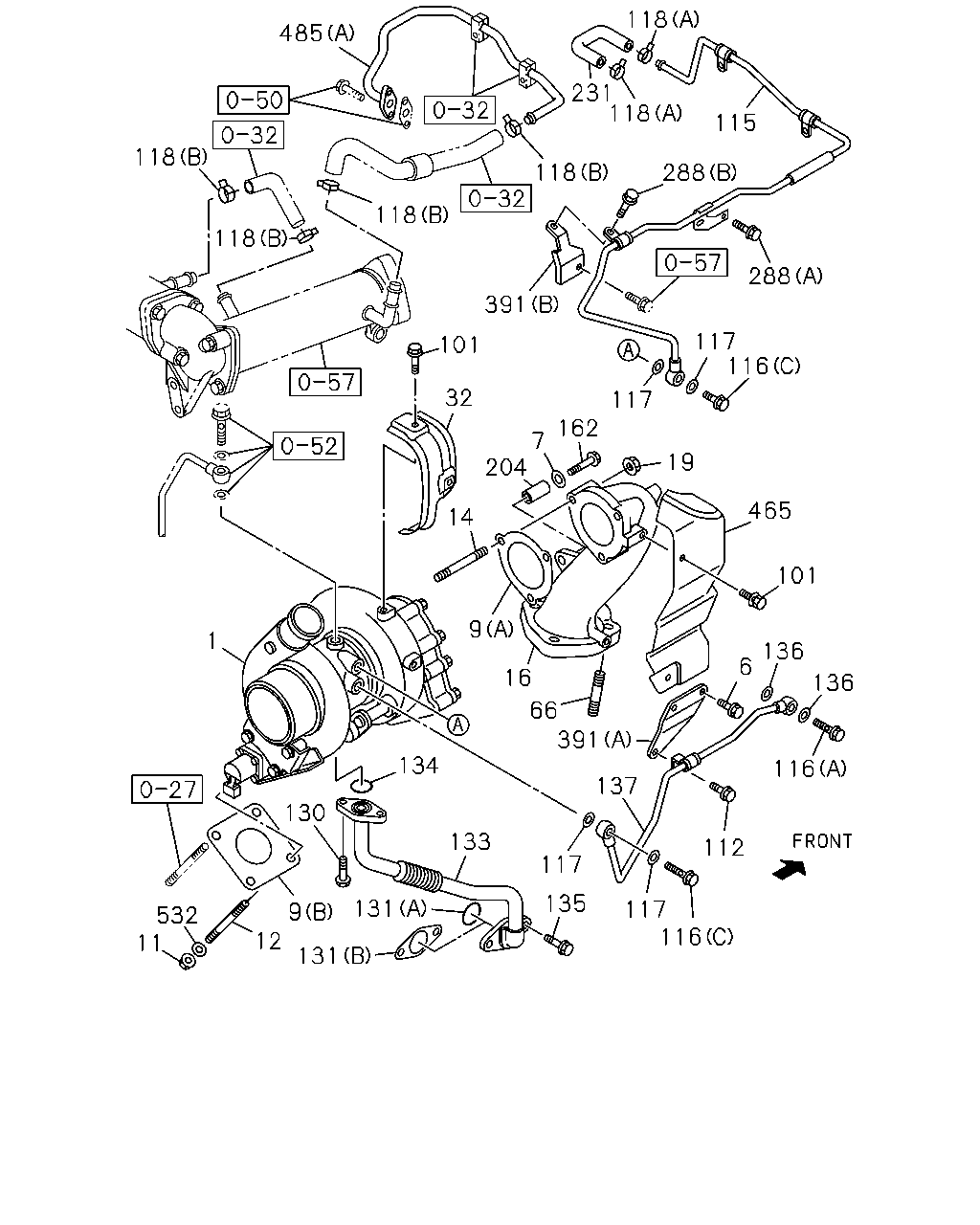

çizim 100417
118 485 231 118 115 118 118 288 118 118 288 391 117 116 101 32 117 162 7 204 19 465 14 101 9 1 136 6 16 136 66 391 134 116 137 130 133 112 117 135 131 117 116 9 12 532 11 131
BalonParca AdiParca NoAdetTipApplied Date
1 03.342 TURBOCHARGER ASM 8-98027-772-5 01 1 0710-
6 03.417 BOLT; BRKT TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0710-
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0710-
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97376-758-0 01 1 0710-
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98046-241-0 01 1 0710-
11 03.342 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0710-0805
11 03.342 NUT; TURBOCHARGER
03.604 M10 FLANGE 		8-97381-617-0 04 1 0806-
12 03.342 STUD; TURBOCHARGER
M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0710-0805
12 03.342 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 02 1 0806-
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X49 L=63 		8-97019-478-0 03 1 0710-
16 03.609 ADAPTER; EXH PIPE 8-98030-080-3 01 1 0710-
19 03.342 NUT; EXH PIPE,TURBOCHARGER
03.604 M8 FLANGE 		8-94170-486-0 03 1 0710-
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 0710-
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0710-
101 03.602 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0710-
112 03.417 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0710-
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98085-187-0 01 1 0710-
116 03.342 BOLT; WATER PIPE
02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
116 03.342 BOLT; WATER PIPE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0710-
116 03.342 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0710-0804
116 03.342 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805-
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2 		9-09571-412-0 04 1 0710-
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20 		1-09707-084-1 06 1 0710-
118 03.342 CLIP; WATER HOSE
03.162 (A) ID=15.5 		8-94221-519-0 02 1 0710-
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0710-
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0710-1006
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30 		8-94394-671-0 01 1 1007-
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-97386-642-1 01 1 0710-1006
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-661-0 01 1 1007-
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0710-
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 0710-
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0710-
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0710-
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0710-
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0710-
288 03.342 BOLT; WATER PIPE CLIP
03.407 (B) M8X10 FLANGE 		0-28050-810-0 01 1 0710-
288 03.342 BOLT; WATER PIPE CLIP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
391 03.342 BRACKET; WATER PIPE
(A) 		8-97371-730-0 01 1 0710-
391 03.342 BRACKET; WATER PIPE
(B) 		8-98013-958-0 01 1 0710-
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
03.417 		8-98052-394-0 01 1 0710-
485 01.097 PIPE; WATER EGR
(A) 		8-98032-267-0 01 1 0710-
485 01.097 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0710-
532 03.407 WASHER; TURBOCHARGER
03.613 ID=10 		1-09503-033-1 04 1 0710-0805

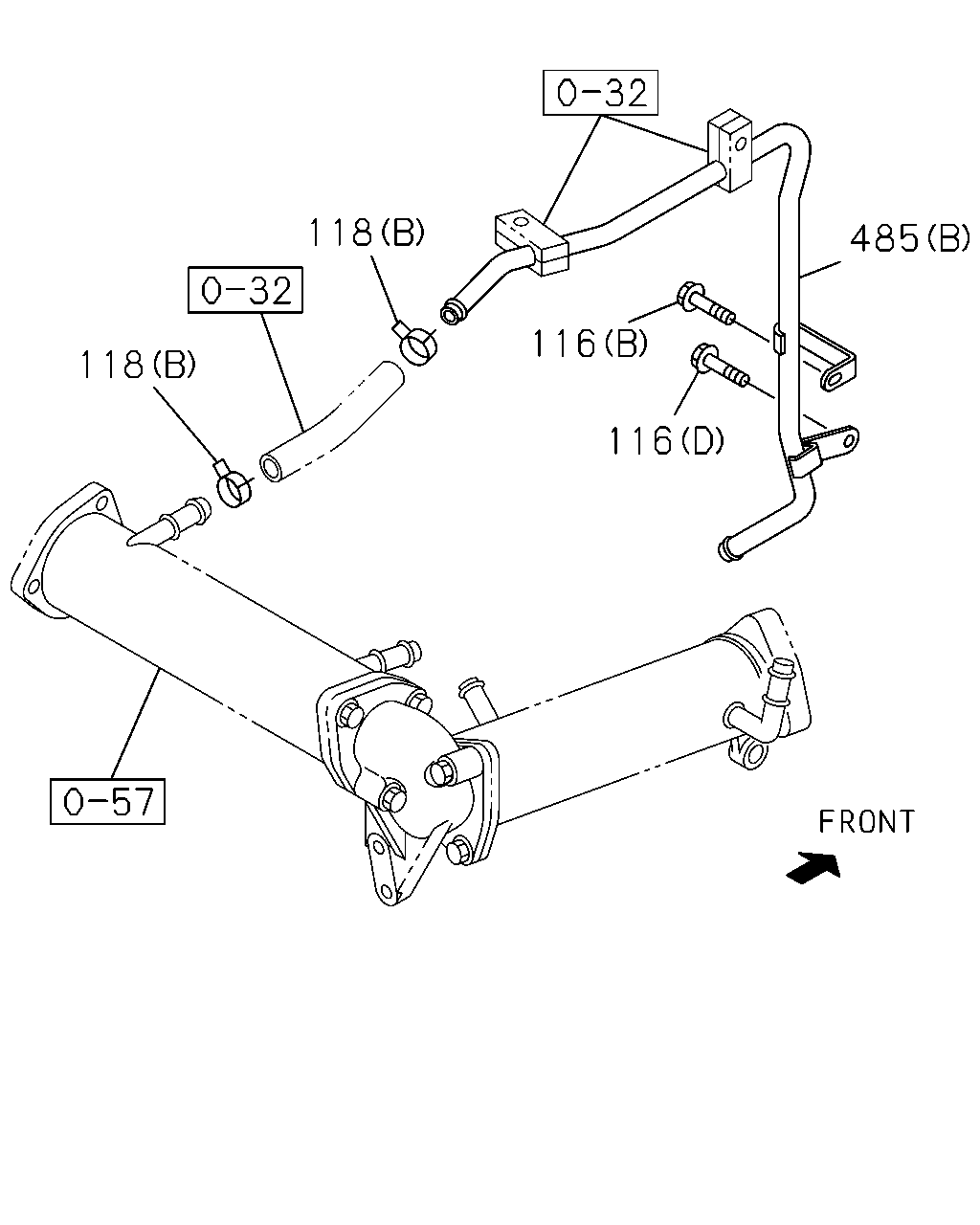

çizim 100423
118 485 116 118 116
BalonParca AdiParca NoAdetTipApplied Date
116 03.342 BOLT; WATER PIPE
02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
116 03.342 BOLT; WATER PIPE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0710-
116 03.342 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0710-0804
116 03.342 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805-
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20 		1-09707-084-1 06 1 0710-
118 03.342 CLIP; WATER HOSE
03.162 (A) ID=15.5 		8-94221-519-0 02 1 0710-
485 01.097 PIPE; WATER EGR
(A) 		8-98032-267-0 01 1 0710-
485 01.097 PIPE; WATER EGR
(B) 		8-98041-637-1 01 1 0710-
