Isuzu WW
▶
TRUCKS
▶
NPS
▶
51410 - NPS(AUST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#33338) — 29 parça
◀

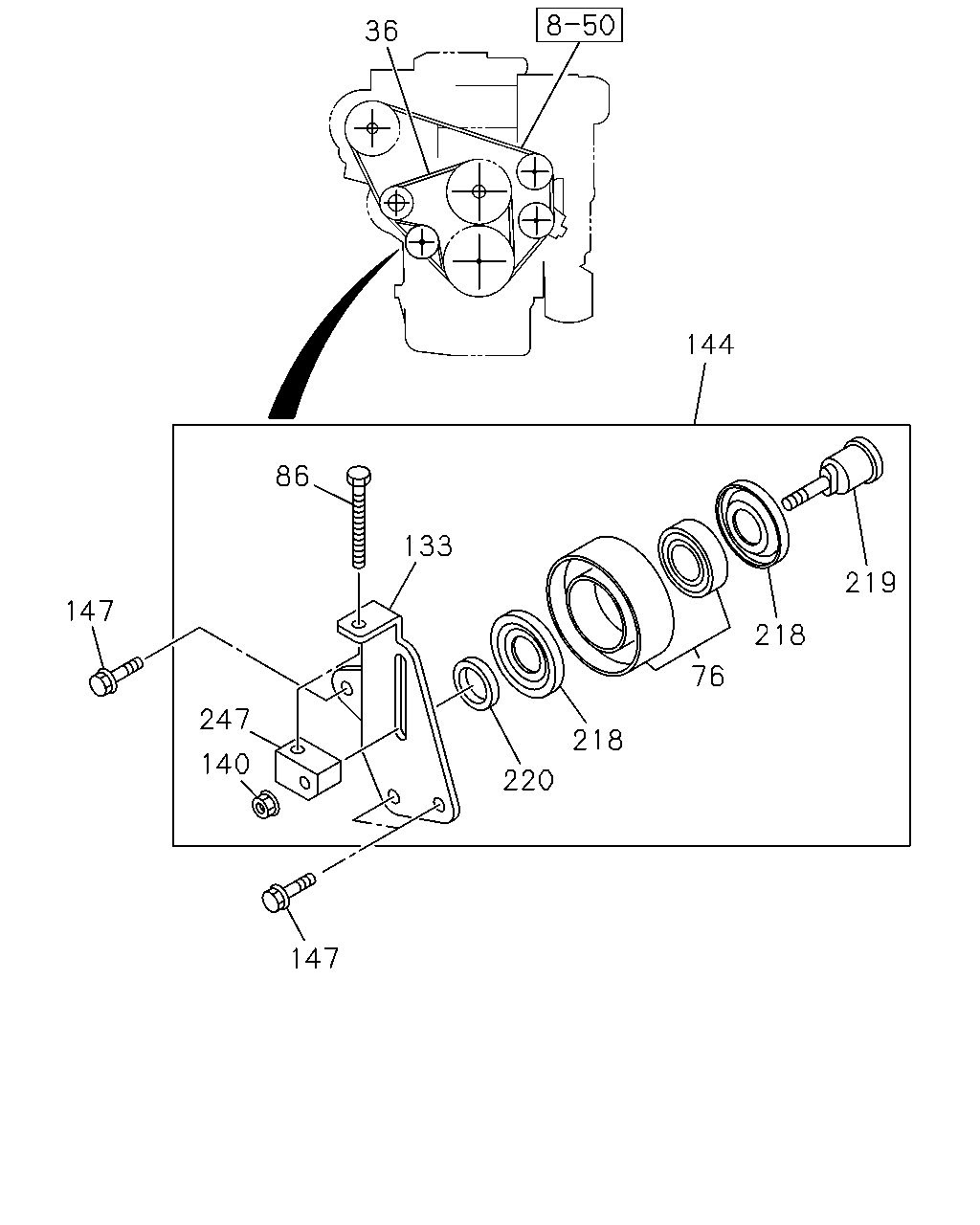

[033A] DRIVE BELT TENSIONER (12 parça)
[033A] COOLING FAN AND ADJ PLATE (17 parça)
▶
36
144
86
133
219
147
218
76
247
218
140
220
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121
8-98038-423-0
01
1
0710-
36
01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046
8-98003-187-0
01
1
0710-
76
00.724 PULLEY ASM; IDLE
GENERATOR 24V80A(7YN) 09.180
8-98073-261-0
01
1
0710-
86
01.073 BOLT; ADJ
GENERATOR 24V80A(7YN) 09.181 M8X84
8-98073-285-0
01
1
0710-
133
01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.180
8-98054-653-0
01
1
0710-
140
01.060 NUT; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181 M10
8-97377-331-0
01
1
0710-
144
01.060 TENSIONER; DRIVE BELT
GENERATOR 24V80A(7YN) 09.180 1-GROOVE
8-98031-811-1
01
1
0710-
147
01.060 BOLT; BELT TENSIONER
GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE
0-28151-020-0
03
1
0710-
218
01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181
8-98054-654-0
02
1
0710-
219
01.064 SHAFT; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181
8-98073-274-0
01
1
0710-
220
03.417 COLLAR; IDLE PULLEY
GENERATOR 24V80A(7YN) 09.181
8-98073-276-0
01
1
0710-
247
02.317 SLIDER
GENERATOR 24V80A(7YN) 09.181
8-98073-281-0
01
1
0710-
8
1
109
230
24
26
36
13
38
1
81
80
182
80
73
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.064 FAN; COOLING
OD=510
8-98003-191-0
01
1
0710-1108
1
01.064 FAN; COOLING
OD=510
8-98190-148-1
01
1
1109-
8
01.064 CLUTCH; COOLING FAN
8-98019-743-0
01
1
0710-
13
01.062 NUT; COOLING FAN
M8 FLANGE
0-91180-108-0
04
1
0710-
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
0710-
26
01.062 BOLT; FAN TO CLU
8-94389-764-0
04
1
0710-
36
01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121
8-98038-423-0
01
1
0710-
36
01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046
8-98003-187-0
01
1
0710-
38
01.062 SPACER; FAN
8-97108-643-0
01
1
0710-
73
02.277 BOLT; GEN TO ADJ PLATE
GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE
0-28650-835-0
01
1
0710-
80
02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) (B)
8-98035-085-0
01
1
0710-
80
02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 (A)
8-98036-550-1
01
1
0710-
81
02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN)
8-98075-762-0
01
1
0710-
109
01.062 STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
0710-
182
01.062 BOLT; BRKT
01.060 M8X35 FLANGE
0-28650-835-0
02
1
0710-
230
01.055 FAN; COOLING
8-97367-381-0
01
1
0710-1108
230
01.055 FAN; COOLING
8-98190-058-0
01
1
1109-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
