◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51410 - NPS(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#33337) — 13 parça

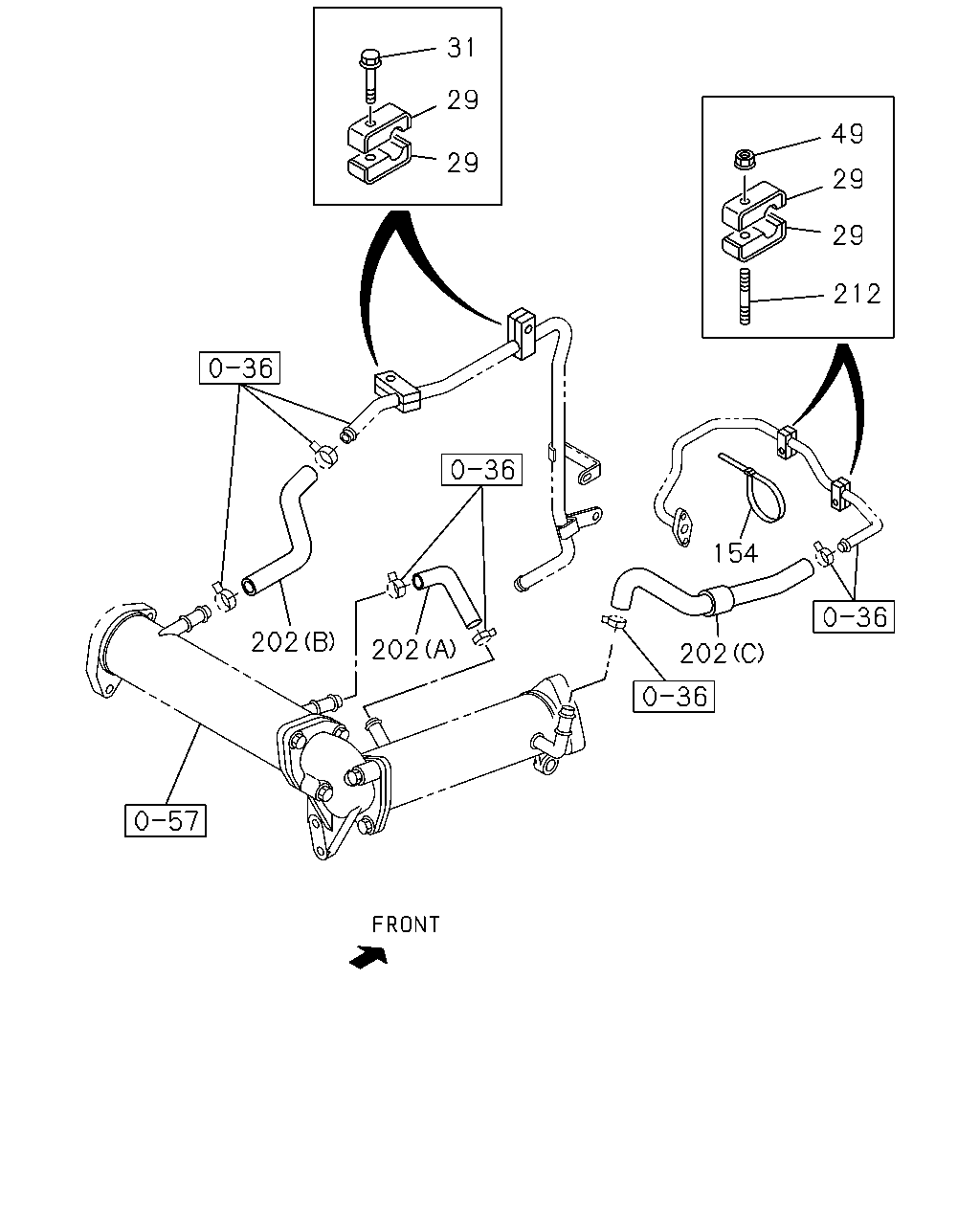

çizim 100356
31 29 49 29 29 29 212 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date
29 01.166 CLIP; PIPE 1-09701-284-0 08 1 0710-
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0710-
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-
154 01.153 CLIP; WATER HOSE
02.559 L=170.3 		1-09987-182-0 01 1 0710-
202 01.240 HOSE; RUBBER,EGR COOLER
(A) 		8-97386-585-0 01 1 0710-
202 01.240 HOSE; RUBBER,EGR COOLER
(B) 		8-97386-586-1 01 1 0710-
202 01.240 HOSE; RUBBER,EGR COOLER
(C) 		8-98032-268-0 01 1 0710-
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0710-

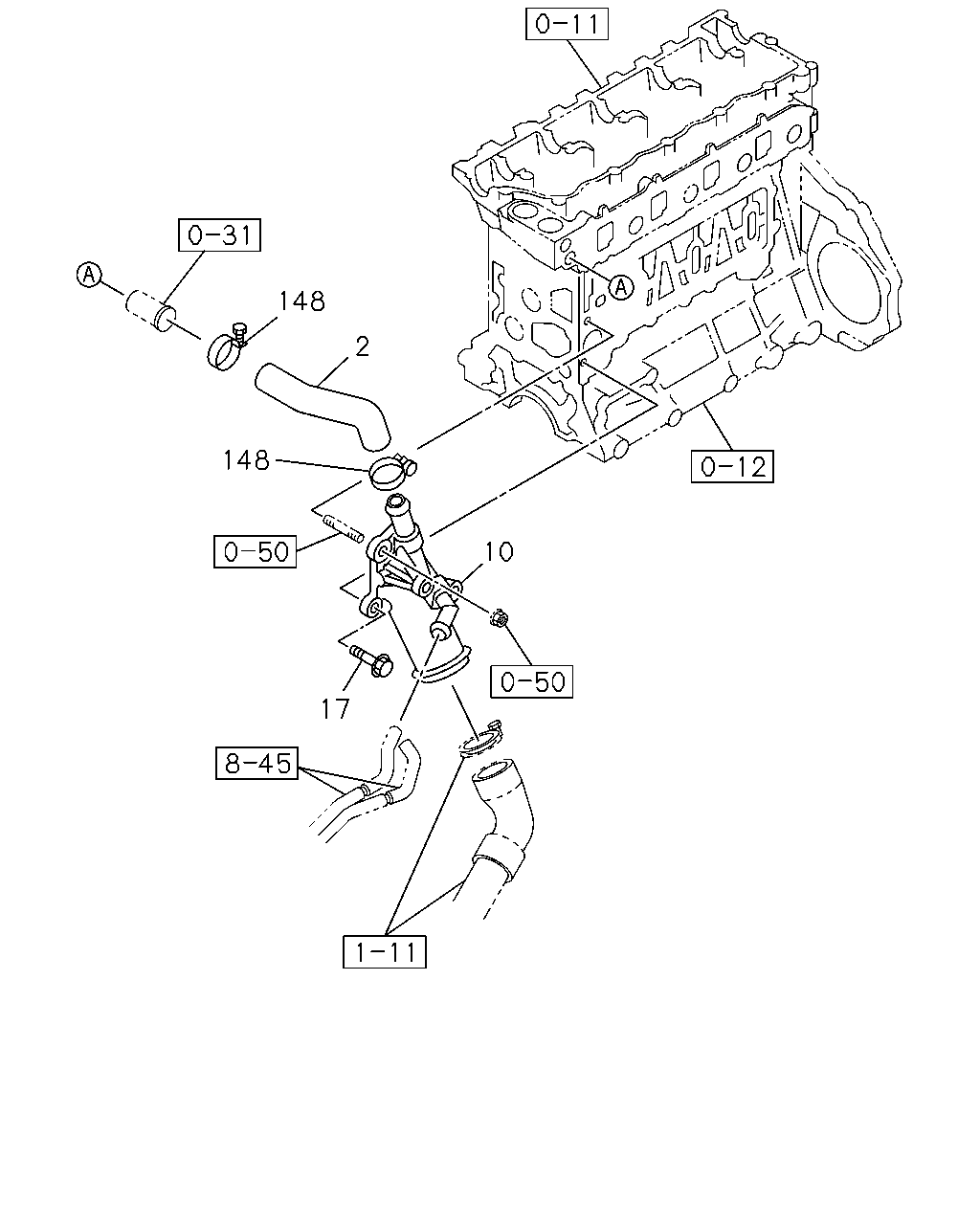

çizim 100420
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 0710-
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0710-1010
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011-
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0710-
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0710-
