Sayfa 1-50B - Isuzu EPC

1-50B — EXHAUST PIPE AND SILENCER (#3333) — 510 parça

197 421 424 42 41 423 420 147 149 422 420 425 197 421 427 429 427 34 36 475 476 475 476 1 343 342 21 26 17 20 1 17 26 36 34 476 475 475 476 342 1 343 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (L)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (L)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-541-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9111-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9111-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-925-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-924-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-088-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-090-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-089-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-091-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-1	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9307-	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9307-9509	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-545-2	01	1	9307-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9307-9509	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-543-1	01	1	9307-	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9002-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9306	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9307-	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	08	1	9002-9306	●
36	NUT; EXH PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE H=7 M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9307-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22151-408-5	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22151-582-2	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22151-518-4	01	1	9002-	●
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-405-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-409-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-405-2	01	1	9307-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-409-2	01	1	9307-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-593-0	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-594-0	01	1	9002-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9509	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	08	1	9510-	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	08	1	9002-9304	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9305-9306	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9304	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9305-9306	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9307-9509	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	9510-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25	9-01911-225-0	04	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35	9-01911-235-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	9-91056-250-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	0-10806-250-0	03	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45	9-01911-245-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-	●
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-	●
425	WASHER; LK,BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> ID=12.2	9-09150-512-0	03	1	9002-	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-	●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	02	1	9012-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9111-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9509	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9510-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9012-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9111-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9307-9509	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9510-	●	●

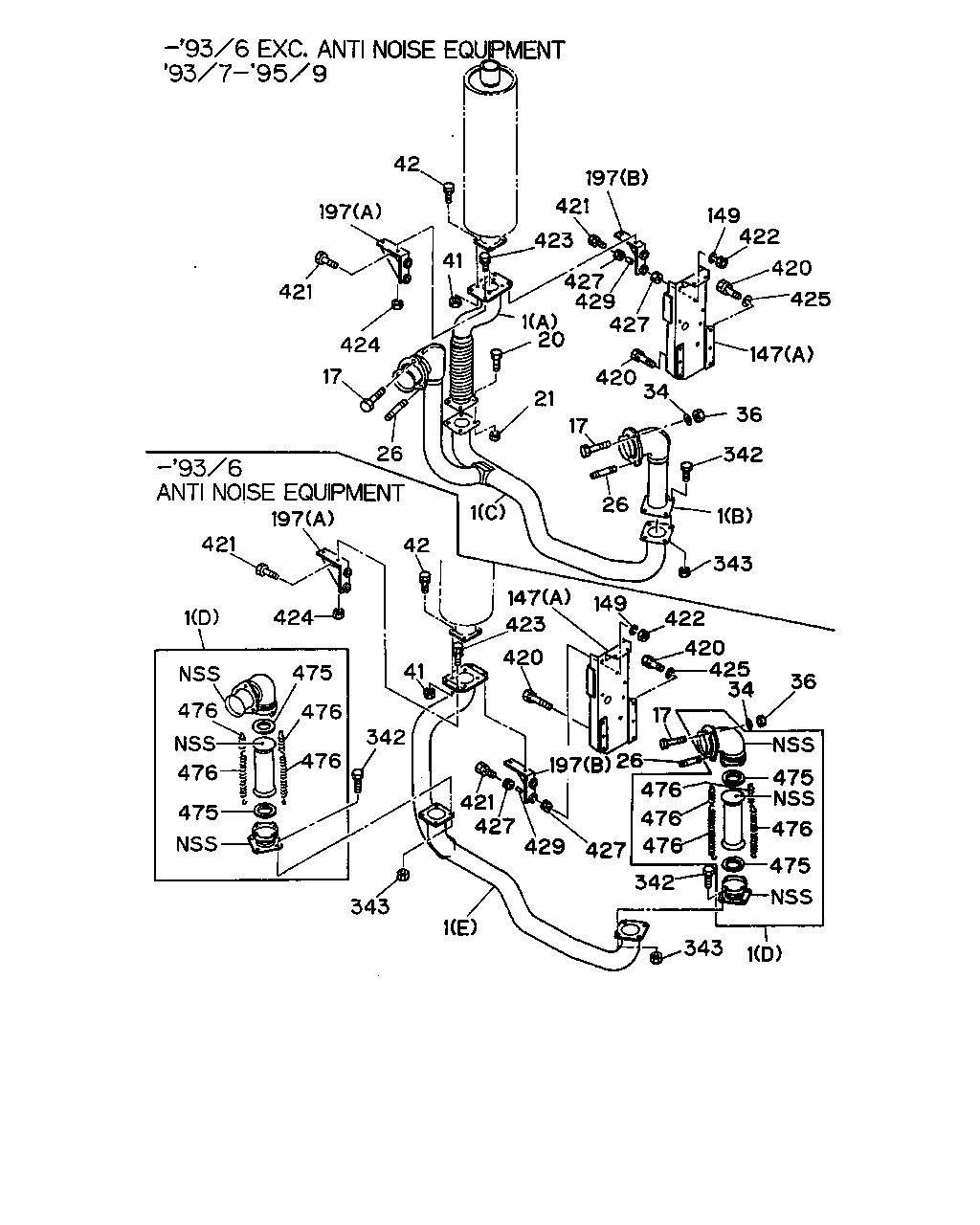

343 26 1 342 36 147 425 420 422 149 197 421 423 429 427 427 420 1 34 21 20 17 1 42 26 17 424 421 41 197 42 197 421 424 1 475 41 342 476 476 476 476 475 343 1 147 423 420 149 422 420 425 34 36 17 26 197 421 427 429 427 476 476 476 342 475 476 475 343 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (L)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (L)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-541-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9111-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9111-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-925-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-924-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-088-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-090-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-089-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-091-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-1	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9307-	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9307-9509	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-545-2	01	1	9307-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9307-9509	●	●

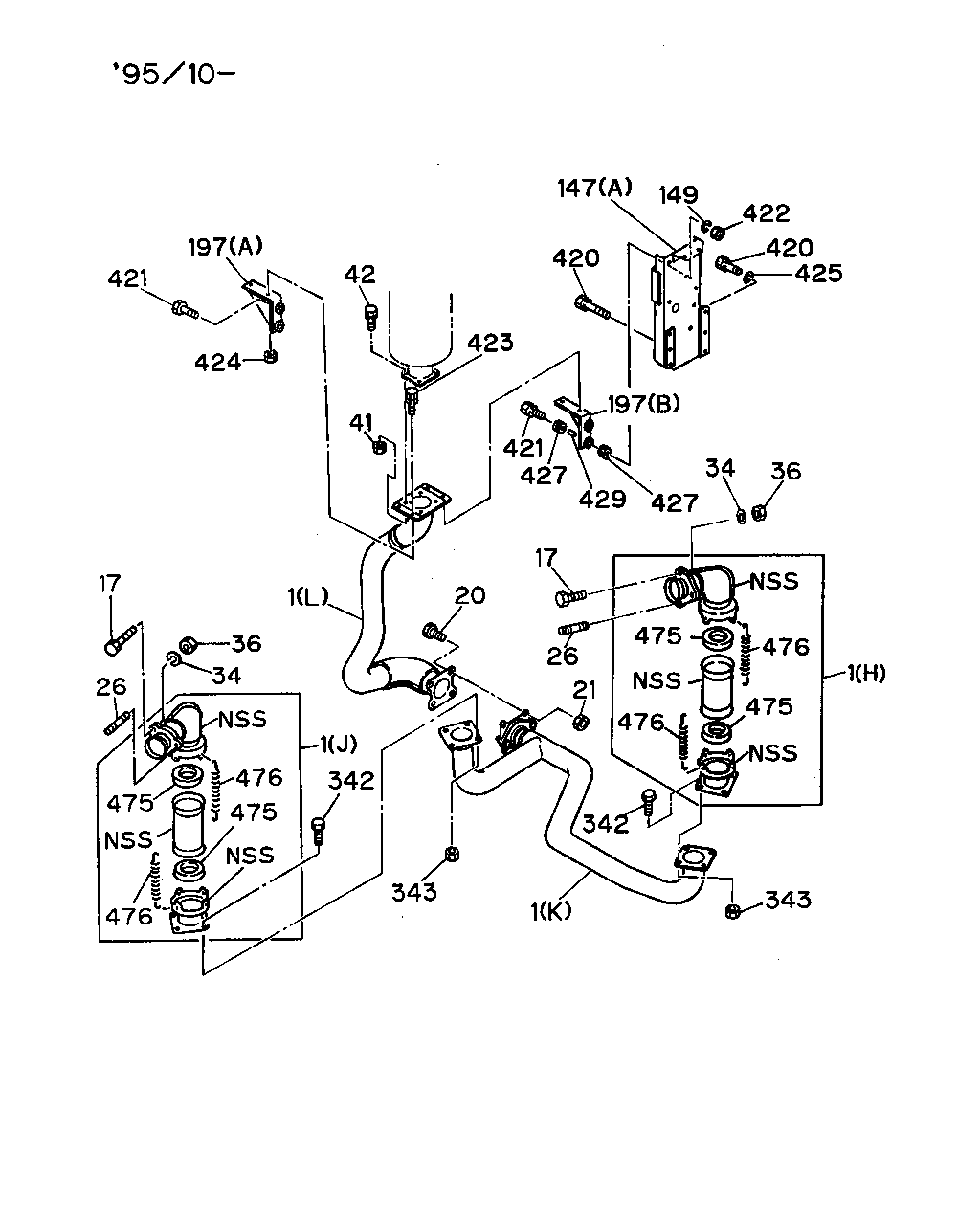

1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-543-1	01	1	9307-	●	●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9002-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9306	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9307-	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	08	1	9002-9306	●
36	NUT; EXH PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE H=7 M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9307-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22151-408-5	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22151-582-2	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22151-518-4	01	1	9002-	●
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-405-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-409-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-405-2	01	1	9307-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-409-2	01	1	9307-	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-593-0	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-594-0	01	1	9002-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9509	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	08	1	9510-	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	08	1	9002-9304	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9305-9306	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9304	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9305-9306	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9307-9509	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	9510-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25	9-01911-225-0	04	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35	9-01911-235-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	9-91056-250-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	0-10806-250-0	03	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45	9-01911-245-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-	●
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-	●
425	WASHER; LK,BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> ID=12.2	9-09150-512-0	03	1	9002-	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-	●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	02	1	9012-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9111-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9509	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9510-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9012-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9111-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9307-9509	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9510-	●	●

70 76 80 94 81 56 76 72 81 168 125 70 126 222 126 126 76 24 59 76 94 89 105 72 116 105 120 75 70 72 75 24 59 116 12 42 41 476 475 1 17 36 476 475 1 1 17 1 17 26 36 34 476 475 36 475 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (L)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (L)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-541-2	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9111-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9111-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-925-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-924-1	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-088-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-090-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-089-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-091-0	01	1	9002-9306	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-1	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9307-	●
1	PIPE; EXH LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9002-9306	●
1	PIPE; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9307-	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9307-9509	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-545-2	01	1	9307-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9307-9509	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-543-1	01	1	9307-	●	●

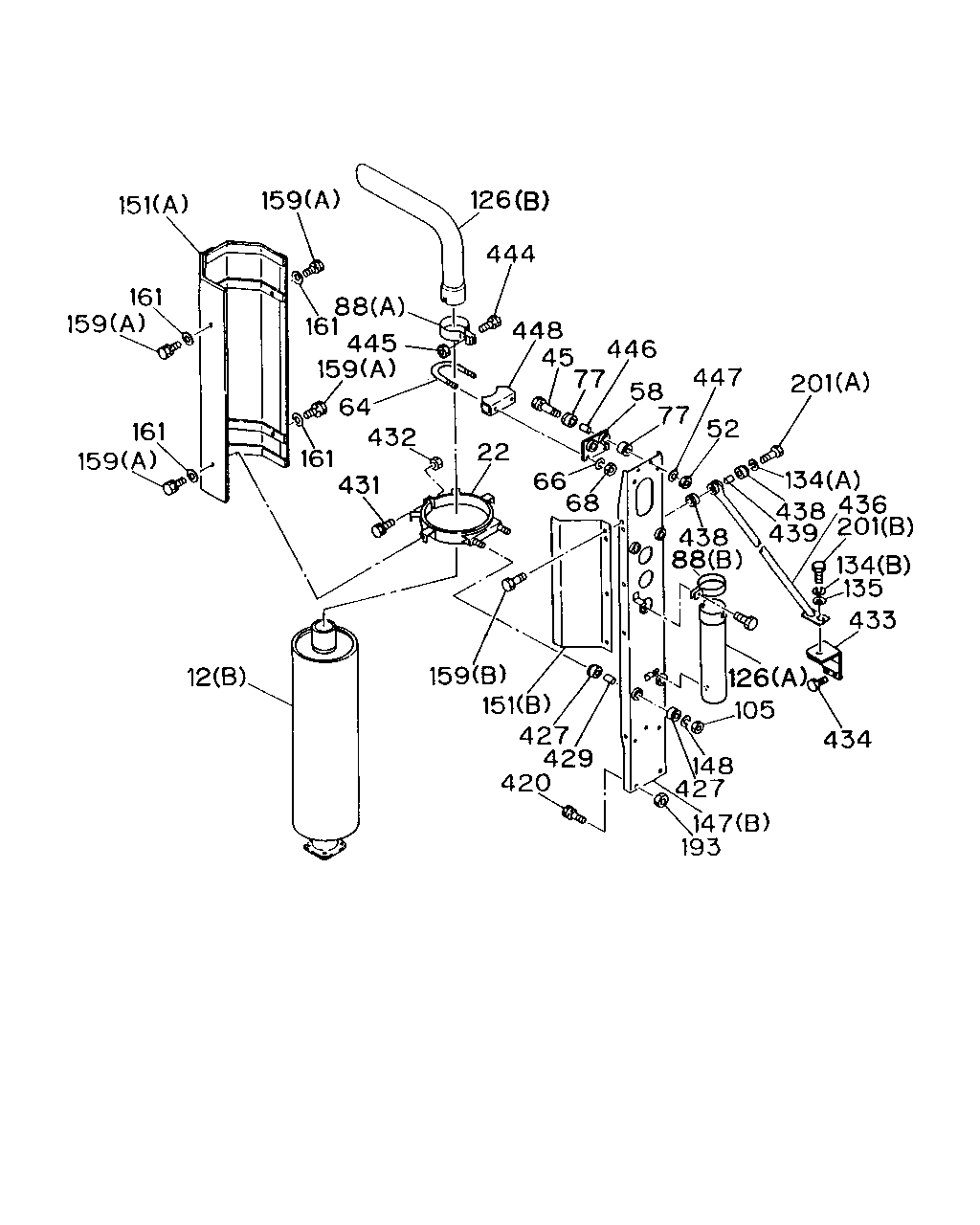

12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-1	01	1	9002-9103	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-22140-669-1	01	1	9307-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-708-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-22140-596-1	01	1	9307-	●
12	SILENCER ASM; EXH (A)	1-22140-729-0	01	1	9307-		●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	02	1	9002-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	08	1	9002-9306	●
36	NUT; EXH PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE H=7 M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9307-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-9306	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
56	BRACKET; CLAMP,EXH PIPE LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> L=217	1-22131-126-2	01	1	9002-9306	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(CX***C) L=217	1-22131-126-2	01	1	9002-9306	●
56	BRACKET; CLAMP,EXH PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9307-	●
56	BRACKET; CLAMP,EXH PIPE LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> L=227	1-22131-535-0	01	1	9002-9306	●
56	BRACKET; CLAMP,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-252-2	01	1	9307-	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-443-1	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-443-1	01	1	9307-		●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CX***C) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-616-0	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-539-1	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-539-1	01	1	9307-		●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-336-1	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-335-2	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-331-3	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-394-0	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-394-0	01	1	9307-	●
70	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●	●
70	BOLT; BRKT CXZ(CXZ***) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	9-01056-060-0	02	1	9002-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	9-01056-060-0	02	1	9002-9004		●
70	BOLT; BRKT CXZ(CXZ***) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	0-10806-060-0	02	1	9005-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	0-10806-060-0	02	1	9005-		●
70	BOLT; BRKT CXM(CXM***) (A) M10X55	0-10806-055-0	02	1	9002-	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	01	1	9002-	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	04	1	9002-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9307-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	02	1	9002-9306	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	02	1	9307-	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306	●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9410	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-	●	●
81	NUT; BRKT CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9002-9306	●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9307-	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-216-0	01	1	9002-9306	●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-172-2	01	1	9307-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
116	BOLT; BRKT CXZ(CXZ***) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X60	9-01056-060-0	02	1	9003-9004	●
116	BOLT; BRKT CXZ(CXZ***) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X60	0-10806-060-0	02	1	9005-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X60	0-10806-060-0	02	1	9005-		●
116	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10X55	0-10806-055-0	02	1	9002-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X75	9-01056-075-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X75	0-10806-075-0	02	1	9005-	●	●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	02	1	9002-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-639-1	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9307-	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXM(CXM***) (C)	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9307-9509	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (A)	1-22112-265-1	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-640-1	01	1	9002-9306	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-163-0	01	1	9510-	●
126	PIPE; EXH,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-163-0	01	1	9510-		●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-065-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXM(CXM***) (E)	1-22126-016-0	01	1	9307-9509	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-016-0	01	1	9307-9509	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-016-0	01	1	9307-9509		●
126	PIPE; EXH,RR LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28> (E)	1-22126-016-0	01	1	9510-	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E)	1-22126-016-0	01	1	9510-	●
126	PIPE; EXH,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E)	1-22126-016-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT LONG CHASSIS(CX***F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9306	●
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9307-9509	●
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-22131-363-0	01	1	9510-	●
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22131-643-0	01	1	9510-	●
222	CLAMP; EXH PIPE CXM(CXM***) ID=97	1-22133-191-0	01	1	9307-9509	●
222	CLAMP; EXH PIPE SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-191-0	01	1	9307-9509	●
222	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-191-0	01	1	9307-9509		●
222	CLAMP; EXH PIPE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28> ID=97	1-22133-191-0	01	1	9510-	●
222	CLAMP; EXH PIPE SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=97	1-22133-191-0	01	1	9510-	●
222	CLAMP; EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=97	1-22133-191-0	01	1	9510-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	02	1	9012-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9111-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9509	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9510-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9012-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9111-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9307-9509	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9510-	●	●

52 77 201 447 58 77 446 45 448 444 126 159 151 161 159 161 159 431 161 432 64 159 445 161 88 22 68 66 438 88 439 438 134 436 201 135 134 433 434 105 126 148 427 147 193 420 427 429 151 159 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-1	01	1	9002-9103	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-22140-669-1	01	1	9307-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-708-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-22140-596-1	01	1	9307-	●
12	SILENCER ASM; EXH (A)	1-22140-729-0	01	1	9307-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	02	1	9002-9004	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	02	1	9005-	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-169-0	01	1	9002-	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-063-1	01	1	9002-	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9002-	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	04	1	9002-9306	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9307-	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) ID=97	1-22133-043-1	01	1	9307-	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B) ID=97	1-22133-043-1	02	1	9002-9306	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (A) ID=97	1-22133-043-1	01	1	9002-9306	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-639-1	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9307-	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXM(CXM***) (C)	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9307-9509	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-	●
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (A)	1-22112-265-1	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-640-1	01	1	9002-9306	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-163-0	01	1	9510-	●
126	PIPE; EXH,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-163-0	01	1	9510-		●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-065-0	01	1	9002-9306	●
126	PIPE; EXH,RR CXM(CXM***) (E)	1-22126-016-0	01	1	9307-9509	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-016-0	01	1	9307-9509	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22126-016-0	01	1	9307-9509		●
126	PIPE; EXH,RR LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28> (E)	1-22126-016-0	01	1	9510-	●
126	PIPE; EXH,RR SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E)	1-22126-016-0	01	1	9510-	●
126	PIPE; EXH,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E)	1-22126-016-0	01	1	9510-		●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (A) ID=10.2	9-09150-510-0	01	1	9002-	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (B) ID=14.2	9-09150-614-0	01	1	9002-	●
135	WASHER; PL,STAY SILENCER SINGLE VERTICAL<N28> ID=15	9-09160-514-0	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22151-408-5	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22151-582-2	01	1	9002-	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22151-518-4	01	1	9002-	●
148	WASHER; LK,CLAMP SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9002-	●
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9002-	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	9-01056-050-0	01	1	9002-9004	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	0-10806-050-0	01	1	9005-	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	01	1	9002-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25	9-01911-225-0	04	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35	9-01911-235-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	9-91056-250-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	0-10806-250-0	03	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45	9-01911-245-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE CXM(CXM***) SILENCER SINGLE VERTICAL<N28> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-	●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	02	1	9002-9204	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●
432	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-523-1	01	1	9002-	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22151-514-0	01	1	9002-	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	02	1	9002-9306	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9307-	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=23.2	9-22159-009-1	01	1	9002-9109	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9110-9507	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9508-	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	01	1	9002-9204	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10X40	9-01901-040-0	01	1	9002-9204	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M10X40	9-01901-040-0	02	1	9002-9204	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-9306	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9307-	●	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9002-9306	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9002-9306	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9002-	●
447	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9002-	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
