9-01 — TOOLS (#33321) — 23 parça

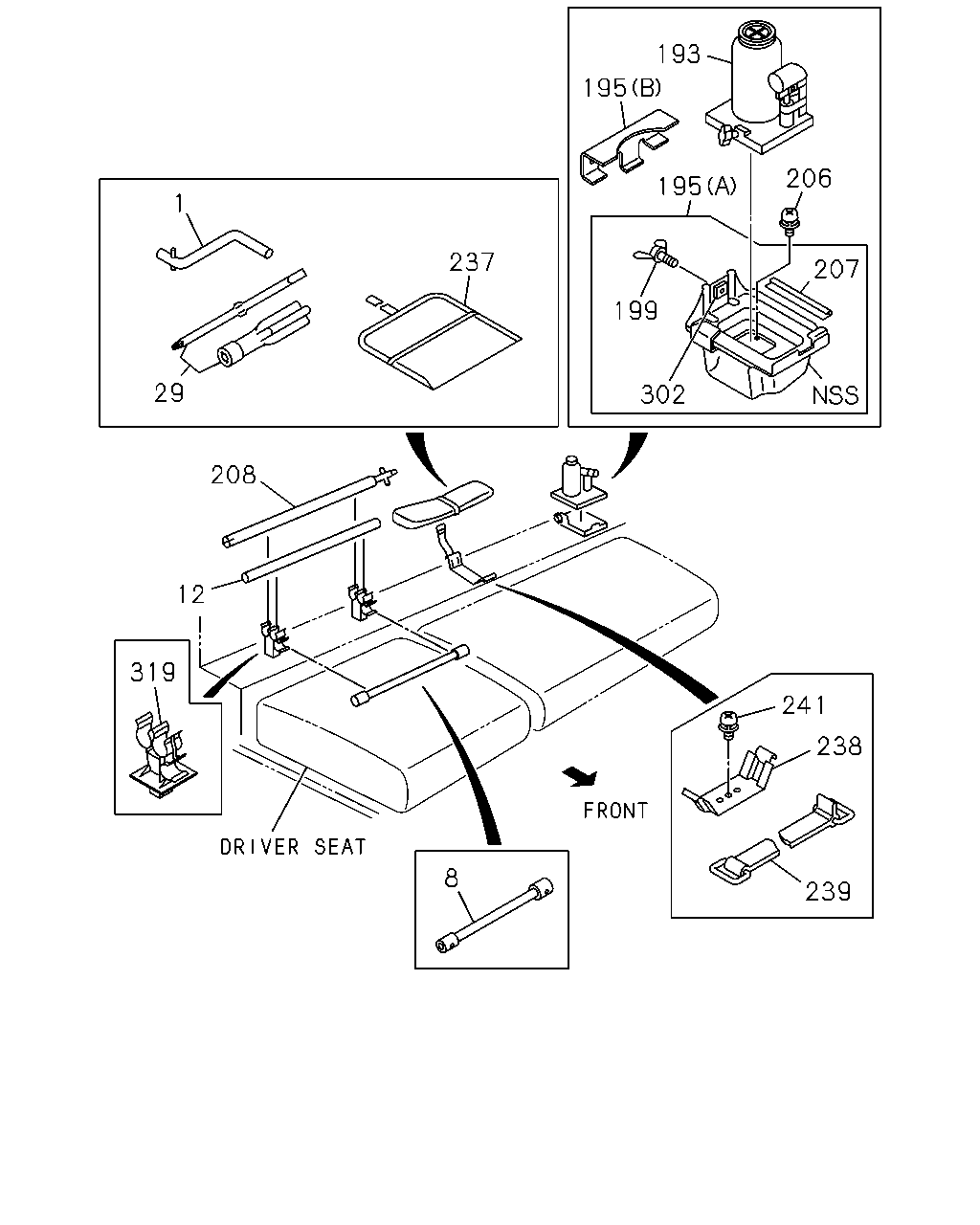

çizim 35055
193 195 206 195 1 237 207 199 29 302 208 12 319 241 238 8 239
BalonParca AdiParca NoAdetTipApplied Date
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0301-
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0301-
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0301-1001
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0301-
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 0301-
195 08.820 BRACKET; JACK
(B) 		8-97866-907-1 01 1 0301-
195 08.820 BRACKET; JACK
(A) 		8-97867-267-3 01 1 0301-
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0301-
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0301-0612
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701-
207 08.820 PROTECTOR; JACK 8-97866-908-2 01 1 0301-
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0301-1108
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109-
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0301-
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0301-
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0301-
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0301-0612
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701-
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0301-
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0301-

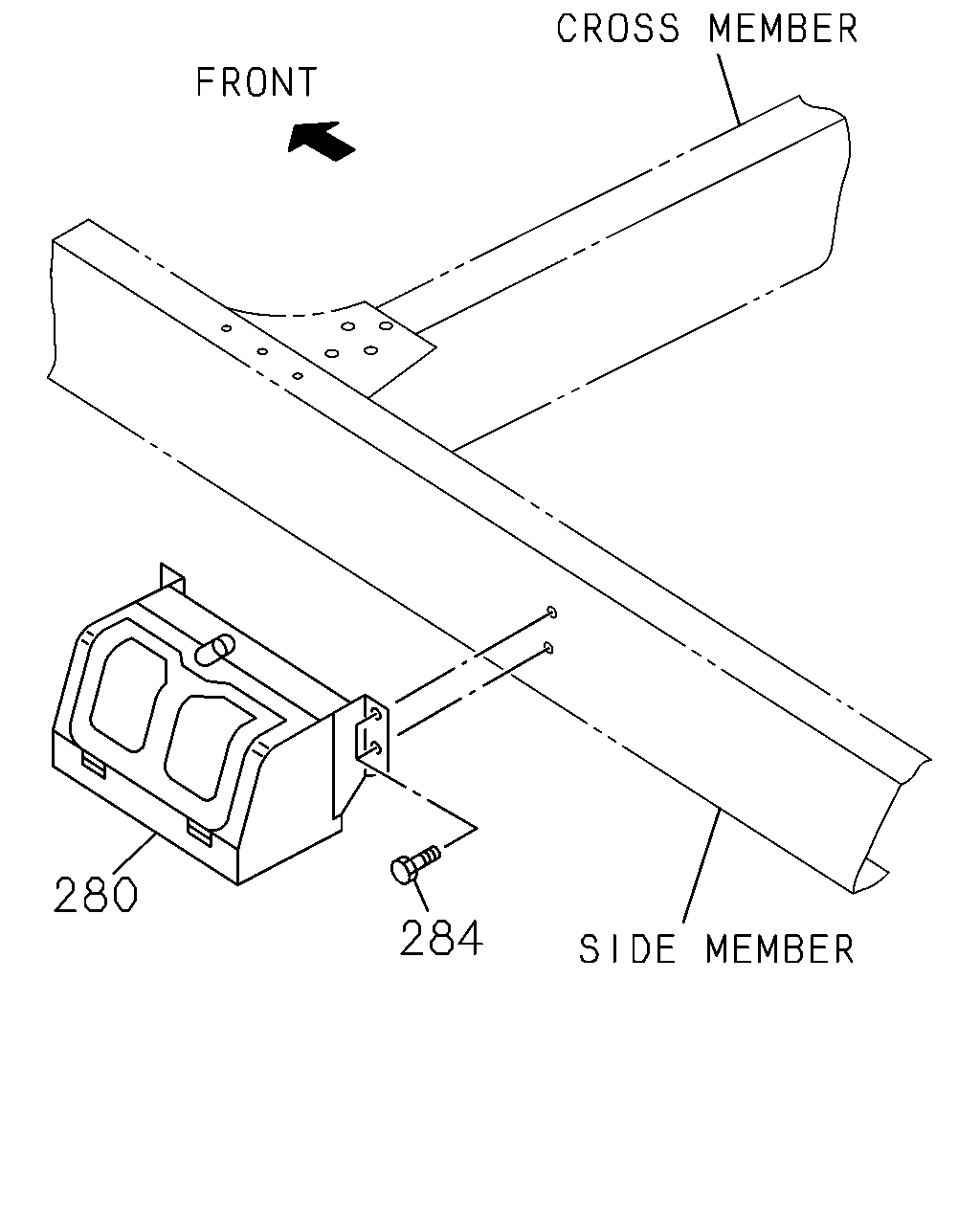

çizim 100004
280 284
BalonParca AdiParca NoAdetTipApplied Date
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0310-0506
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0301-0506
