Sayfa 1-50A - Isuzu EPC

1-50A — EXHAUST PIPE AND SILENCER (#3332) — 205 parça

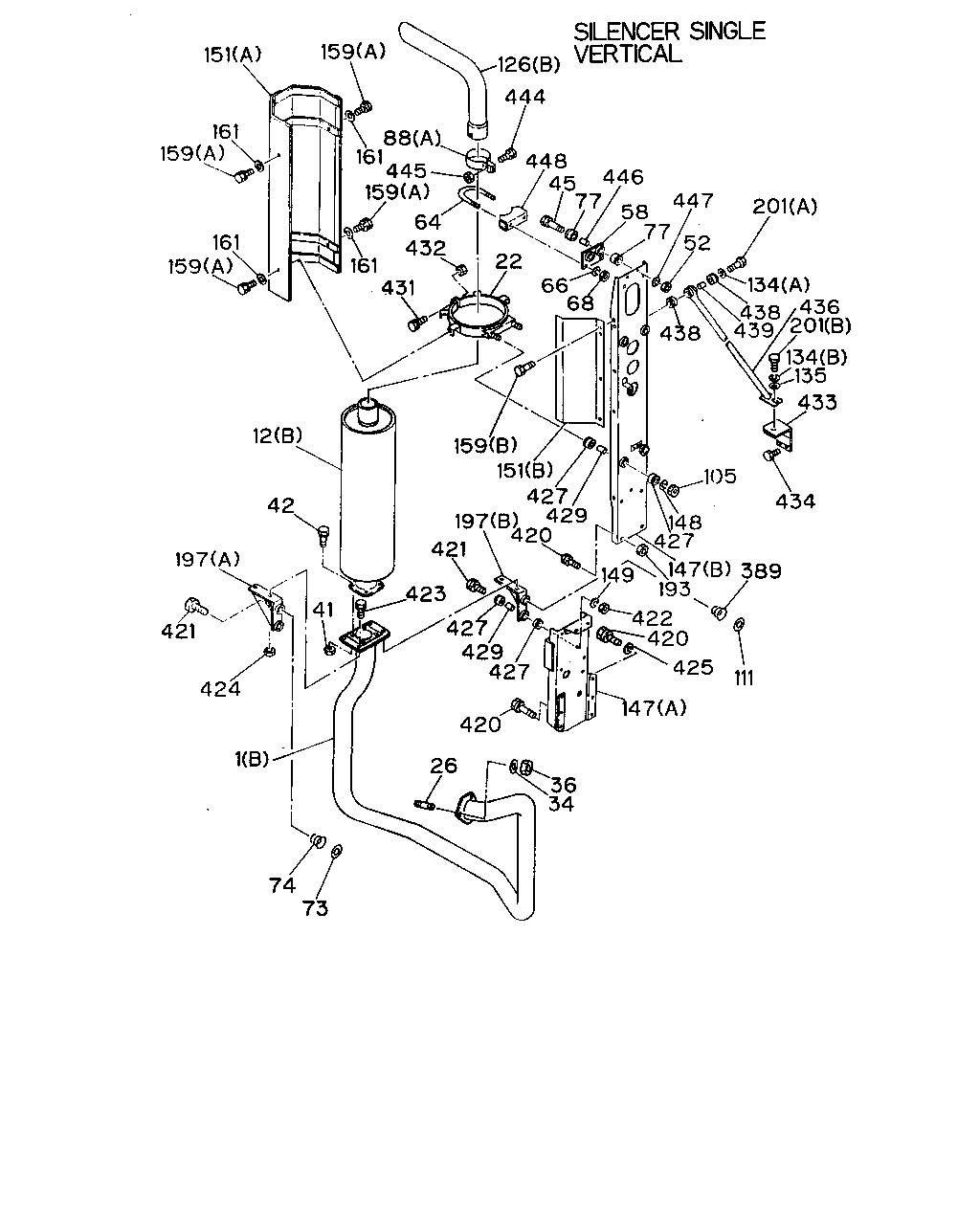

433 135 134 201 439 438 436 134 438 68 66 22 52 77 201 447 58 77 45 446 448 444 126 159 151 161 159 161 159 431 161 432 64 159 445 161 88 159 151 12 42 197 421 41 424 1 74 73 26 36 34 420 427 429 427 423 421 420 197 429 427 147 111 425 389 420 193 422 147 149 148 427 105 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-
1	PIPE; EXH CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-591-2	01	1	9002-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-9306
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9307-
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	02	1	9002-9004
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	02	1	9005-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-169-0	01	1	9002-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-063-1	01	1	9002-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9002-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	04	1	9002-9306
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9307-
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) ID=97	1-22133-043-1	01	1	9307-
88	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5500MM(55W) (B) ID=97	1-22133-191-0	01	1	9303-
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) ID=97	1-22133-043-1	01	1	9002-9306
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-
105	NUT; CLAMP CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9002-
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9002-9306
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9307-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5500MM(55W) (A)	1-22122-098-1	01	1	9002-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) (C)	1-22122-097-0	01	1	9002-9306
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9307-9509
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (A) ID=10.2	9-09150-510-0	01	1	9002-
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (B) ID=14.2	9-09150-614-0	01	1	9002-
135	WASHER; PL,STAY SILENCER SINGLE VERTICAL<N28> ID=15	9-09160-514-0	01	1	9002-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22151-408-5	01	1	9002-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A)	1-22151-582-2	01	1	9002-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A)	1-22151-518-4	01	1	9002-
148	WASHER; LK,CLAMP SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9002-
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9002-
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-405-2	01	1	9002-9306
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-409-2	01	1	9002-9306
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-405-2	01	1	9307-
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-409-2	01	1	9307-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	9-01056-050-0	01	1	9002-9004
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	0-10806-050-0	01	1	9005-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	01	1	9002-
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9002-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25	9-01911-225-0	04	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35	9-01911-235-0	03	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	9-91056-250-0	03	1	9002-9005
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X50	0-10806-250-0	03	1	9006-
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-
425	WASHER; LK,BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> ID=12.2	9-09150-512-0	03	1	9002-
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	02	1	9002-9204
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-
432	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-523-1	01	1	9002-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22151-514-0	01	1	9002-
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	02	1	9002-9306
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9307-
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=23.2	9-22159-009-1	01	1	9002-9109
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9110-9507
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9508-
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9307-
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9002-9306
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9002-
447	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9002-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-

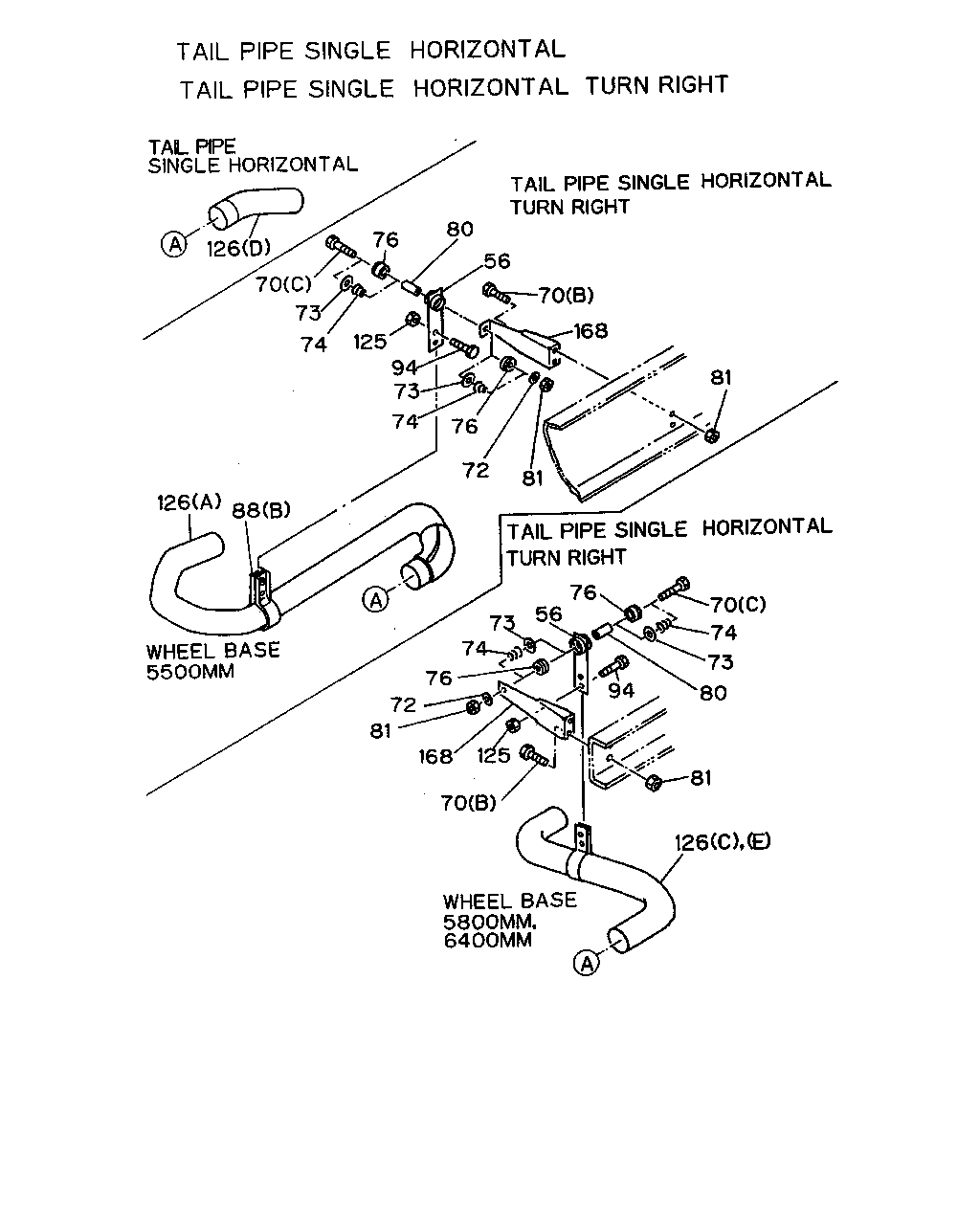

81 168 70 56 80 76 81 72 76 74 73 94 125 74 73 70 126 126 88 76 56 73 74 76 72 81 70 74 73 80 94 81 126 125 168 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9002-9306
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9307-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	9-01056-060-0	02	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	0-10806-060-0	02	1	9005-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	01	1	9002-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	04	1	9002-
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	02	1	9002-9306
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	02	1	9307-
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9410
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) ID=97	1-22133-043-1	01	1	9307-
88	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5500MM(55W) (B) ID=97	1-22133-191-0	01	1	9303-
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) ID=97	1-22133-043-1	01	1	9002-9306
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-
94	BOLT; CLAMP CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9002-9306
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	1-22112-639-1	01	1	9307-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5500MM(55W) (A)	1-22122-098-1	01	1	9002-
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) (C)	1-22122-097-0	01	1	9002-9306
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22122-097-0	01	1	9307-9509
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-22122-097-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-
126	PIPE; EXH,RR CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22126-165-0	01	1	9510-
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> WHEEL BASE 5500MM(55W) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-22131-364-0	01	1	9002-
168	BRACKET; EXH PIPE,FRT SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9306
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9306
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9307-9509
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-22131-363-0	01	1	9510-
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>,CHIN A EQUIPMENT(YT2)	1-22131-363-0	01	1	9510-
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22131-643-0	01	1	9510-
168	BRACKET; EXH PIPE,FRT CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22131-643-0	01	1	9510-

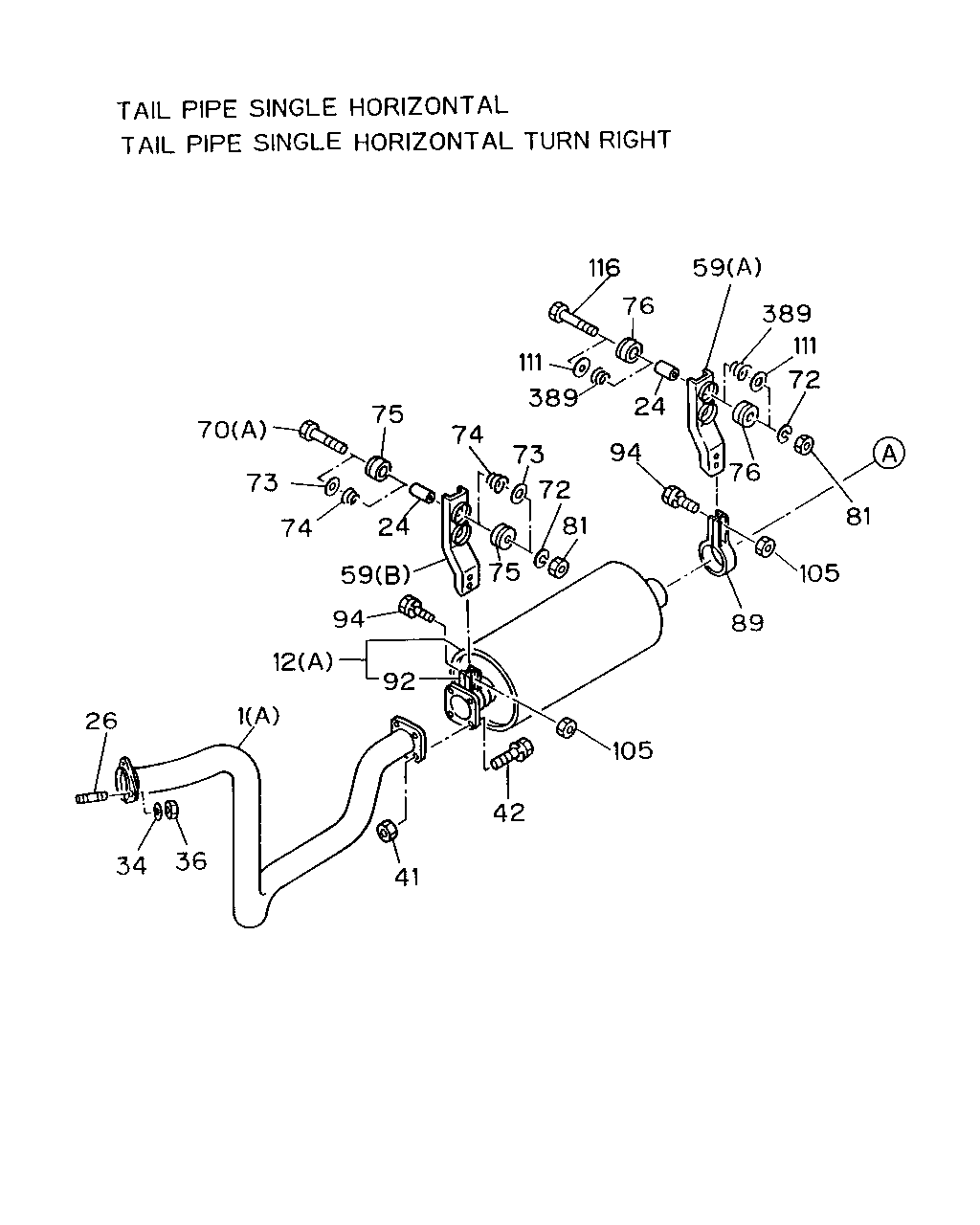

89 105 81 76 72 111 389 59 116 76 111 24 389 94 81 72 73 74 75 70 73 24 74 59 94 75 92 12 1 26 36 34 41 42 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-
1	PIPE; EXH SHORT CHASSIS(CX***C) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-
1	PIPE; EXH CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-591-2	01	1	9002-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-9306
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9307-
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9002-9306
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=299	1-22151-414-1	01	1	9002-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	9-01056-060-0	02	1	9002-9004
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X60	0-10806-060-0	02	1	9005-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	01	1	9002-
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	04	1	9002-
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9307-
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	02	1	9002-9306
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	02	1	9307-
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9410
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9002-9306
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9307-
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=83	1-22133-213-0	01	1	9002-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-
94	BOLT; CLAMP CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-
105	NUT; CLAMP CXZ&LONG CHASISS(CXZ**F) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9002-
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X60	9-01056-060-0	02	1	9003-9004
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X60	0-10806-060-0	02	1	9005-
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
