Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

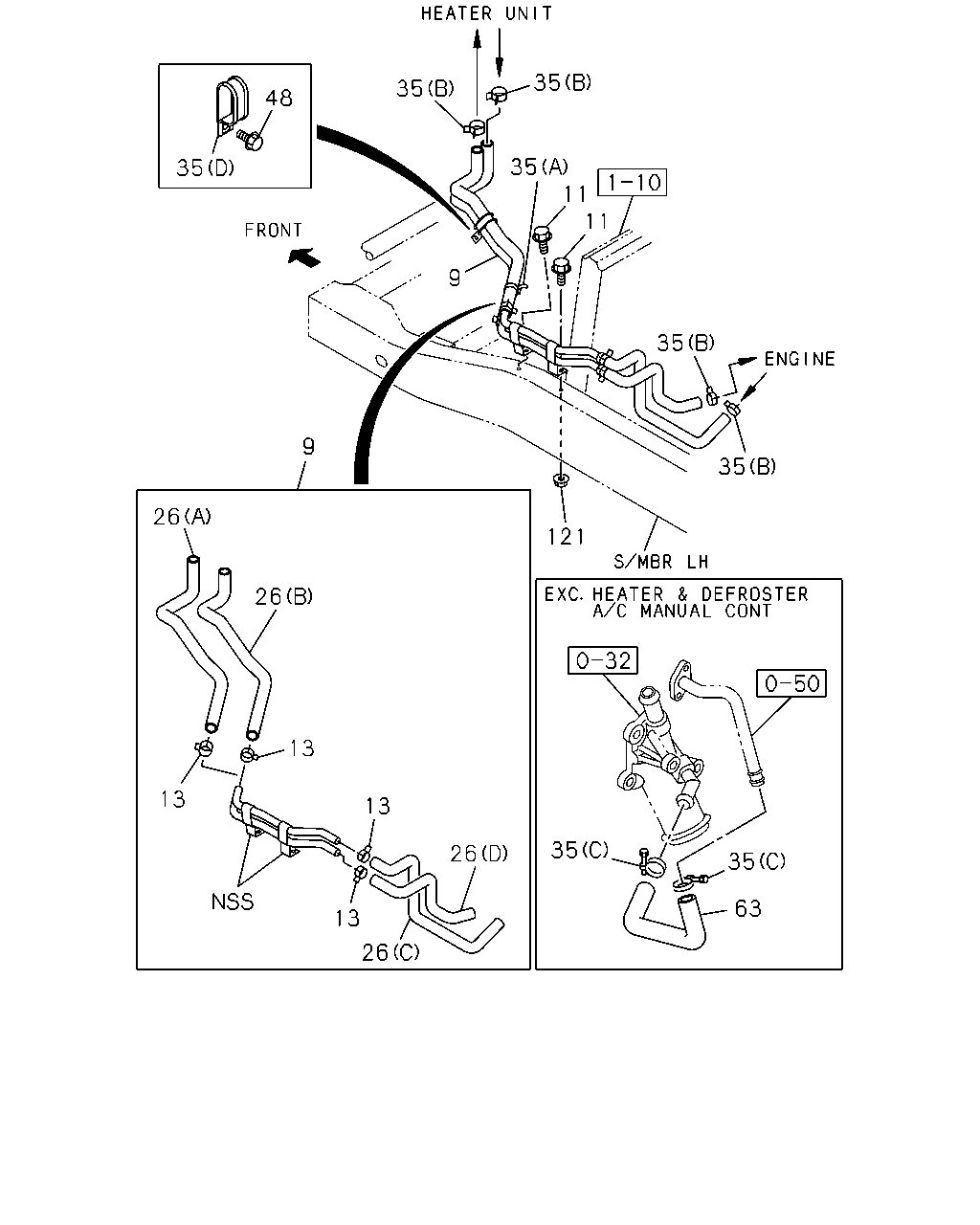

8-45 — HEATER PIPING
(#33313) — 20 parça
35
35
48
35
11
11
35
9
35
9
35
26
121
26
13
13
13
35
26
35
63
13
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
HEATER & DEFROSTER(C41)
8-97330-200-1
01
1
0301-
11
08.845 BOLT; HTR PIPE
HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE
0-28680-825-0
02
1
0301-0512
11
08.845 BOLT; HTR PIPE
HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE
0-28650-825-0
02
1
0601-
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-94382-401-0
04
1
0301-
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (A)
8-97356-195-0
01
1
0301-
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (B)
8-97356-196-0
01
1
0301-
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (C)
8-97356-197-0
01
1
0301-
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (D)
8-97356-198-0
01
1
0301-
35
08.852 CLIP; WATER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=25
8-94233-115-0
02
1
0508-
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 02.559 (A) L=250
5-09707-030-1
01
1
0301-
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22
8-94382-401-0
04
1
0301-0501
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18
9-83651-948-1
01
1
0502-0610
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18
8-97359-144-0
01
1
0611-
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18
9-83651-948-1
01
1
0301-0501
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22
8-94382-401-0
04
1
0502-0610
35
08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22
8-97359-141-0
04
1
0611-
48
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE
0-28080-612-0
01
1
0301-0512
48
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE
0-28050-612-0
01
1
0601-
63
08.846 HOSE; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540
8-94134-250-1
01
1
0508-
121
08.845 NUT; PIPE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE
0-91150-208-0
01
1
0301-0301
