Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#33307) — 266 parça

16 22 16 102 220 483 16 22 488 22 102 16 205 142 14 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0301-
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	06	1	0503-0504
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	05	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	06	1	1010-
16	02.559 CLIP; HARNESS (I) L=135	1-09987-143-1	02	1	0301-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0301-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0301-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0301-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0301-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0301-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	1010-
22	02.559 CLIP; ENG HARNESS 03.680 (D) L=350	8-97373-487-0	01	1	0502-0502
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0502-0502
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0502-
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0502-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0502-
22	02.559 CLIP; ENG HARNESS 03.162 (B) L=170	5-09707-054-0	02	1	0502-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	01	1	0301-0305
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (O) L=140	5-09707-031-1	02	1	0301-0504
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 03.162 (R) ID=30 L=56	1-09700-984-0	01	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (I) ID=40 L=90	1-09701-290-0	05	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0505
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (Q) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	04	1	0502-
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	04	1	0303-0303
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	05	1	0303-0309
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0304-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	03	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0310-
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	01	1	0502-0508
102	02.559 CLIP; BAND 03.162 (B) L=170	5-09707-054-0	01	1	0502-
142	02.559 CLIP; HARNESS,ENG (B) L=170.3	1-09987-182-0	01	1	0301-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.483 (A)	8-97101-436-0	01	1	0301-0501
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0301-
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) 03.162 L=140	5-09707-031-1	01	1	0301-0501
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	02	1	0301-0501
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0301-

48 48 16 264 48 264 48 48 48 48 142 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	06	1	0503-0504
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	05	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	06	1	1010-
16	02.559 CLIP; HARNESS (I) L=135	1-09987-143-1	02	1	0301-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0301-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0301-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0301-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0301-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0301-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	1010-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	01	1	0301-0305
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (O) L=140	5-09707-031-1	02	1	0301-0504
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 03.162 (R) ID=30 L=56	1-09700-984-0	01	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (I) ID=40 L=90	1-09701-290-0	05	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0505
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (Q) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	04	1	0502-
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	04	1	0303-0303
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	05	1	0303-0309
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0304-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	03	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0310-
142	02.559 CLIP; HARNESS,ENG (B) L=170.3	1-09987-182-0	01	1	0301-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.483 (A)	8-97101-436-0	01	1	0301-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0301-0404
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-

386 38 150 377 386 150 377 386 239 38 139 239 19 19 55 511 511 219 294 219 294 469 515 294 469 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	02.559 BOLT; PROTECTOR 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0301-0501
19	02.559 BOLT; PROTECTOR 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0502-0512
19	02.559 BOLT; PROTECTOR 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0310-0501
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0301-0309
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0301-0501
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0301-0501
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0301-0501
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0502-0512
139	02.559 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0301-0501
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0502-0502
150	02.343 BOLT; CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512
150	02.343 BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
150	02.343 BOLT; CLIP 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512
150	02.343 BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-
219	02.559 NUT 4HE1 ENG(RLY) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0301-0309
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0301-0309
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0310-0501
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0301-0309
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	05	1	0301-0501
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	0502-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	0603-
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0301-0501
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0502-1004
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
294	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-
294	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0301-0602
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
294	02.559 NUT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0301-0602
294	02.559 NUT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0301-0602
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0602
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0301-0501
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0301-0501
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
469	02.559 NUT; PROTECTOR 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0501
469	02.559 NUT; PROTECTOR 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602
469	02.559 NUT; PROTECTOR 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0301-0501
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0502-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0301-0602
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
525	02.559 NUT; CLIP 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0301-0501

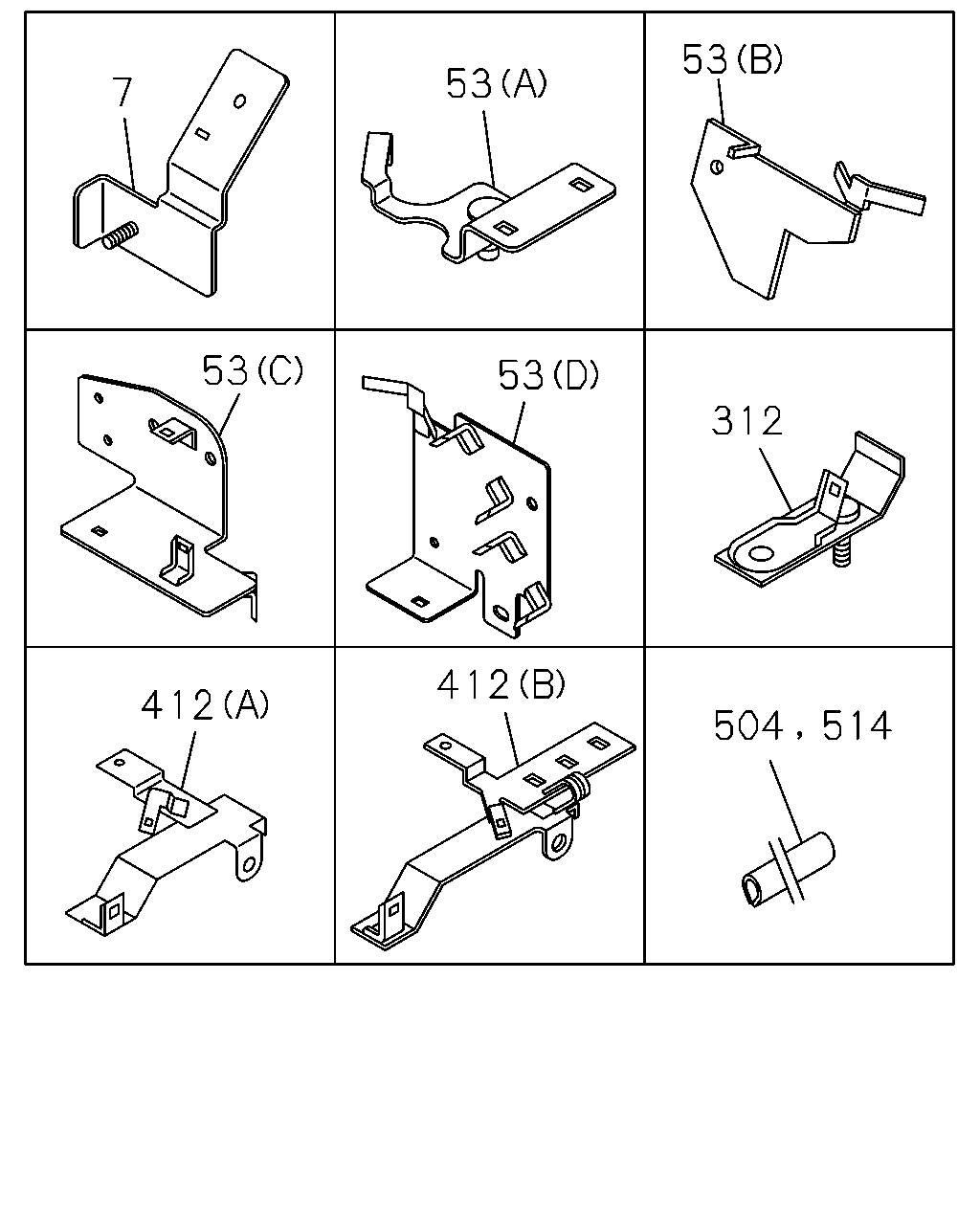

53 53 7 53 53 312 412 412 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98003-671-1	01	1	0502-
53	02.483 BRACKET; HARNESS (B)	8-97321-820-1	01	1	0301-0501
53	02.483 BRACKET; HARNESS (D)	8-97377-701-0	01	1	0502-
53	02.483 BRACKET; HARNESS 02.480 (C)	8-97360-203-0	01	1	0301-0501
53	02.483 BRACKET; HARNESS (A)	8-98003-048-0	01	1	0502-
312	02.559 BRACKET; CLIP HARNESS	8-97355-918-0	01	1	0301-
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0301-0501
412	02.559 BRACKET; HARNESS,TRANS (B)	8-97379-633-0	01	1	0502-
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0502-
504	02.559 PROTECTOR; HARNESS 02.343 L=120	8-97117-880-0	01	1	0301-0501
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0502-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0301-
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0301-
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0301-0506

16 16 48 464 48 48 48 48 48 48 48 48 208 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	06	1	0503-0504
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	05	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	06	1	1010-
16	02.559 CLIP; HARNESS (I) L=135	1-09987-143-1	02	1	0301-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0301-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0301-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0301-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0301-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0301-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0301-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	0301-1009
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	05	1	1010-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	01	1	0301-0305
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0301-0309
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (O) L=140	5-09707-031-1	02	1	0301-0504
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 03.162 (R) ID=30 L=56	1-09700-984-0	01	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (I) ID=40 L=90	1-09701-290-0	05	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0505
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0506-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0301-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0301-0501
48	02.559 CLIP; FRAME HARNESS (Q) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	04	1	0502-
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	04	1	0303-0303
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (C) ID=33 L=63	1-09700-807-0	05	1	0303-0309
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0310-0501
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	02	1	0502-0502
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0304-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0310-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	03	1	0301-0309
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	02	1	0310-
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	02	1	0502-0505
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	01	1	0506-
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 01.240 ID=14 L=47	5-09700-319-0	01	1	0301-0309

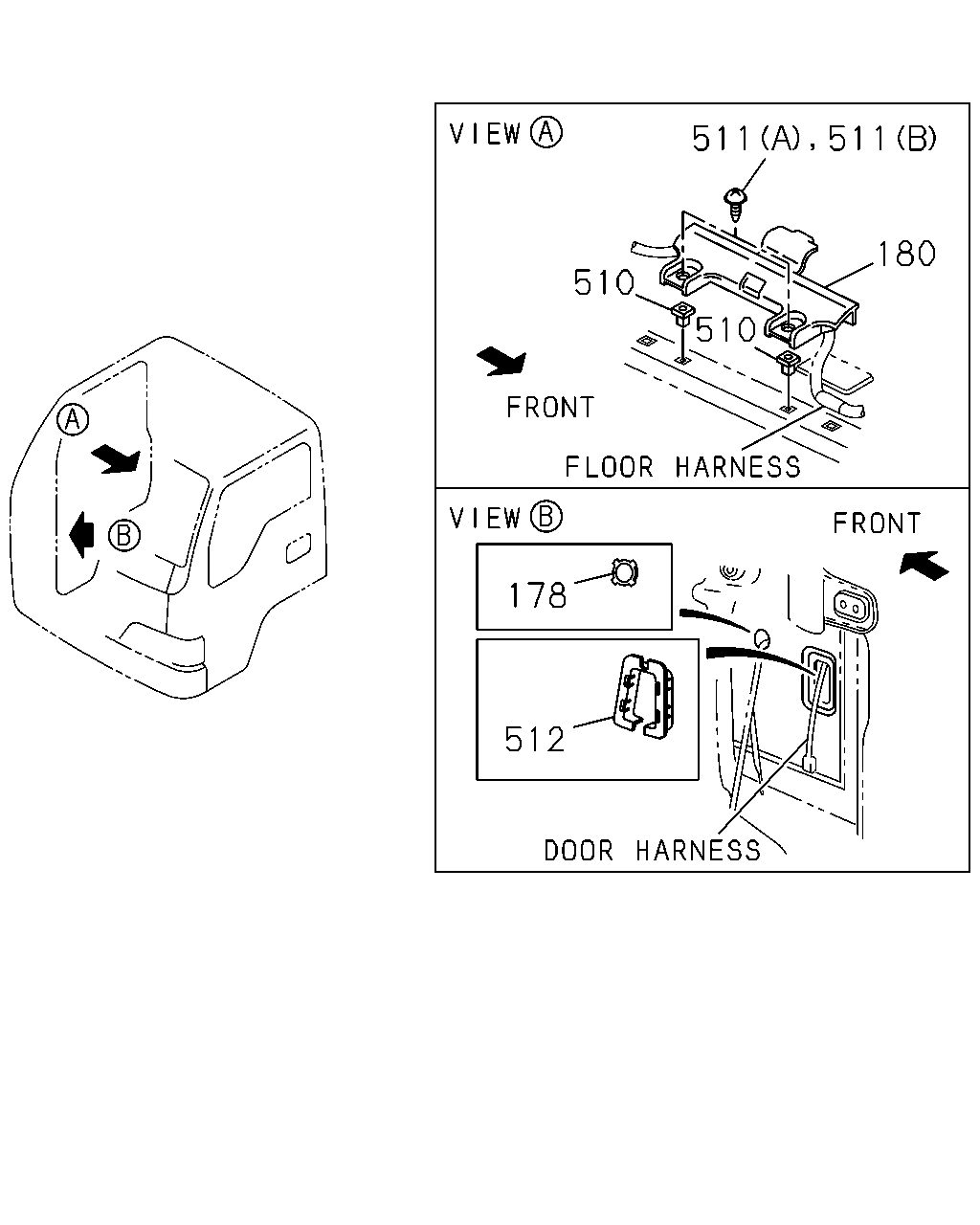

511 180 510 510 178 512 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0301-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0301-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0301-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0301-0501
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0502-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0301-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
