Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

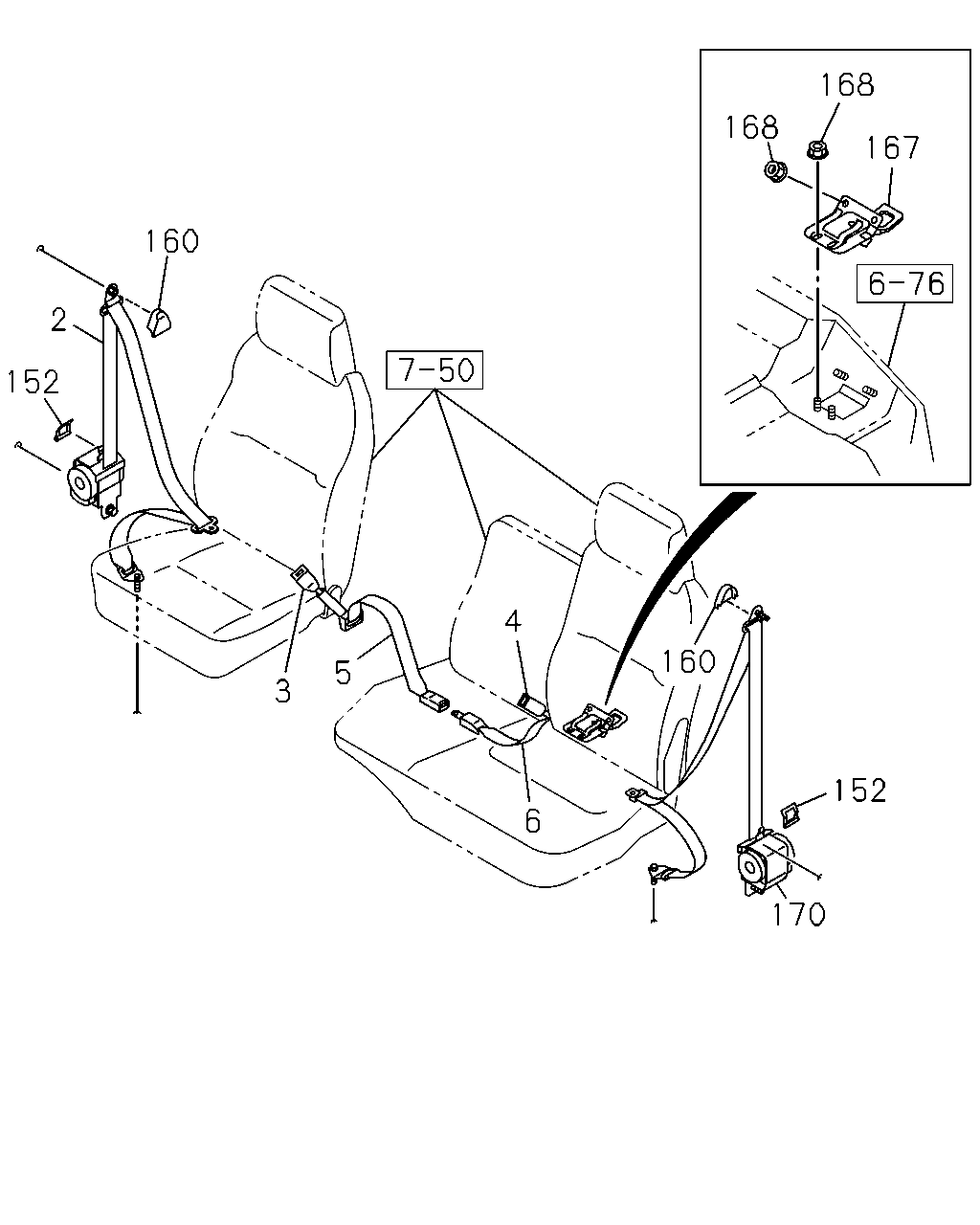

7-60 — SEAT BELT
(#33303) — 27 parça
◀
[760A] NO.2 (7 parça)
[760A] NO.1 (20 parça)
▶
177
161
161
165
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A)
8-97850-286-5
01
1
0301-
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)
8-97850-329-4
01
1
0301-
165
16.714 HOOK; SEAT BELT ANCHOR
8-97869-415-0
01
1
0301-
166
16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE
0-28680-825-0
06
1
0301-0512
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE
0-28650-825-0
06
1
0601-
177
16.714 NUT
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0301-0805
177
16.714 NUT
03.417 M8 W/LK WASHER
8-97581-234-0
02
1
0806-
168
168
167
160
2
152
4
160
5
3
152
6
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY
8-97394-514-0
01
1
0301-0501
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97400-625-1
01
1
0502-
3
16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY
8-97394-509-0
01
1
0301-0501
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97400-349-0
01
1
0502-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY
8-97326-220-0
01
1
0301-0501
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97396-952-0
01
1
0502-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY
8-97394-523-0
01
1
0301-0501
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97400-448-0
01
1
0502-0502
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97404-031-0
01
1
0503-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY
8-97394-526-0
01
1
0301-0501
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97400-453-0
01
1
0502-0502
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97404-032-0
01
1
0503-
152
16.714 PROTECTOR
8-97287-563-0
02
1
0301-
160
16.714 COVER; THROUGH ANCHOR
DARK GRAY
8-97854-897-0
02
1
0301-0501
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97396-954-0
02
1
0502-
167
16.714 PLATE; ANCHOR
8-97869-412-2
01
1
0301-
168
16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE
5-09440-005-0
04
1
0301-0712
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
04
1
0801-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY
8-97394-521-0
01
1
0301-0501
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97400-449-1
01
1
0502-
