7-50 — FRONT SEAT (#33302) — 57 parça

1 18 24 228 2 16 99 17 19 12 13 69 382 67 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT DARK GRAY	8-97393-776-1	01	1	0301-0501
1	16.720 BACK ASM; SEAT DARK GRAY	8-97400-492-2	01	1	0502-
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97393-778-0	01	1	0301-0501
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97400-493-1	01	1	0502-
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97393-779-1	01	1	0301-0501
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97400-494-1	01	1	0502-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97393-780-1	01	1	0301-0501
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97400-495-1	01	1	0502-
16	16.682 ADJUSTER ASM; RECLINING DRIVER SEAT	8-97854-057-3	01	1	0301-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-273-3	01	1	0301-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-274-3	01	1	0301-
17	16.682 BOLT; RECLINING M8X20	8-97255-906-0	02	1	0301-
18	16.682 COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0301-0501
18	16.682 COVER; RECLINING GRAY	8-97398-249-0	01	1	0502-
19	16.686 SCREW; COVER 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0301-0604
19	16.686 SCREW; COVER 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-
24	16.682 KNOB; RECLINING,FRT,SEAT DARK GRAY	8-97867-021-0	01	1	0301-0501
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97398-250-0	01	1	0502-0804
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97415-445-0	01	1	0805-
63	16.682 ADJUSTER; SEAT SLIDE	8-97854-059-3	01	1	0301-
67	16.682 BOLT; FRT SEAT TO BODY 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0301-
69	16.682 NUT; FRT SEAT M8	1-09984-109-0	01	1	0301-
71	16.682 BOLT; ADJ TO SEAT M8X20	8-97255-906-0	02	1	0301-
99	16.716 BUSHING; SEAT BACK	8-97854-087-0	01	1	0301-
228	16.714 SCREW; KNOB 11.377 M4X6	8-97042-273-0	01	1	0301-
382	16.682 WASHER; PL,DRIVER SEAT 06.514 ID=8.4 OD=22	8-94127-883-1	01	1	0301-

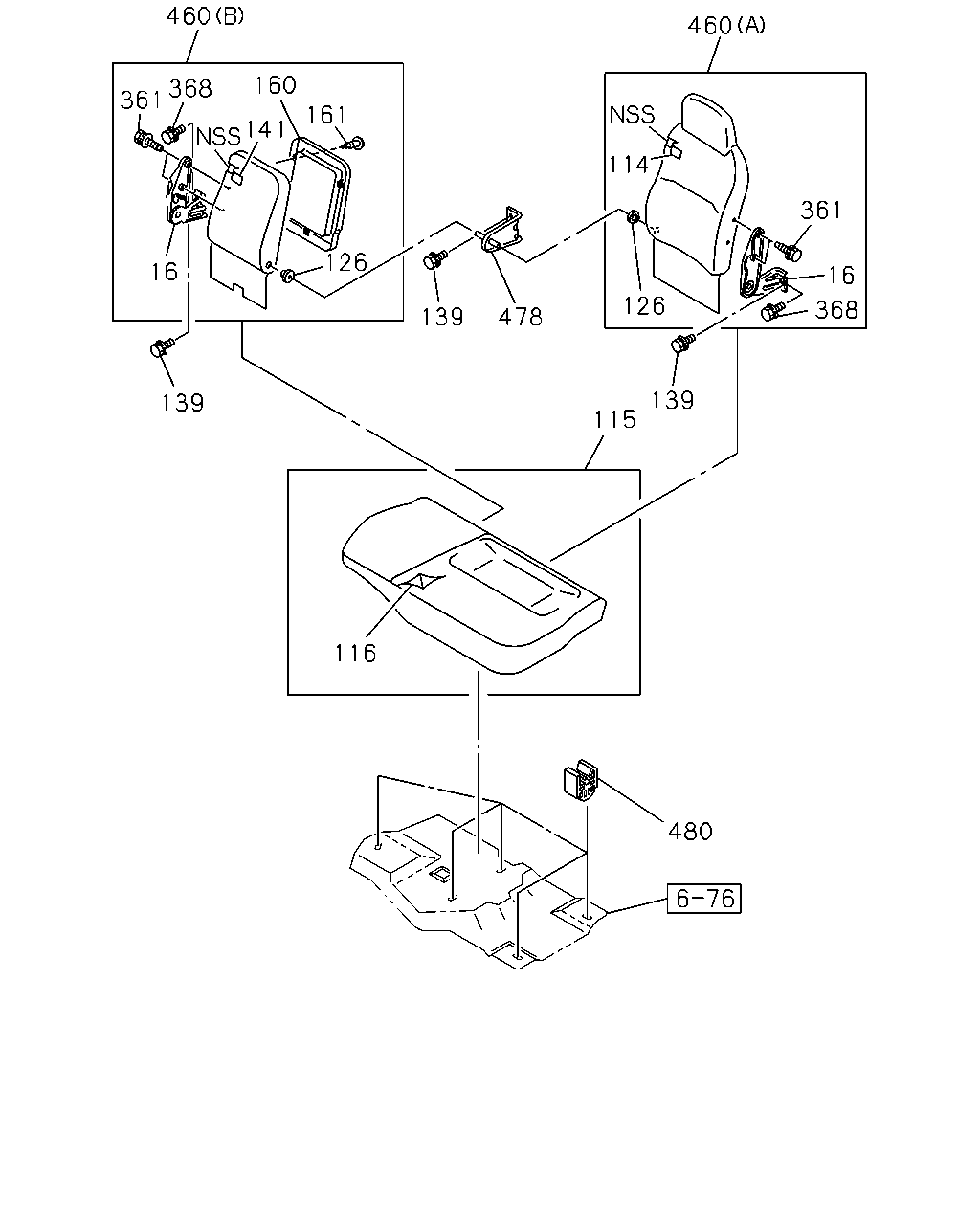

460 460 160 368 361 161 141 114 361 126 16 16 126 368 139 478 139 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING DRIVER SEAT	8-97854-057-3	01	1	0301-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-273-3	01	1	0301-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-274-3	01	1	0301-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97394-634-0	01	1	0301-0501
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97400-696-1	01	1	0502-
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97393-760-1	01	1	0301-0501
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97400-668-2	01	1	0502-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97393-770-1	01	1	0301-0501
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97400-706-1	01	1	0502-
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0301-0501
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0301-0501
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	02	1	0502-0804
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0805-
139	16.679 BOLT; PASSENGER SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0301-
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97393-767-0	01	1	0301-0501
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97400-699-1	01	1	0502-
160	16.650 CONSOLE; UPR,BACK CENTER DARK GRAY	8-97393-932-0	01	1	0301-0501
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97398-252-1	01	1	0502-
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0301-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0301-0501
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0301-0501
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0502-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0301-0501
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0301-0501
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0502-
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97393-759-2	01	1	0301-0501
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97400-659-2	01	1	0502-
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97394-573-2	01	1	0301-0501
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97400-656-1	01	1	0502-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-184-0	01	1	0301-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0301-
