7-43 — SUN VISOR AND ASSIST GRIP (#33300) — 59 parça

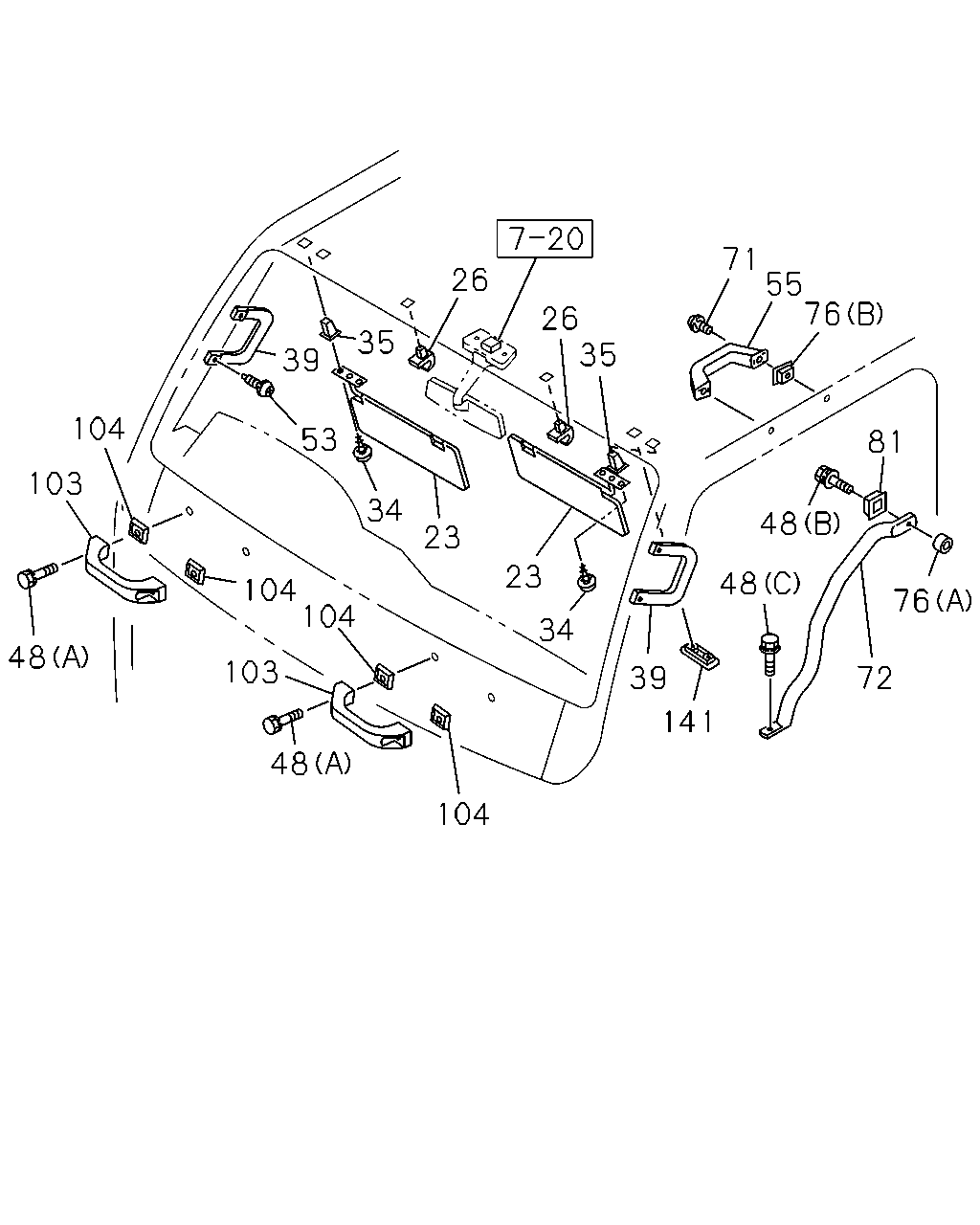

çizim 34994
71 55 76 26 26 35 35 39 104 53 81 103 34 48 23 23 48 104 104 76 34 103 48 39 72 141 48 104
BalonParca AdiParca NoAdetTipApplied Date
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> PASSENGER LIGHT GRAY 		8-97997-504-1 01 1 0301-0509
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> PASSENGER LIGHT GRAY 		8-97404-401-0 01 1 0510-
23 16.070 SUN VISOR
DRIVER LIGHT GRAY 		8-97997-875-1 01 1 0301-0509
23 16.070 SUN VISOR
DRIVER LIGHT GRAY 		8-97404-451-0 01 1 0510-
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 02 1 0301-0610
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 02 1 0611-
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 01 1 0301-0610
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 01 1 0611-
34 16.070 SCREW; SUN VISOR
03.671 M5X20 		5-09981-059-0 04 1 0301-0612
34 16.070 SCREW; SUN VISOR
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706
34 16.070 SCREW; SUN VISOR
06.514 M5X18 TAPPING 		0-72180-518-0 04 1 0707-
35 16.070 GROMMET; SCREW,SUN VISOR
16.588 		8-94279-039-0 04 1 0301-
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97867-209-0 02 1 0301-0501
39 16.450 HANDLE; ASSIST,A-POST
GRAY 		8-97582-194-1 02 1 0502-0702
39 16.450 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 0703-
48 16.450 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		8-94279-214-0 01 1 0301-
48 16.450 BOLT; ASSIST GRIP
(C) M6X40 LK&PL WASHER 		8-94279-215-0 01 1 0301-
48 16.450 BOLT; ASSIST GRIP
(A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 0301-
53 16.450 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0301-0501
53 16.450 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0502-0612
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0701-
55 16.450 GRIP; ASSIST,CAB SIDE UPR
16.346 DARK GRAY 		8-97098-476-2 01 1 0301-0501
55 16.450 GRIP; ASSIST,CAB SIDE UPR
GRAY 		8-97582-294-2 01 1 0502-0610
55 16.450 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 0611-
71 16.450 SCREW
M6X30 W/LK WASHER 		5-09981-064-0 02 1 0301-0612
71 16.450 SCREW
M6X28 		8-98004-344-0 02 1 0701-
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK 8-97856-889-2 01 1 0301-
76 16.742 SPACER; ASSIST GRIP
(A) 		8-97857-268-0 01 1 0301-
76 16.742 SPACER; ASSIST GRIP
(B) DARK GRAY 		8-97859-854-0 02 1 0301-0501
76 16.742 SPACER; ASSIST GRIP
(B) GRAY 		8-97582-250-0 02 1 0502-0610
76 16.742 SPACER; ASSIST GRIP
(B) DARK GRAY 		8-97405-286-0 02 1 0611-
81 15.394 CAP; ASSIST GRIP
DARK GRAY 		8-97867-612-4 01 1 0301-0501
81 15.394 CAP; ASSIST GRIP
GRAY 		8-97582-827-4 01 1 0502-
103 16.450 GRIP; ASSIST,FRT PNL
WHITE 		1-71998-131-0 02 1 0301-1002
103 16.450 GRIP; ASSIST,FRT PNL 8-97630-819-0 02 1 1003-
104 16.450 SPACER; ASSIST GRIP 8-97859-124-3 04 1 0301-
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0301-
çizim 35260
30 31 51 137 138 30 31 1 128 128 128 15
BalonParca AdiParca NoAdetTipApplied Date
1 16.742 BOARD; HEADER SHELF
LIGHT GRAY 		8-97994-820-1 01 1 0301-
15 16.742 FASTENER; HEADER SHELF BOARD
LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 0301-
30 16.742 BRACKET ASM; HEADER SHELF
(B) 		8-97856-797-3 01 1 0301-
30 16.742 BRACKET ASM; HEADER SHELF
(B) 		8-97856-798-3 01 1 0301-
30 16.742 BRACKET ASM; HEADER SHELF
(A) 		8-97859-388-4 01 1 0301-
31 16.742 SCREW; BRKT,HEADER SHELF
16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0301-0405
31 16.742 SCREW; BRKT,HEADER SHELF
16.263 (A) M5X16 		8-94279-341-0 02 1 0406-0612
31 16.742 SCREW; BRKT,HEADER SHELF
16.069 (A) M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702
31 16.742 SCREW; BRKT,HEADER SHELF
16.263 (A) M5X16 		8-94279-341-0 02 1 0703-
31 16.742 SCREW; BRKT,HEADER SHELF
16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0301-0612
31 16.742 SCREW; BRKT,HEADER SHELF
16.570 (B) M6X16 		0-38050-616-0 04 1 0701-
51 16.570 HOOK; COAT HANGER
LIGHT GRAY 		8-97867-259-1 01 1 0301-0610
51 16.570 HOOK; COAT HANGER
LIGHT GRAY 		8-97867-259-1 01 1 0301-0610
51 16.570 HOOK; COAT HANGER
DARK GRAY 		8-97405-302-1 01 1 0611-
51 16.570 HOOK; COAT HANGER
DARK GRAY 		8-97405-302-1 01 1 0611-
128 16.742 FASTENER; HEADER SHELF
(A) LIGHT GRAY 		8-97892-153-2 02 1 0301-
128 16.742 FASTENER; HEADER SHELF
EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY 		8-97892-151-0 01 1 0301-
128 16.742 FASTENER; HEADER SHELF
(C) 		8-97892-737-0 03 1 0301-0612
128 16.742 FASTENER; HEADER SHELF
(C) M6X16 W/TORQUES 		8-98064-273-0 03 1 0701-
137 16.742 GROMMET; SCREW,HEADER SHELF
16.588 		8-94279-039-0 01 1 0301-0405
138 16.742 NUT; BRKT,HEADER SHELF
07.633 M8 FLANGE 		0-91150-108-0 01 1 0301-0602
138 16.742 NUT; BRKT,HEADER SHELF
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
