1-31 — AIR DUCT (#333) — 37 parça

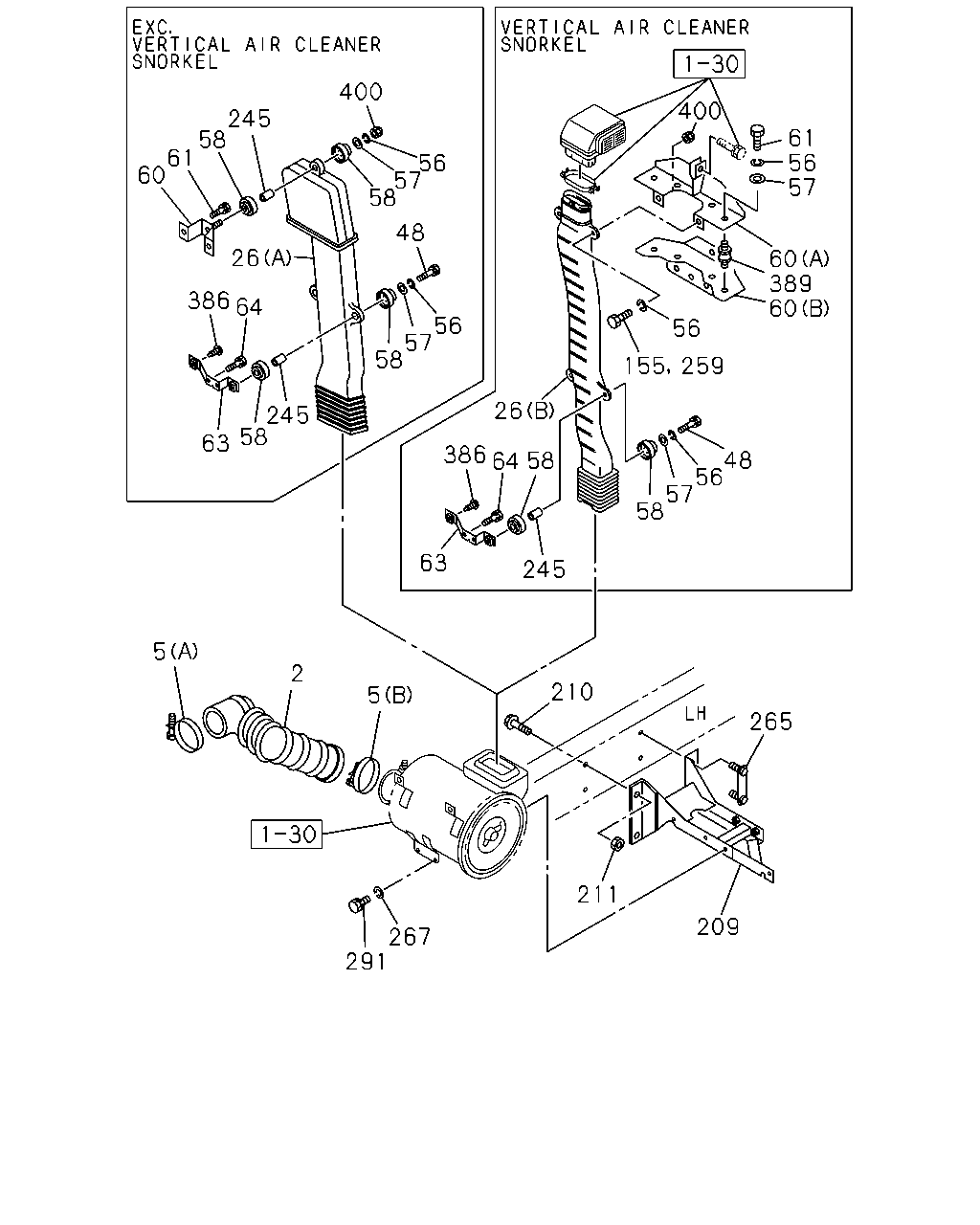

çizim 28471
400 400 245 58 61 60 61 56 57 56 57 58 48 26 60 389 60 386 64 56 57 58 56 155 26 245 58 63 386 48 56 57 58 63 245 5 2 210 5 265 211 209 267 291 259 64 58
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-809-0 01 1 9202- ● ●
5 CLIP; AIR DUCT
(A) 		1-09707-144-0 01 1 9202- ● ●
5 CLIP; AIR DUCT
(B) 		1-09707-155-0 01 1 9202- ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-14230-110-0 01 1 9202-9501 ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-14230-143-0 01 1 9502- ● ●
26 DUCT; AIR INT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-79998-676-0 01 1 9202-9501 ● ●
26 DUCT; AIR INT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-14230-141-0 01 1 9502- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 9202- ● ●
56 WASHER; LK,AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09985-180-0 08 1 9202- ● ●
56 WASHER; LK,AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09500-046-0 01 1 9202- ● ●
57 WASHER; PL,AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18 		1-09985-173-0 08 1 9202- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9202- ● ●
58 SUPPORT; AIR INL DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5 		1-14119-267-0 04 1 9202- ● ●
58 SUPPORT; AIR INL DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5 		1-14119-267-0 06 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-79998-600-0 01 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-79998-665-0 01 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-571-2 01 1 9202- ● ●
61 BOLT; BRKT,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9202- ● ●
61 BOLT; BRKT,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9202- ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-572-2 01 1 9202- ● ●
64 BOLT; BRKT,AIR DUCT
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9202- ● ●
155 BOLT; BRKT
VERTICAL AIR CLEANER SNORKEL<PP3> M6X14 		8-94279-143-0 02 1 9202- ● ●
209 BRACKET; ACL 1-53497-398-0 01 1 9202- ● ●
210 BOLT; ACL BRKT
M12X40 W/LK WASHER 		0-50041-240-0 02 1 9202-9307 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28081-240-0 02 1 9308-9503 ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28081-235-0 02 1 9504- ● ●
211 NUT; BRKT
M12 		9-99110-512-0 02 1 9202- ● ●
245 PIECE; DIST,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-228-0 02 1 9202- ● ●
245 PIECE; DIST,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-228-0 03 1 9202- ● ●
259 BOLT; AIR DUCT TO BRKT
VERTICAL AIR CLEANER SNORKEL<PP3> M6X14 		8-94279-143-0 02 1 9202- ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 9202- ● ●
267 WASHER; LK,ACL
ID=12.2 		9-09150-512-0 02 1 9202- ● ●
291 BOLT; ACL
M8X25 FLANGE 		0-28080-825-0 04 1 9202- ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 02 1 9202- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-14119-189-0 04 1 9202- ● ●
400 NUT; CAP,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09984-121-0 08 1 9202- ● ●
400 NUT; CAP,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09984-145-0 01 1 9202- ● ●
