0-42 — FUEL PUMP AND PIPE (#33294) — 40 parça

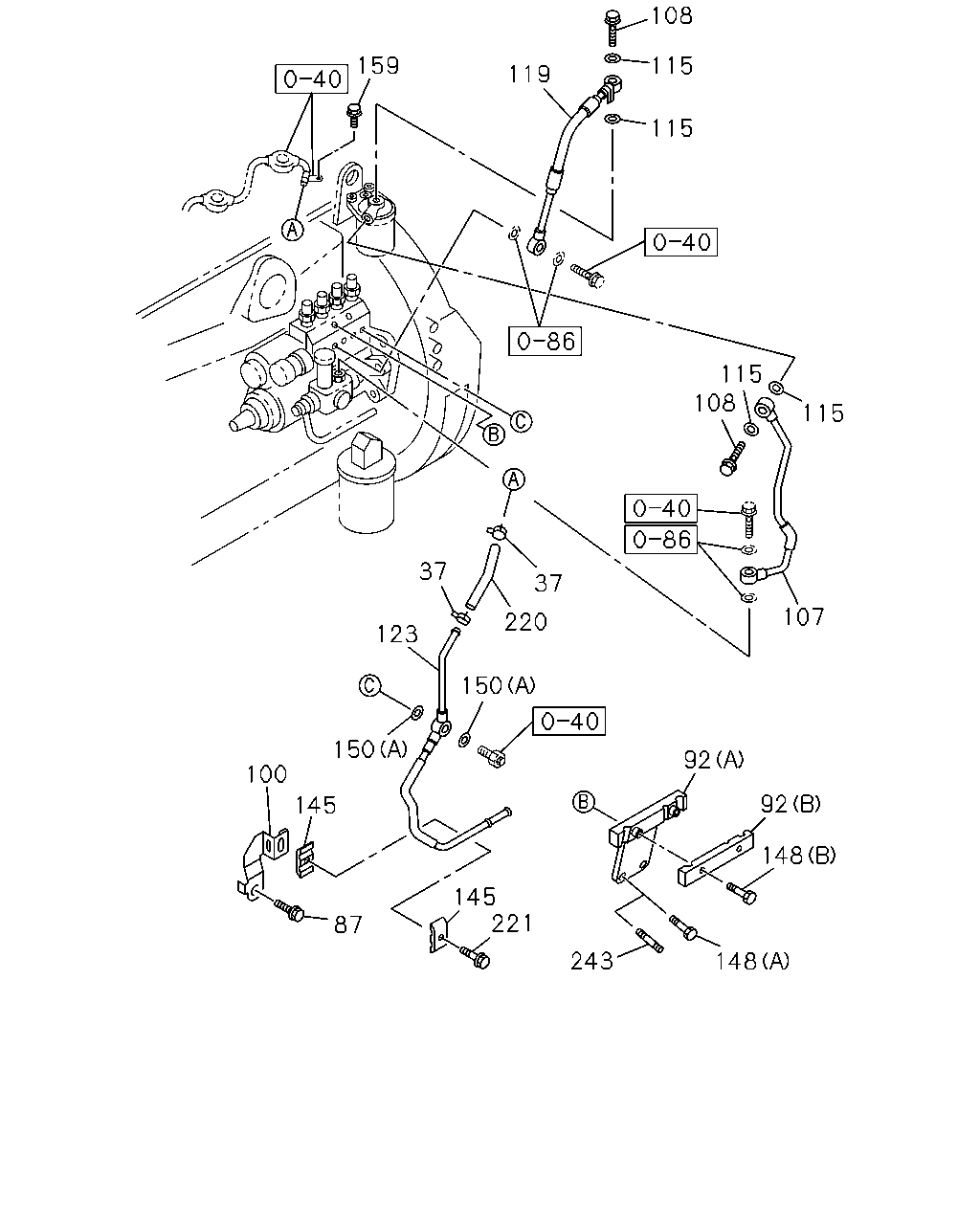

108 159 115 119 115 115 108 115 37 37 107 220 123 150 150 92 100 92 145 148 145 221 87 243 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE 01.219 ID=12	8-94238-610-0	02	1	0211-0501	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
92	03.162 BRACKET; FUEL PIPE (A)	8-97166-995-1	01	1	0211-0501	●
92	03.162 BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0211-0501	●
100	03.162 CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0211-0501	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97148-967-3	01	1	0211-0501	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0211-0501	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97357-237-0	01	1	0211-0501	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0211-0501	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0211-0501	●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0211-0303	●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	0304-0403	●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0404-0501	●
148	03.162 BOLT; BRKT 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0211-0501	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0502-0908		●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-		●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0211-0501	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0502-		●	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-		●	●
220	03.163 HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0211-0501	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0502-		●	●
243	03.278 STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0304-0403	●

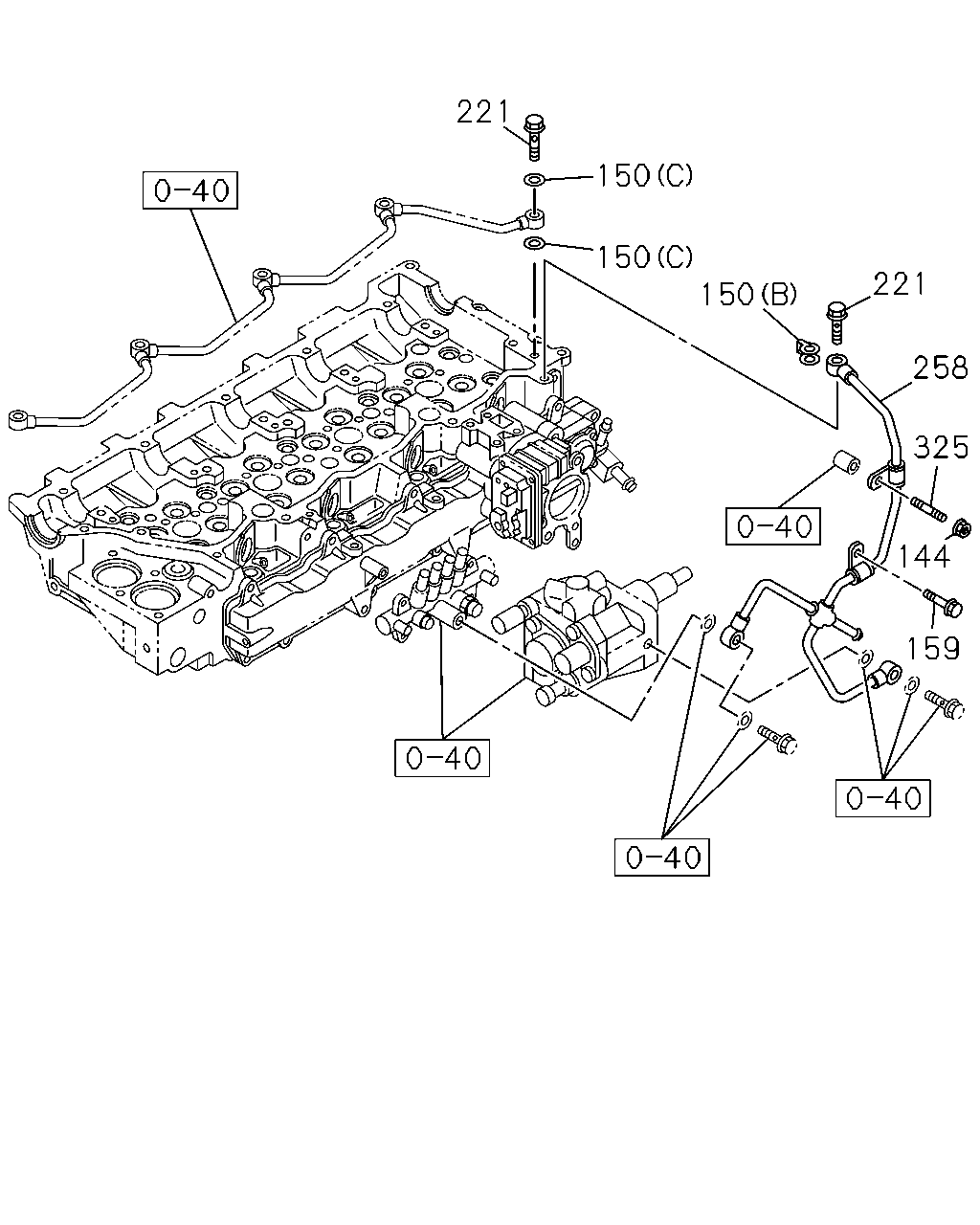

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
144	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0502-0908		●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-		●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	0211-0501	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0502-		●	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-		●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0211-0501	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0502-		●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0502-		●	●
325	03.278 STUD; CLIP 01.453 M6X40 L=50	9-04110-640-0	01	1	0502-0604		●	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-		●	●
