Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶
0-41 — FUEL FILTER AND BRACKET
(#33293) — 11 parça
Tümü
A - 4HE1 ENG
B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
◀

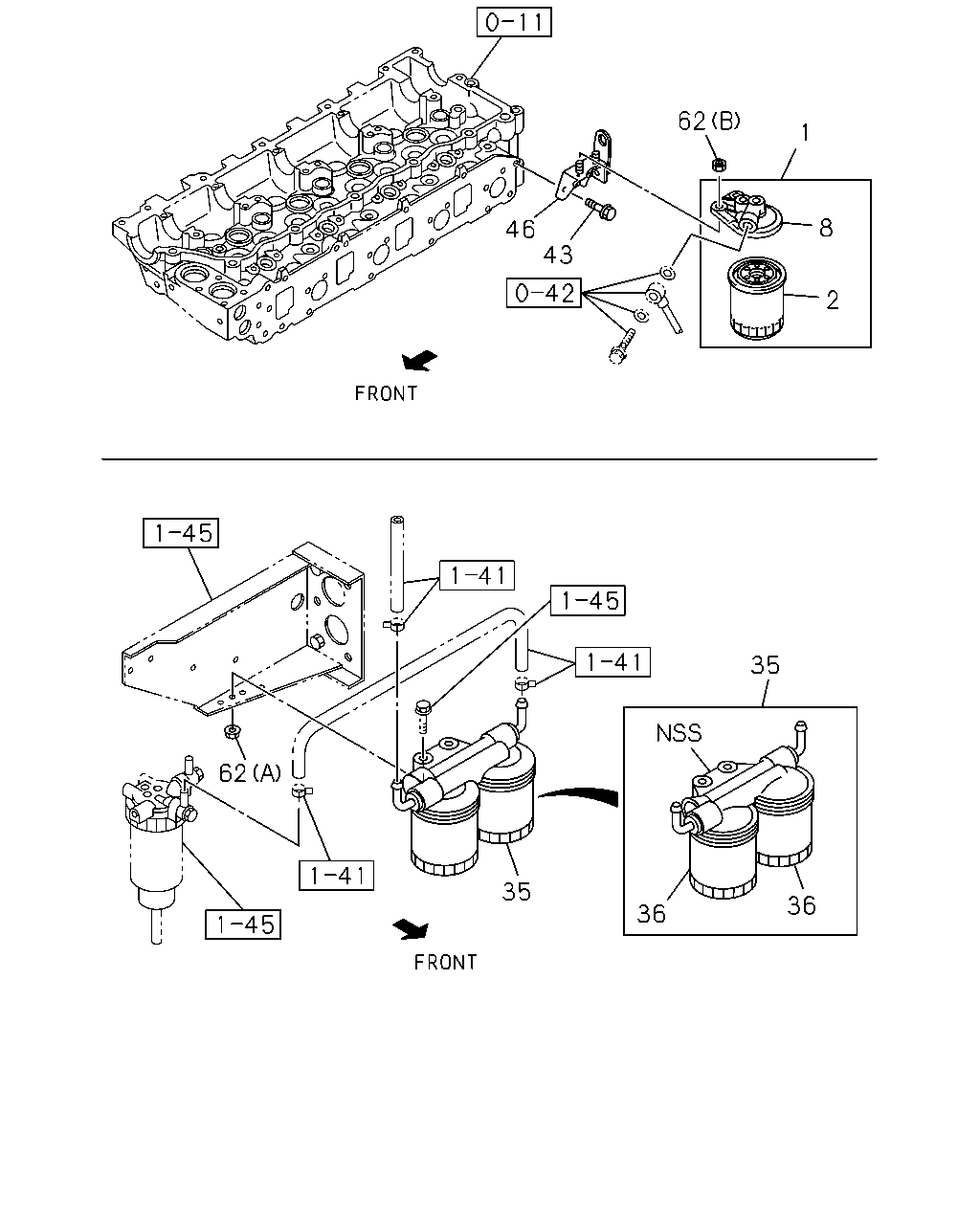

[041A] FUEL FILTER AND FUEL FILTER DUAL (9 parça)

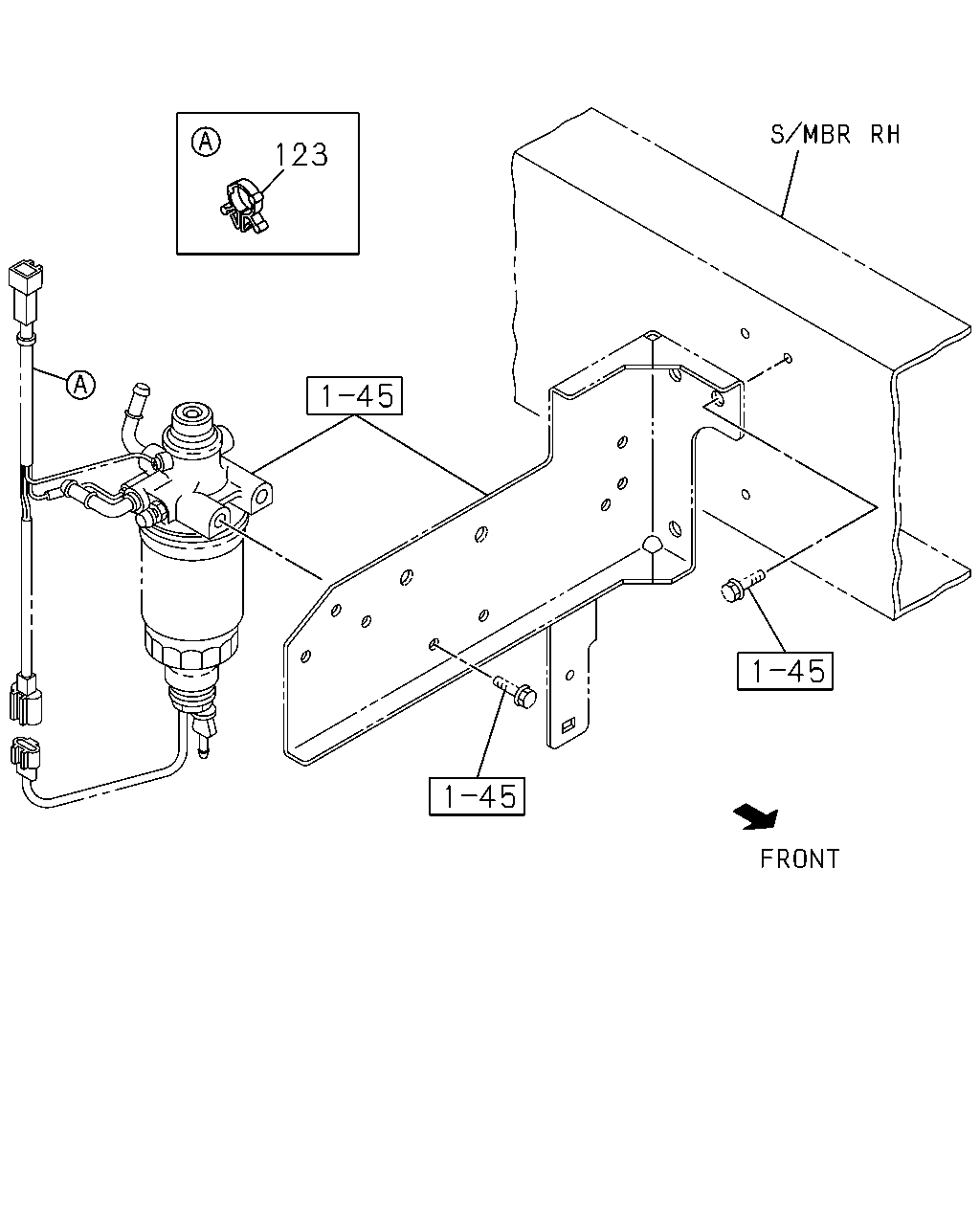

[041A] CLIP (2 parça)
▶
62
1
8
46
43
2
35
62
35
36
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.890 FILTER ASM; FUEL
1-13200-890-3
01
1
0211-0501
●
2
03.890 ELEMENT KIT; FUEL FILTER
1-13240-079-1
01
1
0211-0501
●
8
03.890 COVER; FUEL FILTER
1-13212-159-2
01
1
0211-0501
●
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
0211-0501
●
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
0211-0501
●
43
03.890 BOLT; BRKT
M12X25
0-28781-225-0
02
1
0211-0501
●
46
03.890 BRACKET
8-97148-962-2
01
1
0211-0501
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0211-0501
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0211-0501
●
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
123
03.890 CLIP; HARNESS
ID=4.8
1-09701-218-0
01
1
0502-0508
●
●
123
03.890 CLIP; HARNESS
02.559 ID=9
8-97063-874-0
01
1
0504-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
